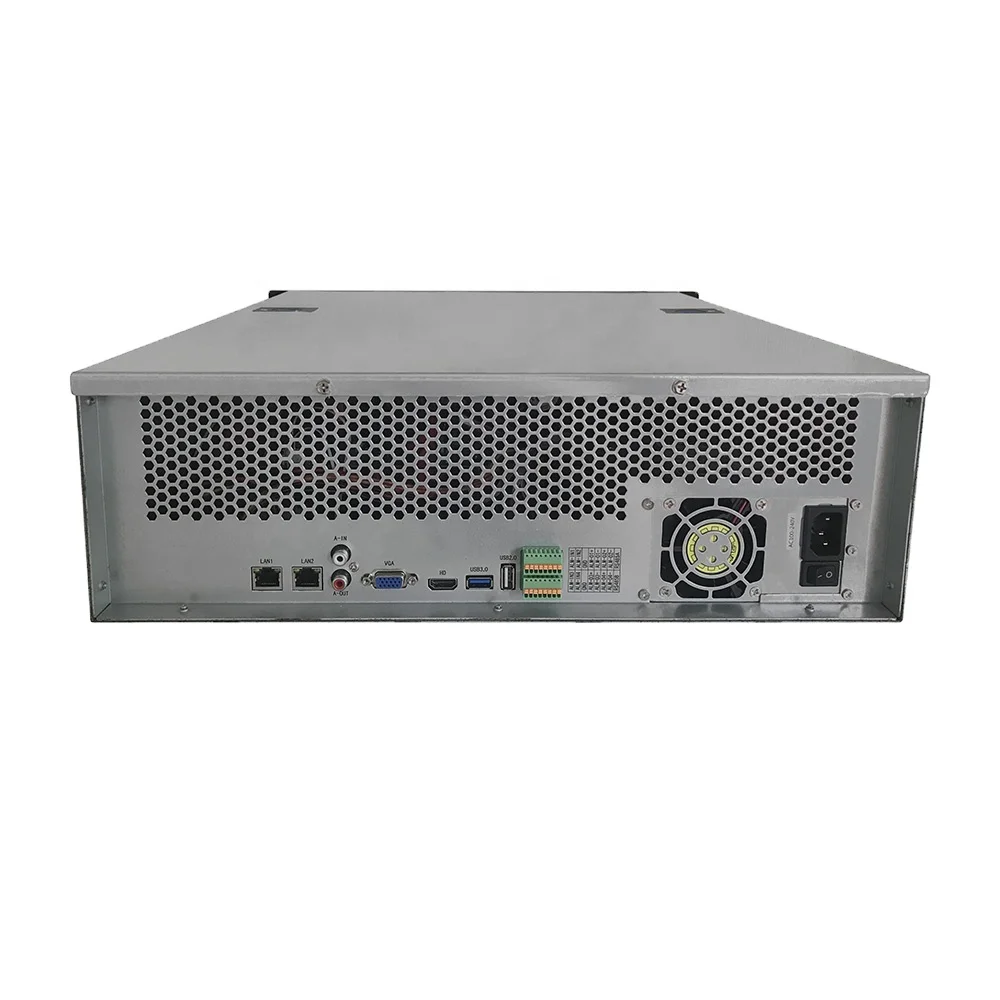

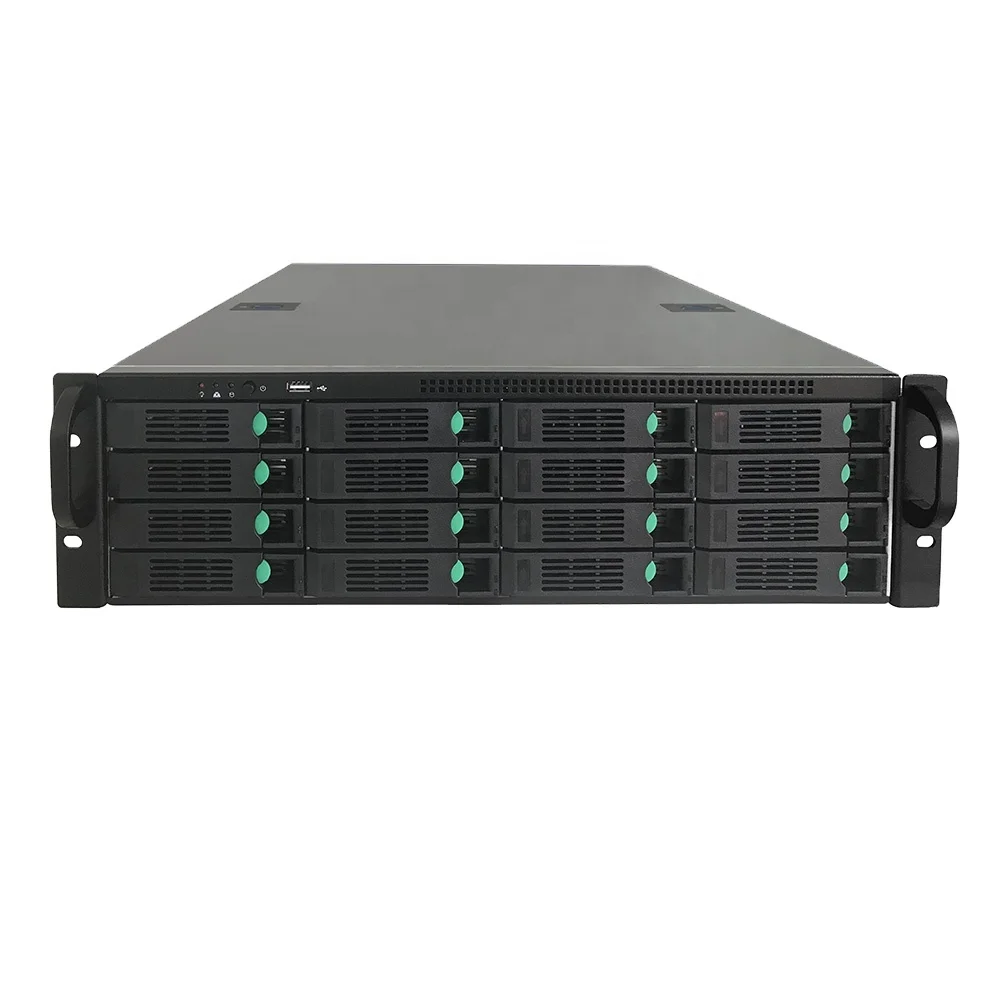

H.265+ 128CH 4K 16 SATA smart AI NVR
H.265+/H.265/H.264 video formats
Compatible with IP cameras which support ONVIF, RTSP standard
Up to 128PCS 4K/5/4/3/2/1MP IP cameras
16 SATA interfaces for HDD connection each max. 8TB
640M bandwidth
1/4/6/8/9/16/25/36/64/128 screen preview
Support audio I/O
Support Alarm I/O
AI function
Model NO. | VH-N16128 |
System | |
Main Processor | Hi3536 |
Operating System | Embedded Linux |
Bandwitdh | 640M |
Video Format | H.265+/H.265/H.264 |
Video Resolution | 4K/5MP/3MP/720P/D1 |
Smart Function | Target count, electric fence, human detection, line-crossing, retrograde detection, absent alarm(IP camera must support) |
Record Mode | Manual, Schedule, Motion Detection, Timing, Alarm, Stop |
Playback | 4CH 4K, 9CH 3MP, 16CH 2MP |
Playback Mode | Regular playback, event playback |
Backup Mode | USB Device, Network |
Video & Audio | |
Vedio Input | 128CH(3840 x 2160, 2592 x 1944, 2048 x 1536, 1920 x 1080, 1280 x 960, 1280 x 720, etc) |
Split | 1CH x 4K 4CH x 4K 6CH(1CH x 4K + 5CH x 2MP) 8CH(1CH x 4K + 7CH x 2MP) 9CH x 3MP 16CH x 2MP 25CH x 1MP 36CH x D1 64CH x D1 128CH x D1 |
Video Output | HDMI x 1, VGA x 1 |
Audio Input | 1 PC RCA port(electrical level 1.8Vp-p, impedance 1kΩ) |
Audio Ouput | 1 PC RCA port(electrical level 1.8Vp-p, impedance 1kΩ) |
Alarm I/O | 4CH input, 4CH output |
Storage | |
HDD | 16 SATA Hard Disk Interfaces (3.5" SATA), each max 8TB |
E-SATA | / |
Network | |
Interface | 2 x RJ45 10M/100M/1000M Adaptive Ethernet Interface |
PoE | / |
Network Function | DDNS, EMAIL, UPNP, NTP, DHCP, IP Filter, PPPoE, P2P |
CMS Software | Support Windows 7/ Windows 8/Windows 10/MAC OS |
App | Support iPhone, iPad, Android, Android Pad |
External Port | |
USB | USB port(2.0) x 2, USB port(3.0) x 1 |
RS485 | 1 |
RS232 | / |
General | |
Power Supply | ATX 110-240V/50-60Hz, 300W |
Power Consumption | ≤240W(without HDD) |
Working Environment | -10~55℃/10~90% |
Dimension(W × D × H) | 435 x 545 x 135mm |
Weight | 15KG(without HDD) |
Pakage | 1 PC/carton, 69 x 60 x 27cm, 17KG(not include HDD) |
Packaging: Rapped in plastic bag and surrounded by foam, then in giftbox and carton box.
Shipping: Express (TNT, DHL, FedEx, UPS, EMS, etc), Air, Ocean
A. If the weight is under 100KG, it can be sent by express or air
B. If the weight is over 100KG, we recommend sending them by Ocean
Shipping Notice:
In order to make your goods arrive betimes, please make sure your name is complete, shipping address is detailed, post code and phone number are correct.
Shenzhen Vanhua Technologies Co., Ltd. is a professional IoT (Internet of Things) solution provider with video as the core, providing security, visual management and big data service for the world. Our main products include IP camera, AHD camera, NVR, DVR, decoder, VMS and so on.
Our advantages:
1. One-stop IoT and video surveillance solution supplier. We offer solution, supply product and installation guidance according to client's demand and budget;
2. Good quality and competitive price;
3. OEM, ODM and small order are available.
Q1. What kind of service can you provide?
A: Hardware and software OEM/ODM service
Q2. How can I check the product quality?
A: 1. Online demo is available, please contact us, we will show you during our working time
2. You can buy a sample for quality test, sample time 3-8 working days after payment confirmed
3. We have online store, we can sell single product to you, online payment supported
4. We will attend some show at your local place at some time, please contact us for more details
Q3. What is product warranty?
A: 2 years for cameras (Keyboard for 1 year)
Q4: What if there is defective product?
A: Principle:"To decrease loss for both sides"
1. Remote Support first
2. If remote support can not work,
2-1. For small QTY, we will deduct the cost in the next order
2-2. For large QTY, we will accept return of items
2-3. If item return,to save the cost of shipping,we advise sending back parts that defective
3. We are cooperative to help solving the problem even it is not our fault
4. More details, please contact us
Q5: Time for production and delivery?
A: 1. Sample 3-8 working days, mass production 7-15 working days
2. Delivery time: Via Express delivery, 3-7 working days
Q6: How to place an order?
A: Most of our products in Alibaba are RTP(ready to ship), and Trade Assurance Order is available, so buyers in some areas can start order directly, if can't, please send below info to us:
1. Enterprise name or individual name
2. Address with zip code, telephone (or cellphone) number, tax number (for some areas)
3. Model No. and quantity which you decide to order, and detailed info if you have any special requests
