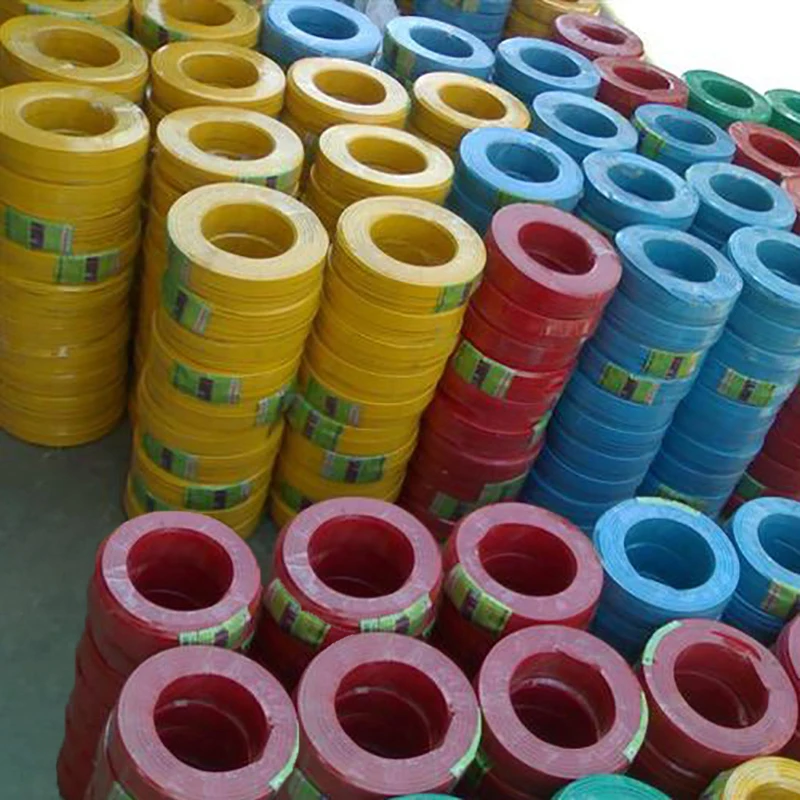

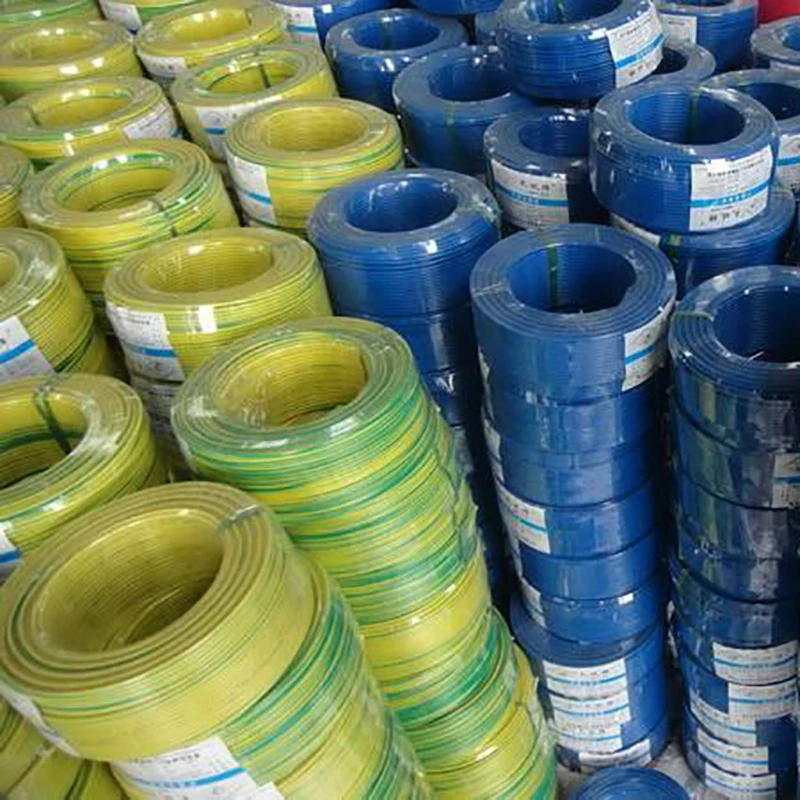

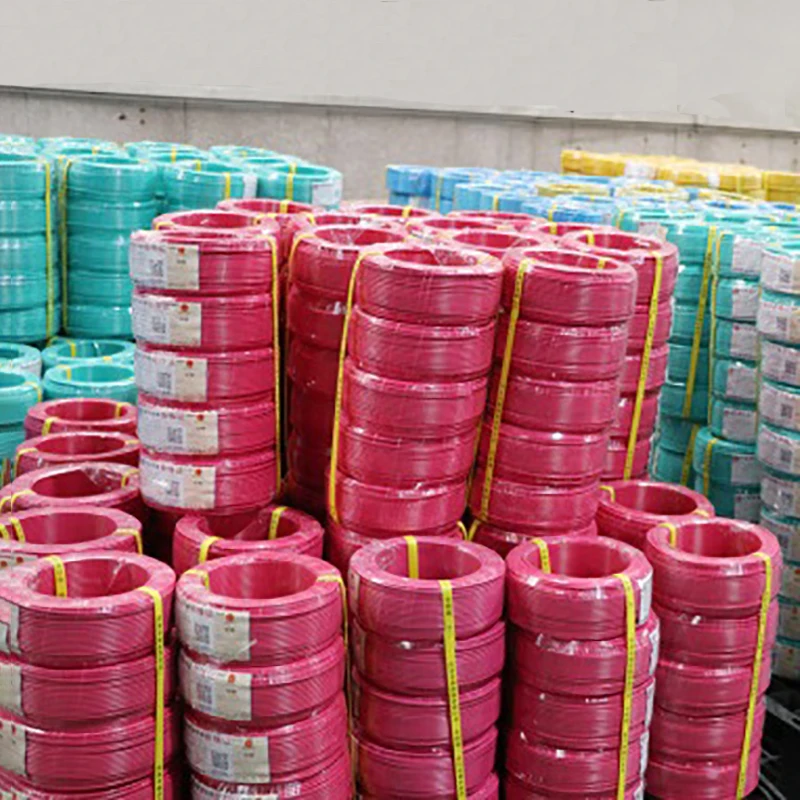

Электрический кабель 220 В провод 1 5 мм 2 электрические многожильные провода из чистой меди для
- Категория: Electrical Wires >>>
- Поставщик: Sichuan,Zhongtian,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.11 $* | 0.75 $* |
| Aug-15-2025 | 0.72 $* | 0.23 $* |
| Jul-15-2025 | 0.97 $* | 0.64 $* |
| Jun-15-2025 | 0.0 $* | 0.94 $* |
| May-15-2025 | 0.60 $* | 0.79 $* |
| Apr-15-2025 | 0.46 $* | 0.48 $* |
| Mar-15-2025 | 0.76 $* | 0.26 $* |
| Feb-15-2025 | 0.61 $* | 0.47 $* |
| Jan-15-2025 | 0.84 $* | 0.64 $* |
Характеристики
Products Description
Electric wire is suitable for the connection of household appliances, small electric tools, instruments and power lighting to power supply with AC rated voltage of 450 / 750V and below.
* Main of cables features:
1,Uo/U is 450/750V,300/500,
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.
* Application:
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power plant, household electrical applance,insurment and telecommunication equipment.
1,Uo/U is 450/750V,300/500,
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.
* Application:
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power plant, household electrical applance,insurment and telecommunication equipment.
BV | ||||||||||||
Nominal Sectional Area | Conductor No./Dia. | Nominal Insulated Thickness | Max. Overall Dia. | Conductor Resistance at 20 ℃ | Min. Insulated Resistance at 70℃ | Weight | ||||||
mm2 | mm | mm | mm | MΩ/km | MΩ/km | Kg/km | ||||||
1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | 0.011 | 19.2 | ||||||
2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 0.01 | 30.8 | ||||||
4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 0.0085 | 45.5 | ||||||
6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 0.007 | 65 | ||||||
10 | 7/1.35 | 1 | 7 | 1.83 | 0.0065 | 110 | ||||||
16 | 7/1.70 | 1 | 8 | 1.15 | 0.005 | 170 | ||||||
25 | 7/2.14 | 1.2 | 10 | 0.727 | 0.005 | 270 | ||||||
35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.004 | 364 | ||||||
50 | 19/1.78 | 1.4 | 13 | 0.387 | 0.0045 | 500 | ||||||
70 | 19/2.14 | 1.4 | 15 | 0.268 | 0.0035 | 688 | ||||||
95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.0035 | 953 | ||||||
120 | 37/2.03 | 1.6 | 19 | 0.153 | 0.0032 | 1168 | ||||||
150 | 37/2.25 | 1.8 | 21 | 0.124 | 0.0032 | 1466 | ||||||
185 | 37/2.52 | 2 | 32.5 | 0.099 | 0.0032 | 1808 | ||||||
BVR | ||||||||||||
Nominal Sectional Area | Conductor No./Dia. | Nominal Insulated Thickness | Max. Overall Dia. | Conductor Resistance at 20 ℃ | Min. Insulated Resistance at 70℃ | Weight | ||||||
mm2 | mm | mm | mm | MΩ/km | MΩ/km | Kg/km | ||||||
1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | 0.01 | 20.6 | ||||||
2.5 | 19/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33 | ||||||
4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48 | ||||||
6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68 | ||||||
10 | 49/0.52 | 1 | 7.6 | 1.83 | 0.0072 | 115 | ||||||
16 | 49/0.64 | 1 | 8.8 | 1.15 | 0.0062 | 176 | ||||||
25 | 98/0.58 | 1.2 | 11 | 0.727 | 0.0058 | 272 | ||||||
35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384 | ||||||
50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510 | ||||||
70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714 | ||||||
95 | 259/0.68 | 1.6 | 19.5 | 0.139 | 0.0035 | 965 | ||||||
120 | 259/0.76 | 1.8 | 22 | 0.153 | 0.0032 | 1210 | ||||||
150 | 259/0.85 | 1.8 | 25 | 0.124 | 0.0032 | 1510 | ||||||
