USG6655F(HTM) AC хост 02353WAW 8 * GE COMBO + 4 RJ45 10 10GE SFP 2 питания переменного тока для
- Категория: Firewall & VPN >>>
- Поставщик: Chongqing,Chimu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.51 $* | 0.9 $* |
| Aug-15-2025 | 0.5 $* | 0.37 $* |
| Jul-15-2025 | 0.79 $* | 0.92 $* |
| Jun-15-2025 | 0.32 $* | 0.72 $* |
| May-15-2025 | 0.37 $* | 0.11 $* |
| Apr-15-2025 | 0.35 $* | 0.44 $* |
| Mar-15-2025 | 0.53 $* | 0.8 $* |
| Feb-15-2025 | 0.8 $* | 0.35 $* |
| Jan-15-2025 | 0.24 $* | 0.83 $* |
Характеристики
Product Description

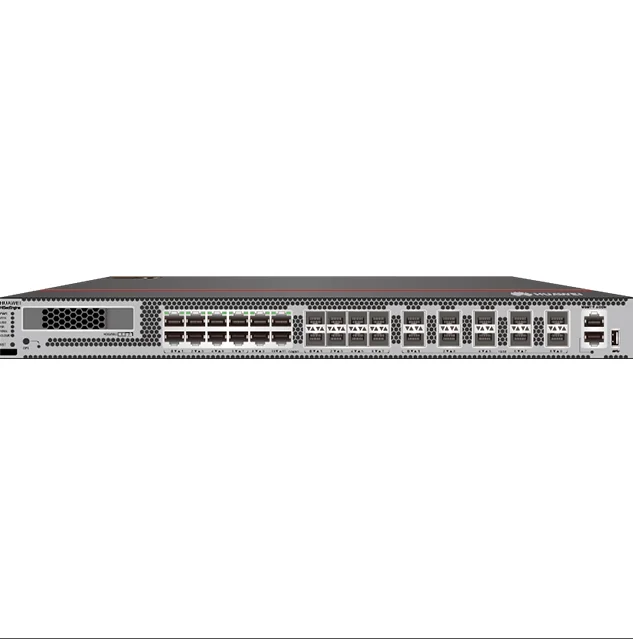

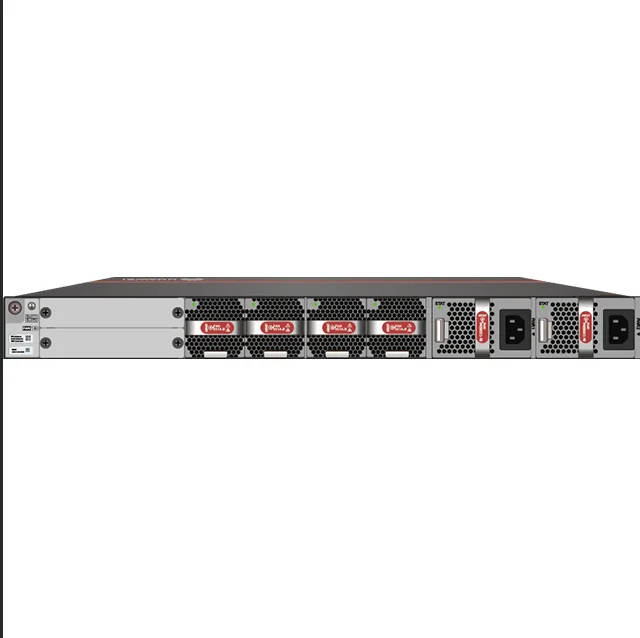

Structure
1. Product series ID | 2. Indicator and button area | 3. HDD/SSD slot | 4. Fixed interface area | 5. Protective ground terminal |
6. MAC label | 7. SN label | 8. Slot ID | 9. Expansion slot | 10. Fan module |
11. Power module | - | - | - | - |
Slot Layout
| Slot Type | Slot ID | Slot Direction | Remarks |
|---|---|---|---|
| Hard disk (HDD/SSD) slot | - | Horizontal | 2.5-inch SATA hard disk (240 GB/960 GB/1000 GB) |
| Expansion card slot | 1-2 | Horizontal | Supports the SIC-2SM-BF card. |
| Fan module slot | 1-4 | Horizontal | At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Power module (PWR) slot | 1-2 | Horizontal | PMs are plug-and-play. |
Technical Specifications
| Item | Specification |
|---|---|
| Installation Type | Rack |
| Cabinet installation standard | Cabinet with a depth of 600 mm or above |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 175 mm x 550 mm x 650 mm |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 10.3 kg (22.71 lb) |
| Weight without packaging [kg(lb)] | 7.3 kg (16.09 lb) |
| CPU | 1 CPU, 16 Cores/CPU, up to 2.0 GHz |
| Memory | DDR4 32GB with ECC |
| NOR Flash | 64MB |
| NAND Flash | 4 GB |
| Hard disk | Optional. You can purchase a 2.5-inch SATA hard disk (240 GB/960 GB/1000 GB) from Huawei based on the site requirements. The hard disk is hot swappable. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| Maximum power consumption [W] | 242 W |
| Maximum heat dissipation [BTU/hour] | 825.7 BTU/hour |
| MTBF [years] | 31.63 years |
| MTTR [hours] | 2 hours |
| Power supply mode | AC built-in |
| Number of power modules | 2 |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] | 8 A |
| Maximum output power [W] | 600 W |
| Types of fans | Pluggable |
| Number of fan modules | 4 |
| Heat dissipation mode | The fan module locates at the air exhaust of the system. |
| Airflow direction | Air intake vent from front and air outlet from rear. |
| Maximum number of 10GE ports | 10 |
| Maximum number of GE ports | 8 |
| Maximum number of electrical ports | 12 |
| Redundant power supply | 1+1 |
| Redundant fans | 3+1 |
| Noise at normal temperature (acoustic power) [db(A)] | ≤72 dB(A) |
| Long-term operating temperature [°C(°F)] | Without hard disk driver: 0°C to 45°C With hard disk driver: 5°C to 40°C |
| Storage temperature [°C(°F)] | -40°C to 70°C |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | Without hard disk driver: 0 m to 5000 m With hard disk driver: 0 m to 3000 m |
| Storage altitude [m(ft.)] | 0 m to 5000 m |
