K-1688 РФА анализатор металлов ручной металла
- Категория: Optical Instruments >>>
- Поставщик: Kmx-Ray,(shenzhen),Scientific,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.99 $* | 0.33 $* |
| Aug-15-2025 | 0.29 $* | 0.6 $* |
| Jul-15-2025 | 0.45 $* | 0.40 $* |
| Jun-15-2025 | 0.9 $* | 0.17 $* |
| May-15-2025 | 0.32 $* | 0.60 $* |
| Apr-15-2025 | 0.30 $* | 0.0 $* |
| Mar-15-2025 | 0.92 $* | 0.32 $* |
| Feb-15-2025 | 0.23 $* | 0.54 $* |
| Jan-15-2025 | 0.34 $* | 0.11 $* |
Характеристики
Products Description

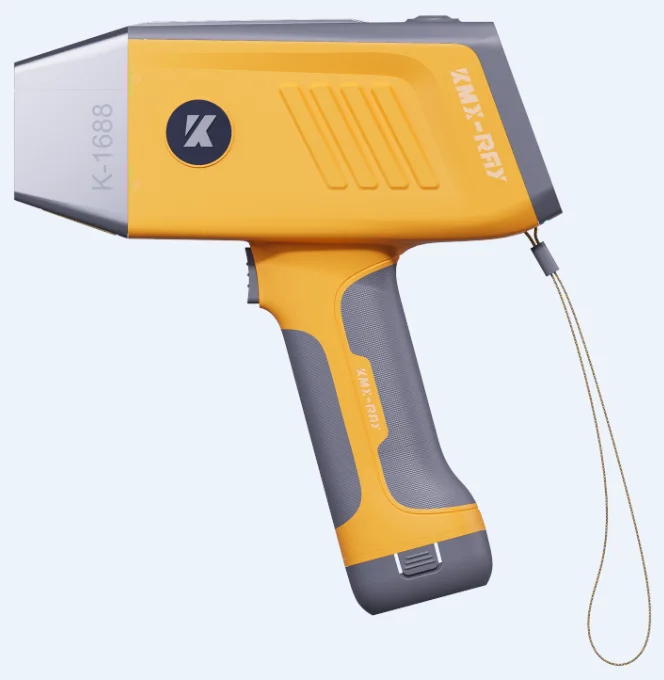

Item | Alloy analyzer K-1688 - highly cost-effective X-ray fluorescence spectrometer |
Weight | Device: 1.50kg, 1.65kg with battery. |
Dimension | 250mm x 75mm x 270mm (L*W*H) |
Excitation source | High-power high-performance X-ray microtube |
Target materials | Five target materials of X-ray tube available:gold (Au), silver (Ag), tungsten (W), tantalum (Ta) and palladium (Pd) |
Voltage | 35kV-50kV voltage (changeable) |
Filter | A variety of selectable filters, automatically adjusted according to different tested objects |
Detector | High-resolution Si-Pin detector |
Detector refrigeration temperature | Peltier effect semiconductor refrigeration system |
Standard film | External 316 standard film/window protection cover (Optional built-in standard film, plus version) |
Power supply | 1 lithium battery (7.2v\\6600mAh) |
Processor | High-performance ARM pulse processor |
Data processing | 32G large-capacity data storage card: ≥80,000 sets of data and spectrograms; |
Display screen | High-resolution TFT industrial-grade colored high-definition touch screen, it is ergonomic, sturdy, dust-proof, and waterproof, clearly visible under any light conditions |
Outline design | The integrated designed body is sturdy, waterproof, dustproof,antifreeze, shockproof, and can be used normally in harsh environments. |
Safe operation | ”One key" detection, auto-lock, detection auto-stop functions. The X-ray will automatically be turned off if there is no sample in front of the detection window for 2 seconds. 3/2 of the shell of the device is covered with a 6061 aluminum alloy frame design, with better X-ray blockage. |
Detection Report | Customized detection report available as per the customers' demands |
Element analysis | Mg, Al, Si, P, S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, zn, Hf, Ta, W, Hg,Se, Au, Br, Pb, Bi, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Re, Ir, Pt, Hg, Ru,Rh, Pd, etc. Note: The light elements marked in red are for the plus version SDD detector configuration, and the others areSi-Pin. |
X-ray Fluorescence Technology
The KMX-RAY series analyzers are configured with powerful miniature X-ray tubes, Si-PIN detectors or highly advanced silicon drift detectors (SDDs), specialized filters, and multibeam optimization for the ultimate in XRF field analysis. The actual overall value of the KMX-RAY analyzer is embodied in the following aspects: it can make correct decisions in real-time without relying on laboratory tests far away from the detection environment.
Applications
Company Profile
KMX-RAY (Shenzhen) Scientific Instrument Co., Ltd., dedicated to researching portable element analyzers. Our
purpose is to provide durable, handheld X-ray fluorescence spectrometers for field detections.
KMX-RAY has always taken it as its responsibility to create a high-performance element composition spectrometer
for its customers and is committed to improving the performance of handheld XRF spectrometers to repay customers'
love and support.
KMX-RAY has created great value in the global portable spectroscopy application field. At present, the K-series
portable XRF has been successfully released in China. The new K-series analyzers is smaller, lighter, faster, more
accurate, and has better repeatability. It has been quickly recognized by customers for their simple operation, fast
identification, new technology and other advantages, since it is launched on the market, It is widely used in many
industries such as alloy brands identification, mineral prospecting and smelting, archaeology, hazardous element
analysis, criminal investigation, drug control, pharmaceuticals, soil heavy metal detection, environmental
remediation, food safety, material analysis research institutes, universities and institutions.
Excellent customer experience: KMX-RAY adheres to the business philosophy of honesty, professionalism, and
win-win. It insists on the customer first, quality first, serves customers with science and technology, and insists on
technological progress, continuous innovation, and continuous surpassing. We will continue to provide our best
products and best services to the customers.
purpose is to provide durable, handheld X-ray fluorescence spectrometers for field detections.
KMX-RAY has always taken it as its responsibility to create a high-performance element composition spectrometer
for its customers and is committed to improving the performance of handheld XRF spectrometers to repay customers'
love and support.
KMX-RAY has created great value in the global portable spectroscopy application field. At present, the K-series
portable XRF has been successfully released in China. The new K-series analyzers is smaller, lighter, faster, more
accurate, and has better repeatability. It has been quickly recognized by customers for their simple operation, fast
identification, new technology and other advantages, since it is launched on the market, It is widely used in many
industries such as alloy brands identification, mineral prospecting and smelting, archaeology, hazardous element
analysis, criminal investigation, drug control, pharmaceuticals, soil heavy metal detection, environmental
remediation, food safety, material analysis research institutes, universities and institutions.
Excellent customer experience: KMX-RAY adheres to the business philosophy of honesty, professionalism, and
win-win. It insists on the customer first, quality first, serves customers with science and technology, and insists on
technological progress, continuous innovation, and continuous surpassing. We will continue to provide our best
products and best services to the customers.
Our Advantages
Product packaging
FAQ
Q: Are you the manufacturers? Can you make the equipment according to our requirements?
A:Yes. we are manufacturer. We have the rights to export directly. Some trading companies take goods from our factory. Our company has its own R & D team, can provide OEM & ODM & OBM,provide the best service to you.
Q: when can I get quotation?
A: we usually quote within 24 hours after receiving your inquiry. If you are eager to get the price, please contact to me or let us know in your E-mail,I will asap reply to you.
Q: what is the delivery time?
A: Mostly,the lead time is 1~7 days and will arrive within 7 working days. Mass production 15 to 20 days after receipt of deposit depends on the order quantity.
Q: if I place an order on you, how should I pay?
A: generally, PayPal, T / T, visa ,Alibaba Credit Guarantee Payment， West Union and other payment methods are acceptable.
Q: What kind of delivery methods can we use?
A: By sea,for exmple: DHL by air or express are all acceptable.It depends on your will.And we will recommend the best way to you.
Q: How about the shipping costs and tax?
A: the cost of delivery depends on the mode, destination and weight. The tax depends on your local customs.Customs duties are subject to the actual price.
Q:About setup and training: Is the technician needed here? What dose it costs?
A:User manual will be attached.Engineer can give you the training remotely. It is free .Moreover the machine can work dependently. Don't need to connect with any other device.Easy to set up.any requirements,i will help to you.
Q:How is your after-sale servise?
A:We have an professional engineer team to do it.All problem will be responded within 12 hours.We provide life-long service.Any problem ,we will arrange engineer to check for you remotely.happy cooperation.
A:Yes. we are manufacturer. We have the rights to export directly. Some trading companies take goods from our factory. Our company has its own R & D team, can provide OEM & ODM & OBM,provide the best service to you.
Q: when can I get quotation?
A: we usually quote within 24 hours after receiving your inquiry. If you are eager to get the price, please contact to me or let us know in your E-mail,I will asap reply to you.
Q: what is the delivery time?
A: Mostly,the lead time is 1~7 days and will arrive within 7 working days. Mass production 15 to 20 days after receipt of deposit depends on the order quantity.
Q: if I place an order on you, how should I pay?
A: generally, PayPal, T / T, visa ,Alibaba Credit Guarantee Payment， West Union and other payment methods are acceptable.
Q: What kind of delivery methods can we use?
A: By sea,for exmple: DHL by air or express are all acceptable.It depends on your will.And we will recommend the best way to you.
Q: How about the shipping costs and tax?
A: the cost of delivery depends on the mode, destination and weight. The tax depends on your local customs.Customs duties are subject to the actual price.
Q:About setup and training: Is the technician needed here? What dose it costs?
A:User manual will be attached.Engineer can give you the training remotely. It is free .Moreover the machine can work dependently. Don't need to connect with any other device.Easy to set up.any requirements,i will help to you.
Q:How is your after-sale servise?
A:We have an professional engineer team to do it.All problem will be responded within 12 hours.We provide life-long service.Any problem ,we will arrange engineer to check for you remotely.happy cooperation.
