Регулируемые резиновые ножки высокой грузоподъемности регулируемые из нержавеющей стали сверхмощные выравнивающие M10 с основанием
- Категория: Furniture Legs >>>
- Поставщик: Wuxi,Laojiu,Hardware,Electromechanical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.84 $* | 0.53 $* |
| Aug-19-2025 | 0.53 $* | 0.12 $* |
| Jul-19-2025 | 0.67 $* | 0.51 $* |
| Jun-19-2025 | 0.18 $* | 0.40 $* |
| May-19-2025 | 0.37 $* | 0.20 $* |
| Apr-19-2025 | 0.83 $* | 0.74 $* |
| Mar-19-2025 | 0.63 $* | 0.61 $* |
| Feb-19-2025 | 0.57 $* | 0.30 $* |
| Jan-19-2025 | 0.62 $* | 0.26 $* |
Характеристики

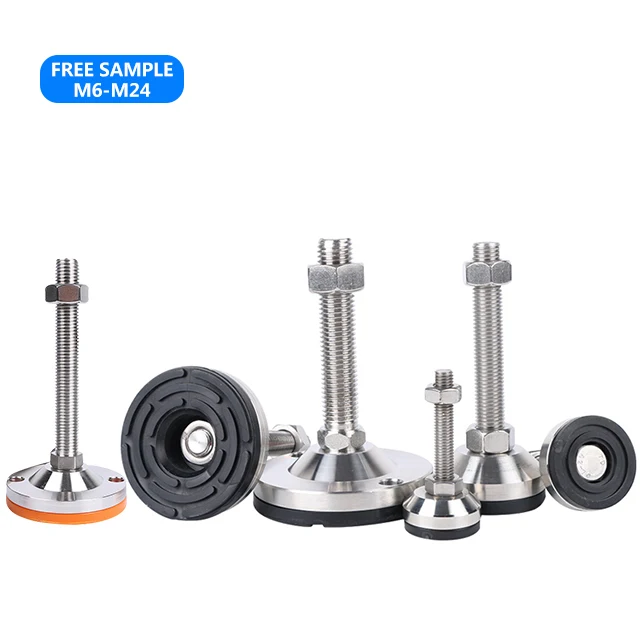

High load capacity adjustable rubber feet stainless steel adjustable feet machine heavy duty leveling feet M10 with 50mm base
Product Paramenters

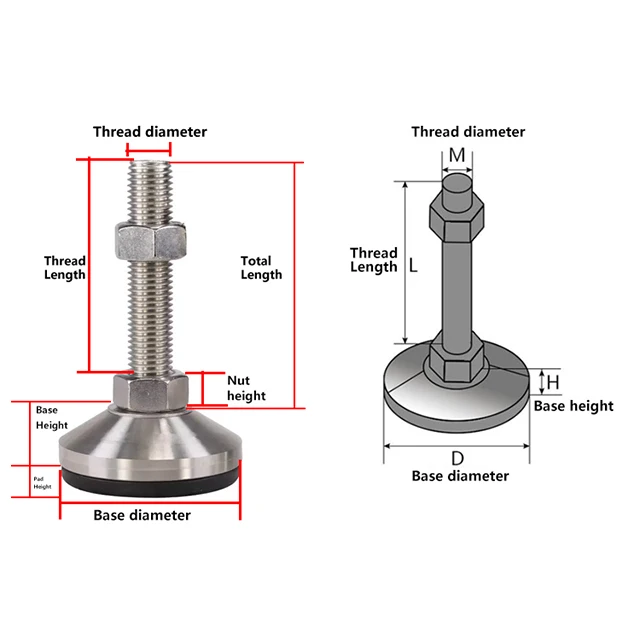

Model | Base Diameter (mm) A | Thread Diameter (mm) M | Thread Length (mm) L | |||
D40*M8 | 40 | M8 | 50 | |||
D40*M10 | 40 | M10 | 50/100 | |||
D40*M12 | 40 | M12 | 50/100 | |||
D50*M10 | 50 | M10 | 50/100 | |||
D50*M12 | 50 | M12 | 50/100 | |||
D50*M16 | 50 | M16 | 100 | |||
D60*M12 | 60 | M12 | 50/100/150 | |||
D60*M16 | 60 | M16 | 100/150 | |||
D60*M20 | 60 | M20 | 100/150/200 | |||
D80*M12 | 80 | M12 | 50/100/150 | |||
D80*M14 | 80 | M14 | 100/150 | |||
D80*M16 | 80 | M16 | 50/80/100/120/150/200 | |||
D80*M20 | 80 | M20 | 100/120/150/200/250 | |||
D80*M24 | 80 | M24 | 100/150 | |||
D80*M30 | 80 | M30 | 150 | |||
1.Single static load 400-2200kg;2.Environmental class: EZ-E3;3.Pad thickness 8-12mm,can be customized;4.Thread length can be customized | ||||||
Products Description
Product Name | Material | Surface Treatment | Product Features | Base |
Heavy-duty Leveling Feet | Stainless steel 304 | Polishing | Fixed | Black rubber/TPU orange anti-slip mat |
Leveling Feet
Foot cup, also known as a flat bottom machine foot or leveling feet is a component that uses threads for height adjustment. It is used to adjust the height, level and tilt of the equipment.
In addition, the foot cups also include galvanized foot plates,stainless steel adjustment feet, nylon foot cups, shock absorbing feet, etc.
Material: base selected thickness solid base, screw selected stainless steel 304/316/201, screw surface treatment Polishing

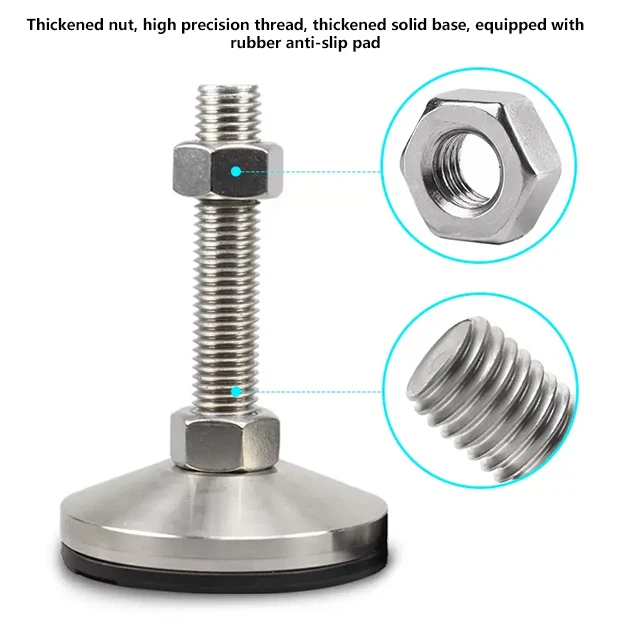

one-piece screw+High quality stainless stee,lstainless steel heavy duty leveling feet with two fixing holes and TPU/rubber mats
one-piece screw+High quality stainless stee,lstainless steel heavy duty leveling feet with two fixing holes and TPU/rubber mats
Stainless steel Heavy-duty Fixed Leveling Feet with rubber TPU Pads

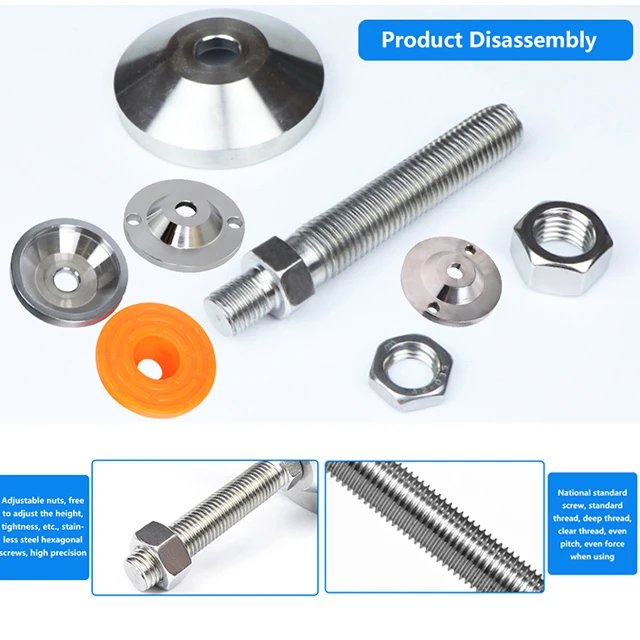

1.screw material:stainless steel 304/316l, corrosion and wear resistance
2.Except for the dimensions in the table, the other lengths of the screw can be customized
3.thread diameter can be done in imperial standard
4.The product load-bearing capacity is not only by the screw or chassis, but two components grouped together
5.Solid base, strong load-bearing force,with Black rubber/TPU orange shock absorbing anti-slip mats.
6.National standard screw, uniform tooth pitch, even force when using
7.The nut can be freely adjusted, the snap is not easy to fall off

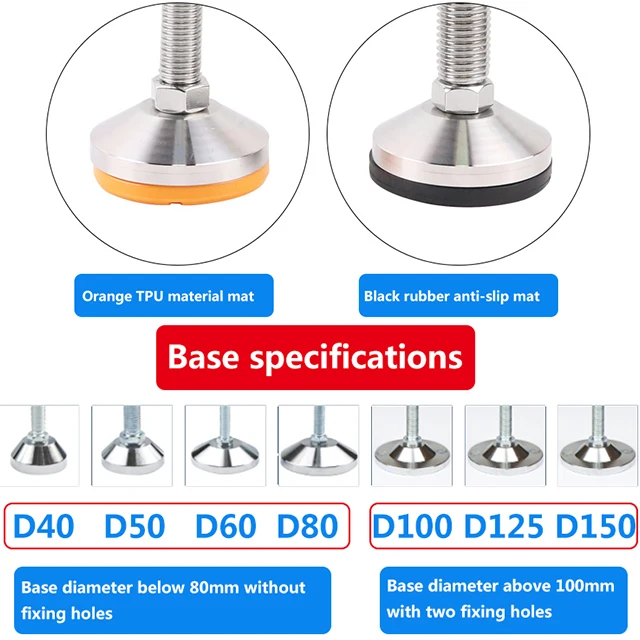

8.base with black rubber anti-slip pad and TPU orange pad
Details Images
Applications

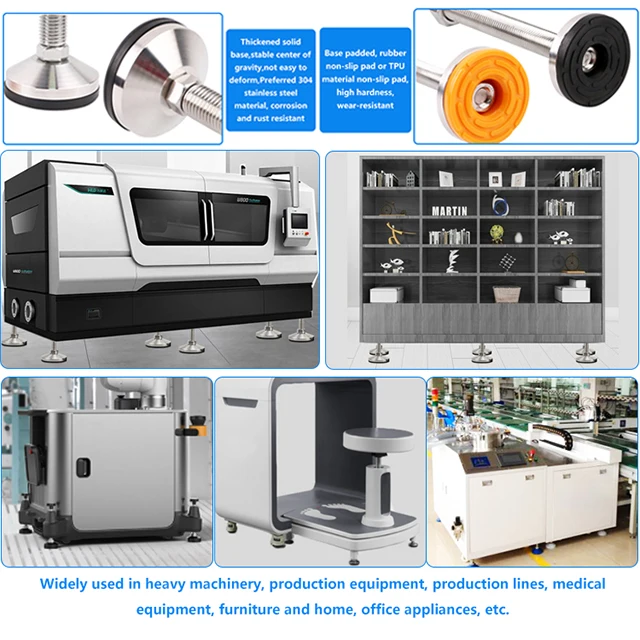

Field of application of Heavy-duty leveling feet with Anti-slip shock-absorbing rubber /TPU mats
Our company products are widely used in general /Machine tool equipment/Furniture home / warehouse shelves / medical equipment,automobile, building, communication, electron, energy, printing machinery, textile machinery, packaging machinery, medical equipment, petroleum and petrochemical equipment,electrical home appliances and furniture, apparatus, machine tools, conveyor systems, and heavy industry in general,etc.
