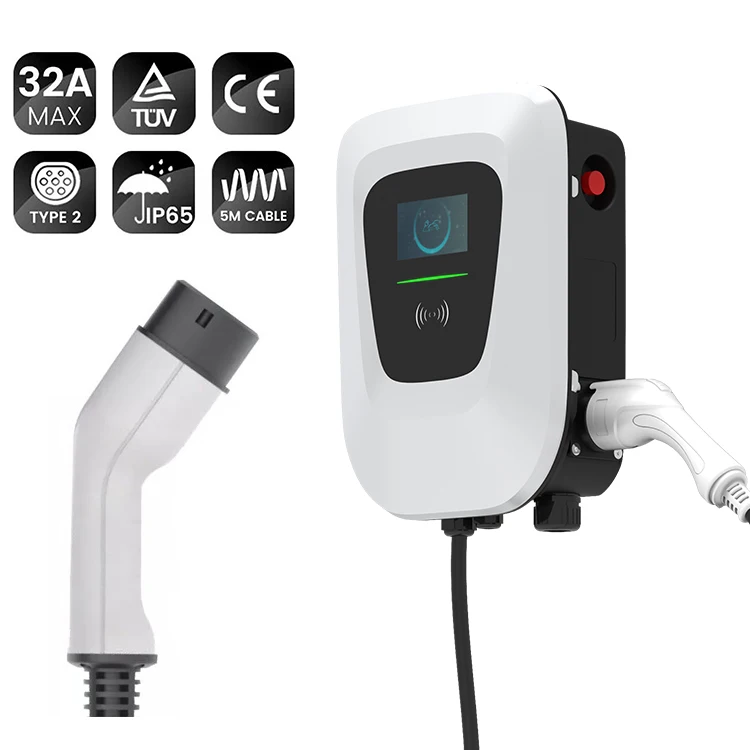

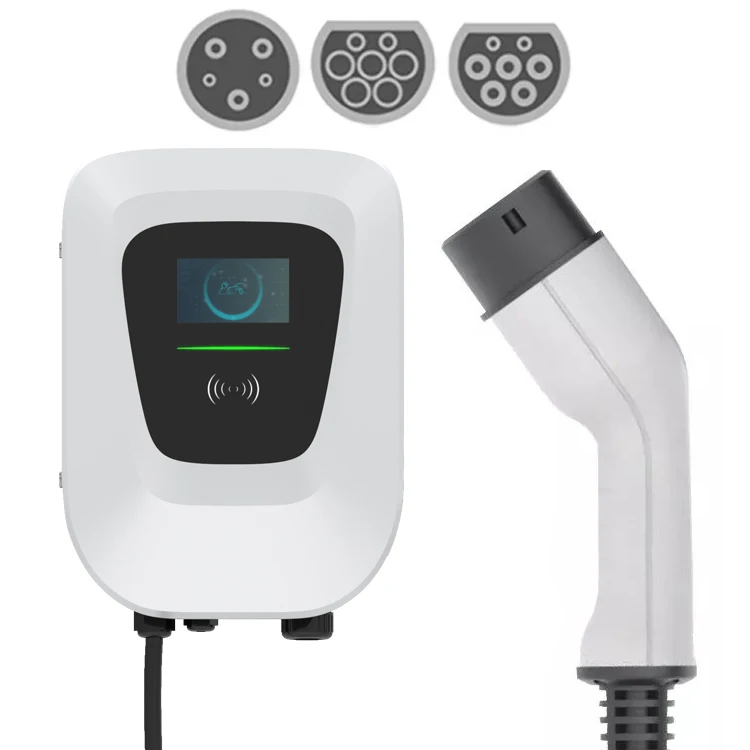

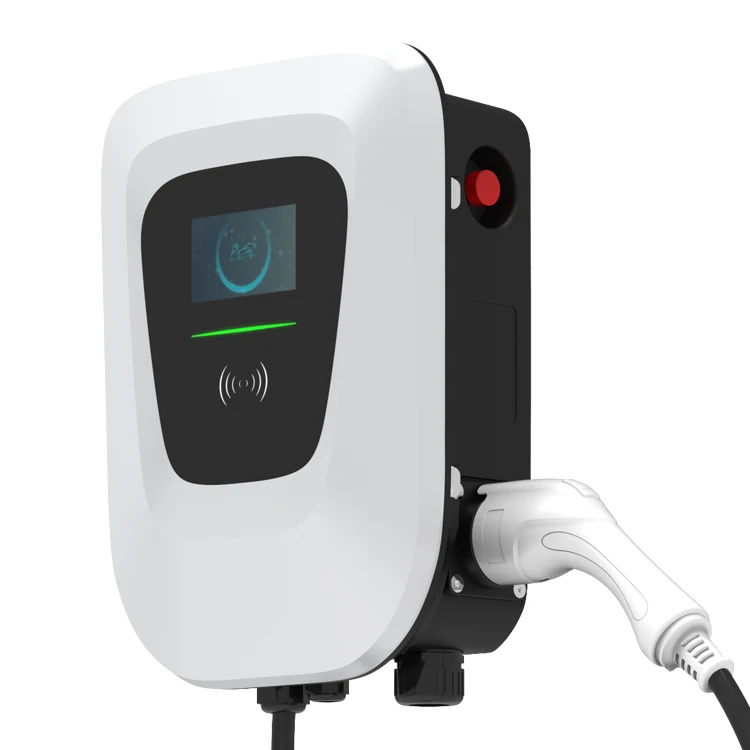

Настенные зарядные станции 7 кВт 32 А Тип 2 электрическая автомобильная зарядка ac ev 11 22
- Категория: Auto Electronics >>>
- Поставщик: Hainan,Sino,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 405.86 $* | 413.82 $* |
| Jul-17-2025 | 329.14 $* | 336.69 $* |
| Jun-17-2025 | 399.31 $* | 407.22 $* |
| May-17-2025 | 396.60 $* | 404.39 $* |
| Apr-17-2025 | 316.91 $* | 322.33 $* |
| Mar-17-2025 | 389.12 $* | 397.31 $* |
| Feb-17-2025 | 386.2 $* | 394.86 $* |
| Jan-17-2025 | 383.0 $* | 391.91 $* |
Характеристики
Product Paramenters
Material | ABS+PC |
Installation | Wall-mounted/floor-standing |
Size | Wall-mounted: 270*132*362mm(W*D*H)Floor-standing: 270*194*1500mm(WD*H) |
Protection | IP55 |
Input/Output | 220VAC±20%/ 50Hz±5Hz |
Power Factor | ≥0.98 |
Output current | 16A or 32A |
Output Power | 7KW- 22kW |
Cable length | 5 Meters (Custom) |
charging method | Swipe card |
Charging connection method | Mode C (with gun) |
Communication method | Blue tooth, WIFi, Ethernet/4G （Optional） |
HMI | 4.3" Touch Color Screen |
Protective function | Over voltage protection, over current protection, short circuit protection, lightning protection, emergency stop protection, PE connection detection protection, LIN reverse connection detection protection, over temperature protection, anti-dumping protection, leakage protection (A type leakage MCB) |
Operating temperature | -30℃-60℃ |
Storage temperature | -40℃-85℃ |
Operating Humidity | ≤95%, non-condensing |
Products Description
Recommend Products
Company Profile
HAINAN SINO ENERGY TECHNOLOGY CO.,LTD.
is a production-oriented enterprise integrating R&D, production, sales and service of intelligent EV charger products. Our products have more than 31 core technolo- gies, obtained over 68 patents, and have passed the international quality system certification.
The company has long been engaged in the R&D and production of AC and DC chargers for new energy vehicles in overseas markets, and with the capabilities of OCPP protocol docking and over- seas platform deployment. The company's technology in the field of EV chargers is unique, and it has rich experience in cooperation with overseas listed companies, fortune global 500, and new energy vehicle manufacturers.Company's product concept: "Safe, Intelligent, Green, and Environmentally friendly".Our products have been sent to some important potential markets such as Europe, North America, Japan, South Korea,Southeast Asia, etc. and, contributing to the early realization of carbon neutrality in the world.
APPLY TO E-VEHICLE
Certifications
FAQ
1.Which certification your factory support?
we have TUV. CE. ROHS. and other certification we also support and help customers to apply local certification need
2.Whats your factory OEM order?
we support purchase sample first even one set can placing order
3.Can we visit to your factory?
surely, welcome customer visit factory and we can arrange hotel beside factory.
4.Can we customize order such power or design for our order?
that is ok but customize order need extra fee and lets see the quantity for the order
5.what is the insurance to cover damages caused by EV Chargers?
No overseas charging pile insurance has been purchased. During the charging process, the charging pile plays the role of current protection and conversion. For example, spontaneous combustion in the charging process sometimes occurs, which is basically caused by the end of the vehicle. Generally, the charging pile will not cause casualties.
However, we will also consider buying insurance for overseas charging piles in the future, because some customers are concerned about this.
we have TUV. CE. ROHS. and other certification we also support and help customers to apply local certification need
2.Whats your factory OEM order?
we support purchase sample first even one set can placing order
3.Can we visit to your factory?
surely, welcome customer visit factory and we can arrange hotel beside factory.
4.Can we customize order such power or design for our order?
that is ok but customize order need extra fee and lets see the quantity for the order
5.what is the insurance to cover damages caused by EV Chargers?
No overseas charging pile insurance has been purchased. During the charging process, the charging pile plays the role of current protection and conversion. For example, spontaneous combustion in the charging process sometimes occurs, which is basically caused by the end of the vehicle. Generally, the charging pile will not cause casualties.
However, we will also consider buying insurance for overseas charging piles in the future, because some customers are concerned about this.
