API нейлоновая Поворотная направляющая на присоске для


Поделиться:


Цена:2,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 2.97 $* 2.94 $*
Aug-19-2025 2.48 $* 2.10 $*
Jul-19-2025 2.19 $* 2.36 $*
Jun-19-2025 2.48 $* 2.17 $*
May-19-2025 2.98 $* 2.1 $*
Apr-19-2025 2.44 $* 2.55 $*
Mar-19-2025 2.14 $* 2.73 $*
Feb-19-2025 2.14 $* 2.98 $*
Jan-19-2025 2.44 $* 2.17 $*

Характеристики



Product Description


photobank (1).jpg

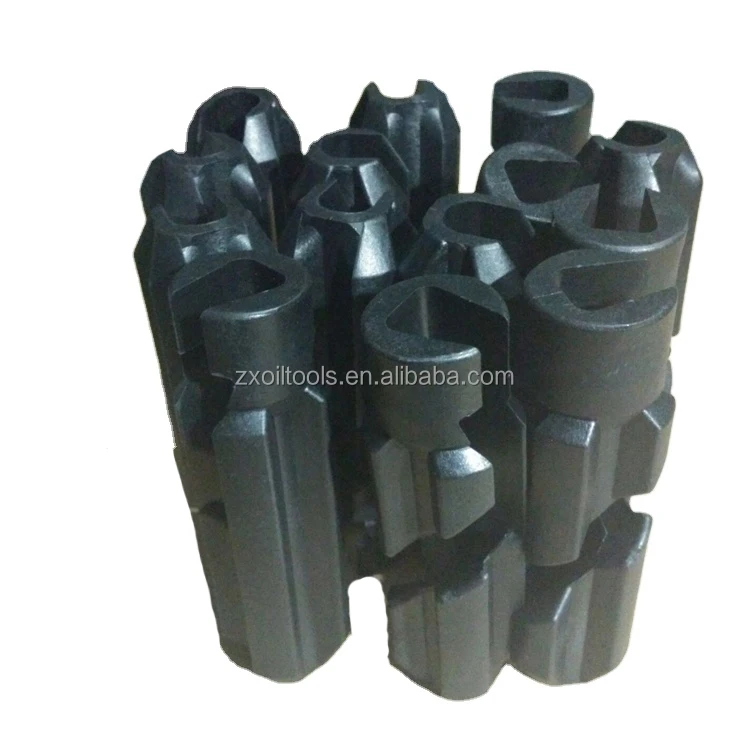

Twist on sucker rod centralizer /SUCKER ROD GUIDE eliminates or greatly reduce down-hole problems with Snap-On and Twist-On Rod Guides. With a coefficient of friction when wet lower than metal, overall pumping efficiency is increased while costly metal-to-metal contact between the rods and tubing is minimized.


Twist On sucker rod guides contain no metal clip insert. Tests, however, indicate an excellent holding strength due to design and materials. The Twist-On style rod guide can easily be installed with a pipe wrench, and withstands temperatures up to 200oF.

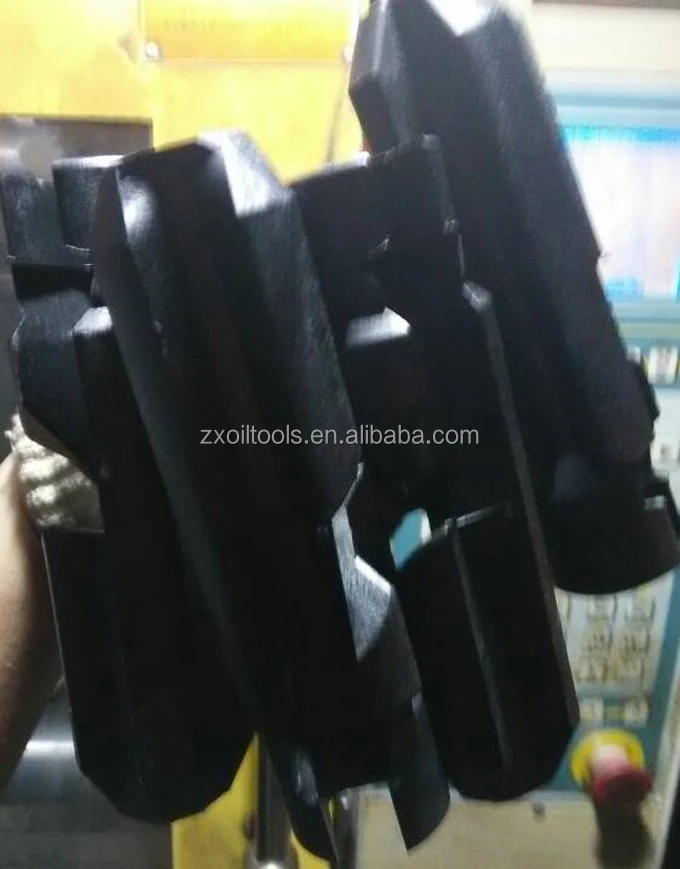

The product is made by moulding strengthened, plasticized, hard wearing PA66(nylon 66) material at a time and processing it through heat aging, the product is clipped into the sucker rod through the diagonal slot and fits closely with the flange of the sucker rod after revolving at a certain angle, and thus the position is fixed and rod is centralized.





Material properties













































































































Item



Specification



PA66



1



Testing Item



Smooth



2



Bending Strength  Mpa



242.46



3



Notch Impact Strength



27.66



4



Friction Coefficient  μ



0.0173



5



Heat Distortion Temperature ℃



220.85



6



Wear Volume Loss  g/cm³



0.0049



7



Density  kg/cm³



1.4



8



Tensile MPa



123.05



9



Compactness



1500



Item



Specifications



PPA Resin



1



Appearance



Smooth



2



Bending Strength  Mpa



352.26



3



Notch Impact Strength



13



4



Friction Coefficient  μ



0.1845



5



Heat Distortion Temperature ℃



275.5



6



Wear Volume Loss g/cm³



0.0182



7



Density  kg/cm³



1.4



8



Tensile MPa



208.87



9



Compactness



1500






Products size



























Product name



Applicable rod (in)



Applicable tubing (in)



Length(mm)



Movable twisting screw pump centralizer



7/8”--1 5/8”



2 1/2”- 3 1/2”



≥120



Fixed twisting clamp centralizer



5/8”--1”



2 1/2”- 3 1/2”



≥120




Packaging & Shipping


1222_7 - .jpg










2.jpg 20151224_152303.jpg









IMG_20191218_145326



Related Products


11.jpggrade D Sucker rod.jpg348c6748-e528-4abe-bfd2-67.jpgcup packer1.jpgcrossover sub .jpg3-12EU J55.jpg








Company Information


Dongying Zhaoxin Industry and Trade Co.,Ltd is an ISO-9001, ISO-14001, OHSAS-18001 certified company and has all the quality systems in place for design, planning,manufacturing and quality monitoring & traceability to ensure that Dongying Zhaoxin Industry and Trade Co.,Ltd products match the highest quality & reliability Standards similar to any International major in this field.


Dongying Zhaoxin Industry and Trade Co.,Ltd with perfect attitude, product and service, is going to make further development together with customers at home and abroad .
