Шору испытательный блок для резины определения твердости

Цена:45,00 $*

Количество:

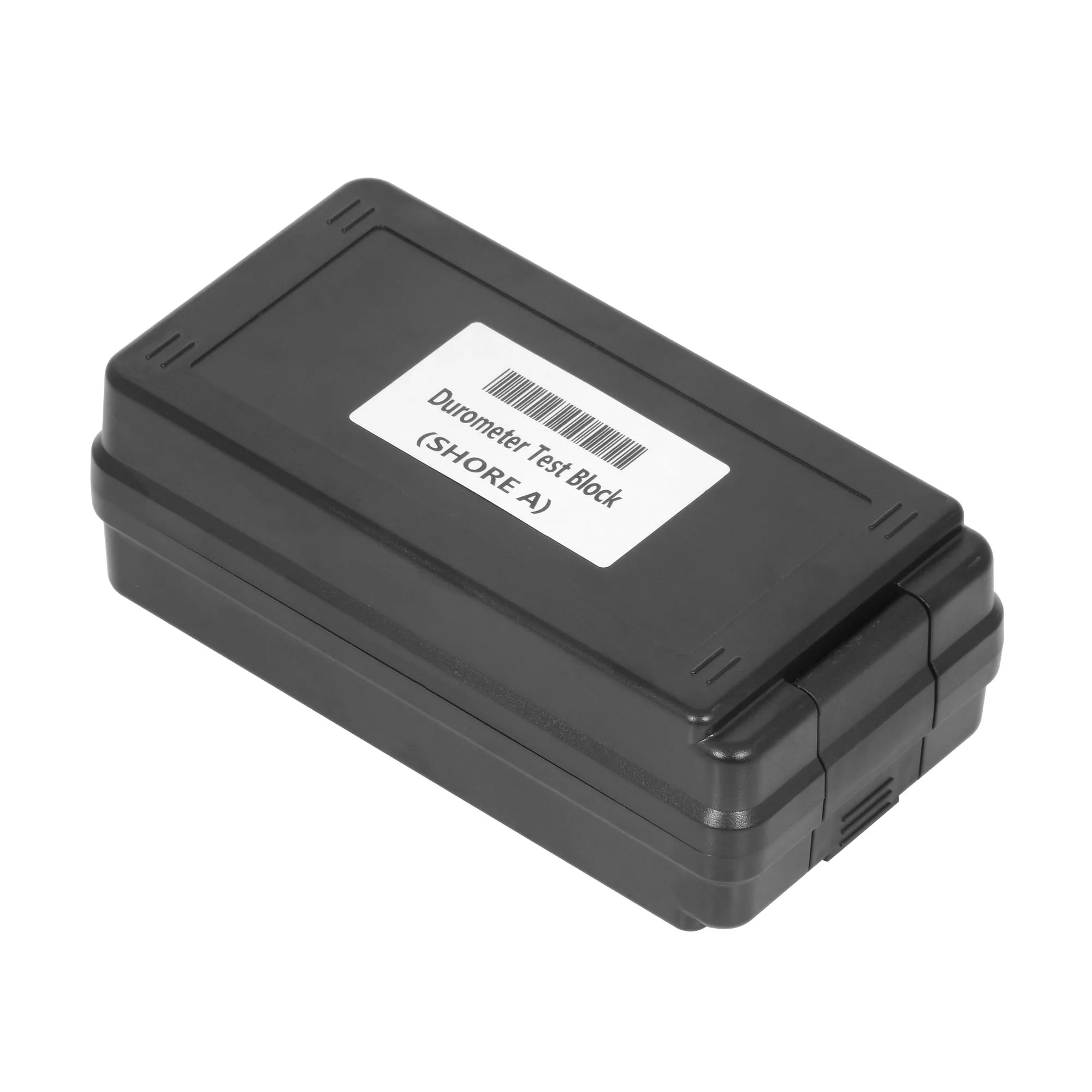

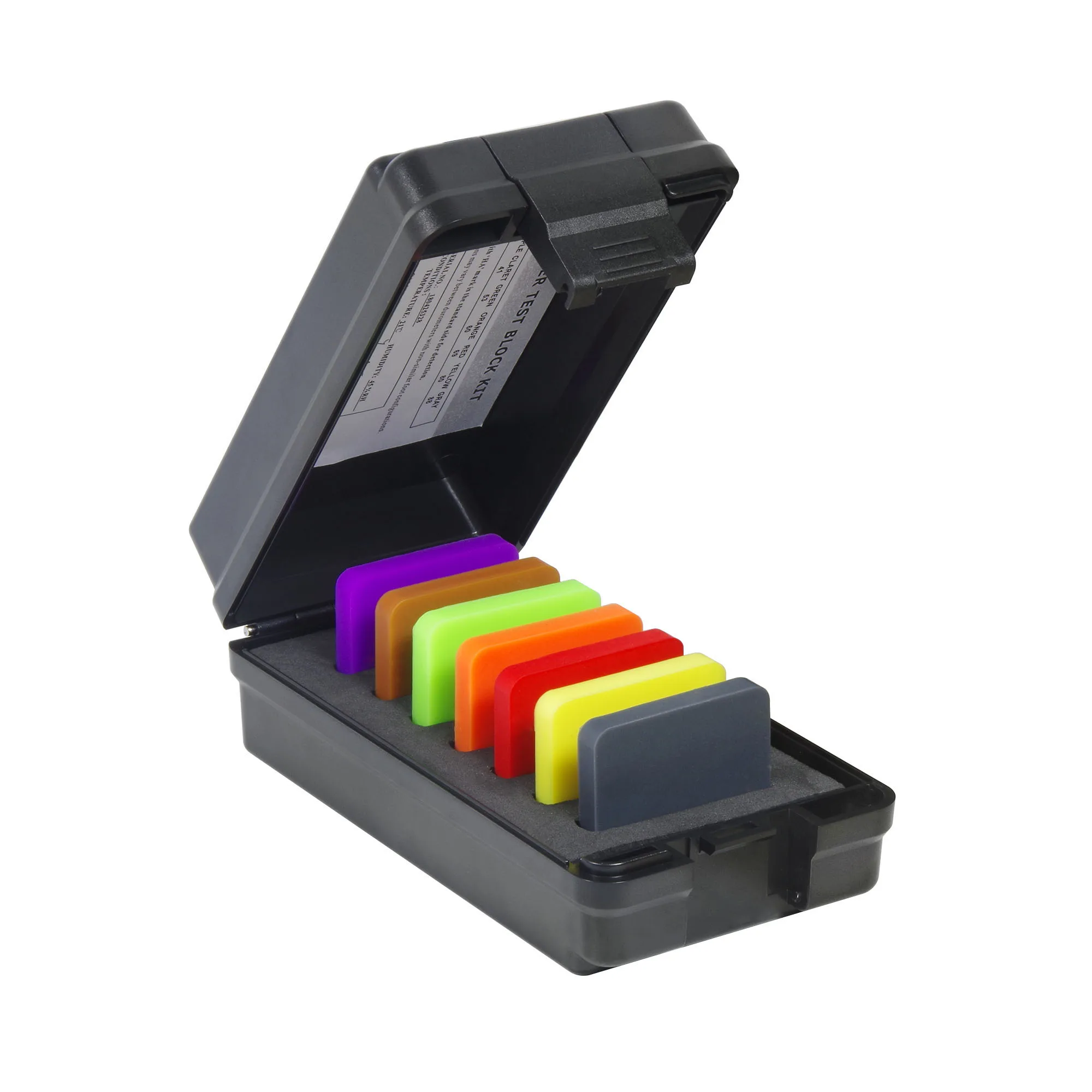

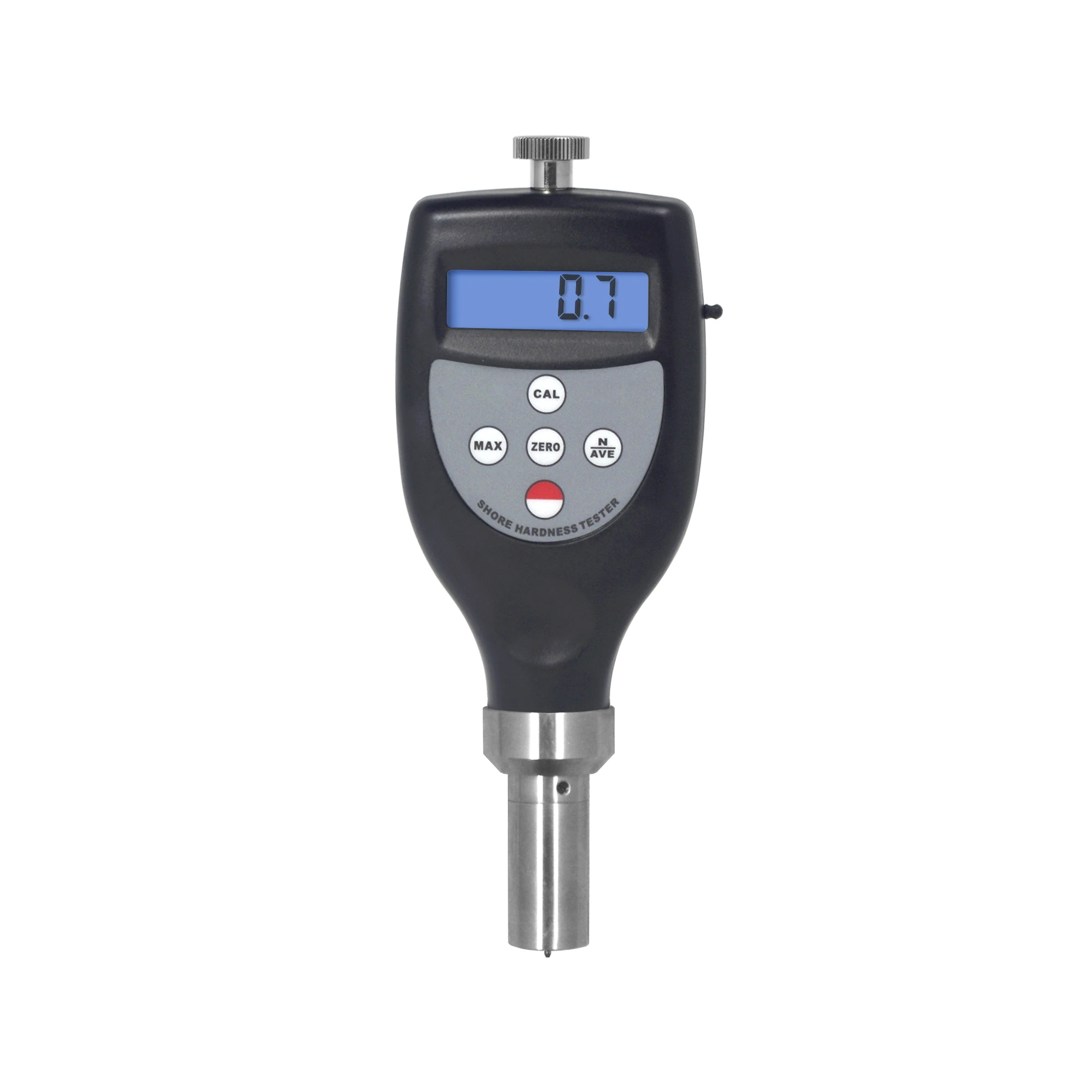

Shore A test block for rubber hardness testing HT-6510A

Applications:

Used to determine the indentation hardness of materials ranging from cellular products to rigid plastics.

* It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.

* With average calculate function.

* Peak value deposit function.

* Under-voltage alarm function.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide BT data output choice.

Model Informations:

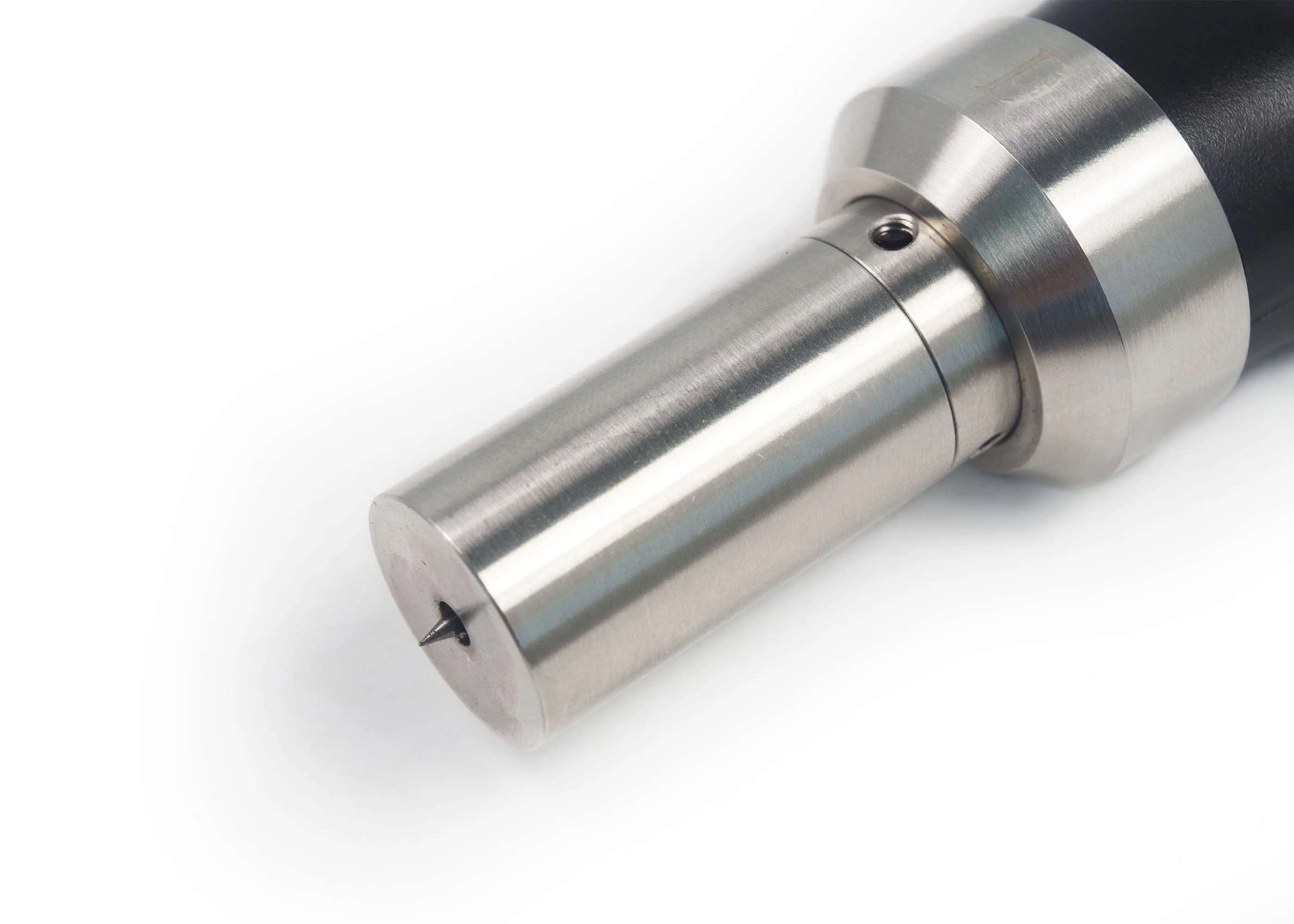

Model	Indenter	Tested Materials	Hardness Value
A	0.79 Truncated (Frustum) Cone	Soft Rubber, Elastomers, Natural Rubber Products, Neoprene, Resin, Polyester, Soft PVC,Lleather, etc.	20 ~ 90 A
B	R 0.1 Cone	Middle Hard Rubber Materials, Typewriter Rollers, etc.	Above 90 A, Below 20 D
C	0.79 Truncated (Frustum) Cone	Plastics and Middle Hard Rubber Materials	Above 90 B, Below 20 D
D	R 0.1 Cone	Fibre Plastics, Hard Rubber, Hard Plastic Materials, Plexiglas,Stiff Thermo Plastics, Formica, Print Roller, Vinyl-plate, Cellulose Acetate, etc.	Above 90 A
DO	R 1.2 Spherical Radius	Plastics and Middle Hard up to Hard Rubber Materials	Above 90 C, Below 20 D
O	R 1.2 Spherical Radius	Soft Elastic Materials, Print Rollers, Middle Firm Textile Fabrics, Nylon, Orlon, Perlon, Rayon	Below 20 DO
OO	R 1.2 Spherical Radius	Sponge- and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials	Below 20 O
E	R 2.5 Spherical Radius	Hard Sponge, EVA	Above 90 DO, Below 20 D

Parameters Displayed	Hardness Result, Average Value, Max. Value
Measurement Range	10~90 H
Measurement Deviation	<1 H
Resolution	0.1 H
Auto Switch Off
Battery Indicator	Low Battery Indicator
Operating Conditions	Temperature: 0 ~ 40 ℃ Humidity: 10 ~ 90 %RH

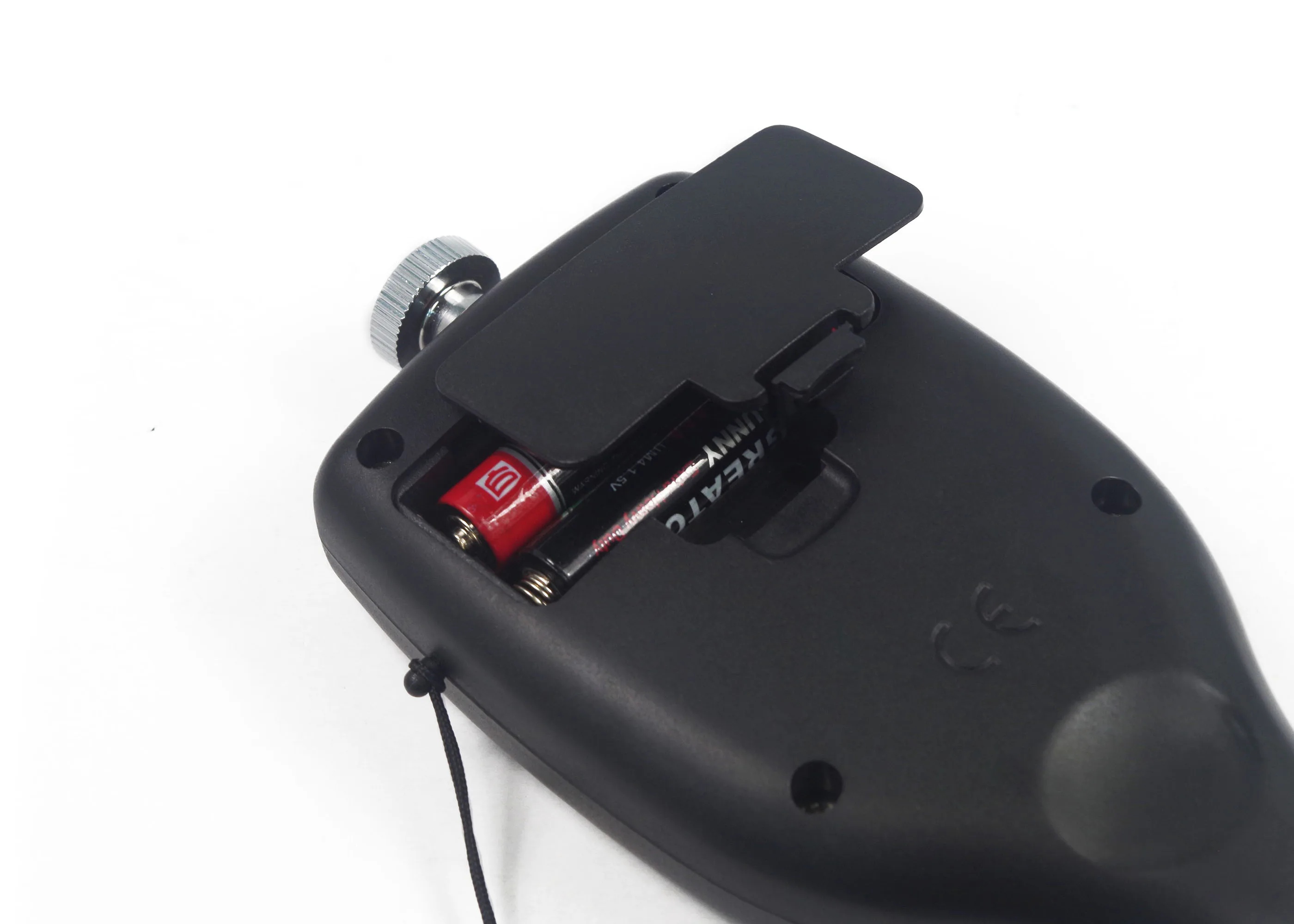

Power Supply	2 x 1.5 V AAA Size (UM-4) Battery
Dimensions	162 x 65 x 28 mm
Weight	170 g(Not Including Batteries)
