Product Description
GENERAL DESCRIPTION
➢ MV59AAD is a two-in-one board (decoding+LCD Controller) ,It use MST chipset :MSTV59MS.
➢ MV59AAD is a two-in-one board (decoding+LCD Controller) ,It use MST chipset :MSTV59MS.
➢ MV59AAD MSTV59MS also it have the powerful audio/video processing function, can output high quality image and good tone quality
➢ MV59AAD have Two USB interface ,It can support Picture /Music / Video Playback .Support HD(1080P) Picture and Video decoding Support Max 1920 X 1200 Full HD LVDS Signal output . also have a 2 X 6W Powerful audio output .
Specification
Support Format | Video Format | DAT、MPG、MPEG、TS、TP、M2TS 、VOB、AVI、MP4 MKV、XVID、ASF、MOV、WMV、RM、RMVB | |
Picture Format | JPEG、BMP | ||
Music Format | MP3、WMA | ||
Max Resolution | 1920X1080 | ||
Color Depth | 24 bit | ||
Maximum Frame Rate | 30 frm/s | ||
Max Data Rate | USB2.0 device :30Mb/s | ||
Audio Decode | Sampling Rate | 32kHz,44.1kHz,48kHz,96kHz | |
Bit Rate | 32kbps ~ 384kbps | ||
Power Supply | DC12V /300mA | ||
Power Consumption | < 3W | ||
USB Transmission Speed | USB2.0，Max 480Mbps | ||
Dimension | 116mm(L) x 87.3mm(W) x 19mm(H) | ||
Products Description

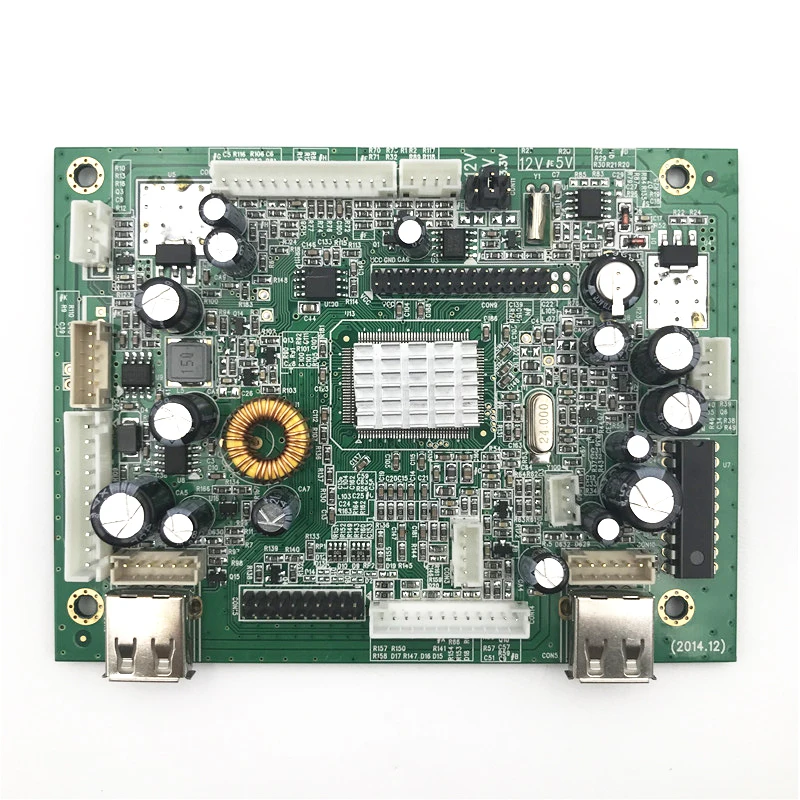

Interface Picture
No | Interface definition | No | Interface definition |
1 | DC Power Interface | 8 | Earphone Output Interface |
2 | Brightness Control Interface | 9 | Extra USB Interface |
3 | Function extension Interface | 10 | AV Signal Input Interface |
4 | Keypad&LED Indicator&IR receiver Interface | 11 | VGA Signal Input Interface |
5 | RS232 Communication Interface | 12 | HDMI Signal Input Interface |
6 | LVDS Signal Output Interface | 13 | Connect to a USB flash memory . |
7 | Speaker Signal Output Interfafce |
Size of the board
