4-дюймовый полупогружной насос для глубоких
- Категория: Solar Applications >>>
- Поставщик: Zhejiang,Kepeda,Pump,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 24528.62 $* | 25019.18 $* |
| Jul-19-2025 | 19892.29 $* | 20290.71 $* |
| Jun-19-2025 | 24141.72 $* | 24624.83 $* |
| May-19-2025 | 23948.39 $* | 24427.60 $* |
| Apr-19-2025 | 19120.64 $* | 19502.8 $* |
| Mar-19-2025 | 23562.9 $* | 24033.78 $* |
| Feb-19-2025 | 23369.59 $* | 23836.78 $* |
| Jan-19-2025 | 23176.51 $* | 23640.28 $* |
Характеристики
Products Description
Product application areas
①Application of deep well solar pump to irrigation②Village and town water supply
③Clean drinking water
④Garden watering
⑤Environment friendly
⑥Pumping and drip irrigation
>>lf You Want To Know More About Products And Discounts, Please Contact Us! !
Model (4DSP) | Voltage (V) | Best input voltage (DC) (V) | Motor power | Max Flow (M3/H) | Max Head (M) | Outlet (IN) | Cable (m) | ||
KW | HP | ||||||||
6-95- A220/D300-1100 | AC220V/ DC300V | 300-400V | 1.1 | 1.5 | 6 | 95 | 1.25" | 2m | |
6-135- A220/D300-1500 | AC220V/ DC300V | 300-400V | 1.5 | 2 | 6 | 135 | 1.25" | 2m | |
6-175- A220/D300-2200 | AC220V/ DC300V | 300-400V | 2.2 | 3 | 6 | 175 | 1.25" | 2m | |
6-175- A380/D550-2200 | AC380V/ DC550V | 480-750V | 2.2 | 3 | 6 | 175 | 1. 25" | 2m | |
6-230- A380/D550-3000 | AC380V/ DC550V | 480-750V | 3 | 4 | 6 | 230 | 1.25" | 2m | |
10-85- A220/D300-1500 | AC220V/ DC300V | 300-400V | 1.5 | 2 | 10 | 85 | 1.5" | 2m | |
10-125- A220/D300-2200 | AC220V/ DC300V | 300-400V | 2.2 | 3 | 10 | 125 | 1.5" | 2m | |
10-125- A380/D550-2200 | AC380V/ DC550V | 480-750V | 2.2 | 3 | 10 | 125 | 1.5" | 2m | |
10-195- A380/D550-3000 | AC380V/ DC550V | 480-750V | 3 | 4 | 10 | 195 | 1.5" | 2m | |
13-60- A220/D300-1500 | AC220V/ DC300V | 300-400V | 1.5 | 2 | 13 | 60 | 2" | 2m | |
13-110- A220/D300-2200 | AC220V/ DC300V | 300-400V | 2.2 | 3 | 13 | 110 | 2" | 2m | |
13-110- A380/D550-2200 | AC380V/ DC550V | 480-750V | 2.2 | 3 | 13 | 110 | 2" | 2m | |
13-150- A380/D550-3000 | AC380V/ DC550V | 480-750V | 3 | 4 | 13 | 150 | 2" | 2m | |
18-50- A220/D300-1500 | AC220V/ DC300V | 300-400V | 1.5 | 2 | 18 | 50 | 2" | 2m | |
18-75- A220/D300-2200 | AC220V/ DC300V | 300-400V | 2.2 | 3 | 18 | 75 | 2" | 2m | |
18-112- A380/D550-3000 | AC380V/ DC550V | 480-750V | 3 | 4 | 18 | 112 | 2" | 2m | |
OUR SOLAR PUMP ADVANTAGES:
1.Permanent magnet DC brushless synchronous motor: the efficiency is improved by 15- 20%; Save energy; Reduce
the consumption of solar pump
2.304 Stainless Steel pump shaft
3.Double bearing,motor base work better under more axial pressure
4.Alloy mechanical seal ,longer working life and high reliability
5.Intelligent water shortage protection
6.MPPT controller
3.Double bearing,motor base work better under more axial pressure
4.Alloy mechanical seal ,longer working life and high reliability
5.Intelligent water shortage protection
6.MPPT controller

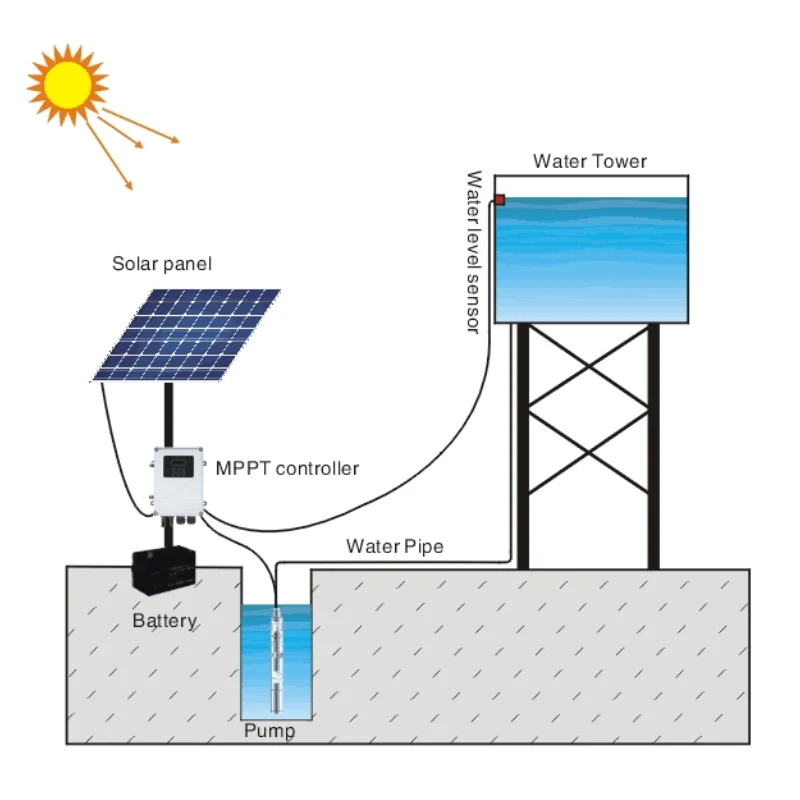

How to Connect the Solar Pumps:
Pump connects U V W ,float switch connects TH COM
Very simple connection .
Tips 1: Do not reverse the positive and negative of power, otherwise it will not work.
Tips 2: Before you start wiring the controller box, switch must be in the off position
Very simple connection .
Tips 1: Do not reverse the positive and negative of power, otherwise it will not work.
Tips 2: Before you start wiring the controller box, switch must be in the off position
MPPT Controller Features
Automatically run when power enough or tank is not full. Automatically off when tank is full.
Double seal effect in waterproof and leak-proof .
Soft start technology: No impulse current, longer life for the pump motor.
High voltage/Low voltage/Over-current/High temperature protection
Soft start technology: No impulse current, longer life for the pump motor.
High voltage/Low voltage/Over-current/High temperature protection
How to choose and buy the correct solar water pump model?
HEAD CALCULATE:
The horizontal water pumping distance and vertical water pumping distance, especially the vertical distance.
FLOW CALCULATE: How
many cubic meter water per hour/per day is needed for irrigation use?
After you estimate Head and Flow,please refer to the technical data diagram below to select the solar pump model
many cubic meter water per hour/per day is needed for irrigation use?
After you estimate Head and Flow,please refer to the technical data diagram below to select the solar pump model
