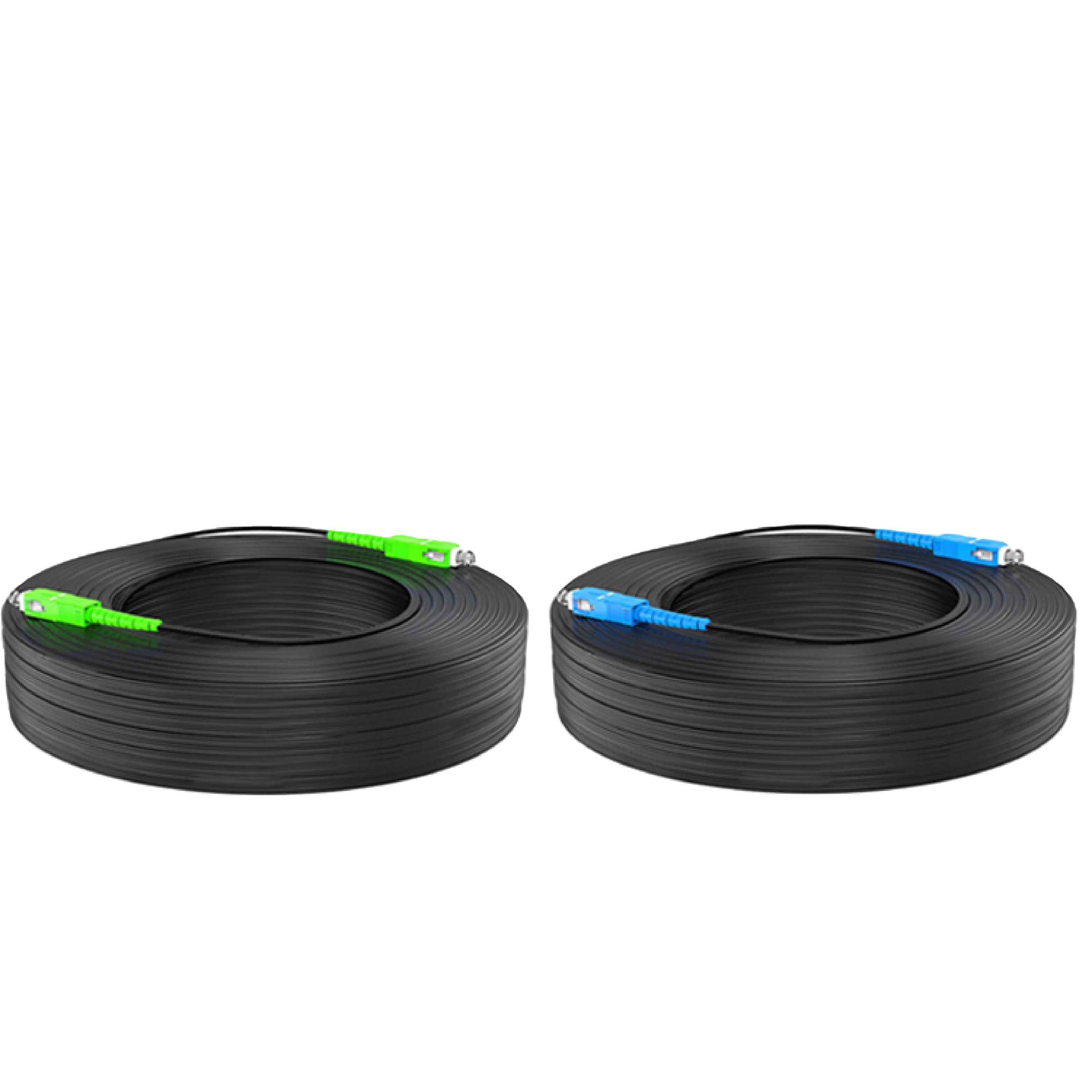

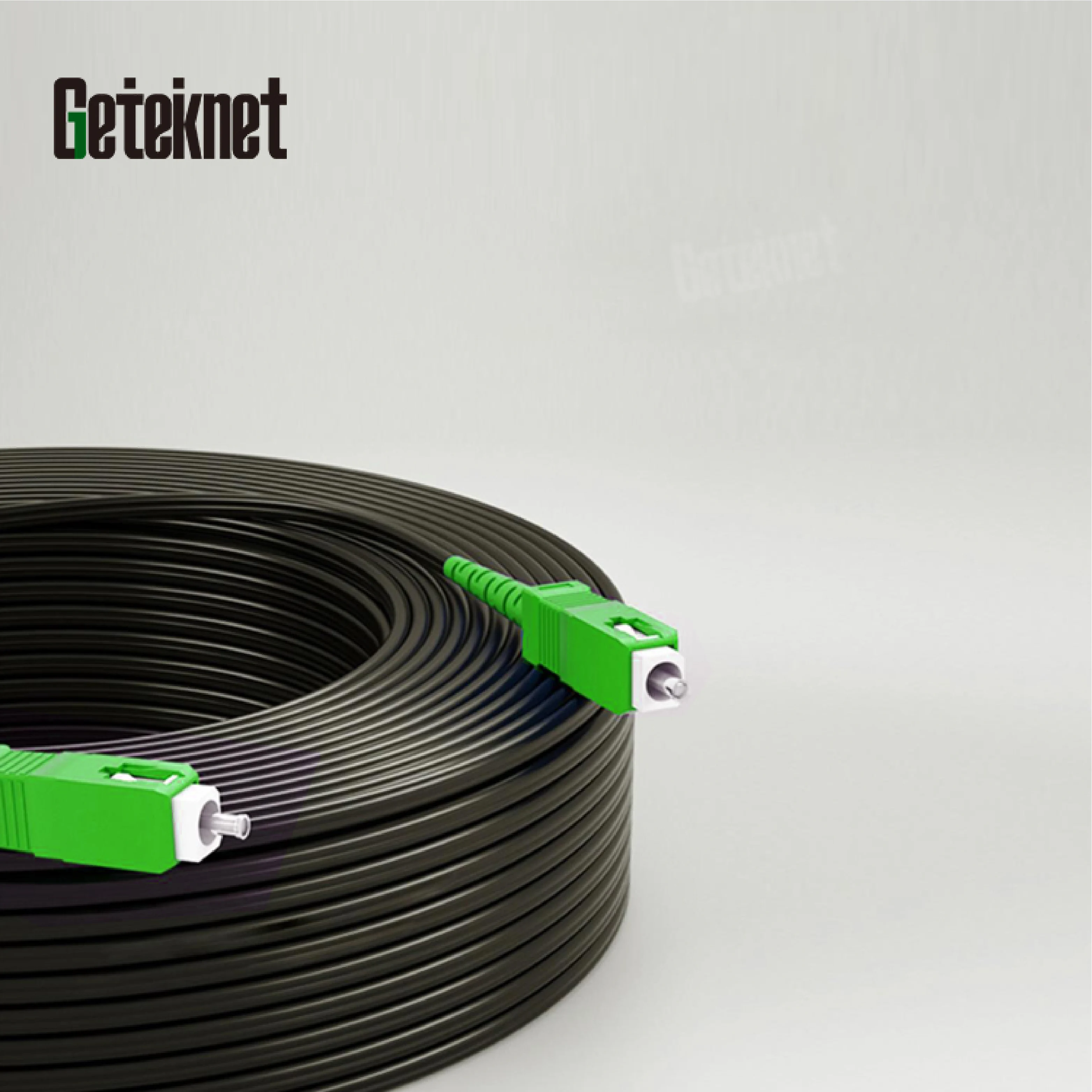

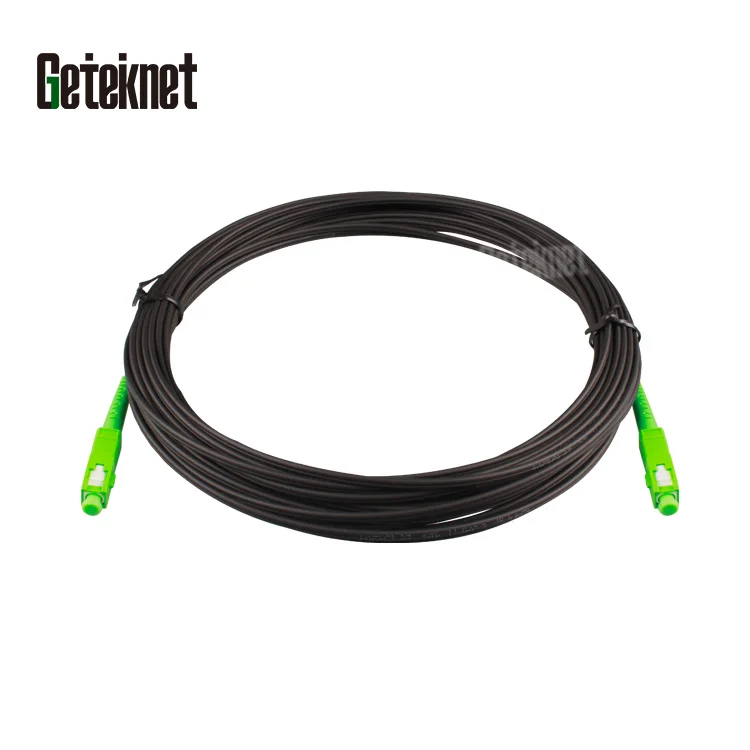

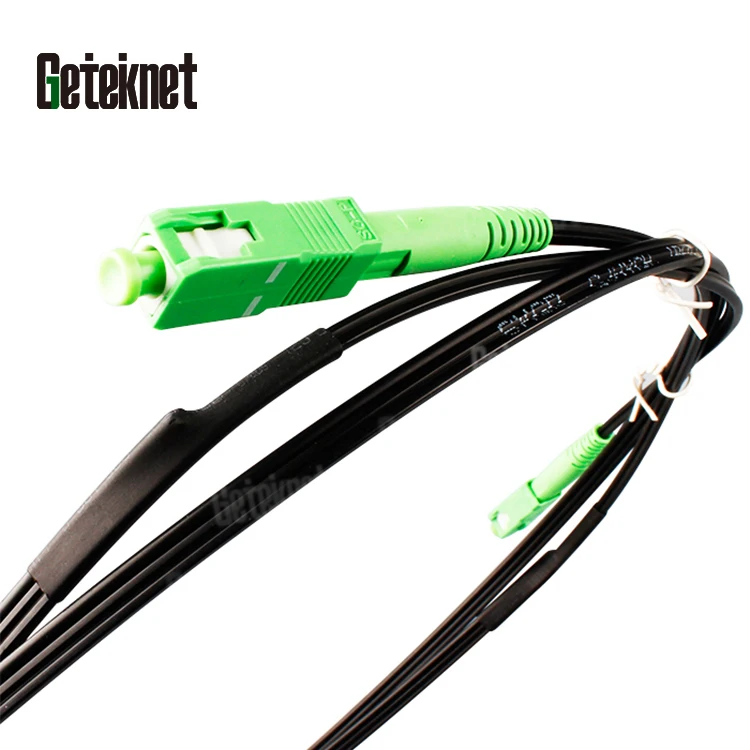

10 м FTTH волоконно-оптический патч-кабель SX CORE SC LC APC UPC fiber optica SM G657A1
- Категория: Communication Cables >>>
- Поставщик: Ningbo,Geteknet,Telecom,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1.21 $* | 1.80 $* |
| Jul-16-2025 | 1.44 $* | 1.4 $* |
| Jun-16-2025 | 1.49 $* | 1.24 $* |
| May-16-2025 | 1.19 $* | 1.67 $* |
| Apr-16-2025 | 1.87 $* | 1.49 $* |
| Mar-16-2025 | 1.74 $* | 1.98 $* |
| Feb-16-2025 | 1.5 $* | 1.58 $* |
| Jan-16-2025 | 1.12 $* | 1.5 $* |
Характеристики
Product Description
Application | * Standard:IEC60794 * Drop Cable , 9/125 , Simplex , Singlemode * Ceramic connectors ensure low signal loss, and high reliability,All our products are 100% new fiber optic cable of carrier-class quality ,and 100% test before delivery. * Application: CATV, FTTH FTTB FTTC Network cabling system; * All fiber cables are tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician and careful packaged with test results. |

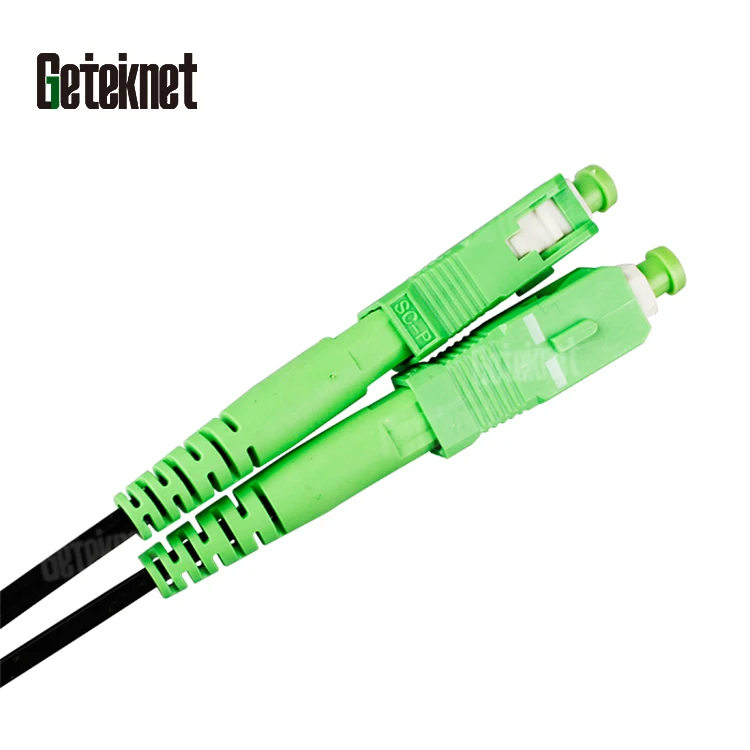

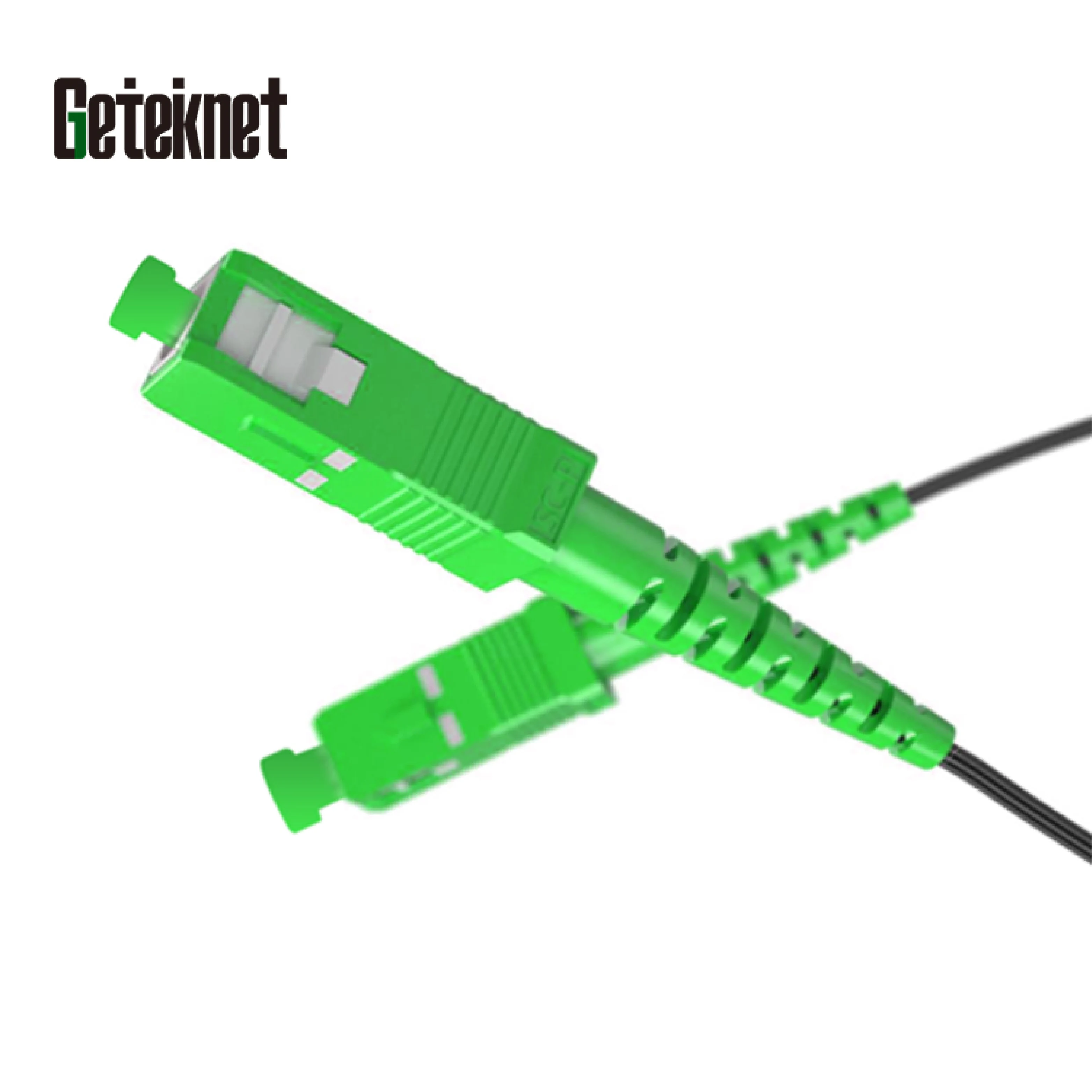

Connector | SC LC APC UPC optional | ||||||||||||||
Cable type: | Simpex SM single mode G657A fiber optic drop cable | ||||||||||||||
Cable OD(mm) | 2.0x5.0mm / 2.0x3.0mm | ||||||||||||||
Cable length: | 1M, 2M,3M,5M,10M,20M, …100M,1000M optional | ||||||||||||||
Mode | SM (singlemode) | ||||||||||||||
Fiber type | G657A1 / G675A2 | ||||||||||||||
Cable color: | Black | ||||||||||||||
Operating wavelength(nm) | 1310, 1550 | ||||||||||||||
Fiber diameter(um) | 9/125 | ||||||||||||||
Endface type | UPC | APC | |||||||||||||
Typical Insertion Loss(dB) | ≤0.3 | ≤0.3 | |||||||||||||
Return Loss(dB) | ≥50 | ≥60 | |||||||||||||
Exchangeability | ≤0.2 | ||||||||||||||
Vibration | ≤0.2 | ||||||||||||||
