PA66 нейлоновая кабельная цепь пластиковая для станка

PA66 нейлоновая кабельная цепь пластиковая для станка

Категория: Drag Chain >>>
Поставщик: Wuxi,Komay,Electric,Equipment,Co.,Ltd.

Цена:2,60 $ - 3,20 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	2.77 $*	2.3 $*
Aug-18-2025	2.1 $*	2.43 $*
Jul-18-2025	2.63 $*	2.23 $*
Jun-18-2025	2.27 $*	2.20 $*
May-18-2025	2.4 $*	2.5 $*
Apr-18-2025	2.24 $*	2.40 $*
Mar-18-2025	2.92 $*	2.84 $*
Feb-18-2025	2.95 $*	2.82 $*
Jan-18-2025	2.81 $*	2.30 $*

Характеристики

Products Description

Features and Applications:
Cable towline is suitable for use in the occasion of the reciprocating movement. It can tow and protect the built-in cable, tubing and pipe.
Each section of towline can be open. Easy installation and maintenance.
Quiet running, wear-resistant and high-speed movement.
Structure:
Looks like tanks chain, towline consists of many unit links which can move smoothly.
The same series towline have the same inner high, outer high and pitch, but the chain width and bend radius can be different.

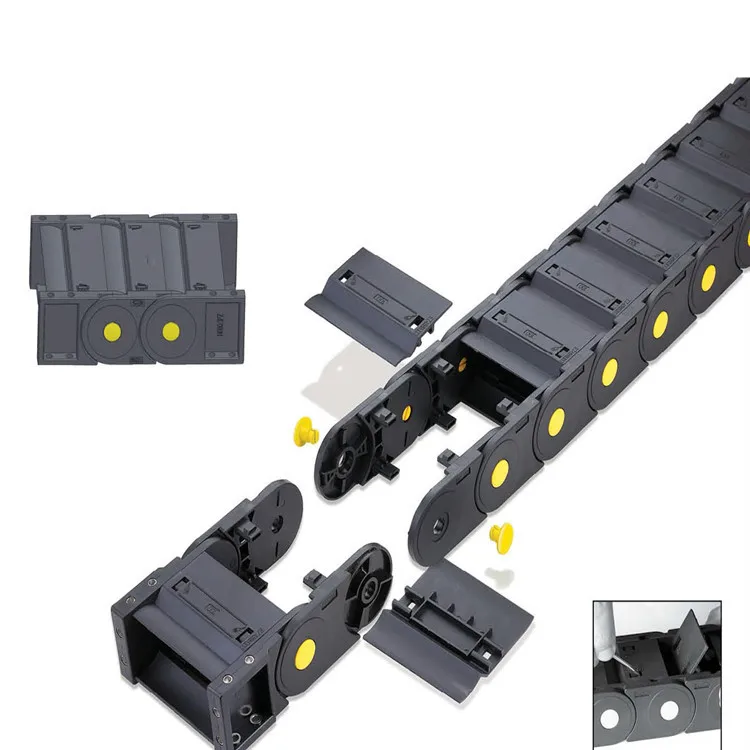

Unit chain consists of left and right chain plate and upper and lower cover. Each section can be open. After opening the cover, we can put the cable, tubing and pipe into the towline.

Self Adjustment

The length of the drag chain can be adjusted as required.

Type	Inner width (mm)	Outer width (mm)	Bending radius(mm)	Pitch (mm)	Weight (kg)
6500.100.	100	152	150 200 250 300 350	91	4.30
6500.125.	125	177	150 200 250 300 350	91	4.40
6500.150.	150	202	150 200 250 300 350	91	4.50
6500.175.	175	227	150 200 250 300 350	91	4.65
6500.200.	200	252	150 200 250 300 350	91	4.80
6500.250.	250	302	150 200 250 300 350	91	4.95
6500.300.	300	352	150 200 250 300 350	91	5.10
6500.350.	350	402	150 200 250 300 350	91	5.30
6500.400.	400	452	150 200 250 300 350	91	5.50

Application

Company Profile

WUXI KOMAY ELECTRIC EQUIPMENT CO., LTD.is a professional high and new tech enterprises in mobile electrification system field. Our major products are Single Pole Insulated Conductor Rails,Enclosed Conductor Rails,Copperhead Conductor Rails, Safety Power Rails, Multipolar Busbar,Busway Systems,Cable Trolleys,Cable Chains,ED Thruster,Electro-Hydraulic Drum Brake and more....The essential features of products are Compact arrangement ,corrosion resistance,and simple assembly .The products is suitable especially for overhead and elongated tracks for cranes,monorails,port machines,stacking systems,as well as many other applications for supplying power to moving power loads.Our Products are certified by CE and export to Europe,America,Middle East,Africa, Southeast Asia etc. other country and area.Competitive price and High quality - All mobile electrification systems for you ,We are sincerely looking forward to cooperatering with you!
