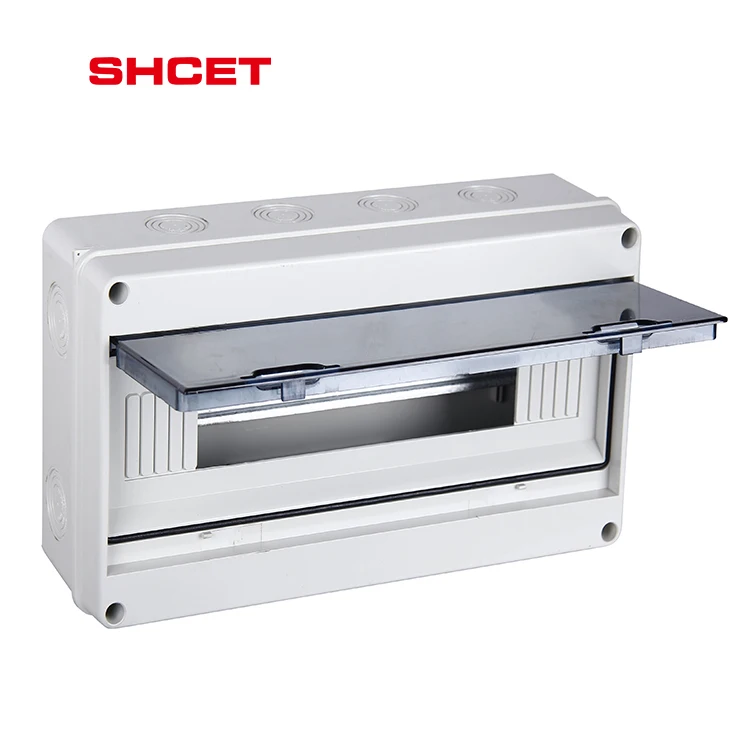

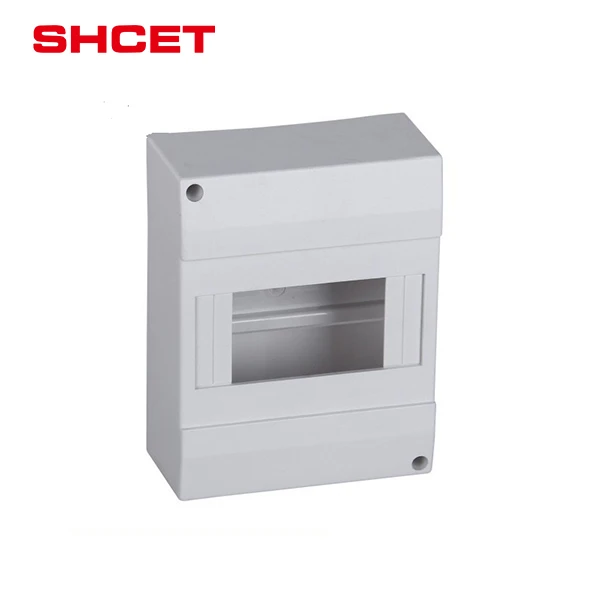

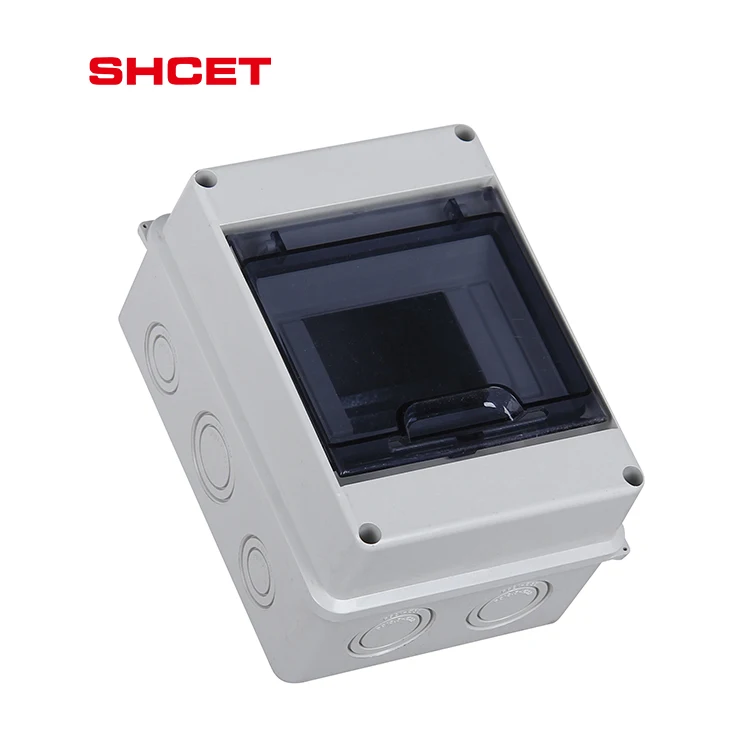

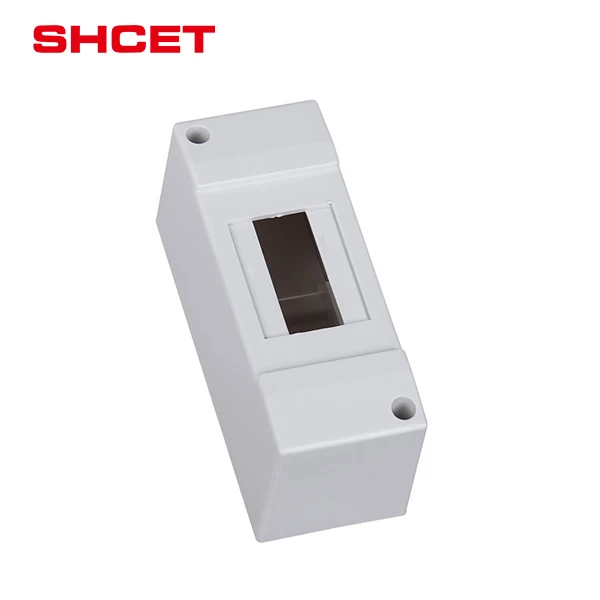

Высококачественная Пластиковая распределительная коробка электрическая 1 2 4 6 8 12 18 способов установки автоматического
- Категория: Power Distribution Equipment >>>
- Поставщик: Shanghai,Cet,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 1.84 $* | 1.44 $* |
| Jul-17-2025 | 1.74 $* | 1.5 $* |
| Jun-17-2025 | 1.78 $* | 1.10 $* |
| May-17-2025 | 1.79 $* | 1.4 $* |
| Apr-17-2025 | 1.17 $* | 1.81 $* |
| Mar-17-2025 | 1.76 $* | 1.75 $* |
| Feb-17-2025 | 1.64 $* | 1.69 $* |
| Jan-17-2025 | 1.32 $* | 1.22 $* |
Характеристики
Specification

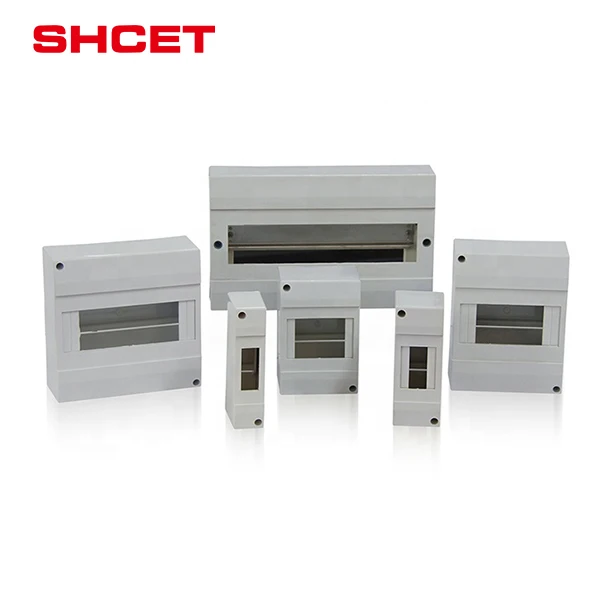

CTD series of surface MCB Distribution Box is kind of good-looking outline small volume.easy to install economically modular distribution box. It mainly use for building electric distribution system's installation,matched and house rebuild fitment etc application.
Removable matte blocks to increase the poles. The removable various size holes are available on the box of up and down,bottom in case of connecting wires in and out.
Distribution box rated current:
1way to 4way:50A 6way to 18ways:63A
Material:
Insulation: Fire-proof type refractory material
Color: White
Protect grade:IP30
Composition, structure
Removable matte blocks to increase the poles. The removable various size holes are available on the box of up and down, bottom in case of connecting wires in and out.
Removable matte blocks to increase the poles. The removable various size holes are available on the box of up and down,bottom in case of connecting wires in and out.
Distribution box rated current:
1way to 4way:50A 6way to 18ways:63A
Material:
Insulation: Fire-proof type refractory material
Color: White
Protect grade:IP30
Composition, structure
Removable matte blocks to increase the poles. The removable various size holes are available on the box of up and down, bottom in case of connecting wires in and out.
Model | Dimensions | ||||
L (mm) | W (mm) | H (mm) | |||
CTD-1WAY | 34 | 130 | 60 | ||
CTD-2WAY | 52 | 130 | 60 | ||
CTD-4WAY | 87 | 130 | 60 | ||
CTD-6WAY | 125 | 160 | 60 | ||
CTD-8WAY | 160 | 160 | 60 | ||
CTD-12WAY | 258 | 160 | 60 | ||
CTD-18WAY | 365 | 160 | 60 | ||
