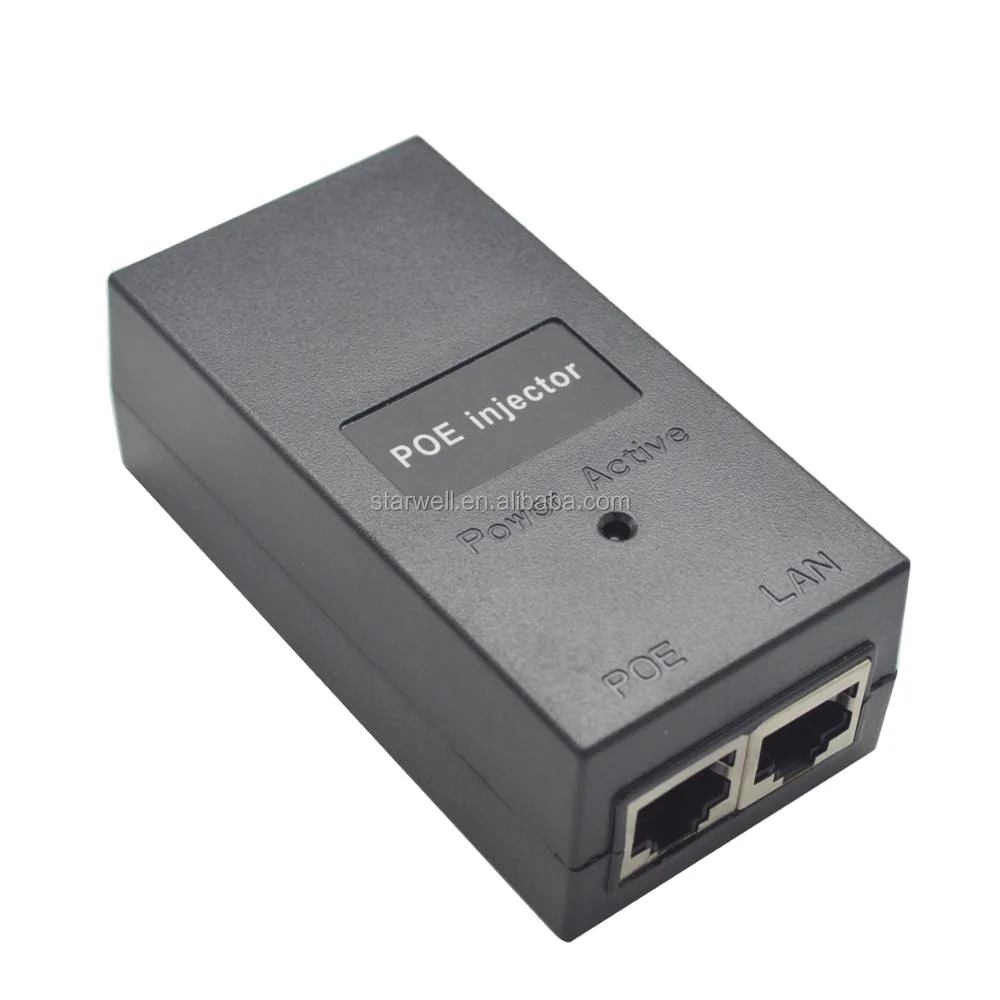

48 в Настольный Инжектор PoE активный 1000 Мбит/с и 56 настольный источник питания Poe rj45 ethernet с FCC UL

Input Rated Voltage :

100Vac~240Vac

Input Frequency Range:

47Hz~63Hz

Input Inrush Current :

1.3A max

Efficiency  :

85%(MIN)at Rated Voltage

Output:

48V 0.5A

Output power :

24W

Ripple and Noise :

<120Mv at full road with 20MHz bandwidth

Turn On Delay Time:

<3S  (AC:110V and full load)

Safety protection :

over voltage and current protection for power adapter

Leakage Current:

<5mA

DC cable   length:

1.5 meters

Operating Temperature:

0°C----+60°C

Storage Temperature:

-20°C----+85°C

Certificate:

CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK

Safety Standard :

EN60950-1 UL60950-1  ESD (EN61000 3-3)
CAS (60950 ITE/TE)  FCC Part 15 subpart B Class B
AN/NZS CISPR 22:2006

Data connector

 RJ45 +24V pins4&5, Power Return pins7&8

Futures:

Compliant with Isolation and Channel
Characteristics of IEEE802.3af
Data and Power carried over one Ethernet Cable

Application:

IP Telephones, Wireless Network Access Points, Blue Tooth Access Point IP Print Servers, Security Camera etc…
