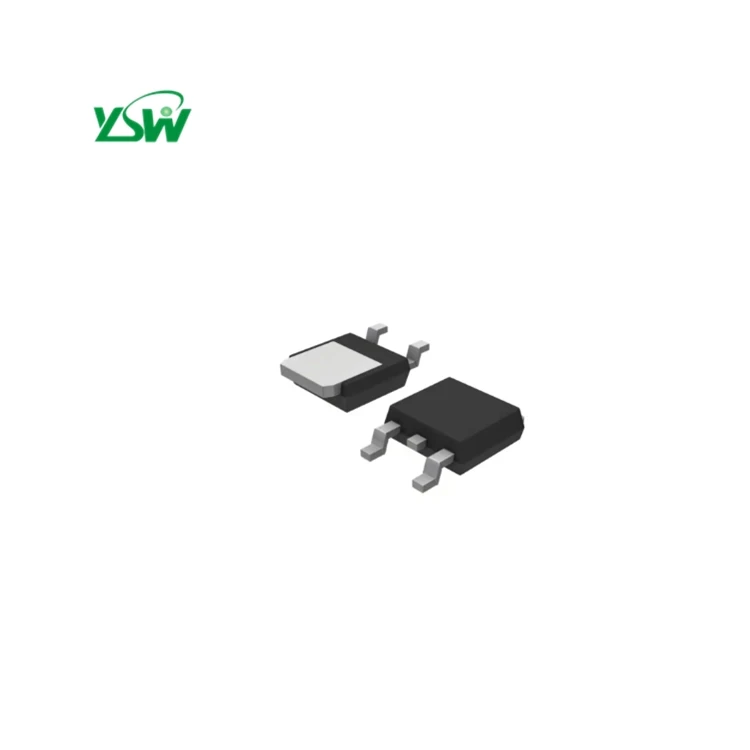

NTD78N03T4G Bom компоненты MOSFET N-Channel 25V 11.4A/78A DPAK новые

Цена:0,10 $ - 1,00 $*

Количество:

Product Information

Place of Origin	Original
Model Number	NTD78N03T4G
Type	MOSFET
D/C	Newest
Supplier Type	Retailer
Cross Reference	-
Media Available	datasheet
Brand	Transistor
Current - Collector (Ic) (Max)	11.4A (Ta), 78A (Tc)
Voltage - Collector Emitter Breakdown (Max)	25 V
Vce Saturation (Max) @ Ib, Ic	Standard
Current - Collector Cutoff (Max)	11.4A (Ta), 78A (Tc)
Operating Temperature	-55°C ~ 150°C(TJ)
Mounting Type	Surface Mount
Package / Case	Standard
Resistor - Base (R1)	Standard
Resistor - Emitter Base (R2)	Standard
FET Type	Standard
FET Feature	Standard
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	11.4A (Ta), 78A (Tc)
Rds On (Max) @ Id, Vgs	6mOhm @ 78A, 10V
Vgs(th) (Max) @ Id	3V @ 250uA
Gate Charge (Qg) (Max) @ Vgs	35 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds	2250 pF @ 12 V
Frequency	Standard
Current Rating (Amps)	Standard
Noise Figure	Standard
Power - Output	Standard
Voltage - Rated	Standard
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Vgs (Max)	±20V
IGBT Type	Standard
Configuration	Single
Resistance - RDS(On)	Standard
Applications	Standard
Package	Bulk
Series	Datasheet
Part Status	In Stock
Supplier Device Package	Box
Approval Agency	-
Sample	Available
Condition	New and Original
Warranty	One Year
