TP4056 5V 1A 18650 TYPE-C USB зарядное устройство для литиевой батареи Модуль зарядная плата


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 0.37 $* 0.18 $*
Aug-17-2025 0.83 $* 0.60 $*
Jul-17-2025 0.39 $* 0.88 $*
Jun-17-2025 0.80 $* 0.42 $*
May-17-2025 0.71 $* 0.53 $*
Apr-17-2025 0.32 $* 0.7 $*
Mar-17-2025 0.50 $* 0.66 $*
Feb-17-2025 0.31 $* 0.3 $*
Jan-17-2025 0.97 $* 0.8 $*

Характеристики





Product Description

Product Description






TP4056 5V 1A 18650 TYPE-C USB lithium Battery Charger Module Charging Board With Protection

















Description


Charge cut-off voltage: 4.2 V + / - 1%
Maximum charging current output: 1000 ma
The battery overcharge protection voltage: 4.28 V
Battery overcharge lifting voltage: 4.00 V
The battery discharge protection voltage: 3.0 V
Battery discharge termination voltage: 3.2 V
Battery: over-current protection current 3 a

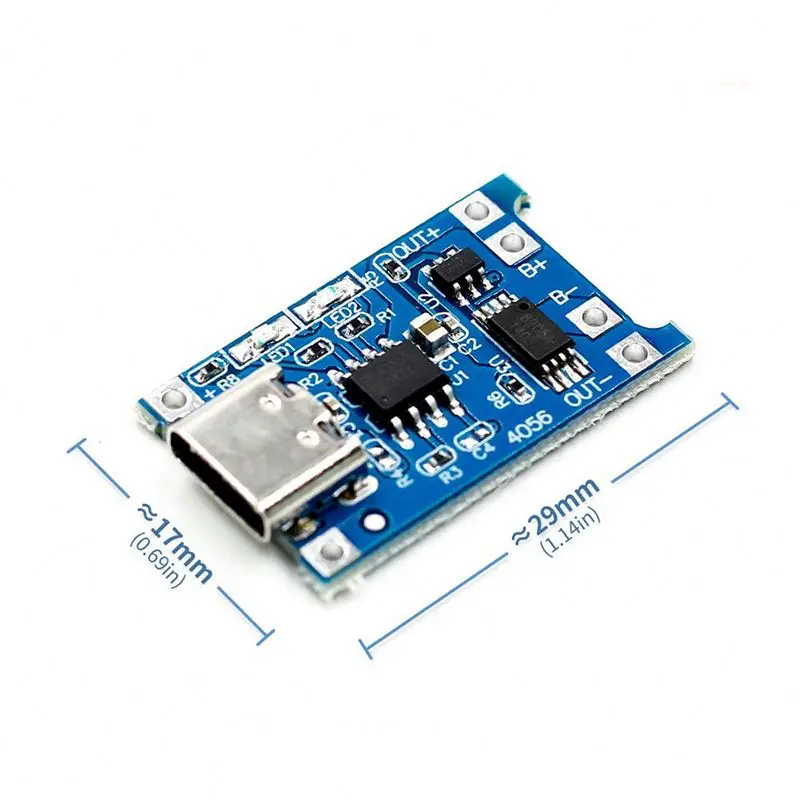

The board size: about 2.5 * 1.65 CM
Light state: no load the light not bright, red light for recharging, is full of green light.








Note:



There may be no voltage output between OUT + and OUT - when the battery is first connected, and the protection circuit can be activated by charging the 5V voltage, and the battery needs to be charged to activate the protection circuit if it is switched on and off from B + B - again. When using a mobile phone charger as input, note that the charger must be able to output 1A or more, or it may not be able to charge properly

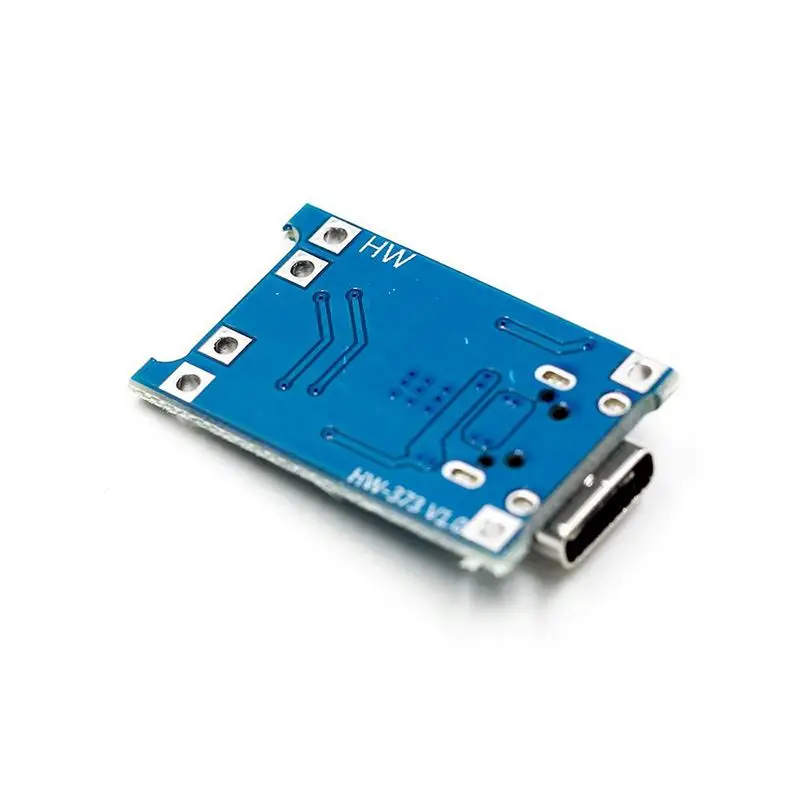

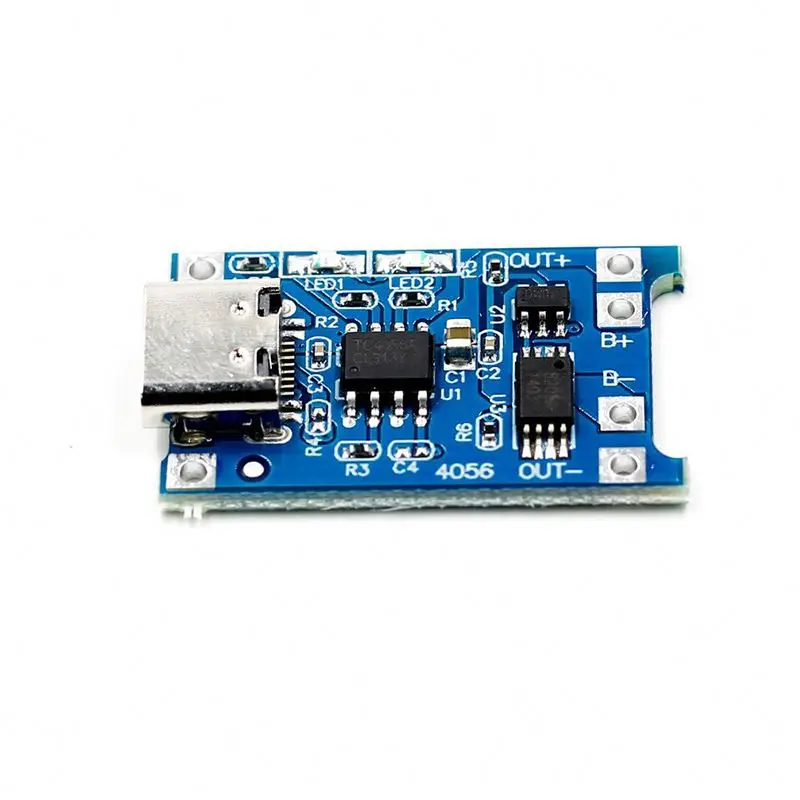

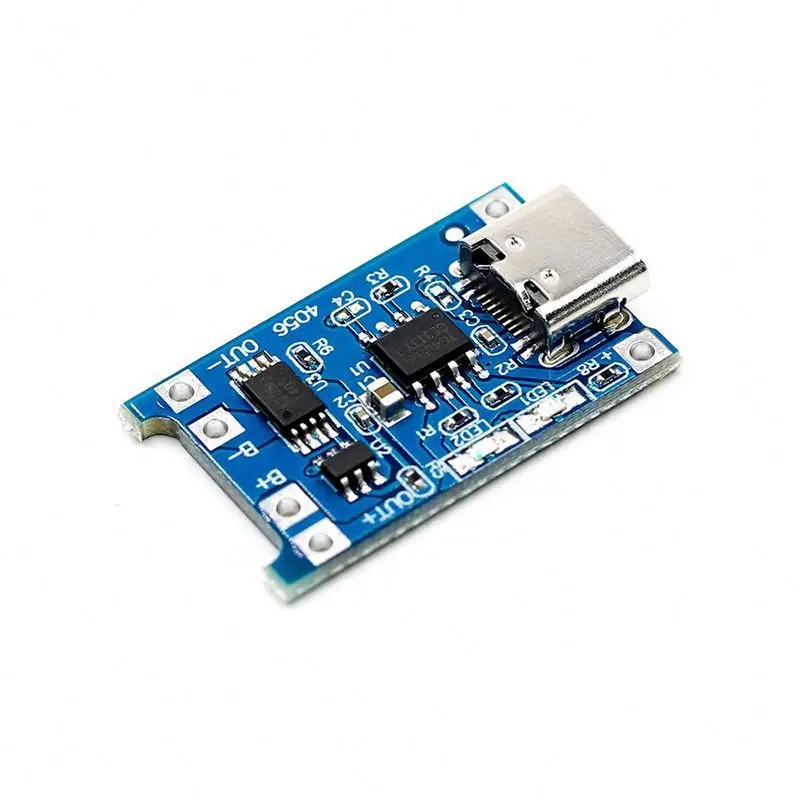

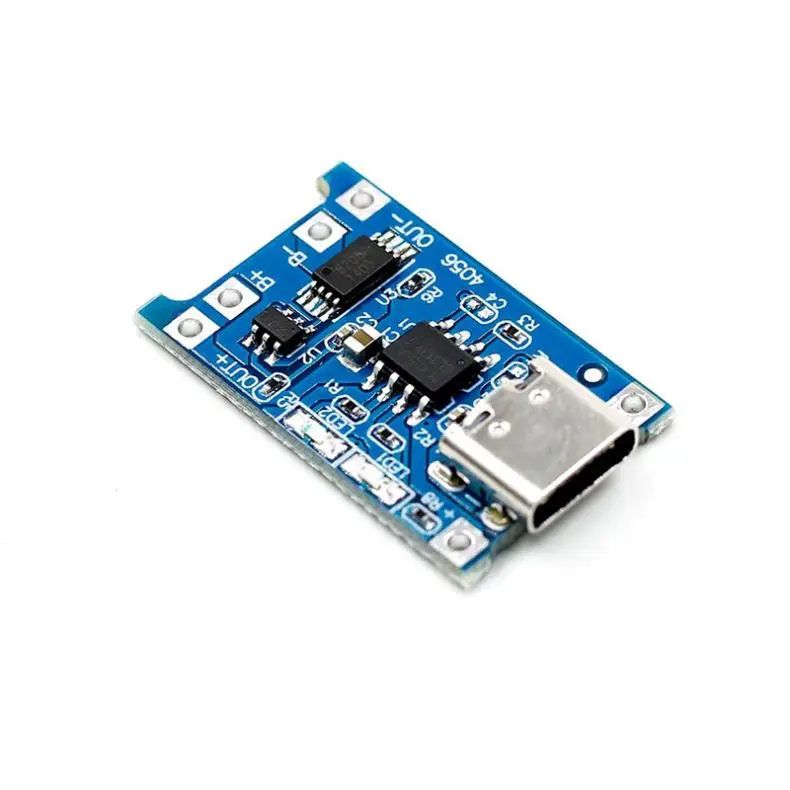

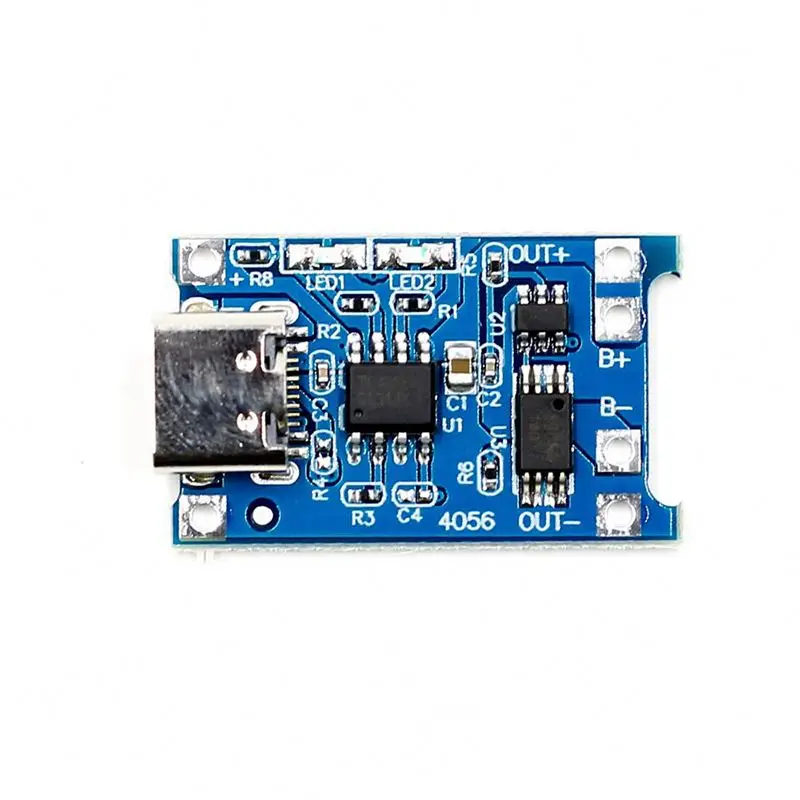

Product Picture
