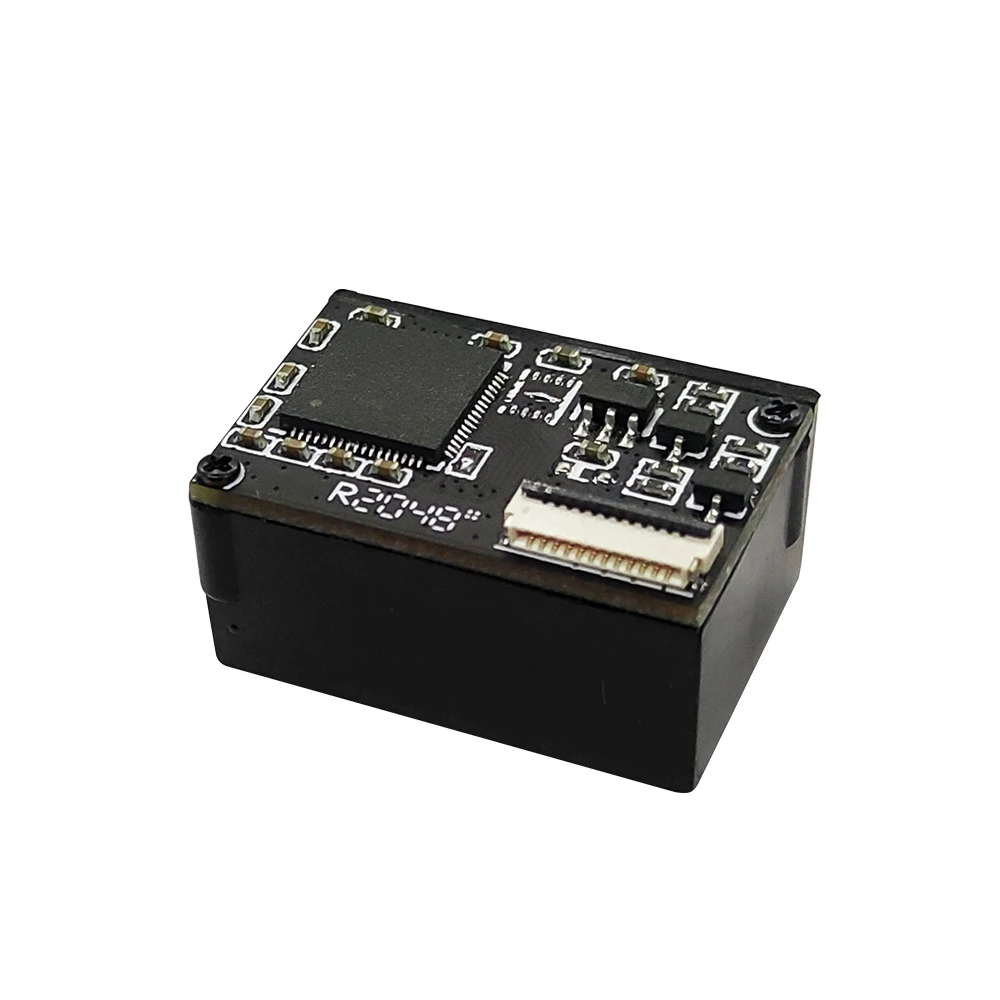

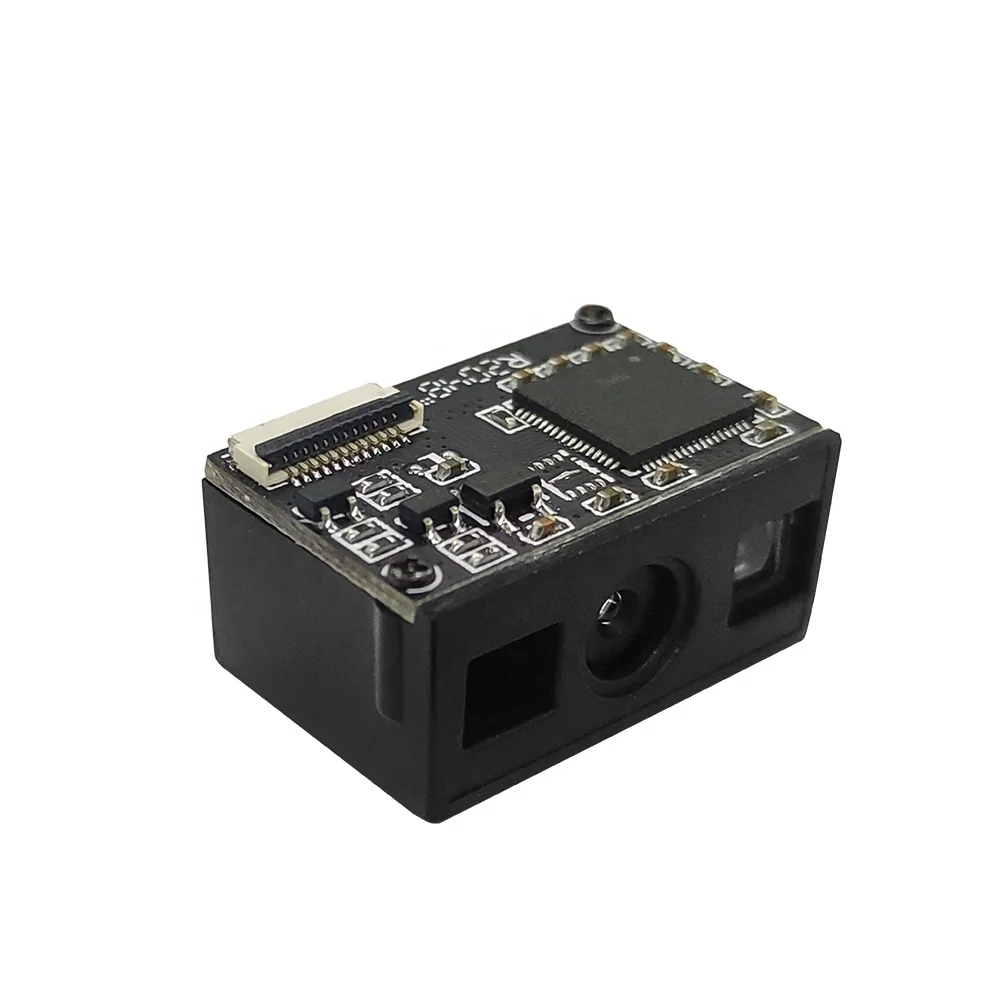

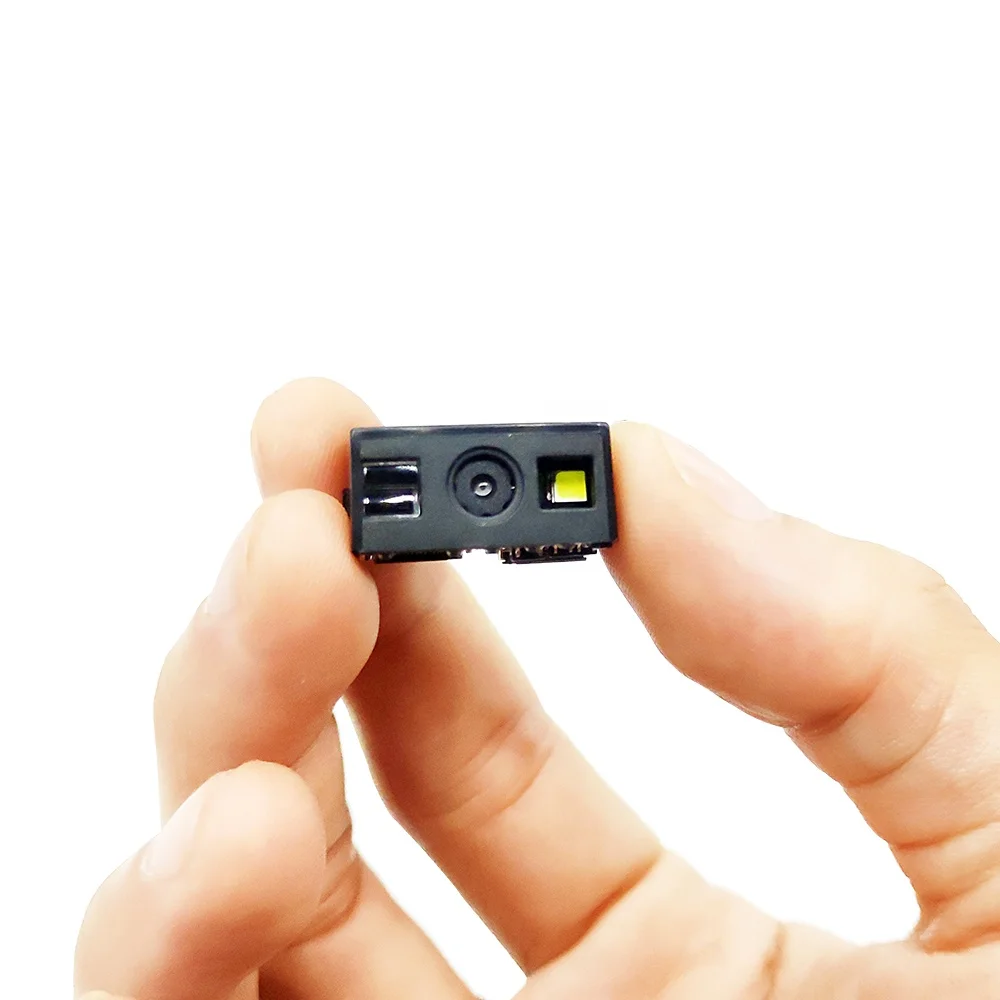

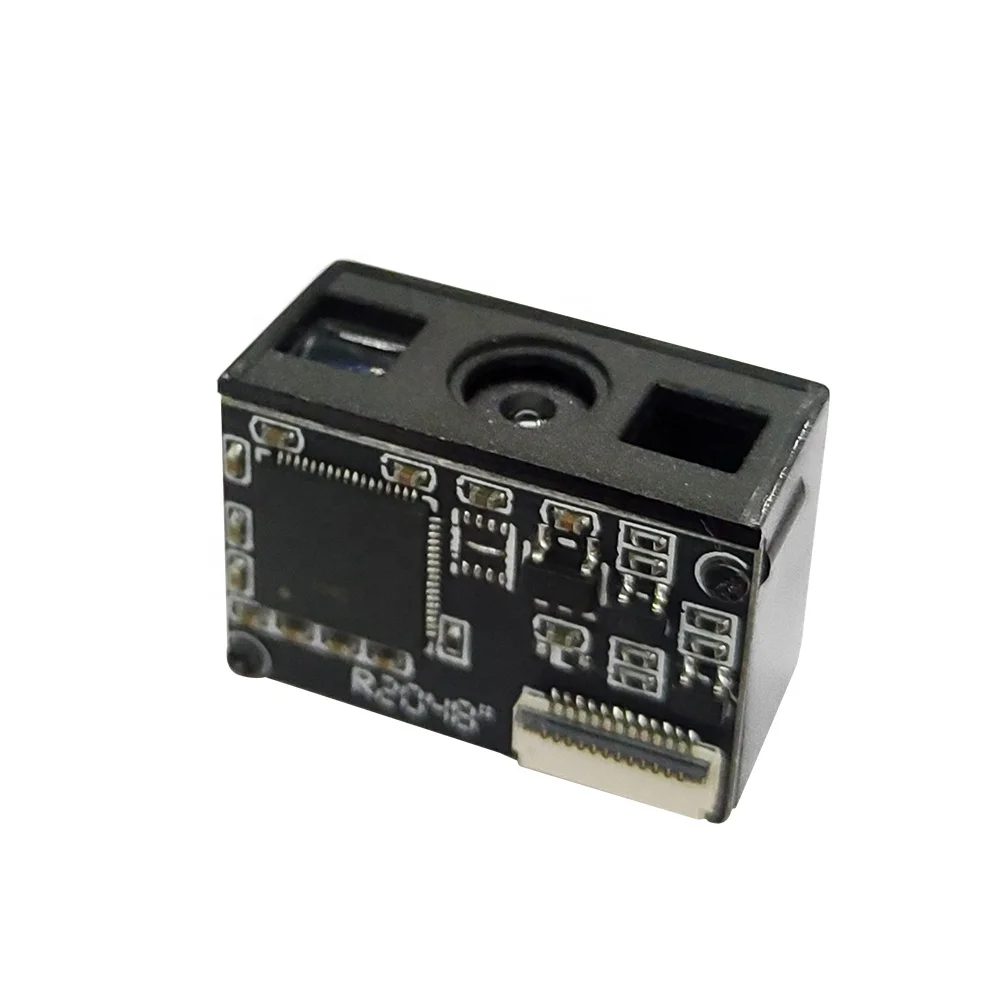

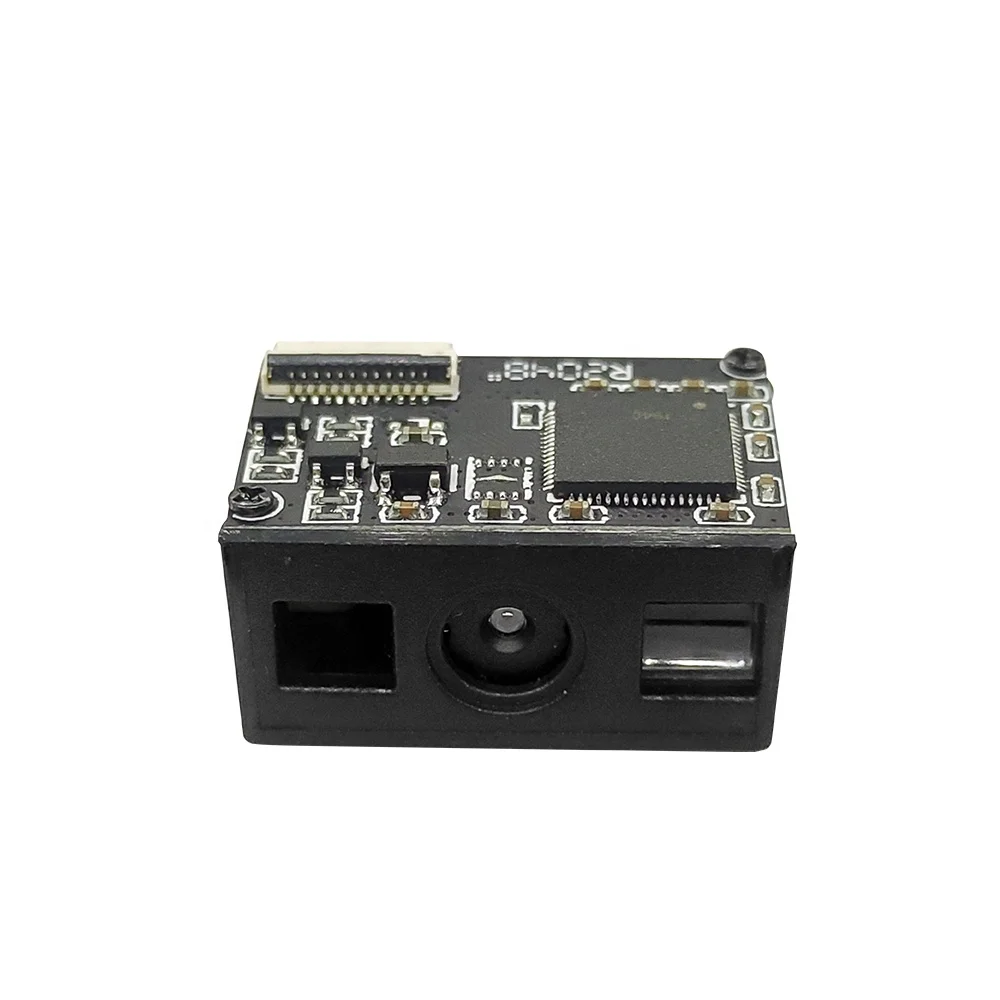

Профессиональный заводской 2D Модуль сканера штрих-кода SQ002 полуготовый продукт мобильный считыватель
Профессиональный заводской 2D Модуль сканера штрих-кода SQ002 полуготовый продукт мобильный считыватель
Профессиональный заводской 2D Модуль сканера штрих-кода SQ002 полуготовый продукт мобильный считыватель
Профессиональный заводской 2D Модуль сканера штрих-кода SQ002 полуготовый продукт мобильный считыватель
Профессиональный заводской 2D Модуль сканера штрих-кода SQ002 полуготовый продукт мобильный считыватель
Профессиональный заводской 2D Модуль сканера штрих-кода SQ002 полуготовый продукт мобильный считыватель
Профессиональный заводской 2D Модуль сканера штрих-кода SQ002 полуготовый продукт мобильный считыватель

Профессиональный заводской 2D Модуль сканера штрих-кода SQ002 полуготовый продукт мобильный считыватель


Поделиться:


Цена:5,50 $ - 6,50 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 6.70 $* 6.88 $*
Jul-19-2025 5.65 $* 5.5 $*
Jun-19-2025 6.73 $* 6.54 $*
May-19-2025 6.87 $* 6.0 $*
Apr-19-2025 5.61 $* 5.42 $*
Mar-19-2025 6.26 $* 6.78 $*
Feb-19-2025 6.66 $* 6.83 $*
Jan-19-2025 6.13 $* 6.51 $*

Характеристики





Products status
stock
Scan Element Type
CMOS
Optical Resolution
5mil
Type
Barcode Scanner module
Colour Depth
32Bit
Max Paper Size
A4
Scan Speed
500scan/sec
Operating voltage:
VDD
3.3V
VIL
Max0.8V
VIH
Min2V
VOL
Max0.4V
VOH
Min 2.5V
Operating current:
Standby current
65mA
Read the operating current
210mA
Warranty(Year)
1year
Place of Origin
 China




Product Description
1.SQ200 scanning module product, TMS-Z23 chip and advanced image recognition algorithm are perfectly integrated, which can read all kinds of mainstream one-dimensional and two-dimensional barcodes. It simplifies the design difficulty of barcode reading products and is a cost-effective scanning solution.
2.SQ002 uses a bright LED to provide auxiliary lighting for exposure, which can quickly read the barcode even in full darkness. The lighting function can be turned on or off by setting.
3.SQ002 provides a word aiming indication pattern, which is used to help users aim at the target, facilitate barcode reading and improve reading efficiency. The aiming function can be turned on or off by setting.















Module Size
When integrating SQ002, refer to the following physical dimensions. In the structural design, other components shall not compress
the device of SQ002. Note: The installation depth of screws shall not exceed 2.5mm. (Unit: mm)




Installation orientation
There are 6 screw holes at the bottom of SQ002 for optional installation. When the screw installation hole is facing down, the following figure shows the appearance of correct placement or installation.




Window placement
1.The window is a transparent medium installed in front of the SQ002. The window shall be placed so that the illumination beam and aiming beam can shoot out as far as possible, and prevent reflection from entering the angle range of the lens field of view. If the illumination beam is reflected into the field of view angle of the lens, the reading performance of the module will be reduced.
2.The window shall be installed as close to the front of SQ002 as possible and parallel to the front plane of SQ002. In order to obtain good reading performance, the thickness of window material should be reduced as much as possible. As shown in the following figure, the vertical distance between the near end face of the window and the front end face of SQ002 shall not exceed L=0.5mm. The thickness of window lens shall not exceed 1mm.




Window size
The window size shall be designed to ensure that the field of view of the lens and the positioning lamp is not obscured. On this basis, the lighting area shall not be obscured as much as possible. For the size design of the window, please refer to the following diagrams of each optical area.




REMARK
The vertical area SQ002 of the fill light will emit heat during operation. If the heat accumulates in the case of continuous operation for a long time, the temperature of SQ002 will rise. In high temperature environment, image noise will be increased, image quality will be reduced, and reading performance will be reduced. Avoid wrapping SQ002 with insulation materials such as rubber.




Recommend Products




barcode scanner 2d barcode scanner qr code scanner module.














1.Are you trading company or factory?
We are manufacturers.We have our own showroom and factory.You are welcomed to visit us.

2.Can you accept OEM or ODM?
Yes,Please send your specific requirements to us,we will talk about it with our R&D engineer and confirm well with you.

3.Can I order samples？ Are they free of charge?
Yes,we do sample orders for certain customers.Sample fees are needed and we will deduct the sample fee from your bulk order later.

4. Why so competitive?
With almost 10 years experience,we owned a large domestic market in China.We are the best seller in China.So large quantity will reduce our raw material cost directly. What's more,we have mature technology to save cost.

5. How to control the performance stable?
We take the flow line production in the whole processing. And every product will Full test before it delivery.
