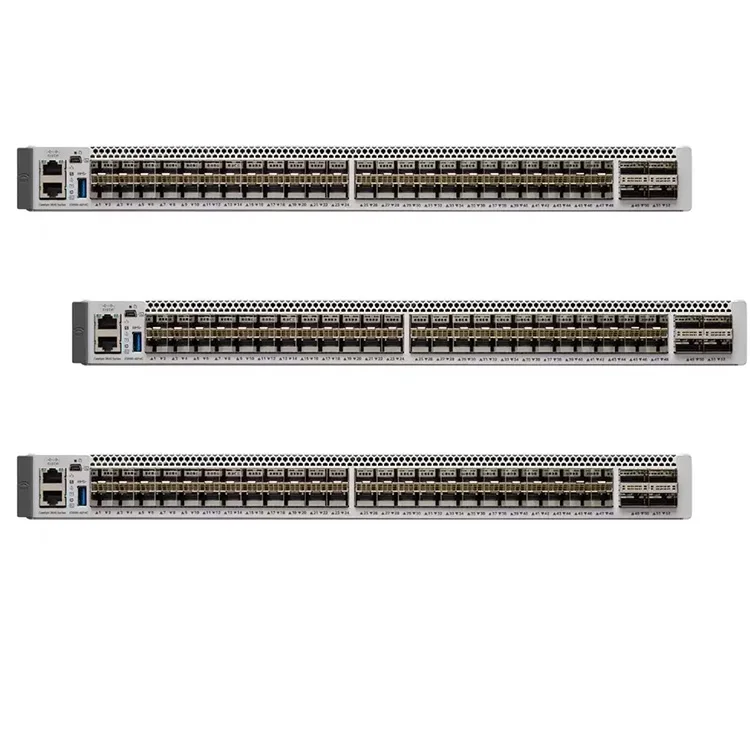

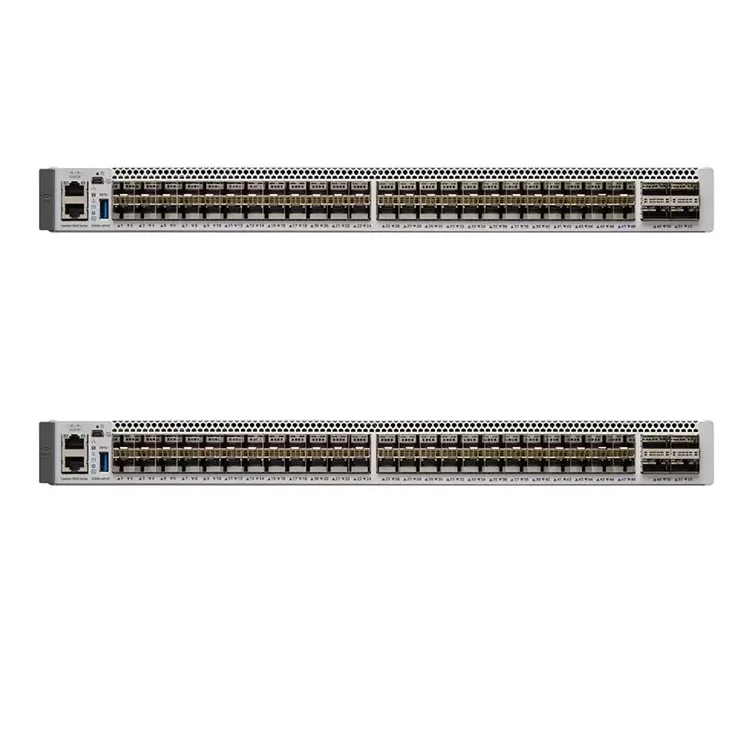

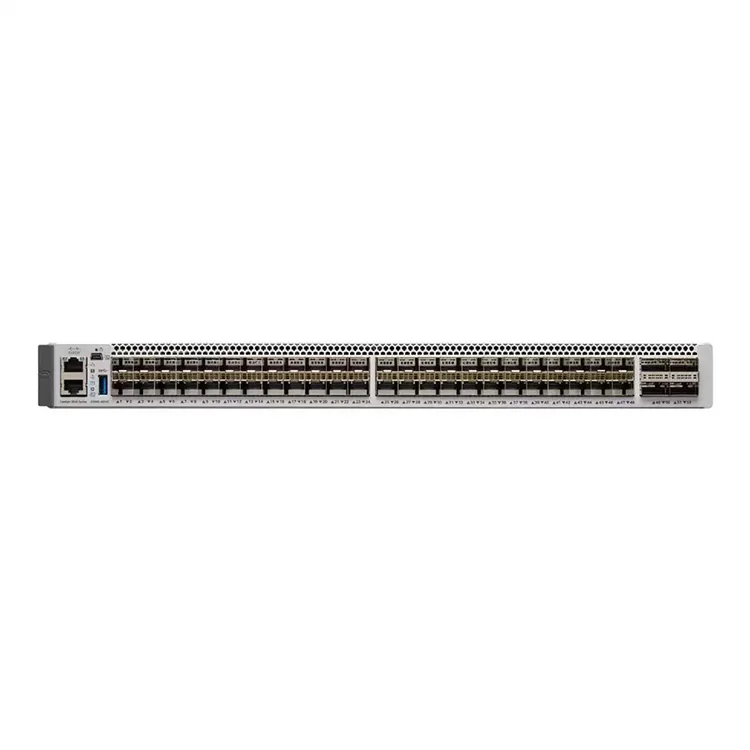

Cisco1 C9500-48Y4C-A 4*100 г uplink enterprise-класса 48-портовый 25G SFP переключатель
- Категория: Network Switches >>>
- Поставщик: Beijing,Lianda,Network,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 7263.51 $* | 7408.23 $* |
| Jul-17-2025 | 5891.63 $* | 6009.37 $* |
| Jun-17-2025 | 7149.81 $* | 7292.8 $* |
| May-17-2025 | 7092.46 $* | 7234.26 $* |
| Apr-17-2025 | 5662.62 $* | 5775.26 $* |
| Mar-17-2025 | 6977.23 $* | 7117.57 $* |
| Feb-17-2025 | 6920.2 $* | 7058.70 $* |
| Jan-17-2025 | 6863.20 $* | 7000.78 $* |
Характеристики
Product Description
Cis co Cata lyst 9500X switch based on Cisco Silicon One Q200 ASIC is purpose built for the next generation core with a programmable pipeline (P4) and is the first network silicon to offer switching capacity upto 25.6 Tbps in the enterprise. The Q200 ASIC offers high-performance along with full routing and switching capabilities without external memories. This is enabled by internal architecture that includes an on-chip High Bandwidth Memory (HBM). The Cata lyst 9500X switch leverages a high- performance multiple core x86 CPU, and is Cis co’s leading purpose-built fixed core and edge services enterprise switching platform, built for security, IoT, and cloud.
Cis co Cata lyst 9500X switch is the industry’s first purpose-built fixed 40, 100, 200 and 400 Gigabit Ethernet switch targeted for the enterprise campus. The Cata lyst 9500X switch delivers unmatched forwarding scale (MAC addresses, IP unicast and multicast routes, MPLS labels) and deep buffering for enterprise applications. The first Cata lyst 9500X models includes non-blocking 100 Gigabit Ethernet Quad Small Form-Factor Pluggable (QSFP28) and non-blocking 400 Gigabit Ethernet Quad Small Form-Factor PluggableDouble Density (QSFP-DD) ports.
9500 Series switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT]); Cis co Software-Defined Access capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cis co StackWise Virtual technology2 that are critical for their placement in the campus core. The
Cis co Cata lyst 9500 Series also supports foundational high-availability capabilities such as patching, Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO2), redundant platinum-rated power supplies, and fans, while supporting a wide array of optics. Catalyst 9500 Series switches provide operational choice of Cisco DNA Center, or Meraki cloud monitoring.
Specification
Cisco Cata lyst 9500X models
The Cisco Silicon One Q200 Application-Specific Integrated Circuit (ASIC) is purpose built for the next generation network core +
edge switch. It is the first enterprise ASIC to offer speeds up to 25.6 Tbps with 8 Bpps of forwarding performance, while
supporting high-performance and full routing and switching capabilities without external memories.
● The Cisco Silicon One Q200 ASIC is built on 7nm fabrication technology, capable of high performance while maintaining a low
power footprint.
● The Cisco Silicon One Q200 ASIC includes an 8GB on-chip High Bandwidth Memory (HBM), for deep packet buffers and route table
expansion.
● Up to 12.0 Tbps switching capacity with 8 Bpps forwarding rate
● 80MB of dedicated low-latency buffer, with up to 8GB of HBM buffer
Up to 28 nonblocking 40/100 Gigabit Ethernet QSFP28 ports
● Up to 8 nonblocking 40/100/200/400 Gigabit Ethernet QSFPDD ports
● Up to 8 nonblocking 40/100/200/400 Gigabit Ethernet QSFPDD ports
Product overview
● Intel 2.43-GHz x86 CPU with 8 cores and 32-GB of DDR4 memory
● Up to 960 GB of SSD local storage for container-based application hosting (2x 10G KR ports)
● Flexible routing (IPv4, IPv6, and multicast) tables, Layer 2 tables, ACL tables, and QoS tables.
● ASIC tables for switching scale up to 256K MAC addresses and routing scale up to 2M routes.
● Dual-stack IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration
● Hardware support for Application Hosting1 (e.g. with Cisco ThousandEyes Enterprise Agent).
● Hardware support for Precision Time Protocol (PTP, IEEE 1588v2)1with accurate clock synchronization and sub- microsecond
accuracy, suitable for distribution and synchronization of time and frequency.
● Hardware support for line-rate 256-bit 802.1ae MACsec and WAN-MACsec1 data encryption.
● Platinum-rated (90% efficient) 1500 Watt AC and/or DC power supplies.
● Field-replaceable fan-tray units, with an added flexibility to choose the direction of airflow.
