Цена:5 800,00 $ - 6 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 6902.6 $* 7247.57 $*
Aug-19-2025 6844.92 $* 7186.50 $*
Jul-19-2025 5742.30 $* 6029.86 $*
Jun-19-2025 6728.59 $* 7064.56 $*
May-19-2025 5858.29 $* 6151.32 $*
Apr-19-2025 6612.7 $* 6943.87 $*
Mar-19-2025 6554.3 $* 6882.28 $*
Feb-19-2025 6496.28 $* 6821.80 $*
Jan-19-2025 6438.36 $* 6760.18 $*

Характеристики



Specification


40KW Weifang Series Gas Generator Set Technical Specifications
Technical parameters of generator set：
Unit model：
MG40GF
Steady state voltage adjustment rate (%)：
≤± 1
Output power：
40Kw
Voltage fluctuation rate (%)：
≤ ± 0.5
Power factor：
COSΦ = 0.8 (lagging)
Transient voltage adjustment rate (%)：
+ 20 ～ －15
Output voltage：
400V / 230V
Voltage stabilization time (s)：
≤1
Output current：
72A
Steady state frequency adjustment rate (%)：
≤ ± 1
Rated frequency：
50Hz
Frequency fluctuation rate (%)：
≤ ± 0.5
Rated speed：
1500rpm
Transient frequency adjustment rate (%)：
+ 10 ~ -7
Gas grade:
LNG/CNG
Frequency stabilization time (S)：
≤3
Dimensions：
2150×750×1500（L×W×H mm）
Gas consumption (100% load):
0.6L/kW·h
Weight：
950kg
Acoustic noise (LP7m)：
≤95dB（A）
Technical parameters of gas engine:
Brand/origin：
Weifang Gas Engine
Cooling method：
closed water circulation cooling
model：
6105D-NG
Ignition method:
Spark plug ignition
Number of cylinders / Dare to mention structure：
6 / L Type
control method:
ECU control
Bore stroke：
105 × 125 mm
Intake method：
inhale naturally
Compression ratio：
16.5：1
Overload capacity：
110%
Start mode：
DC 12V Electric start
Speed：
1500rpm
Technical parameters of generator：
Brand：
LY brushless generator
Protection level：
IP22
Model：
LY-40
Wiring mode：
Three-phase four-wire, Y-connection
Rated power：
40kW
Adjustment method：
AVR (Automatic Voltage Regulator)
Rated voltage：
400V / 230V
Output frequency：
50Hz
Insulation class：
H class
Output factor：
COSΦ = 0.8 (lag)
The standard configuration of the generator set is as follows:
Ø EFI internal combustion engine (gas);
Ø AC synchronous generator (single bearing);
ØSuitable for ambient temperature 40 ℃ -50 ℃ radiator water tank, belt driven cooling fan, fan safety shield;
Ø Power generation output air switch, standard control screen;
Ø Unit steel common base (including: unit vibration damping rubber pad);
Ø Dry air filter, fuel oil, lubricating oil filter, start motor, and equipped with self-charging generator;
Ø Random information: original technical documents of gas engine and generator, generator set manual, test report, etc.
9),The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet;
Optional accessories(Extra charged)
1),Engine oil,diesel,water jacket,Anti-condensation heater
2),Battery floating charger
3),Self-protection unit/self-starting control panel
4),Tree-remote control panel
5),ATS AUTO-loaded transferring screen
6),Daily fuel tank,Integral fuel tank
7),Waterproof type(Cabinet)

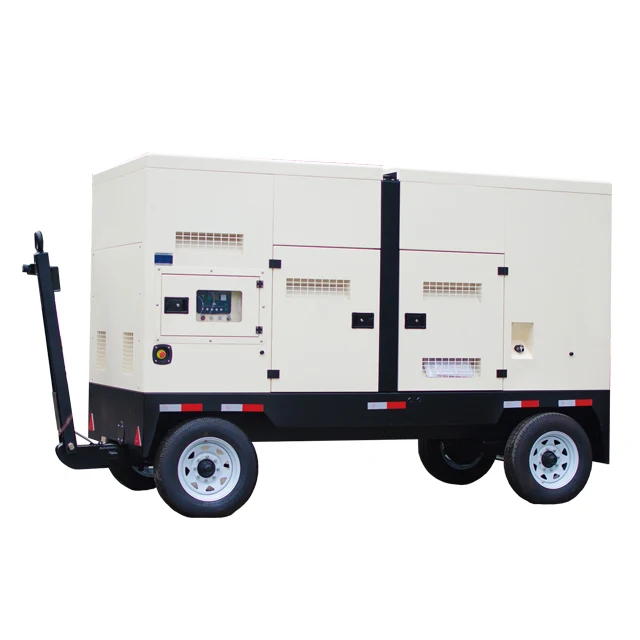

8),Mobile trailer(Drip proof)
9),Mobile trailer(Silent type)


Product Description








Packing & Delivery




plywood case packing


Company Profile


Qingdao Moore Power is located in the diesel engine manufacturing city, Weifang. For many years, we have become a professional manufacturer of diesel generators.

The power range of our generating set is from 5KW to 2200KW. It is coupled by world famous brand engine such as CUMMINS, PERKINS, DEUTZ, DOOSAN, YUCHAI etc., with world famous brand alternator such as STAMFORD, MARATHON, LEROY SOMER, etc. And we are the OEM manufacturer of Cummins, Doosan, Yuchai and so on. Our products are with advantage of Lower noise, lower vibration, easily starting, reliable performance, which can be widely used in factories, mines, banks, hospitals, ship building, telecommunications, oil fields, buildings, construction fields and other fields, or used as the standby power.

QD Moore has import and export rights, we has establish business relationship with 28 provinces, municipalities and autonomous regions, mainly export products to over 40 countries and regions in Europe, Africa, South America, Latin America, Southeast Asia, West Asia and other, already establish a solid partnership with more than 20 countries in Asia, Africa, the Americas, Europe etc.

We are committed to providing efficient, energy-saving, eco-friendly, high-quality and reliable diesel generator sets to ensure clients' satisfaction. We accept small orders and provide competitive price and high quality. Quick delivery time is also our advantage.






FAQ


1.What's your power range of Generators?
Answer: We can offer the range from 10kva~1000kva.
2.What's your delivery time?
Answer: Generally,we can delivery in 7 days after we get the deposit.
3.What are the payment methods for buying equipment?
a,We accept T/T ,and 30% as the deposit,the balance payment should be paid before shipping.
b,We accept Alibaba credit guarantee payment.
c,We accept bank wire payment.
4.What's your warranty?
Answer: All our products we offer on year warranty.
5.What's your MOQ?
Answer:We accept the MOQ is 1 set.
6. Are you a factory or trader ?
We are factory,it is located in Weifang city which is the biggest area of power manufacturing in
China. And we get the import and export right by QingDao Moore Golden trading in order to supply one-stop service which can savelots of cost and time for our customers.
7.How about your design ability? Do you provide OEM service?
We have our own design department and provide design services for thousands of partners. OEM accepts that we provide aconfidentiality agreement "trade secret contract" for your design security.
Optional accessories(Extra charged)
1),Engine oil,diesel,water jacket,Anti-condensation heater
2),Battery floating charger
3),Self-protection unit/self-starting control panel
4),Tree-remote control panel
5),ATS AUTO-loaded transferring screen
6),Daily fuel tank,Integral fuel tank
7),Waterproof type(Cabinet)
8),Mobile trailer(Drip proof)
9),Mobile trailer(Silent type)
