ZK-PP4K PWM импульсный генератор светодиодного освещения скорости мотора управление затемнения Диммер контроллер медленного старта медленно единый
- Категория: Signal Generators >>>
- Поставщик: Shenzhen,Shengba,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5.93 $* | 5.79 $* |
| Aug-16-2025 | 5.50 $* | 5.99 $* |
| Jul-16-2025 | 4.18 $* | 4.23 $* |
| Jun-16-2025 | 5.0 $* | 5.60 $* |
| May-16-2025 | 4.35 $* | 4.15 $* |
| Apr-16-2025 | 5.58 $* | 5.32 $* |
| Mar-16-2025 | 5.46 $* | 5.9 $* |
| Feb-16-2025 | 4.45 $* | 4.53 $* |
| Jan-16-2025 | 4.26 $* | 4.36 $* |
Характеристики
About This Item
Quick Details | ||||||
Model Number： | PWM pulse generator | Type | ZK-PP4K | |||
Place of Origin： | Guangdong, China | Application | ||||
Brand Name： | ShengBa | Chipset | ||||
Packaging & Delivery | ||||||
Selling Units： | Single itemSingle | |||||
package size： | 79*43*26（mm） | weight： | 65g | |||
Product Description

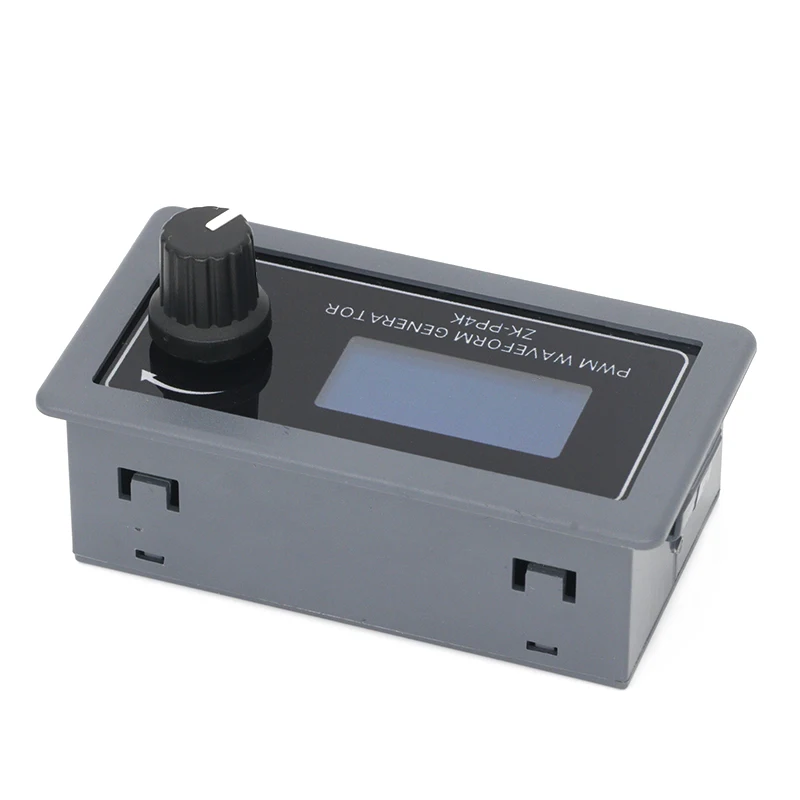

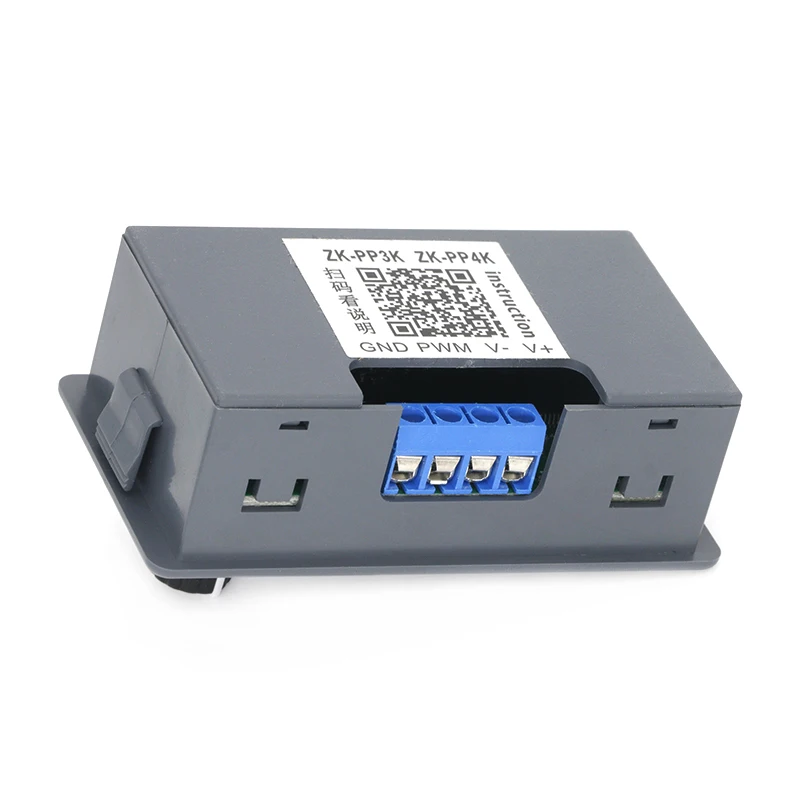

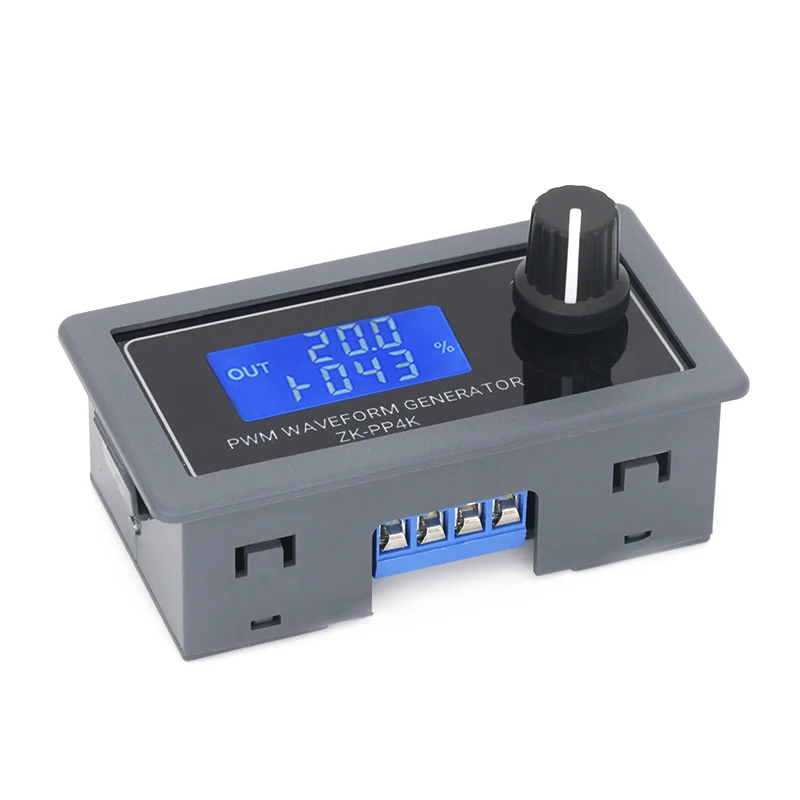

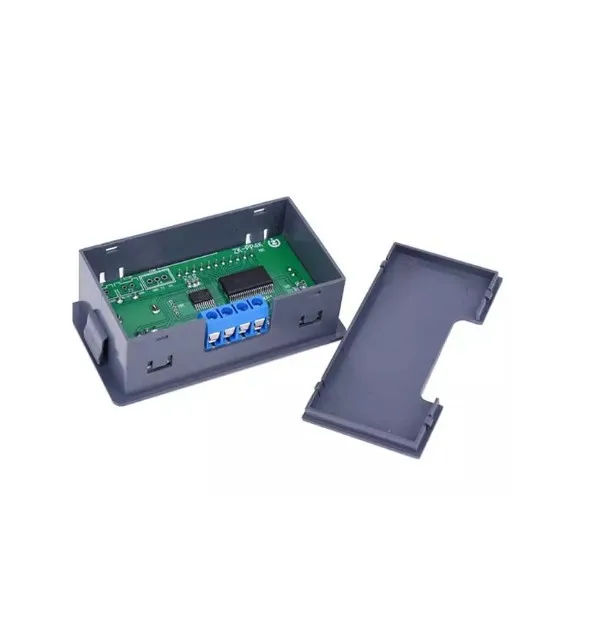

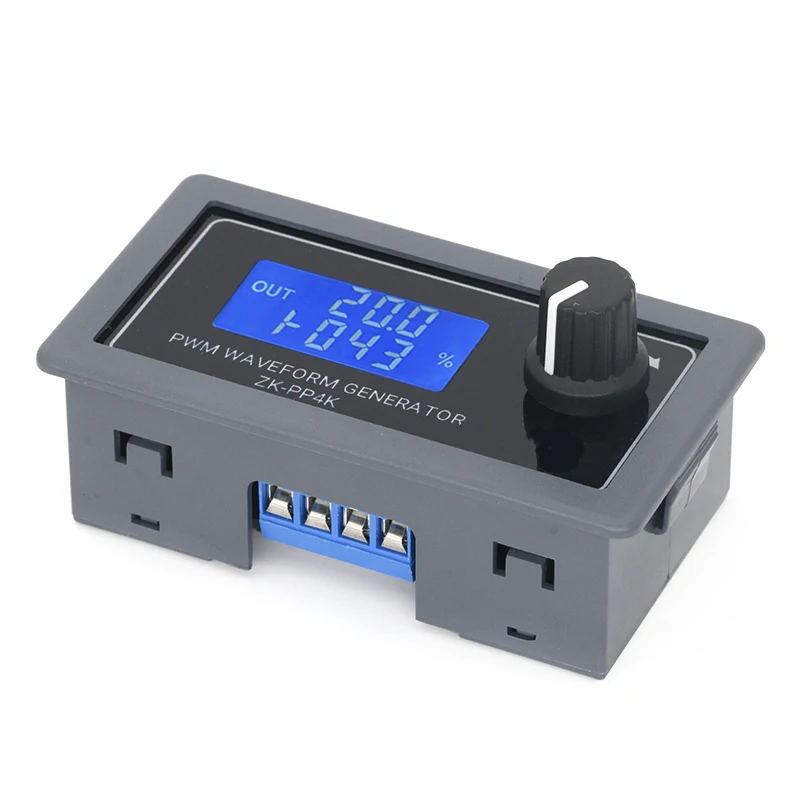

ZK-PP4K PWM pulse generator
Specifications: |
power supply: 3.3-30VDC(V +is connected to the positive pole of power supply and v - is connected to the negative pole of powersupply) Working current: 25mA power waste: 0.3w Display value range: The first line display frequency is adjustable from 1Hz to 150kHz;The second line is adjustable from 00.0 to 100 representing minimum duty cycle to maximum duty cycle. PWM output duty cycle range: 1-100% adjustable PWM output frequency: 1Hz-150KHz adjustable, such as 800, nodecimal point for 800Hz,20.0 with one decimal point for 20KHz,1.5.0 with two decimal points for 150KHz. PWM Output amplitude: The amplitude of PWM without load isabout equal to the supply voltage,PWM output internal resistance1KΩ,lf the PWM signal input resistance is also 1KΩ, After divided by two resistors, the PWM amplitude is half of the supply voltage. Slow start time: 0-999s Delay stop time: 0-999s Input anti reverse protection: yes PWM output short circuit protection: yes size: 79*43*26mm weight: about 65g (including package) Packaging form:paper packaging |
Details Images
