Сублимационный термопресс для печати на футболках 38*38
US $110.00-$120.00
TYMC-1100 Руководство Горячее тиснение золотом фольгой печати и умирает автомат для резки
- Категория: Printing Machine >>>
- Поставщик: Wenzhou,Guangya,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 23800.46 $* | 24990.72 $* |
| Aug-18-2025 | 23600.33 $* | 24780.2 $* |
| Jul-18-2025 | 19800.24 $* | 20790.12 $* |
| Jun-18-2025 | 23200.12 $* | 24360.23 $* |
| May-18-2025 | 20200.3 $* | 21210.8 $* |
| Apr-18-2025 | 22800.59 $* | 23940.16 $* |
| Mar-18-2025 | 22600.0 $* | 23730.59 $* |
| Feb-18-2025 | 22400.69 $* | 23520.22 $* |
| Jan-18-2025 | 22200.42 $* | 23310.2 $* |
Характеристики
Product Description

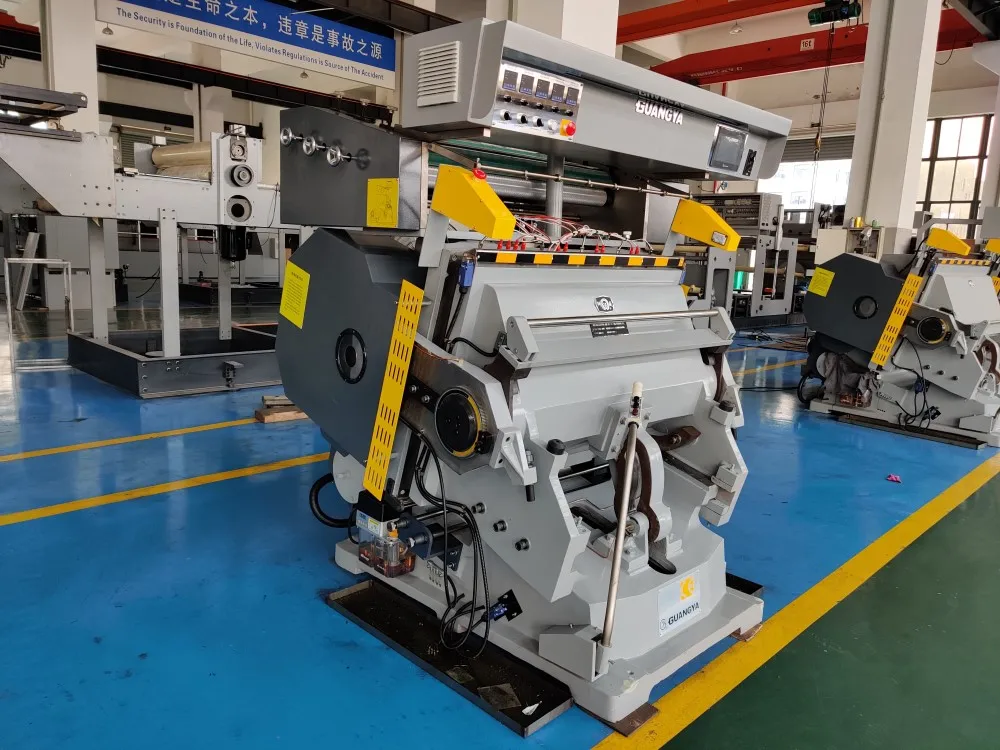

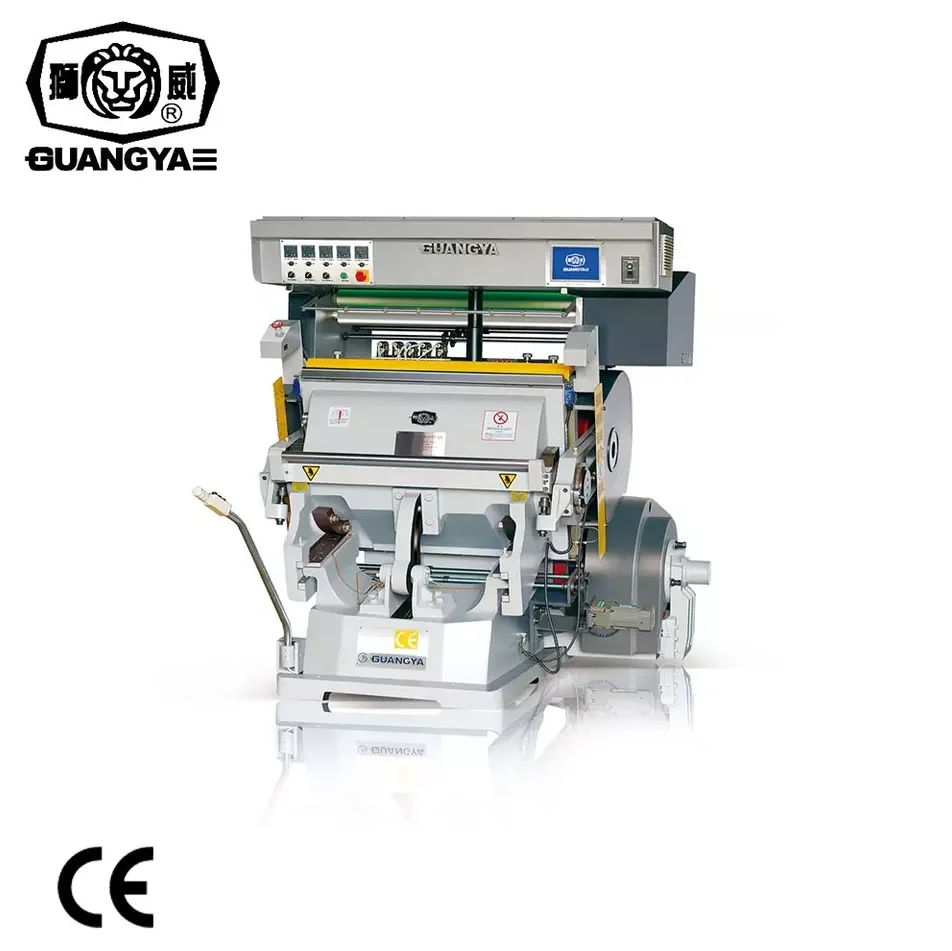

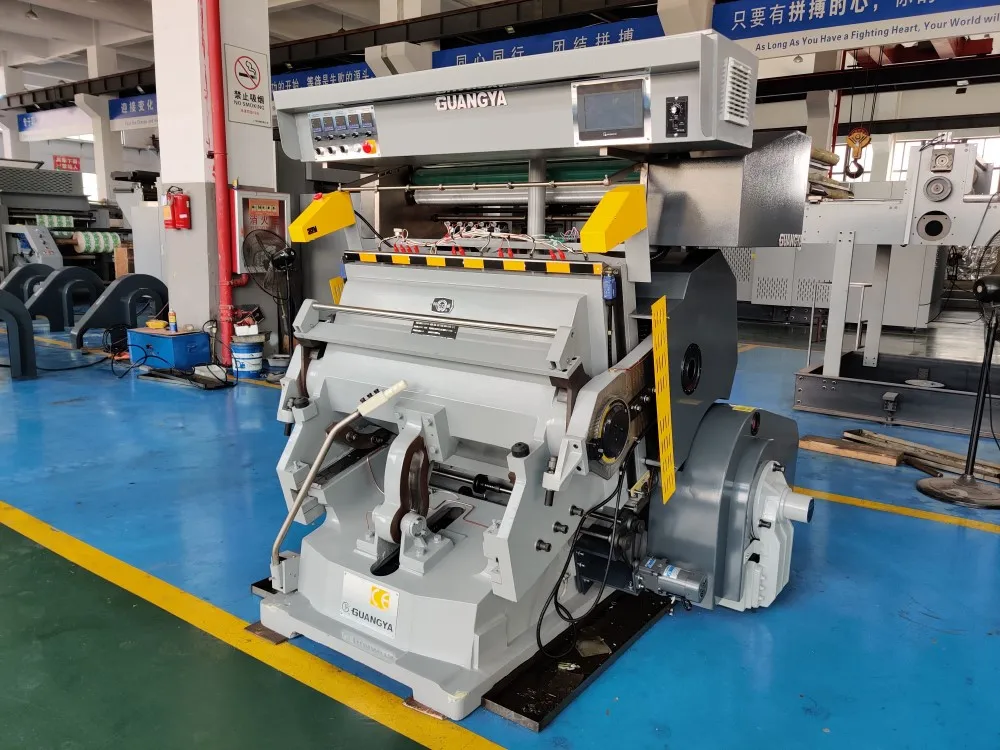

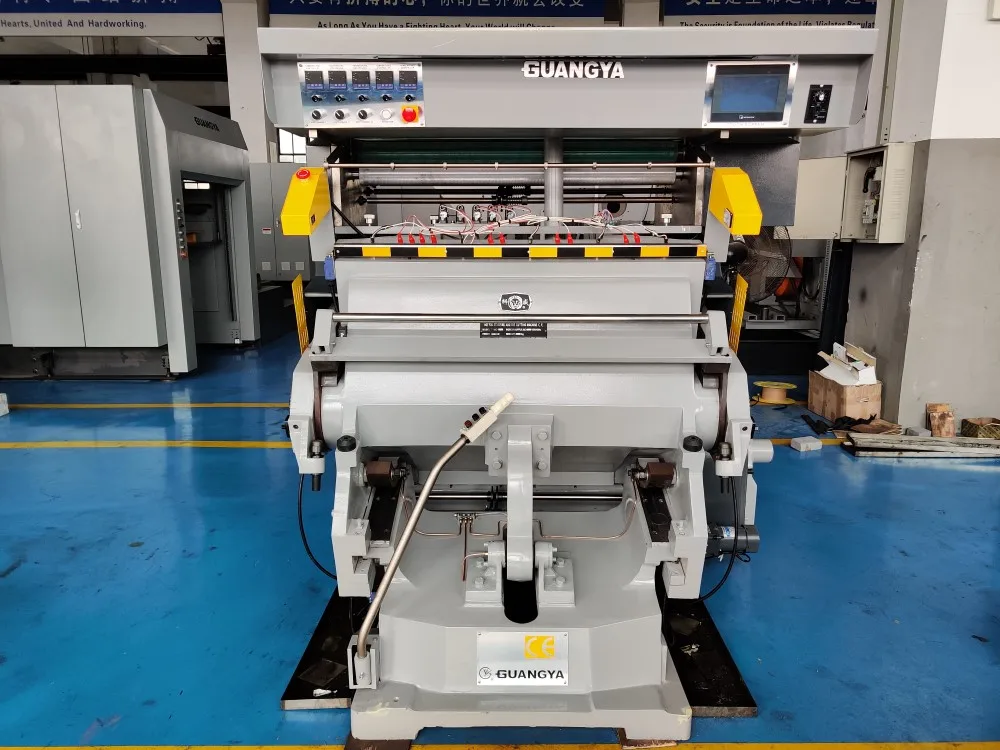

Manual hot foil stamping and die cutting machine is the ideal equipment for stamping and die cutting all kinds of paperboard, leather, and plastic and so on. This machine is the ideal equipment for printing factories.
Manual Foil Stamping Machine is one kind of basic stamping machine for sampling and customized product. Increasing and decreasing temperature accurately, changing the stamping plate easily, operating easily and perfect protection system are the main reason which can win the market. it is also the perfect model in embossing and creasing, suitable for many kinds of different weight cardboard.
Manual Foil Stamping Machine is one kind of basic stamping machine for sampling and customized product. Increasing and decreasing temperature accurately, changing the stamping plate easily, operating easily and perfect protection system are the main reason which can win the market. it is also the perfect model in embossing and creasing, suitable for many kinds of different weight cardboard.
Main Features
- Machine frame is of high-grade iron
- Helical drive gears for added strength
- PLC controlled foil settings and temperature management
- Control panel with touch screen HMI
- Two or three draw foil feed device driven by step motors, provide accurate foil feeding
- Pull out foil holder for easy foil load and change
- 4-5 independent controlled heating zones
- Single speed with four modes of operation including continuous, single, dwell, etc
- Honeycomb base for convenient stamping block lock
- Double micrometer impression adjustment
- Electromagnetic clutch
- Automatic impression counter
- Impression throw off for easy operation
- Covers on gears and flywheels
- Platen edge safety
- Auto central oil lubrication
- self-central cutting mold chase
- Helical drive gears for added strength
- PLC controlled foil settings and temperature management
- Control panel with touch screen HMI
- Two or three draw foil feed device driven by step motors, provide accurate foil feeding
- Pull out foil holder for easy foil load and change
- 4-5 independent controlled heating zones
- Single speed with four modes of operation including continuous, single, dwell, etc
- Honeycomb base for convenient stamping block lock
- Double micrometer impression adjustment
- Electromagnetic clutch
- Automatic impression counter
- Impression throw off for easy operation
- Covers on gears and flywheels
- Platen edge safety
- Auto central oil lubrication
- self-central cutting mold chase
Model | TYMC-1100 |
Max effective plate area | 1100*800mm |
Max stamping size | 1100*800mm |
Groups of foil feeding | 3 |
Max foil feeding length | 800mm |
Leapfrogging scope | 0-99 |
Individual zones of heating plate | 5 |
Power of heating plate | 15kw |
Main motor power | 5.5kw 6pole |
Total power | 20.5kw |
Speed | 23±2 sheets/min |
Machine weight | 4900kg |
Machine size | 2080*1950*2200mm |
Detailed Images
- High strength casting iron HT-250
- 3 shafts transmit to ensure the high working pressure
- 3 shafts transmit to ensure the high working pressure

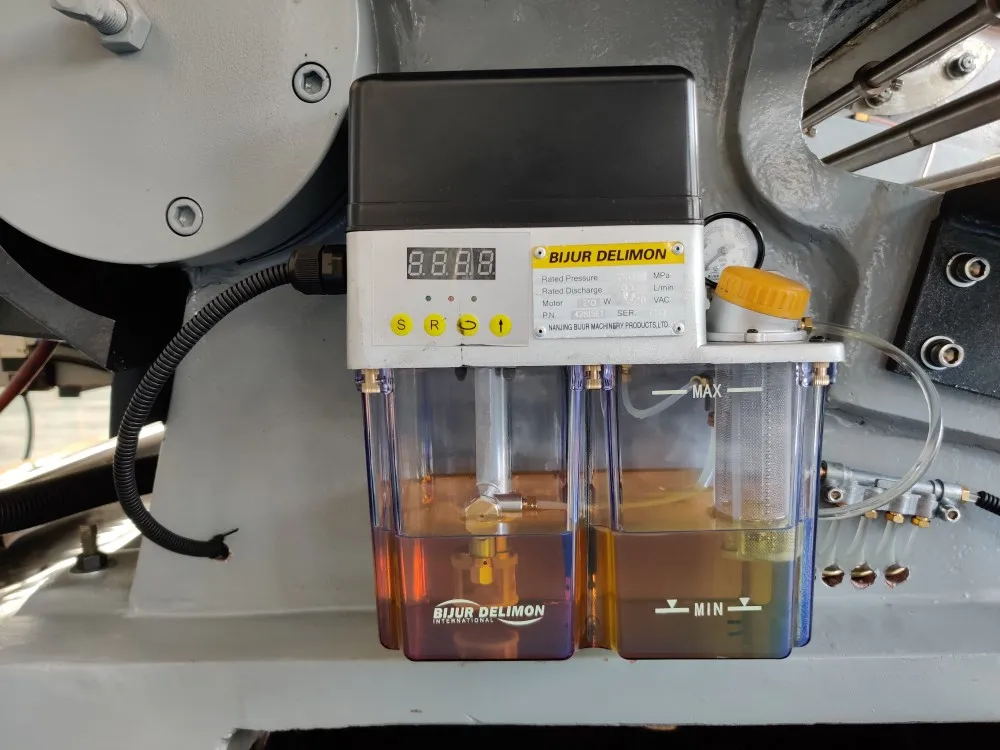

- Automatic centralized lubrication system
- The frequency of lubricating can be adjusted according to your working
- Easier for maintenance
- The frequency of lubricating can be adjusted according to your working
- Easier for maintenance

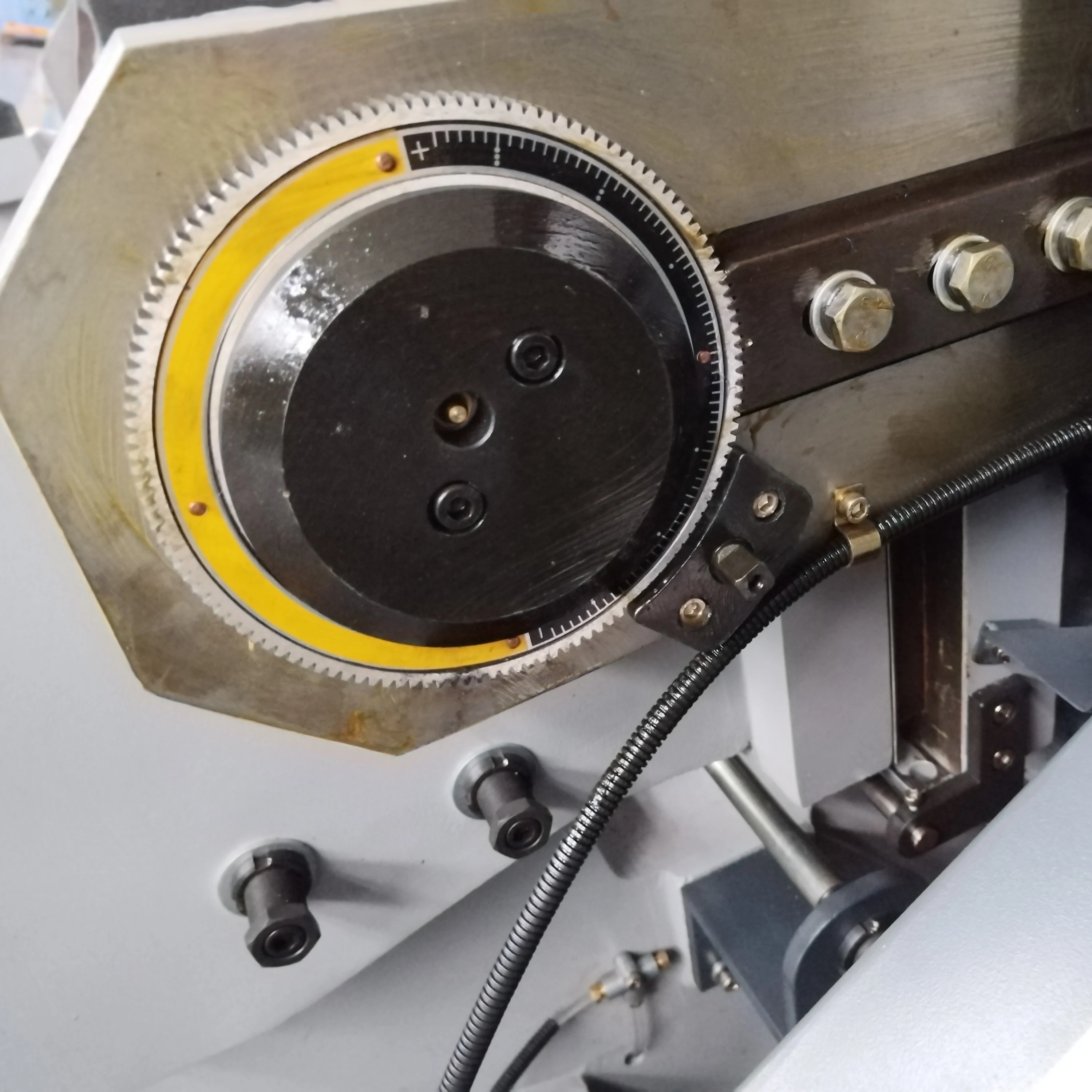

-Micro adjustment device in connecting rod, fast for set up
-3 groups foil axis controlled by step motor
-Inferred sensor to protect the operator safety, it is sensitive and reliable
- CE standard electric system
- All the electrical components are from world famous supplier
- All the electrical components are from world famous supplier
