Хит продаж, высокопрочный насос для бетонных насосов
US $4800-$5300
Герметичные соединения строительный геотехнический струйный цементный инъекционный
- Категория: Concrete Pumps >>>
- Поставщик: Zhengzhou,Sinogrout,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.66 $* | 0.19 $* |
| Aug-19-2025 | 0.12 $* | 0.45 $* |
| Jul-19-2025 | 0.74 $* | 0.6 $* |
| Jun-19-2025 | 0.23 $* | 0.89 $* |
| May-19-2025 | 0.58 $* | 0.80 $* |
| Apr-19-2025 | 0.83 $* | 0.15 $* |
| Mar-19-2025 | 0.17 $* | 0.78 $* |
| Feb-19-2025 | 0.83 $* | 0.21 $* |
| Jan-19-2025 | 0.21 $* | 0.64 $* |
Характеристики
Products Description
DH-H series dual cylinders and single action hydraulic grouting pump is suitable for grouting plugging project of high pressure and large flow. This pump transmits pressure signals by working medium (slurry and hydraulic oil) to form closed-loop automatic control function,therefore the pump is simple in structure, can regulate timely and accurately, and has no overpressure problem.
Technical Parameters
Power(KW) | Overall Dimension | weight | Aggregate | Pump Slurry Ratio | Hydraulic oil tank | ||
7.5 | 1.42×0.74×1.27m | 360kg | Φ3mm | 1:1~1:0.5 | 100L | ||
15,18.5 | 1.77x0.85x1.48m | 560,630kg | Φ3mm | 1:1~1:0.5 | 200L | ||
Power(KW) | Model | Output | Pressure | ||||
L/Min | M3/h | Mpa | |||||
7.5 | DH140/6-7.5H | 140 | 8.4 | 6 | |||
DH120/7-7.5H | 120 | 7.2 | 7 | ||||
DH100/9-7.5H | 100 | 6.0 | 9 | ||||
DH80/11-7.5H | 80 | 4.8 | 11 | ||||
DH66/13-7.5H | 66 | 3.96 | 13 | ||||
11 | DH60/15-7.5H | 60 | 3.6 | 15 | |||
DH50/18-7.5H | 50 | 3.0 | 18 | ||||
DH40/22-7.5H | 40 | 2.4 | 22 | ||||
15 | DH210/8-15H | 210 | 12.6 | 8 | |||
DH190/10-15H | 190 | 11.4 | 10 | ||||
DH150/12-15H | 150 | 9.0 | 12 | ||||
15 | DH120/15-15H | 120 | 7.2 | 15 | |||
DH100/17-15H | 100 | 6.0 | 17 | ||||
DH80/24-15H | 80 | 4.8 | 24 | ||||
DH60/30-15H | 60 | 3.6 | 30 | ||||
18.5 | DH210/9-18.5H | 210 | 12.6 | 9 | |||
DH190/11-18.5H | 190 | 11.4 | 11 | ||||
DH150/14-18.5H | 150 | 9.0 | 14 | ||||
DH120/17-18.5H | 120 | 7.2 | 17 | ||||
22 | DH100/20-18.5H | 100 | 6.0 | 20 | |||
DH90/23-18.5H | 90 | 5.4 | 23 | ||||
DH80/28-18.5H | 80 | 4.8 | 28 | ||||
DH60/33-18.5H | 60 | 3.6 | 33 | ||||
Features of Series Hydraulic Grouting Pump
1.It suitable for grouting plugging project of high pressure and large flow,simple in structure, can regulate timely and accurately
2.It has no over pressure problem
3.It can adjust its output and working pressure by continuously Variable adjustment
2.It has no over pressure problem
3.It can adjust its output and working pressure by continuously Variable adjustment

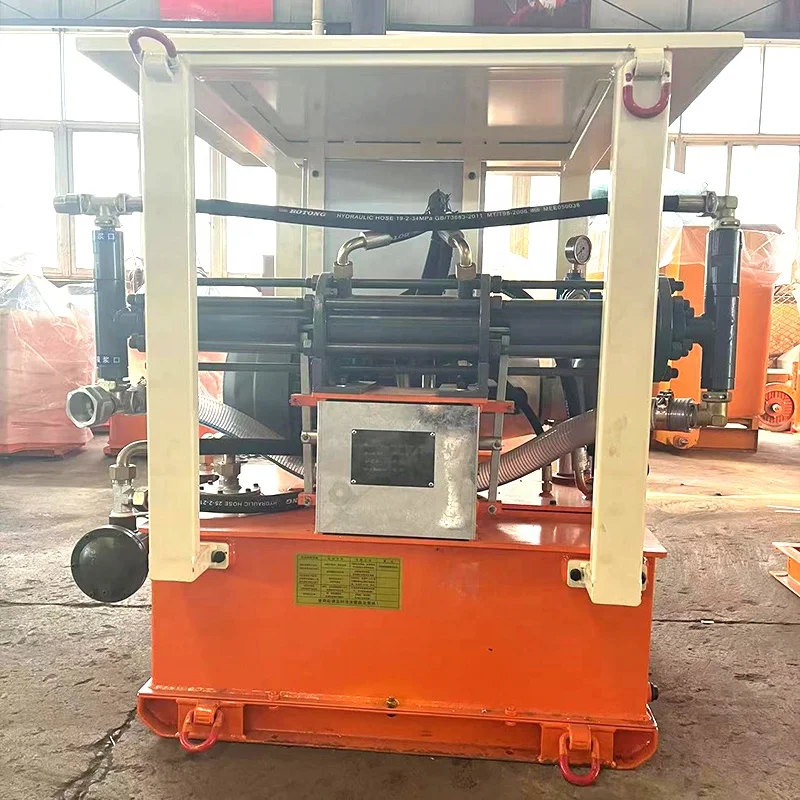

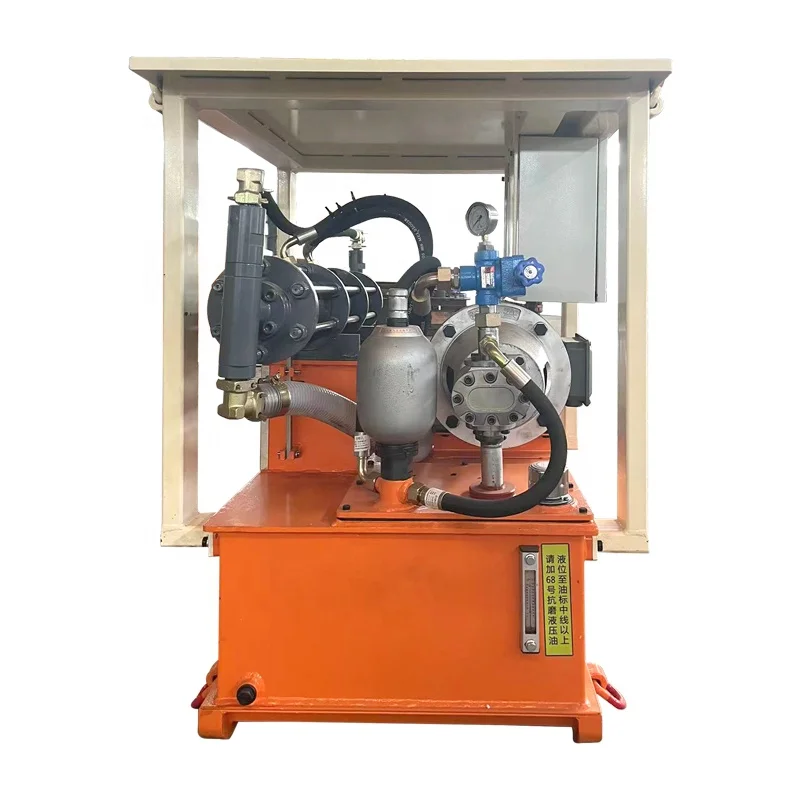

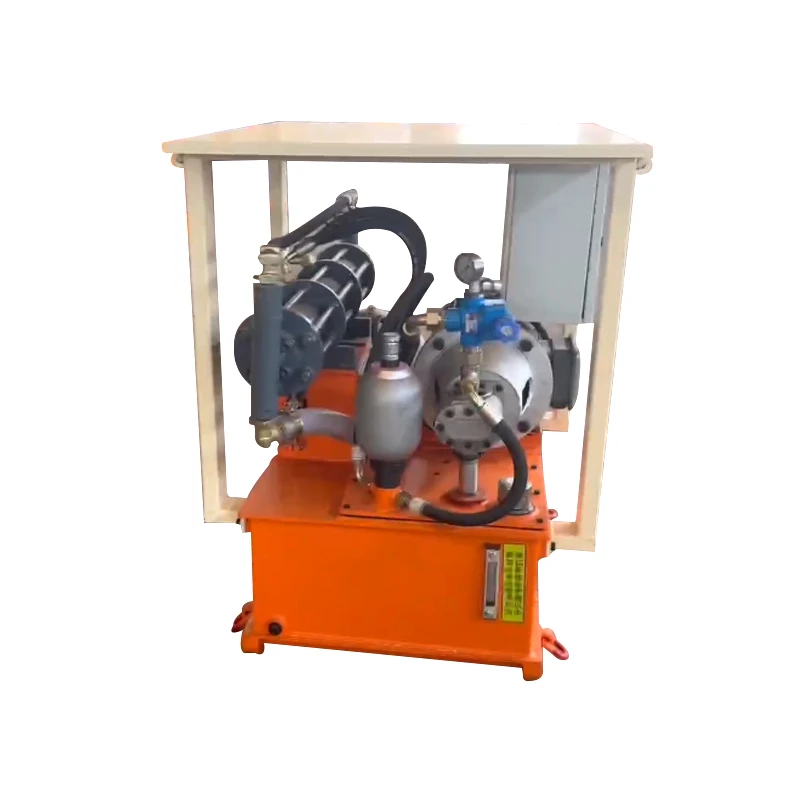

Details Images

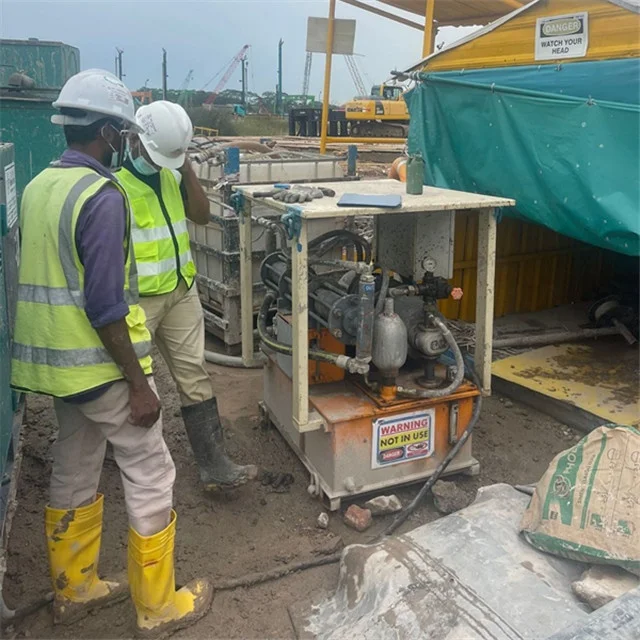

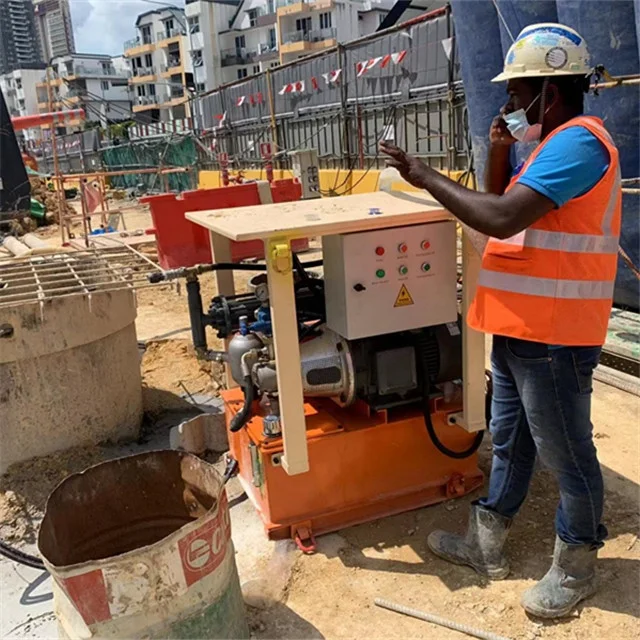

Application

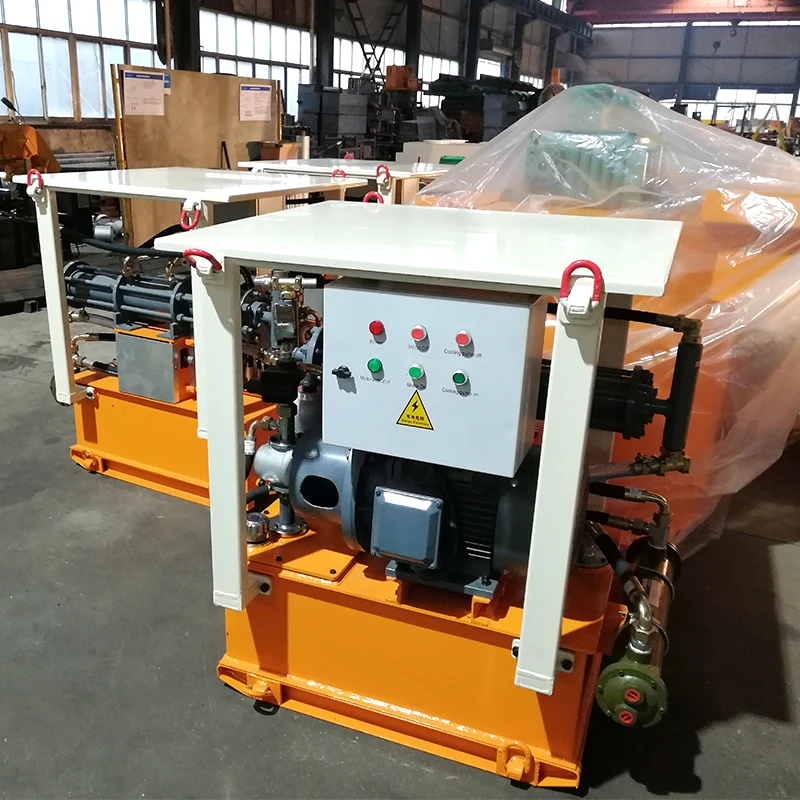

Factory Show
Company Profile
Zhengzhou Sinogrout Machinery Co., Ltd. is a leading supplier of hydroseeder, shotcrete machine,grout pump, concrete pupmp,slurry pump,mortar pump,etc.construction machinery in China.Our factory is located in Xingyang, Zhengzhou City, Henan Province, it is in the middle of China. With more than 10 years of experience, Sinogrout has grown into a leading grouting equipment supplier in China, as well as an excellent supplier with ISO 9001:2008,SGS and CE certificate in above products in China. Our products have been exported to the Colombia, Greece, Singapore, Malaysia, Philippine,Vietnam, Jordan, India,Pakistan, Qatar, Bahrain...We are committed to develop new products to meet our customers' need, with the ability to provide the necessary technical support and engineering experience required.
Certifications
FAQ
1. Q: What is the guarantee period of grouting equipment?
A: It is one year count from one month after shipping date except wearing parts. We will send some wearing parts of machine when delivery.
2. Q: What is your project with grouting equipment?
A: Waterproofing,Floor restoration,Metal door and window frames, Sealing joints, Connecting prefabricated concrete sections, Filling voids and eliminating holes in concrete blocks, Tiling, Leveling sidewalk slabs or Manhole and sewer linings, we can recommend suitable pump and mixer for your project.
A: Waterproofing,Floor restoration,Metal door and window frames, Sealing joints, Connecting prefabricated concrete sections, Filling voids and eliminating holes in concrete blocks, Tiling, Leveling sidewalk slabs or Manhole and sewer linings, we can recommend suitable pump and mixer for your project.
3. Q: What is the principle of this grouting pump?
A: The principle is similar with TECHNIWELL grouting pump, when you use this grouting pump to grout to fill underground cracks, when the grout pump working, grouting into the underground cracks, if you set on 10Mpa, when the local crack filled, the underground grouting pressure will increase to 10Mpa, the grouting pump will stop and stop grouting. Output is also change according to the pressure when pump working.4. Q: What is the after-sales service?
A: We could supply wear parts together with machine when delivery. The operation video and instruction file will send to you once you buy our machine.When using the machine, if you have some questions, our engineer also can guide you through the video to help you to solve the problem.5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
6. Q: What's the payment you accept ?
A: As usual our payment is 30%T/T as deposit, and the 70% balance payment. Also we accept the payment such as L/C ,Escrow, PayPal, Credit card,Western Union,etc.
