Вертикальная пластина с ЧПУ для зубьев фрезерный станок серии ДРК GV вертикальный
- Категория: >>>
- Поставщик: DALIAN,DRC,MACHINERY,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 4641.75 $* | 4873.39 $* |
| Aug-18-2025 | 4602.37 $* | 4832.60 $* |
| Jul-18-2025 | 3861.90 $* | 4054.58 $* |
| Jun-18-2025 | 4524.90 $* | 4750.6 $* |
| May-18-2025 | 3939.9 $* | 4136.87 $* |
| Apr-18-2025 | 4446.57 $* | 4668.69 $* |
| Mar-18-2025 | 4407.86 $* | 4627.65 $* |
| Feb-18-2025 | 4368.7 $* | 4586.66 $* |
| Jan-18-2025 | 4329.75 $* | 4545.24 $* |
Характеристики
Product Description

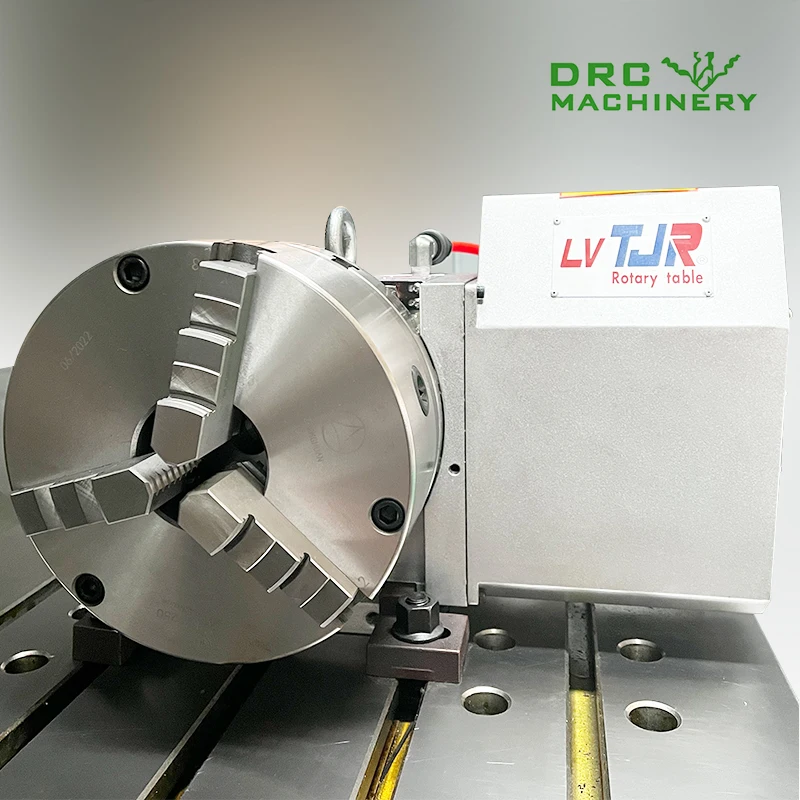

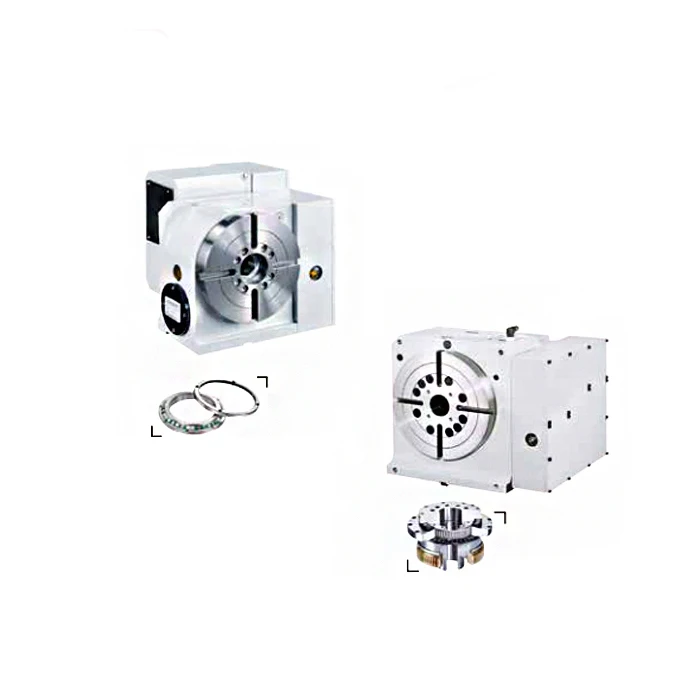

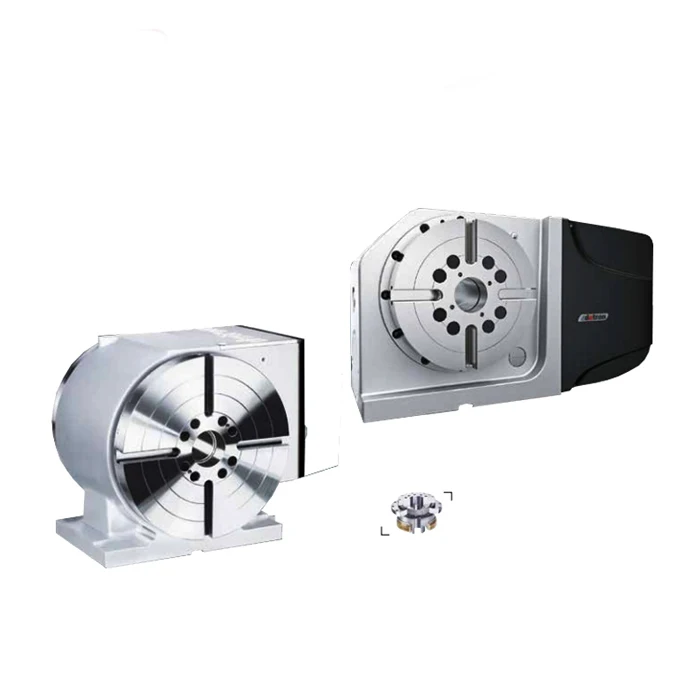

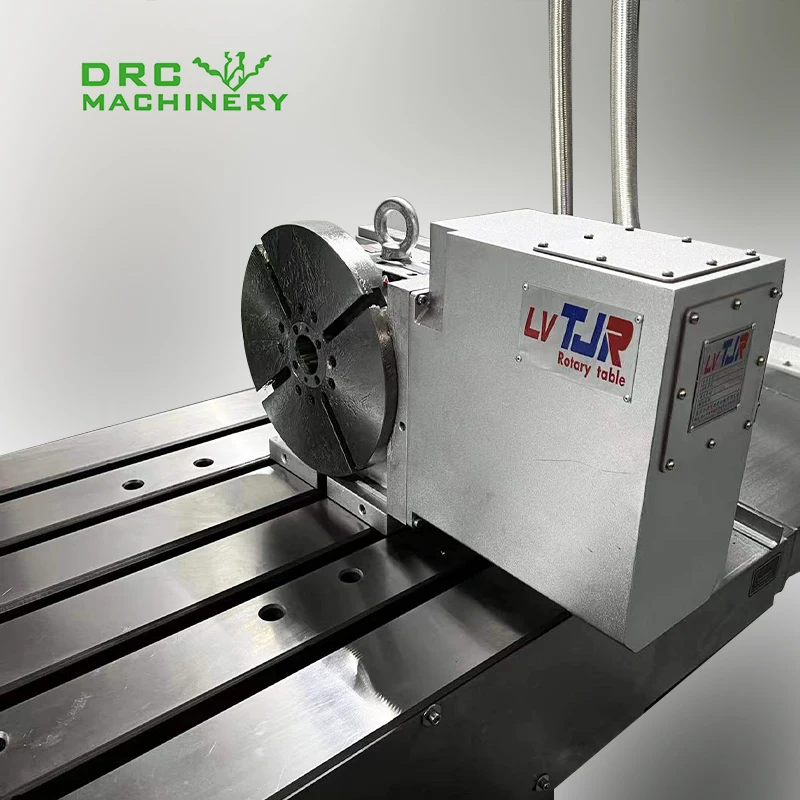

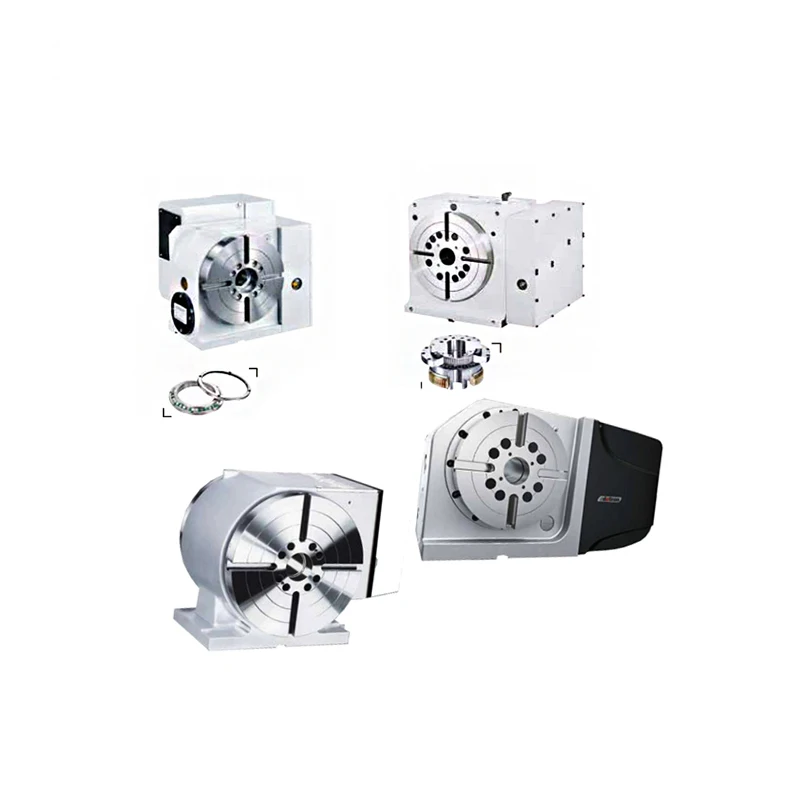

CNC vertical tooth indexing plate DRC GV series CNC milling machine vertical rotary table
Machining Center Application:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Vertical Machining Center Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Vertical Machining Center Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
model | GV-170SB | GV-210SB | GV-255HB | |
Rotary table diameter mm | Ø170 | Ø210 | Ø255 | |
Center hole diameter mm | Ø40H7 | Ø40H7 | Ø50H7 | |
Center through hole diameter mm | Ø40 | Ø40 | Ø50 | |
Center height (vertical position) mm | 135 | 160 | 190 | |
Workbench T-slot width mm | 12H7 | 12H7 | 12H7 | |
Guide block width mm | 18 | 18 | 18 | |
Drive mode / drive pressure | MPa air pressure 0.55~0.7 | oil pressure 5 | ||
Tightening torque N.m | 250 | 400 | 700 | |
Reduction ratio | 1 / 90 | 1 / 90 | 1 / 120 | |
Maximum speed of disk surface min-1 | 44.4 | 44.4 | 22.2 | |
Allowable load inertia capacity Kg.m2 | 0.28 | 0.42 | 2.07 | |
Minimum setting unit deg. | 0.001 | 0.001 | 0.001 | |
Indexing accuracy sec. | 20 | 20 | 15 | |
Repeat accuracy sec | 6 | 6 | 6 | |
Rotary table weight (without servo motor) Kg | 90 | 104 | 150 | |
Allowable load capacity Vertical Kg | 75 | 75 | 100 | |
Use tailstock Kg | 150 | 150 | 250 | |
Allowable cutting force (when the turret is clamped) | N 14000 14000 16000 N.m 1020 1020 1120 N.m 250 400 700 | N 14000 14000 16000 N.m 1020 1020 1120 N.m 250 400 700 | ||
Worm gear allowable torque N.m | 170 | 260 | 550 | |
