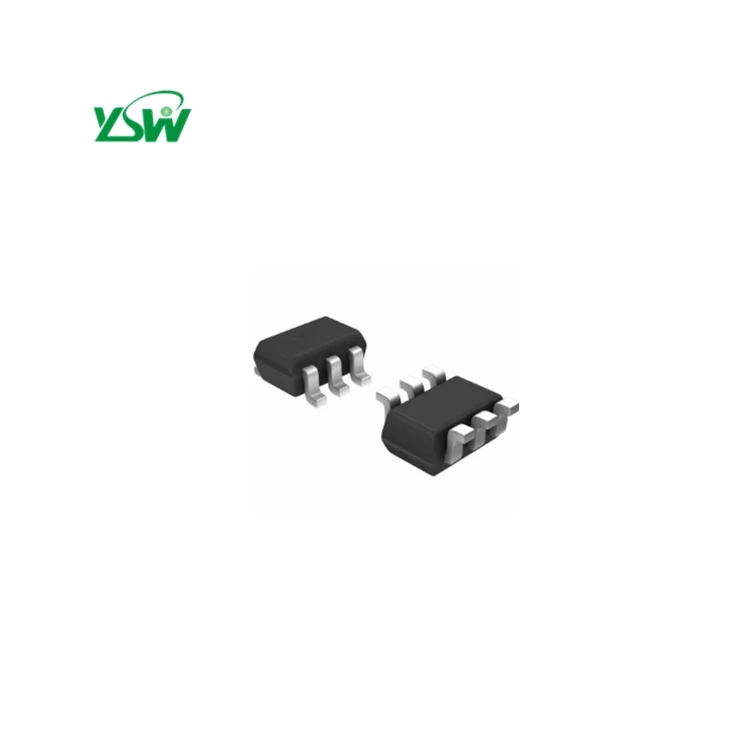

SI1413DH-T1-GE3 Bom сервис MOSFET p-канала 20V 2.3A SC70-6 Новый

Цена:0,10 $ - 1,00 $*

Количество:

Product Information

Place of Origin	Original
Model Number	SI1413DH-T1-GE3
Type	MOSFET
D/C	Newest
Supplier Type	Retailer
Cross Reference	-
Media Available	datasheet
Brand	Transistor
Current - Collector (Ic) (Max)	2.3A (Ta)
Voltage - Collector Emitter Breakdown (Max)	20 V
Vce Saturation (Max) @ Ib, Ic	Standard
Current - Collector Cutoff (Max)	2.3A (Ta)
Operating Temperature	-55°C ~ 150°C(TJ)
Mounting Type	Surface Mount
Package / Case	Standard
Resistor - Base (R1)	Standard
Resistor - Emitter Base (R2)	Standard
FET Type	Standard
FET Feature	Standard
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	2.3A (Ta)
Rds On (Max) @ Id, Vgs	115mOhm @ 2.9A, 4.5V
Vgs(th) (Max) @ Id	800mV @ 100uA
Gate Charge (Qg) (Max) @ Vgs	8.5 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds	-
Frequency	Standard
Current Rating (Amps)	Standard
Noise Figure	Standard
Power - Output	Standard
Voltage - Rated	Standard
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Vgs (Max)	±8V
IGBT Type	Standard
Configuration	Single
Resistance - RDS(On)	Standard
Applications	Standard
Package	Bulk
Series	Datasheet
Part Status	In Stock
Supplier Device Package	Box
Approval Agency	-
Sample	Available
Condition	New and Original
Warranty	One Year
