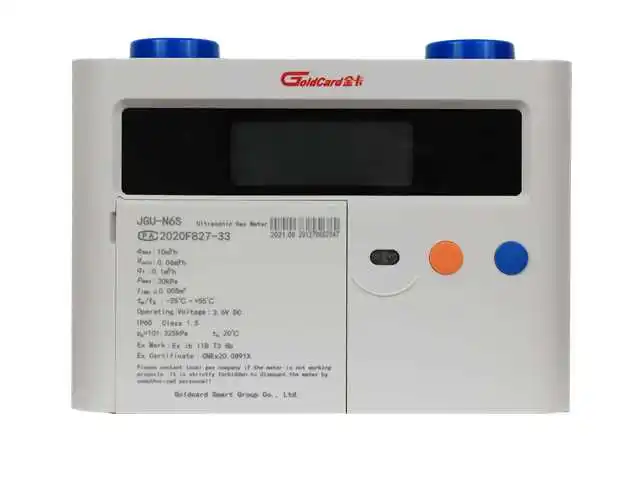

Ультразвуковой умный

Описание и отзывы

Трекер стоимости

Характеристики



Metering Advantages

l   Smaller & Lighter: smaller and lighter than diaphragm meter under the same type.

l   Ultra-High Sensitivity: subtle gas flow can be detected.

l   Wide Range Ratio: G4W can be up to 375:1, G40W can be up to 260:1

l   High Reliability: no moving parts, no losses of measurement accuracy in long term operation.

l   Strong Anti-Interference Ability: digital metering signal output, undisturbed by magnetic field.

l   Temperature&Pressure Compensation: built-in temperature&pressure sensor, outputting cumulative volume under STP (Standard Temperature and Pressure).

Gas Safety

l   Over Flow Detection: meter will close valve automatically at over flow rate to prevent pipe broken.

l   Reverse Flow Detection: when detects reverse gas flow, meter will close valve automatically in case of meter installed wrongly.

l   Continuous Flow Detection: when detects continuous flow, meter will close valve automatically in case of forgetting to turn off the gas appliance and to prevent pipe leakage.

l   High Temperature Detection: when detects gas temperature above the high temperature alarm threshold, meter will close the valve automatically and report to the system in case of meter in fire environment.

l   Air Ingress Detection: when detects air ingress, meter will close the valve automatically and report to the system in case of illegal disassembling from pipe.

l   Water Ingress Detection: when detects water ingress, the valve will close automatically to ensure pipe network safety.

l   Meter Disassembling Detection: when detects battery cover opened or controller disassembled, meter will record a log and report to the system.



2.Technical Parameters:



Type	G1.6	G2.5	G4	G4W	G6		G10	G10W	G16	G16W	G25	G40	G40W
Qmax (m3/h)	2.5	4	6	6	10		16	16	25	25	40	65	65
Qmin (m3/h)	0.016	0.025	0.04	0.016	0.06		0.1	0.06	0.16	0.1	0.25	0.4	0.25
Accuracy Class	1.5
MPE	Qmin≤ Q <Qt:-3%≤ E ≤+3%;      Qt≤ Q ≤Qmax:-1.5%≤ E ≤+1.5%
Pressure Absorption (Pa)	≤250					≤375
Max Working Pressure (kPa)	50					50
Working Temperature (℃)	-25 ~ +55
Ingress Protection Level	IP65
Communication Mode	NB-IoT/GPRS/Sigfox/LoRaWAN					NB-IoT/GPRS
Valve Lifetime (time)	≥10000*
Battery Life *(year)	≥10					≥10
