SYD-1198 пневматические полиуретан ПУ трубки воздушный Hosem4mm 6 мм 8 10 12
- Категория: Plastic Tubes >>>
- Поставщик: Zhuji,Shuenyida,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.80 $* | 0.27 $* |
| Aug-19-2025 | 0.57 $* | 0.99 $* |
| Jul-19-2025 | 0.25 $* | 0.45 $* |
| Jun-19-2025 | 0.55 $* | 0.83 $* |
| May-19-2025 | 0.30 $* | 0.70 $* |
| Apr-19-2025 | 0.26 $* | 0.31 $* |
| Mar-19-2025 | 0.78 $* | 0.15 $* |
| Feb-19-2025 | 0.55 $* | 0.5 $* |
| Jan-19-2025 | 0.84 $* | 0.6 $* |
Характеристики
Product Description

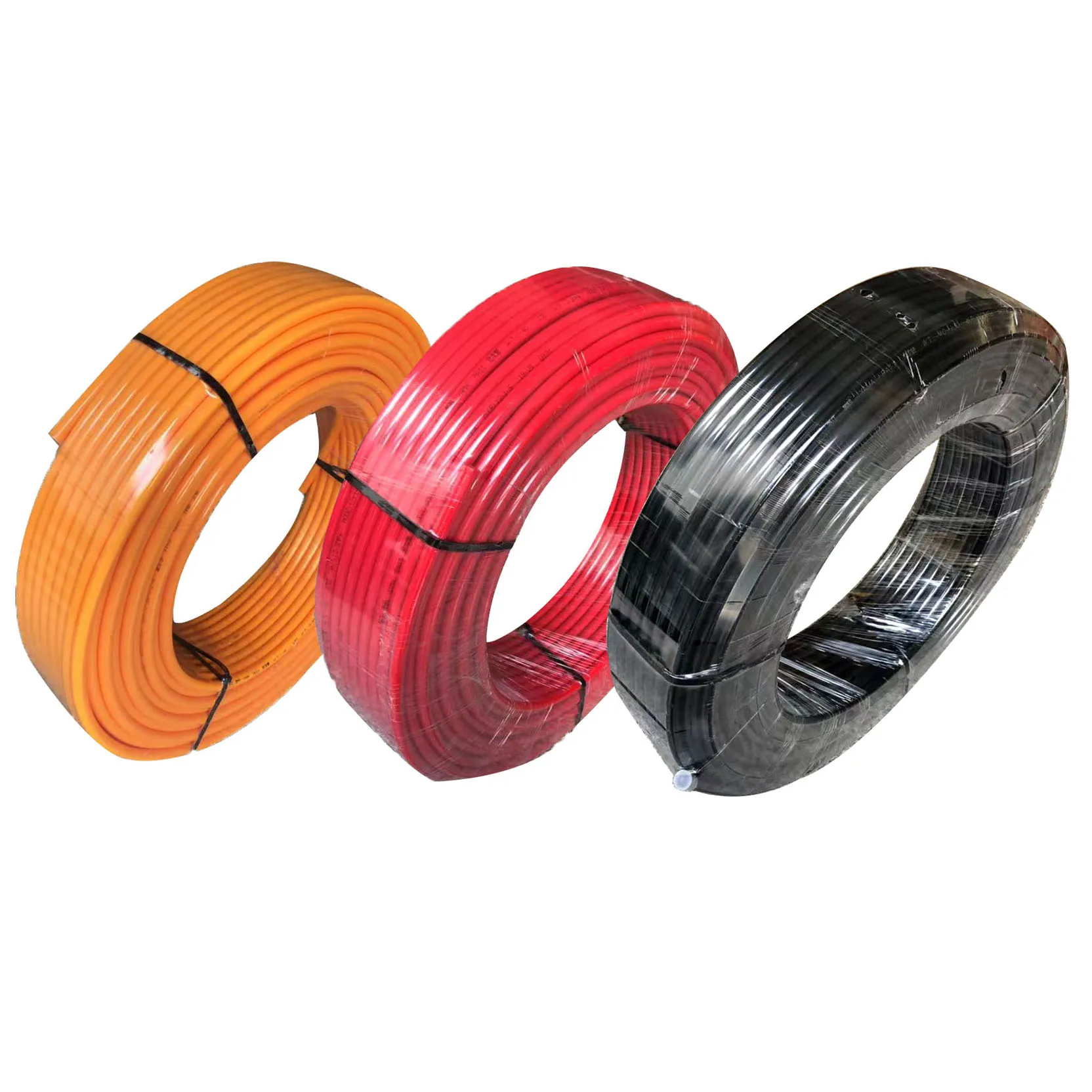

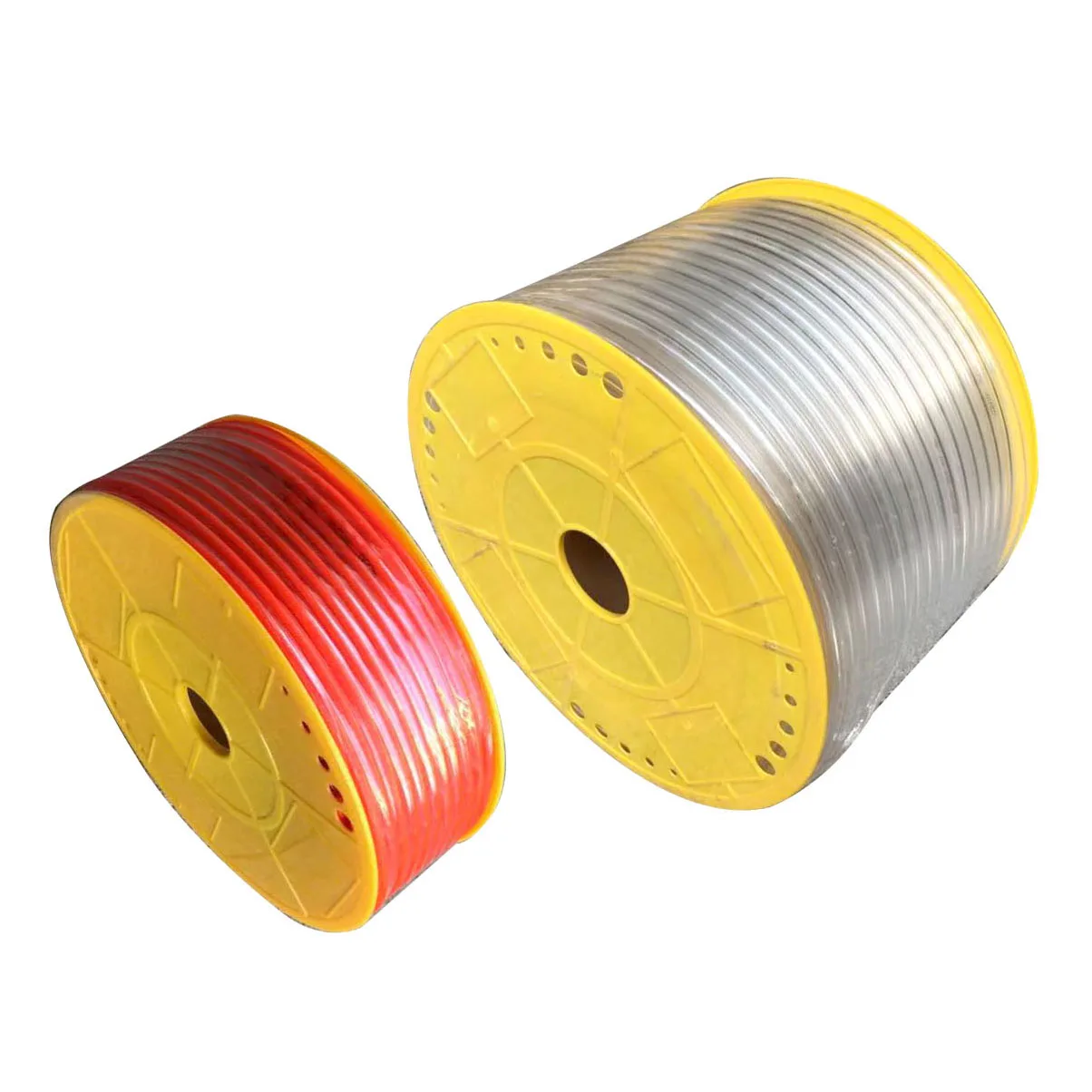

Product Name | SYD-1198 Pneumatic Polyurethane Tubing PU Air Hosem4mm 6mm 8mm 10mm 12mm 14mm 16mm | ||||
Material | PA PU PE | ||||
Length | 3/6/9/12 m etc. | ||||
Thickness | 1.5~2 mm | ||||
Fitting type | NPT, BSP etc. | ||||
W.P. | 8 Bar | ||||
B.P. | 24 Bar | ||||
Fitting type | NPT, BSP etc. | ||||
Color | clear,black,blue,red,yellow etc. | ||||
Certificate | ISO9001:2000/ISO14001:2004 | ||||
Temperature | -40℃ to 90℃ | ||||
Application | used for air brake,pneumatic & hydraulic machinery/tool | ||||
Feature | Good elasticity,Custom made specification and size available | ||||
1. Characters:
1). Applications: in large scale pipeline connections and used in different tractors truck, Containerized traffic bus, etc.
2). smooth surface
3). Working pressure: 1-1.5Mpa
4). Temperature range: from -40 to +120
5). Color: red, blue, yellow, black, orange, natural, etc.
6). good softness and flexibility, nvironmental and nontoxic material.
7). good wear-resistant performance.
8). anti-acid, anti-oil and anti-corrosion.
2. Advantage: Light weight and Durable Polyurethane Self-Recoiling Air Compressor Hose that is Oil Proof and Abrasion Resistant.
Designed and built for professional applications that require easy-access to an air supply and an automatic recoil when under
frequent use.
Ideal for automotive, contractors or industrial uses. An excellent alternative to muchheavier and bulkier rubber air hoses.
1). Applications: in large scale pipeline connections and used in different tractors truck, Containerized traffic bus, etc.
2). smooth surface
3). Working pressure: 1-1.5Mpa
4). Temperature range: from -40 to +120
5). Color: red, blue, yellow, black, orange, natural, etc.
6). good softness and flexibility, nvironmental and nontoxic material.
7). good wear-resistant performance.
8). anti-acid, anti-oil and anti-corrosion.
2. Advantage: Light weight and Durable Polyurethane Self-Recoiling Air Compressor Hose that is Oil Proof and Abrasion Resistant.
Designed and built for professional applications that require easy-access to an air supply and an automatic recoil when under
frequent use.
Ideal for automotive, contractors or industrial uses. An excellent alternative to muchheavier and bulkier rubber air hoses.
Detailed Images
Model | Inside diameter | Outside diameter | Length | Working pressure | (20℃) Disriptive pressure | (60℃) Disriptive pressure | (80℃) Disriptive pressure | ||
mm | mm | M | Mpa | Mpa | Mpa | Mpa | |||
Metric system | PU0302-200M | 2 | 3 | 200 | 1.0 | 3.0 | 1.7 | 1.4 | |
PU0425-200M | 2.5 | 4 | 200 | 1.0 | 3.5 | 1.7 | 1.4 | ||
PU0503-200M | 3 | 5 | 200 | 1.0 | 3.4 | 1.6 | 1.4 | ||
PU0604-200M | 4 | 6 | 200 | 1.0 | 3.3 | 1.6 | 1.4 | ||
PU0805-100M | 5 | 8 | 100 | 1.0 | 3.6 | 1.8 | 1.6 | ||
PU0855-100M | 5.5 | 8 | 100 | 1.0 | 3.0 | 1.4 | 1.2 | ||
PU1065-100M | 6.5 | 10 | 100 | 1.0 | 3.1 | 1.6 | 1.4 | ||
PU1208-100M | 8 | 12 | 100 | 1.0 | 3.0 | 1.7 | 1.2 | ||
PU1410-100M | 10 | 14 | 100 | 0.8 | 2.8 | 1.5 | 1.2 | ||
PU1612-100M | 12 | 16 | 100 | 0.8 | 2.7 | 1.4 | 1.2 | ||
British system | PU1/8-200M | 2 | 3.2 | 200 | 1.0 | 3.1 | 1.6 | 1.3 | |
PU5/32-200M | 2.5 | 4 | 200 | 1.0 | 3.5 | 1.7 | 1.4 | ||
PU1/4-200M | 4.35 | 6.35 | 200 | 1.0 | 3.0 | 1.4 | 1.2 | ||
PU5/16-100M | 5 | 8 | 100 | 1.0 | 3.6 | 1.8 | 1.6 | ||
PU3/8-100M | 6.5 | 9.6 | 100 | 0.8 | 3.0 | 1.4 | 1.2 | ||
PU1/2-100M | 9.6 | 12.6 | 100 | 0.8 | 2.7 | 1.2 | 1.0 | ||
More types
