Низкая цена зажимные зубчатые шестерни из углеродного волокна обработка небольшой профиль синхронный ремень зубчатый для
- Категория: Transmission Belts >>>
- Поставщик: Dongguan,Dingjian,Precision,Transmission,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 5.16 $* | 5.31 $* |
| Aug-17-2025 | 5.61 $* | 5.10 $* |
| Jul-17-2025 | 4.90 $* | 4.46 $* |
| Jun-17-2025 | 5.55 $* | 5.13 $* |
| May-17-2025 | 4.46 $* | 4.13 $* |
| Apr-17-2025 | 5.66 $* | 5.16 $* |
| Mar-17-2025 | 5.34 $* | 5.48 $* |
| Feb-17-2025 | 4.37 $* | 4.87 $* |
| Jan-17-2025 | 4.49 $* | 4.81 $* |
Характеристики

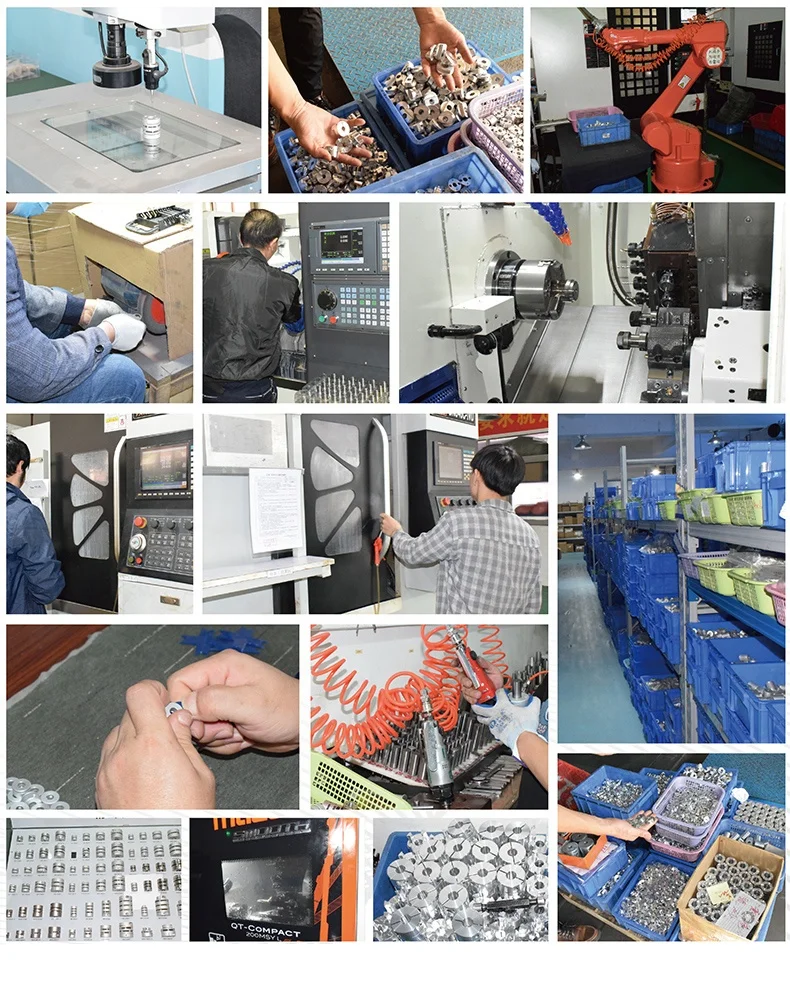

Company Profile
Feedback
Data Sheet
AT5（Pitch：5mm）,Customized Width is Available | ||||||||
Type | Belt Circumference （mm） | No. of Teeth | Tooth Shape | Belt Thickness | ||||
TRB（Rubber） TPYT(Polyurethane-Transparency belt) TPYW（Polyurethane-Seamless ring belt） TPYJ (Polyurethane-Connection Belt） | 220 | 44 | AT5 | Standard： 10 15 Customized： 5-200 | ||||
300 | 60 | |||||||
305 | 61 | |||||||
330 | 66 | |||||||
340 | 68 | |||||||
375 | 75 | |||||||
390 | 78 | |||||||
420 | 84 | |||||||
455 | 91 | |||||||
480 | 96 | |||||||
500 | 100 | |||||||
545 | 109 | |||||||
600 | 120 | |||||||
630 | 126 | |||||||
660 | 132 | |||||||
690 | 138 | |||||||
710 | 142 | |||||||
750 | 150 | |||||||
825 | 165 | |||||||
975 | 195 | |||||||
1275 | 255 | |||||||
1420 | 284 | |||||||
1500 | 300 | |||||||
1520 | 304 | |||||||
1765 | 353 | |||||||
AT10（Pitch：10mm）,Customized Width is Available | ||||||||
Type | Belt Circumference （mm） | No. of Teeth | Tooth Shape | Belt Thickness | ||||
TRB（Rubber） TPYT(Polyurethane-Transparency belt) TPYW（Polyurethane-Seamless ring belt） TPYJ (Polyurethane-Connection Belt） | 450 | 45 | AT10 | Standard： 15 20 25 Customized: 10-200 | ||||
460 | 46 | |||||||
500 | 50 | |||||||
530 | 53 | |||||||
560 | 56 | |||||||
580 | 58 | |||||||
660 | 66 | |||||||
700 | 70 | |||||||
730 | 73 | |||||||
780 | 78 | |||||||
840 | 84 | |||||||
890 | 89 | |||||||
920 | 92 | |||||||
960 | 96 | |||||||
1010 | 101 | |||||||
1150 | 115 | |||||||
1210 | 121 | |||||||
1240 | 124 | |||||||
1250 | 125 | |||||||
1280 | 128 | |||||||
1320 | 132 | |||||||
1350 | 135 | |||||||
1360 | 136 | |||||||
1500 | 150 | |||||||
1530 | 153 | |||||||
1610 | 161 | |||||||
1630 | 163 | |||||||
1650 | 165 | |||||||
1800 | 180 | |||||||
1860 | 186 | |||||||
1940 | 194 | |||||||
2000 | 200 | |||||||
2250 | 225 | |||||||
2400 | 240 | |||||||
2590 | 259 | |||||||
2880 | 288 | |||||||
3080 | 308 | |||||||
3150 | 315 | |||||||
3340 | 334 | |||||||
3550 | 355 | |||||||
4030 | 403 | |||||||
AT20（Pitch：20mm）,Customized Width is Available | ||||||||
Type | Belt Circumference （mm） | No. of Teeth | Tooth Shape | Belt Thickness | ||||
TRB（Rubber） TPYW（Polyurethane-Seamless ring belt） TPYJ (Polyurethane-Connection Belt） | 880 | 44 | AT20 | Standard： 32 50 75 100 Customized： 20-200 | ||||
1000 | 50 | |||||||
1080 | 54 | |||||||
1100 | 55 | |||||||
1200 | 60 | |||||||
1600 | 80 | |||||||
1700 | 85 | |||||||
1900 | 95 | |||||||
2360 | 118 | |||||||
6840 | 342 | |||||||

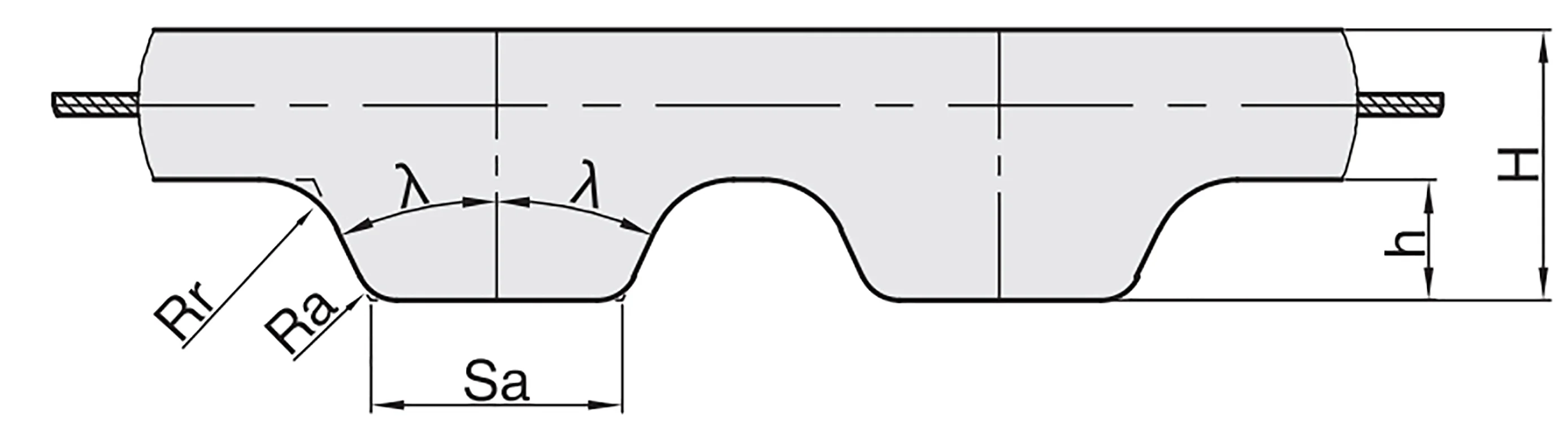

Tooth Shape | Pitch | 2λ | Ra | Rr | Sa | H | h |
AT5 | 5 | 50° | 0.4 | 0.86 | 2.5 | 2.7 | 1.2 |
AT10 | 10 | 50° | 0.4 | 1.25 | 5 | 5 | 2.5 |
AT20 | 20 | 50° | 1.75 | 2.5 | 10 | 9 | 5 |
Example： | Type | Belt Circumference | Tooth Shape | Belt Thickness |
TRB | 220 | AT5 | 10 | |
TPYJ | 880 | AT20 | 32 |
Type | Material | Working Temperature | ||||||||||||
TRB（Rubber） | ①Tooth Surface Protection | Nylon Canvas | ﹣20~80℃ | |||||||||||
②Tooth Rubber | Neoprene | |||||||||||||
③Core Wire | Fiber Glass | |||||||||||||
TPYT(Polyurethane-Transparency belt) | ①②Main Body：Polyurethane ③Core Wire：Steel Wire (XL-L-H) Kevlar Line（MXL） | |||||||||||||
TPYJ (Polyurethane-Connection Belt） | ||||||||||||||
Application
Recommend Products
FAQ
Q:What Should We do before order?
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Q:How Should We Place an Order?
A:Based on the confirmed PI or Trade Assurance through Alibaba.
Q: How Should We Pay?
A:30% in advance and 70% before delivery. Or, 100% in advance. We can accept T/T, paypal,
Q: What Can We Do After Payment?
A: You will always receive our updated production process information about the goods.
Q: How Long Can We Receive the Goods?
A: Normally, 7 to 15 days for less than 100pcs goods, 25 days for more than 100pcs order. (Logistic transportation is not
included.)
included.)
Q: What's Your Main Logistic?
A: Alibaba online logistic, UPS, Fedex DHL, TNT, Train, airplane, seaway and so on. Alibaba online logistic and express usually needs about 9-12days, seaways needs about 30days.
