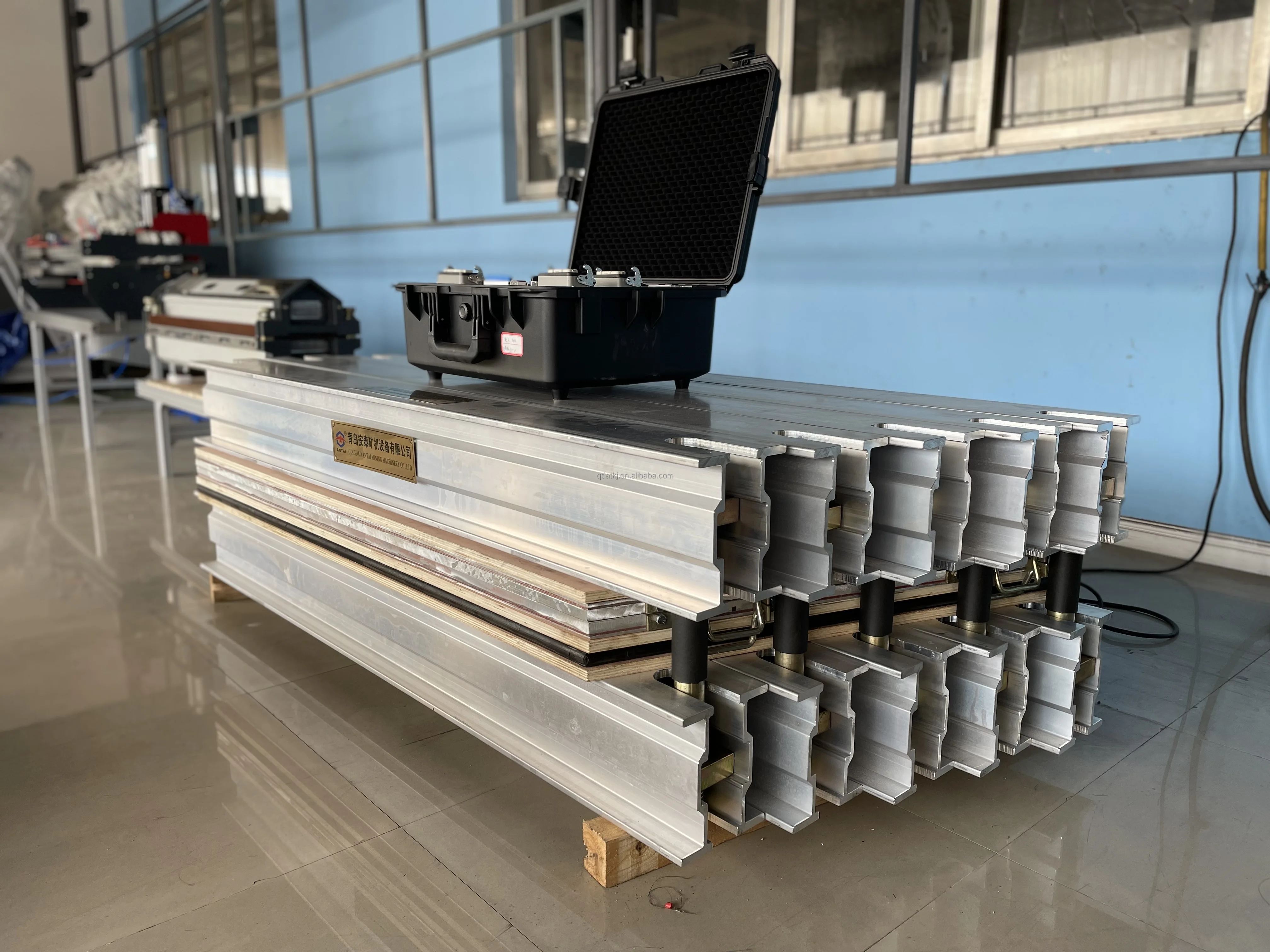

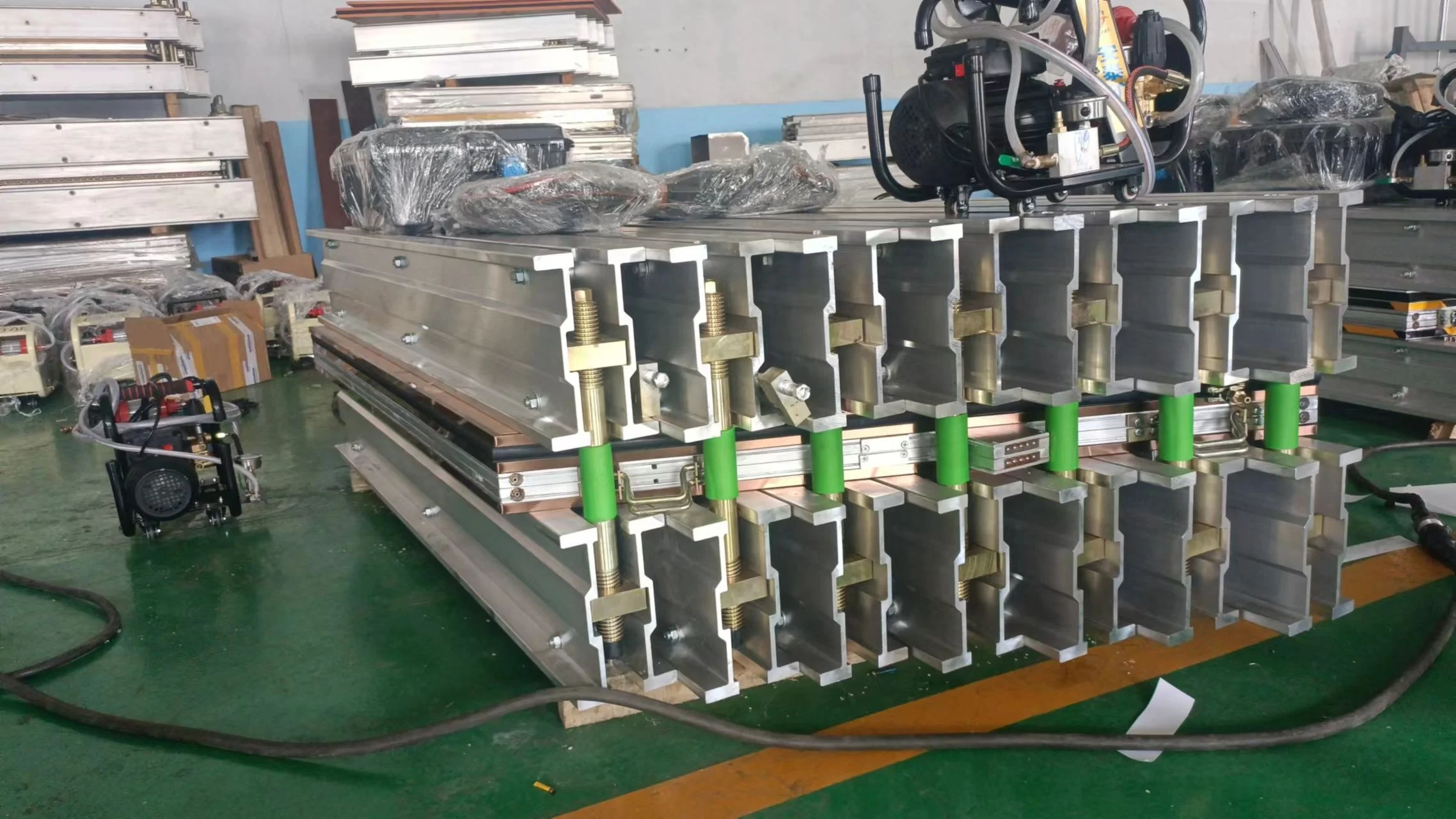

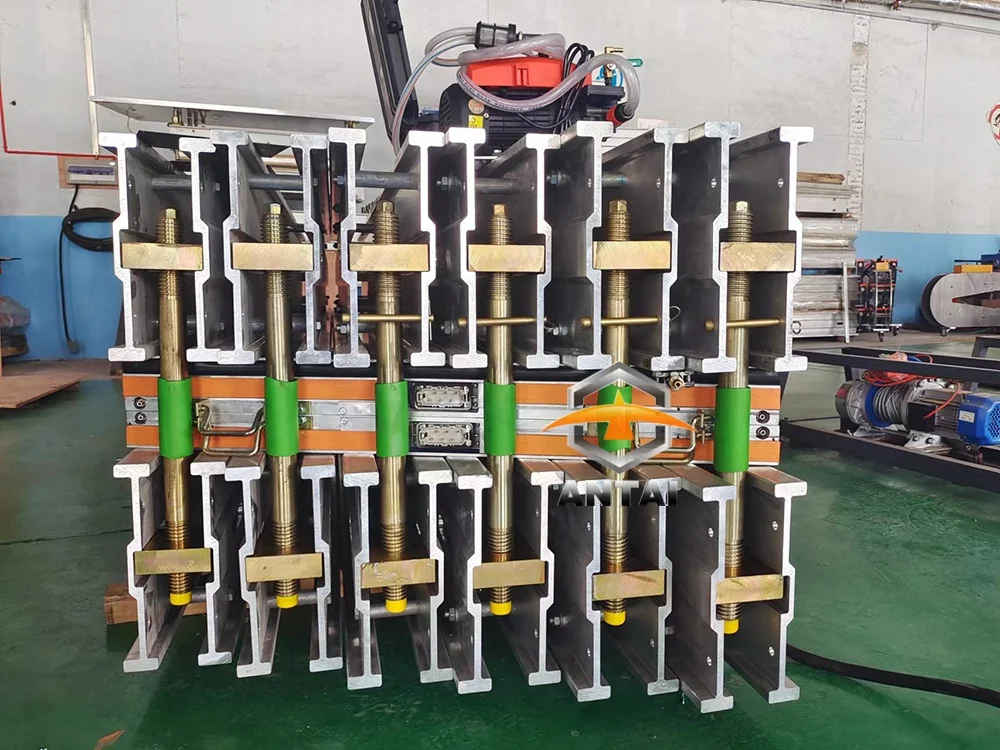

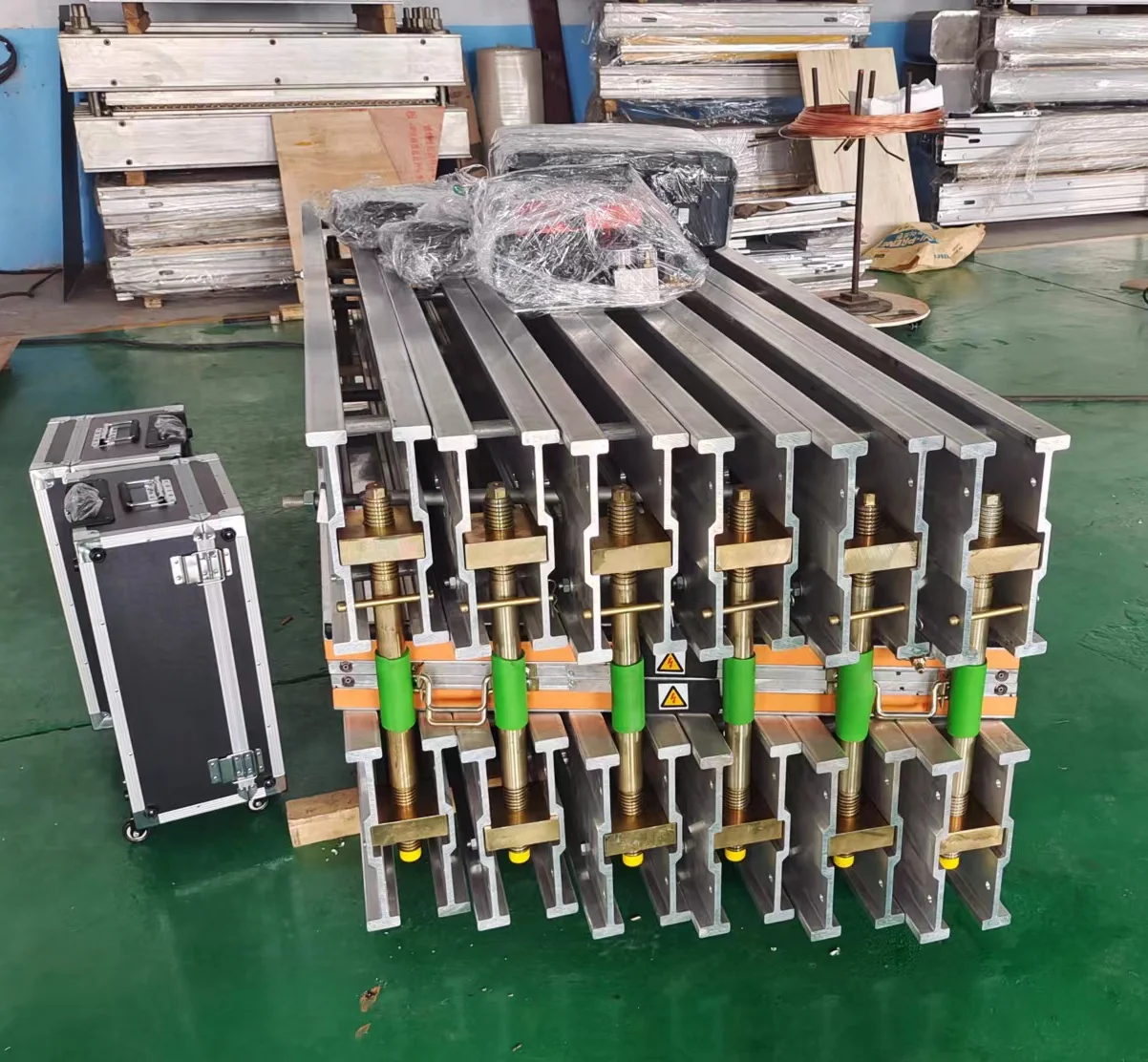

Конвейерная лента машина для вулканизации серии ZLJ

Conveyor Belt Splicing Machine

FEATURES

• Signature ANTAI “Pressure Bag” uniform pressure system.

• Custom “Extruded Plank” cooling system within platens.

• Innovative “Silicone Element” fast heating system.

• Automatic mute pressure pumps for operating pressures above 20kg/cm² (2.0MPa).

• ZLJ platens are built to order with all dimensions offered to accommodate various belt widths.

• DELIXI electrical apparatus element assembled into insulating and waterproof control panel.

• All electrical systems are CE, CSA and UL approved.

  SPECIFICATIONS

1. Voltage: 220V 380V 415V 525V 660V 1140V 50HZ 60HZ(Customize available according to your requirement)
2. Quick water cooling device: 15 minutes From 145 ℃down to 80 ℃or even lower

3.Cooling source: Water or Air

4.Heating source: Electricity

5. Heating time: from room temperature to vulcanization temperature need less than 20 minutes
6. Heating plate surface temperature difference: ± 1 ℃
7. The temperature adjustment range: 0 ~ 200 ℃(custom)
8. Vulcanization pressure: Max 2.5MPa.
9. Curing temperature:Usually 10mm~25mins, 20mm~35mins (according to the thickness of the belt to adjust)

10. Automatic mute pressure pump

11.  Automatic control panel: insulating and waterproof, security alarm, Auto power-off when reach the vulcanization temperature. Upgrading explosion proof control box option available.

ADVANTAGES:

 HEATING PLATEN

Custom extruded plank, silicone heating elements (up to 180°C/356°F), and durable composite insulating packaging are used to construct a flexible platen that contours to belt irregularities.

It takes 15~25mins rise up to vulcanizing temperature (about 145°C).

PRESSURE SYSTEM

Signature ANTAI “Pressure Bag” uniform pressure system is lighter up to 4 times than the outdated pressure bag.

The pressure bag can reach full expansion in one time and ensure the uniform pressure up to 3.0MPa.

 PRESSURE PUMP

Automatic mute pressure pump own the features as smaller size, lighter weight and high impact-resistance. Compared with the manual pump, the operating pressure can be 23kg/cm² (2.3MPa).

COOLING SYSTEM (Option Available)

Custom “Extruded Plank” cooling system within platens is made by several cuprum pipelines, it only takes about 20mins to drop the temperature down to 60°C.

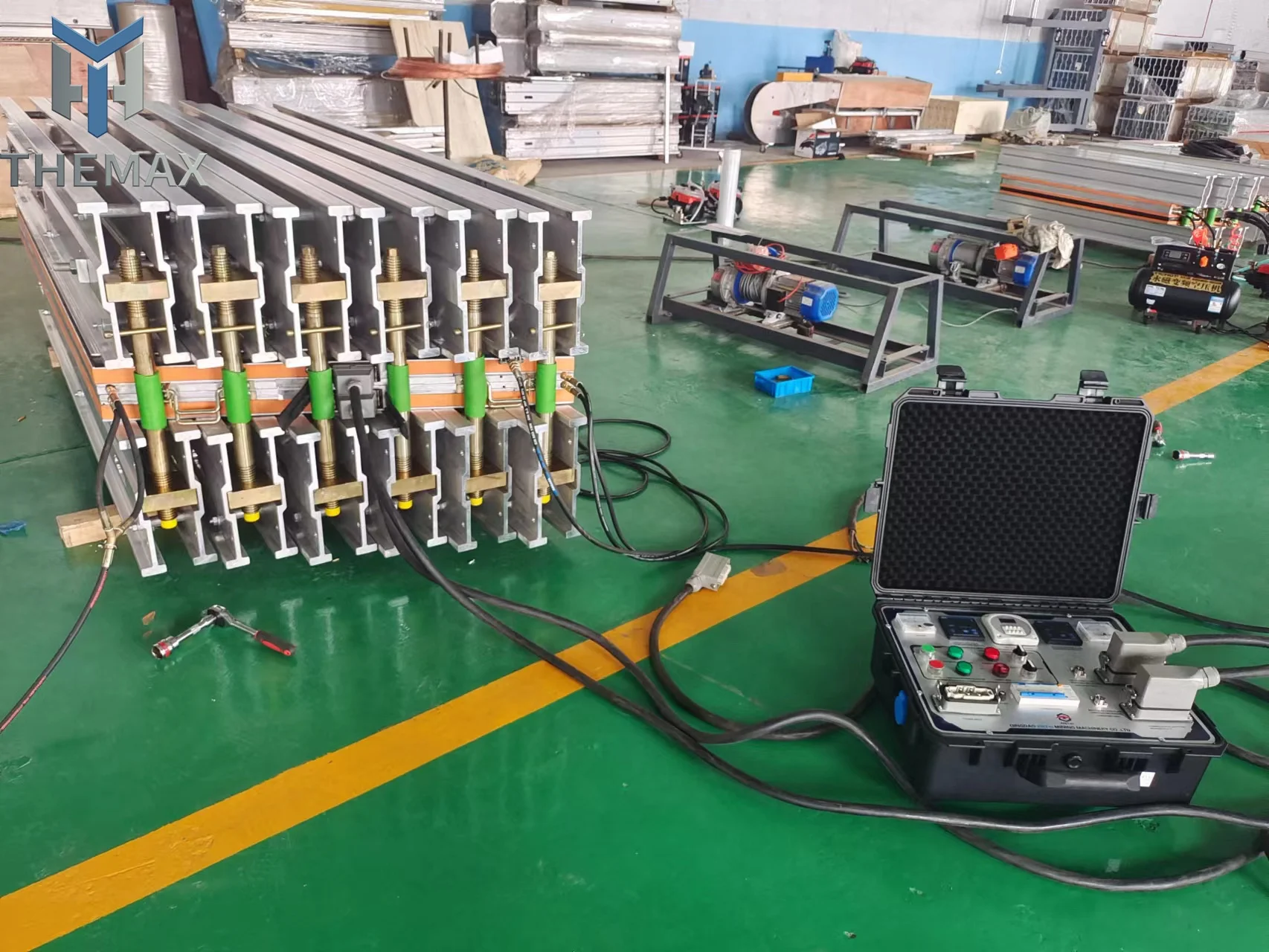

 AUTOMATIC CONTROL BOX

With automatic temperature control, security alarm and automatically switch off the power. The control box can monitor the temperature of 3-5 different points on each heating platen at the same time to ensure the result of splicing.

Technical Parameters
