Senke Новый онлайн автоматический шлифовальный станок для Стекла
- Категория: Glass Production Machinery >>>
- Поставщик: Jinan,Senke,CNC,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 5664.90 $* | 5947.4 $* |
| Aug-19-2025 | 5617.58 $* | 5898.29 $* |
| Jul-19-2025 | 4712.53 $* | 4948.59 $* |
| Jun-19-2025 | 5522.40 $* | 5798.19 $* |
| May-19-2025 | 4808.42 $* | 5048.56 $* |
| Apr-19-2025 | 5426.88 $* | 5697.4 $* |
| Mar-19-2025 | 5379.95 $* | 5648.84 $* |
| Feb-19-2025 | 5331.13 $* | 5598.40 $* |
| Jan-19-2025 | 5284.77 $* | 5548.14 $* |
Характеристики

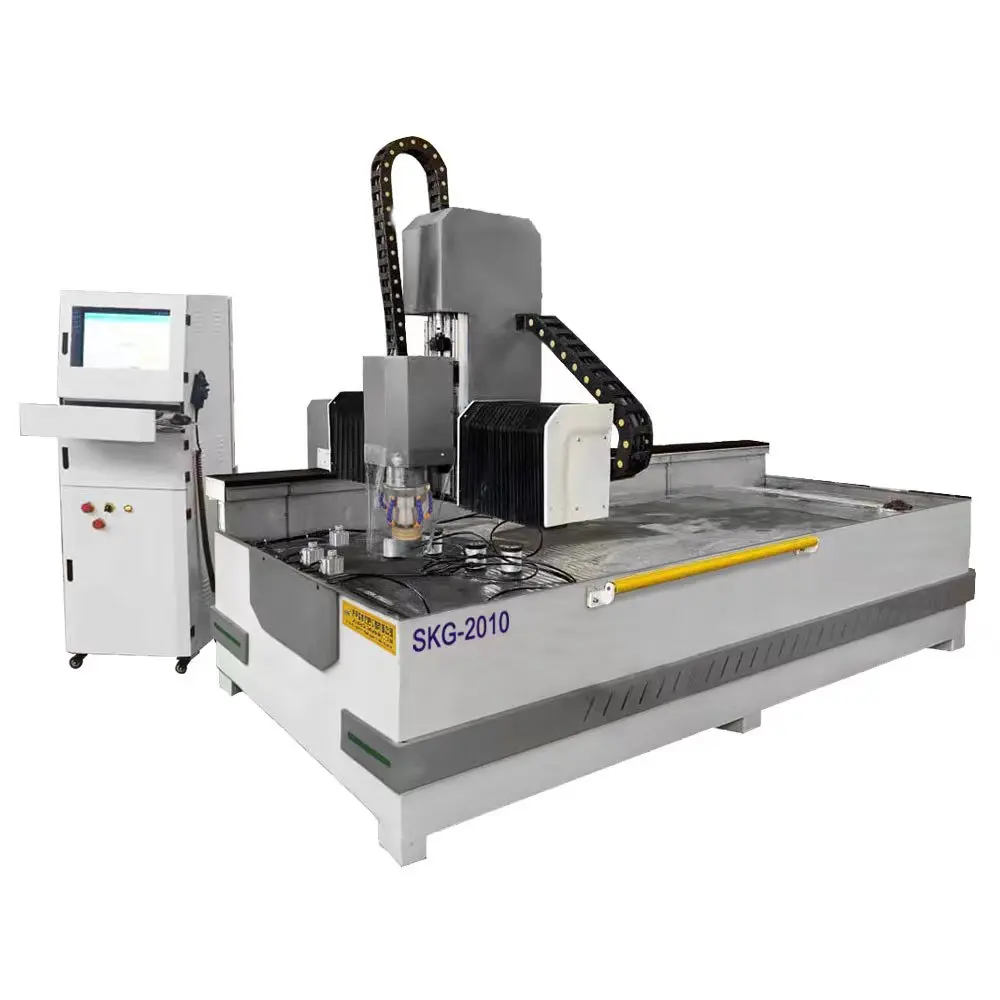

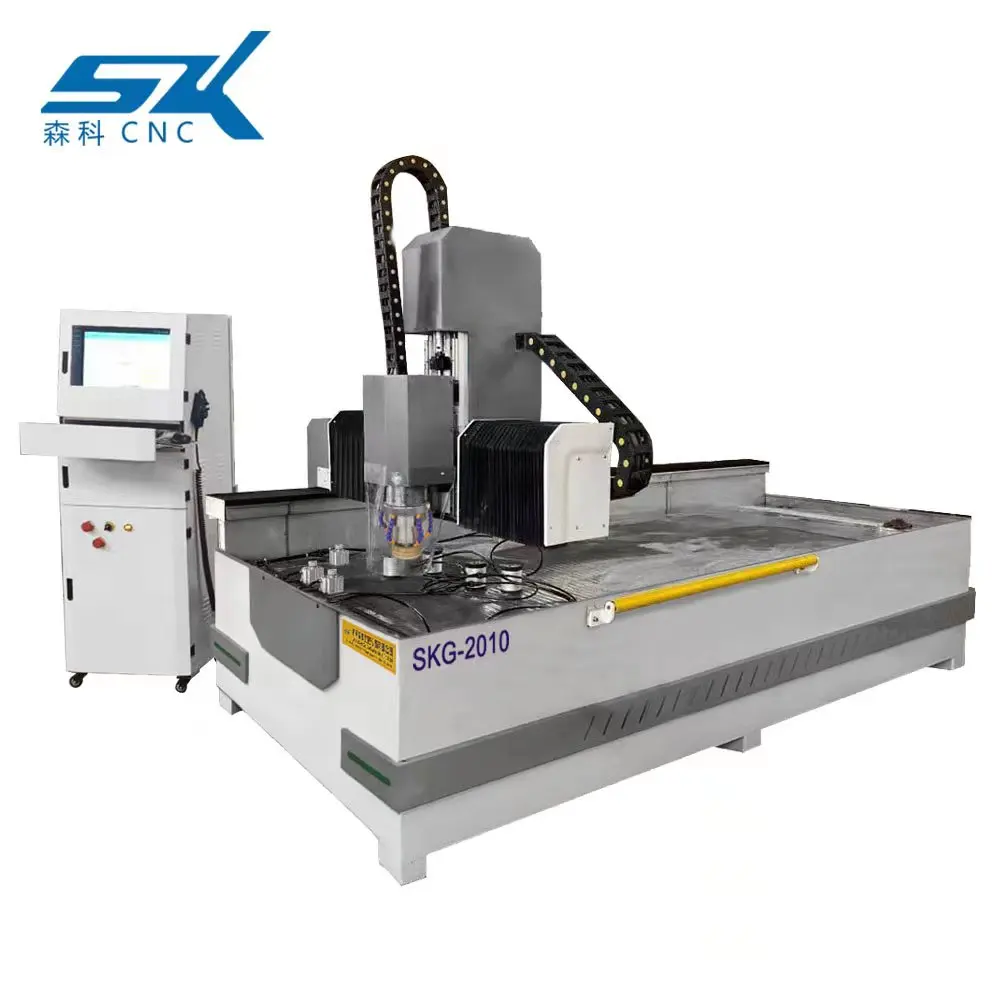

Automatic glass mirror edge grinding machine
All shapes and sizes of mirror glass can be ground,It has a wide application range; The structure is reasonable, the operation is simple, there is no need to locate the glass, the efficiency is high; The grinding parameters can be adjusted and the product quality is good.
Parameters
Model | SKG-2010 |
Working area (X*Y) | 2000*1000mm |
Body structure | Thicken steel made lathe |
Rails | Taiwan HIWIN square rails |
Max Moving Speed | 12000mm/min |
Max grinding Speed | 8000mm/min |
Spindle power | 7.5KW |
Spindle Speed | 0-18,000rpm |
Voltage | 380V,3phase |
Motor & Drive type | Servo Motor & Drive |
Reducer | Japan SHIMPO reducers |
Operating system | Professional glass mirror edging system |
Yes ,included | |
water cooler | CW-3000 |
oil lubricator | Yes, included |
Wire protect | Yes ,included |
Running Environment | Temperature: -10℃~45℃ |
N.W | 1300KG |
G.W | 1600KG |
Machine size | 1500*3000*1700mm |
packing size | 3100x1600x1900mm |
FAQ
1. Q: Including the machine i see, what other machines you have?
A: As manufacturer we have the below machines supplied
---CNC router machine
---Plasma cutting machine
---Fiber laser cutting machine
---Laser marking machine
---Glass cutting and grinding machine
2. Q: Are you factory or trading company?
A: We are factory, which manufactures CNC cutting machines , with 14 years experience in CNC machine’s industry.
3. Q: How long you need to make the machine?
A:The machine is made according to their sequence, normally takes about 13-15 working days.
4. Q: This is the first time I use this kind of machine, is it easy operate?
A: Come with the machine, the teaching manual and video can be supplied, at
the same time, the online face to face guide also available.
5. Q: Can you ship the machine to my country/address?
A: Yes, FOB,CFR,CIF,EXW,CIP,DDP,DDU,Express Delivery,DAF etc all are OK, just tell your nearest sea port /final address.
6. Q: Which payment method you can accept?
A: Accepted payment Currency: USD,EUR,AUD,HKD,GBP,CNY
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash,Escrow etc or as talking.
