5-галлонная бутылка выдувного формования пластиковых бутылок для 20-литровые бутыли бутылки с водой выдува ПЭТ
- Категория: Plastic & Rubber Processing Machinery >>>
- Поставщик: ZHEJIANG,HANYU,AUTOMATION,TECHNOLOGY,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 8330.80 $* | 8747.33 $* |
| Aug-17-2025 | 8260.73 $* | 8673.36 $* |
| Jul-17-2025 | 6930.59 $* | 7277.57 $* |
| Jun-17-2025 | 8120.28 $* | 8526.1 $* |
| May-17-2025 | 7070.82 $* | 7424.42 $* |
| Apr-17-2025 | 7980.98 $* | 8379.11 $* |
| Mar-17-2025 | 7910.12 $* | 8306.46 $* |
| Feb-17-2025 | 7840.84 $* | 8232.76 $* |
| Jan-17-2025 | 7770.59 $* | 8159.17 $* |
Характеристики
Product Description

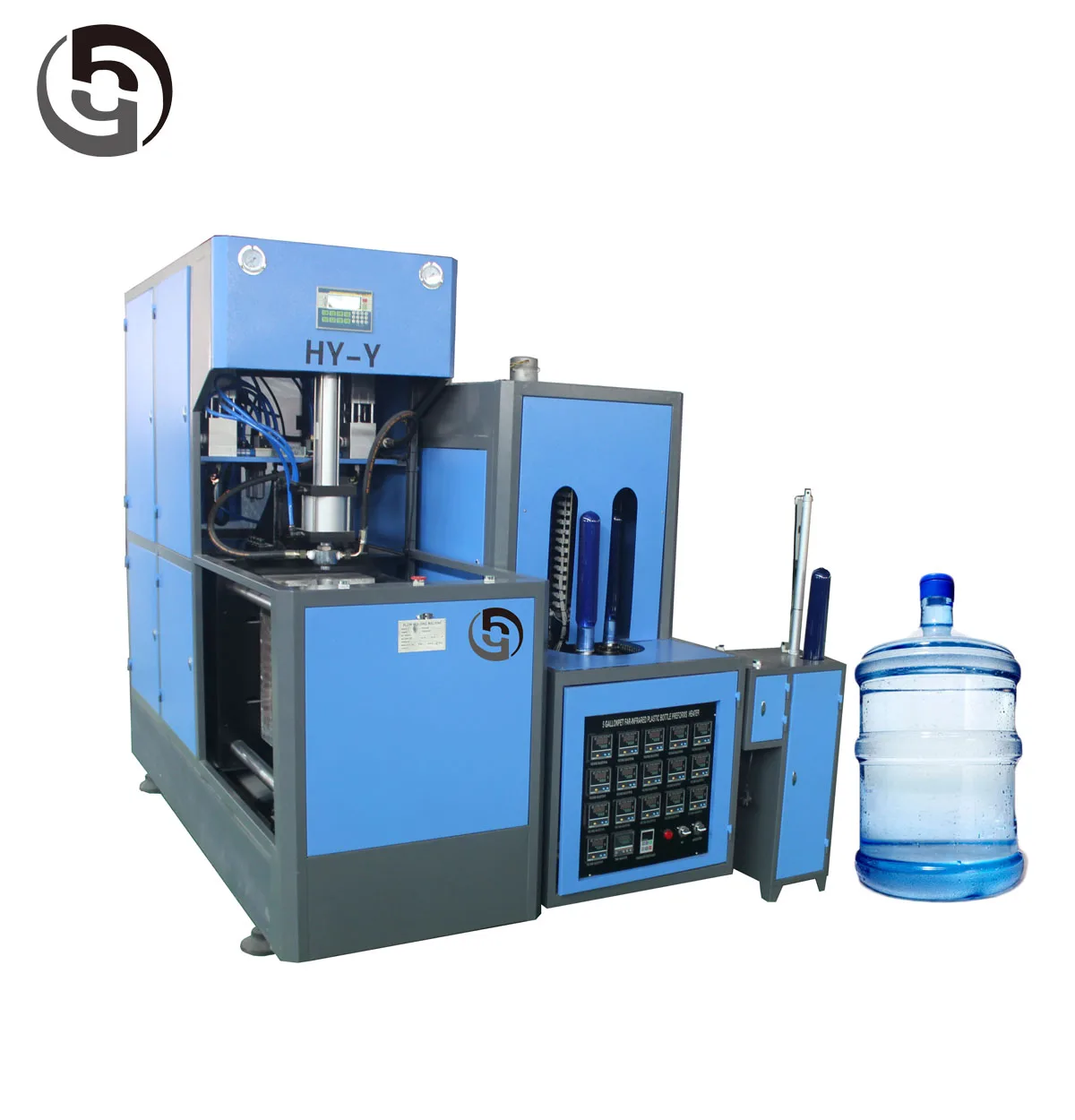

HY-Y Semiautomatic bottle blow molding machine( For 3-6gallon )
Specification:：
HY-Y blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
● Perfect function with economic investment.
● Small size and compact construction with no space waste.
● Easy to operate and maintain ,operation by one person .
● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer's requirements.
Name | Item | Unit | Details |
Blowing machine | Dimension | mm | 2300*750*2100 |
Bottle volume (max) | L | 22 | |
Bottle volume (min) | L | 5 | |
Bottle Neck Diameter (max) | mm | 90 | |
Bottle Neck Diameter (min) | mm | 38 | |
Body Diameter (max) | mm | 300 | |
Body Height( max) | mm | 550 | |
Number of Cavities | mold | 1 | |
Production output | pcs/h | 5GALLON:85-90PCS/HOUR | |
Clamping force | T | 20（200KN） | |
Mold thickness | mm | 450（max） | |
Mold width | mm | 430x530 | |
Space between Tie-bars | mm | 430*470 | |
Diameter of Tie-bars | mm | 63 | |
Scope of Tie-bars | mm | 405 | |
Mold stroke | mm | 170 | |
Stretching stroke (max) | mm | 420 | |
Working pressure | Mpa | 0.8-1.0Mpa | |
Blowing pressure | Mpa | 2.0-3.0Mpa | |
Voltage/Power | V/KW | 220V/1KW | |
Pre-heater | Dimension | mm | 2300*750*2100MM |
Weight | kg | 1600 | |
Voltage/Power | V/KW | 380V/28KW | |
Lamp | PCS | 32 | |
Working power | Kw | 15kw |

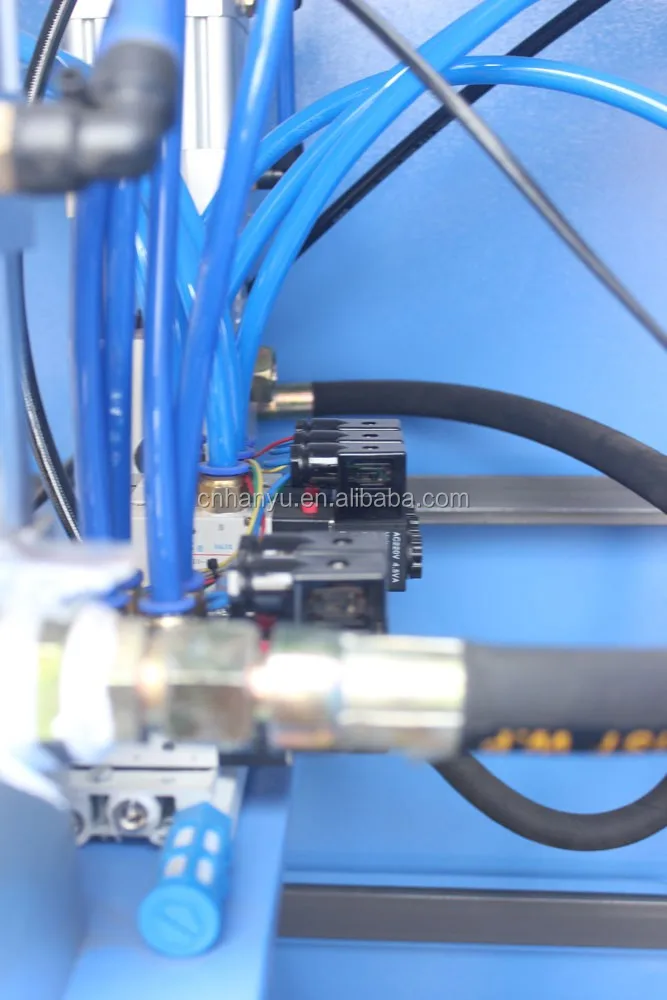

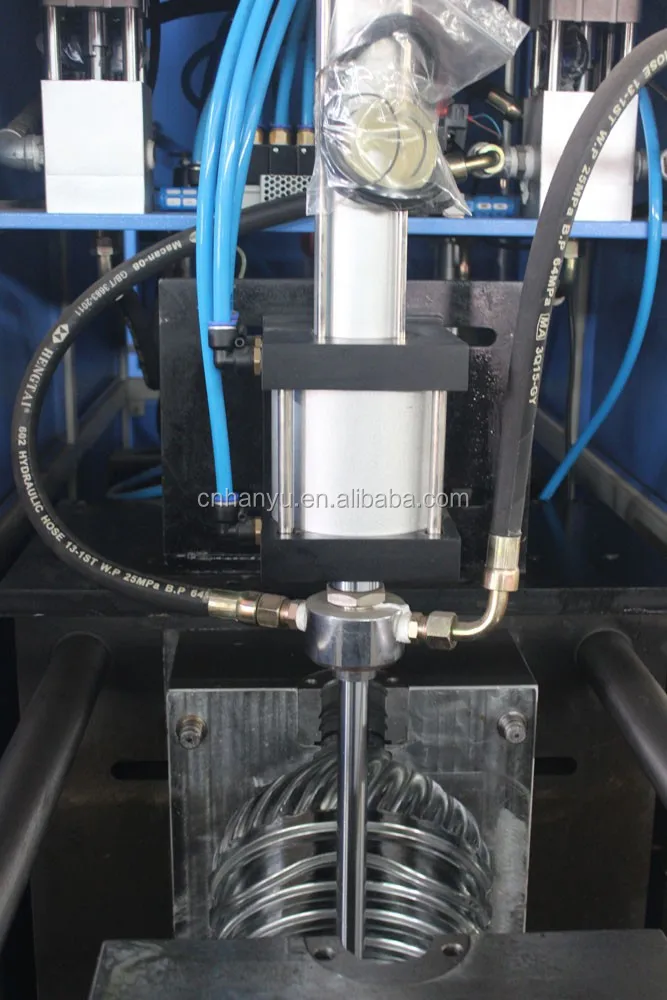

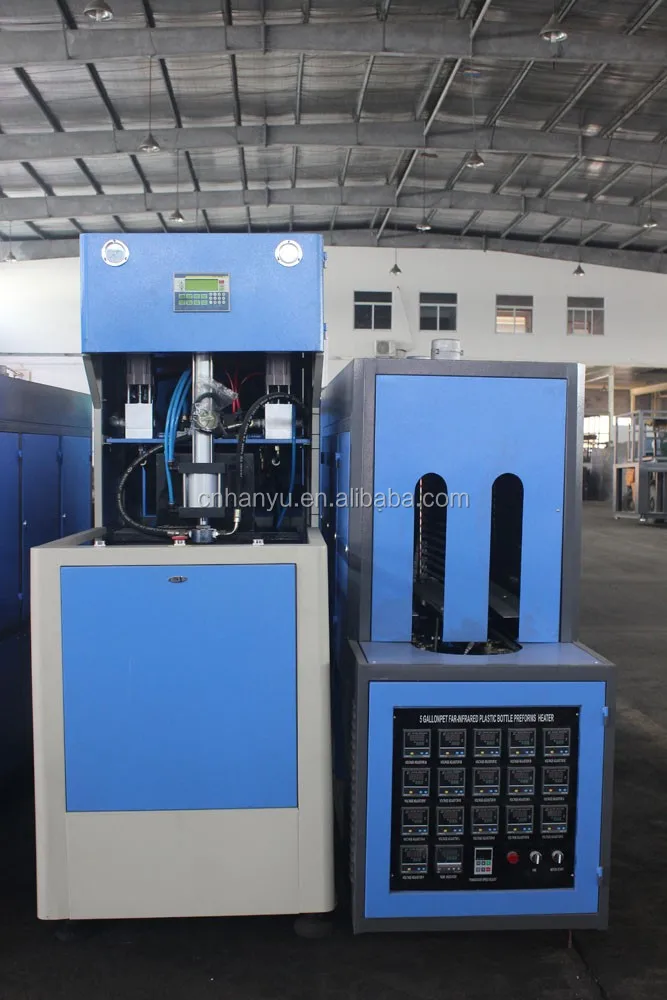

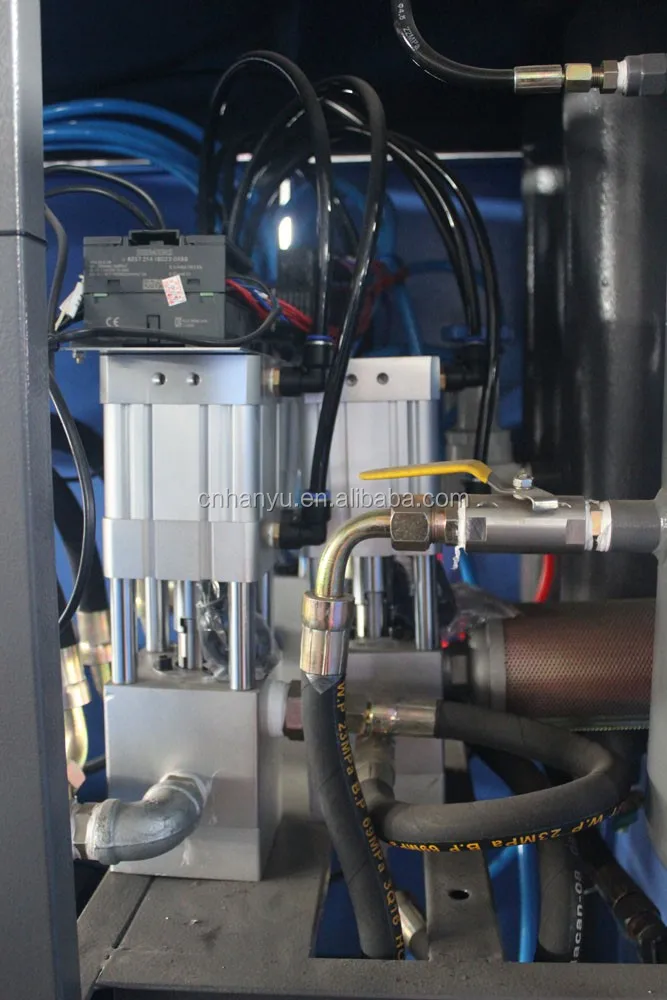

Detailed Images
Packing & Delivery
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
FAQ
Q:Have the blow molding machine in stock
A:semi-automatic blow molding machine in stock ,and the fully autoamtic are newly,the mold according your samlp to make .
Q:What is the delivery time?
A:15-30 days for this machine.
Q:What is the payment team?
A:T/T.L/C
Q:Can i trust you?
A:YES.We are "Alibaba" verified supplier
Q:May i visit your factory?
A:Of course,welcome any time,we can also pick you up at airport or station,
Back to >>>https://cnhanyu.en.alibaba.com/

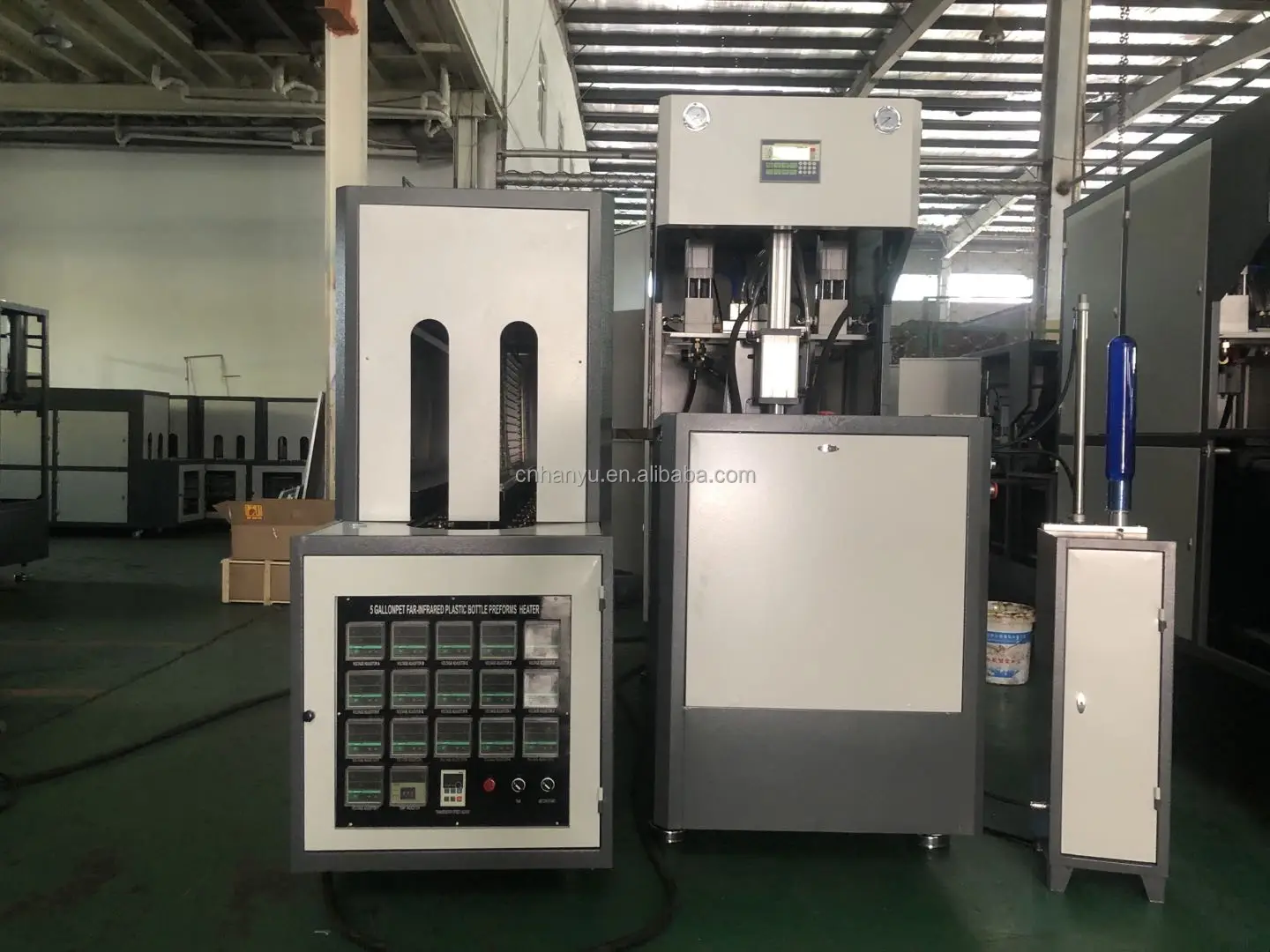

Our Factory
