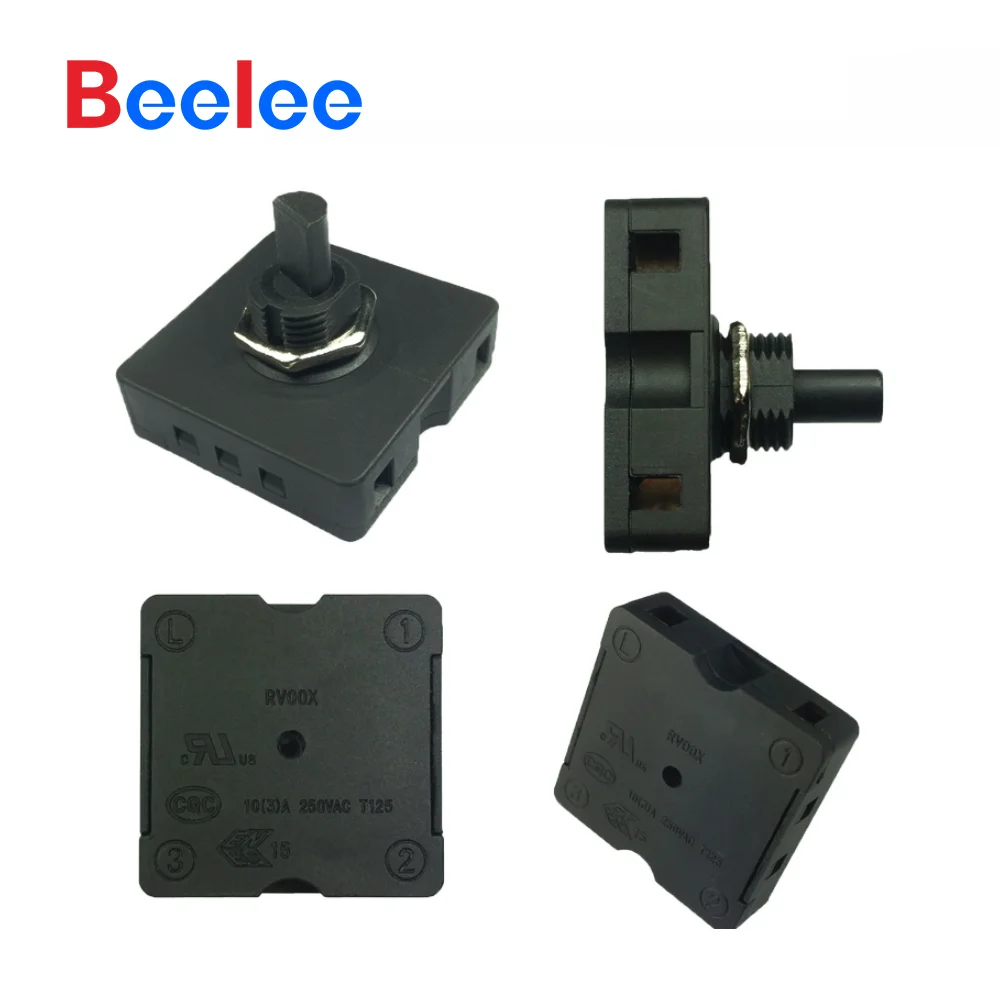

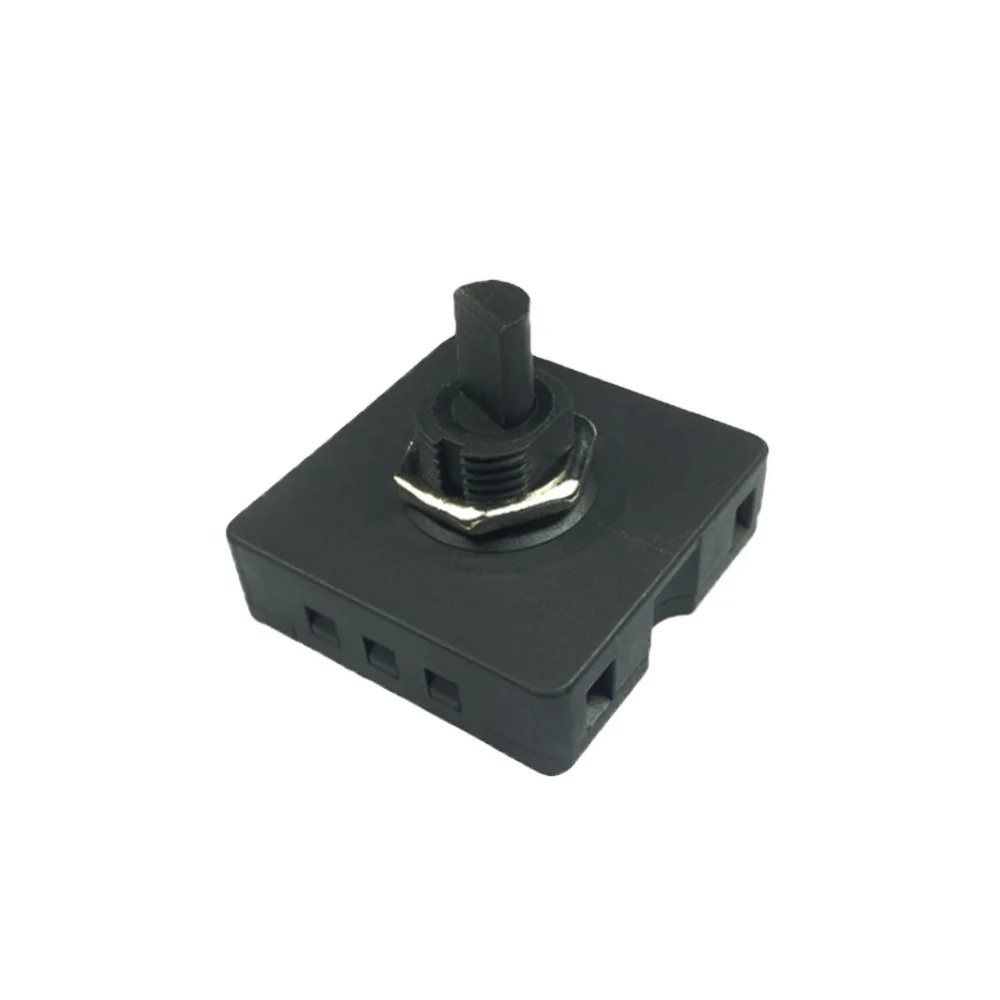

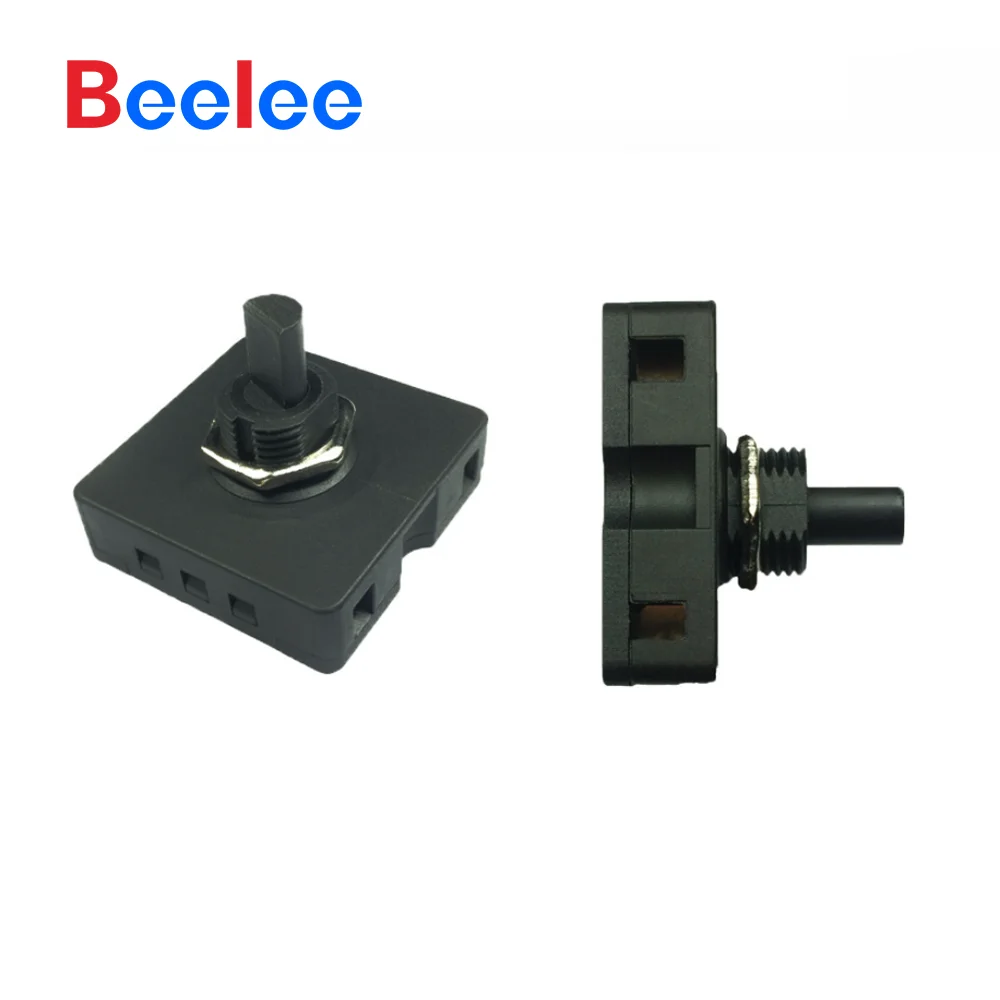

BL-XZ-RV00X серия вращающейся выключатель для высокомощных бытовую
- Категория: Rotary Switches >>>
- Поставщик: Dongguan,Bailing,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.28 $* | 0.49 $* |
| Aug-15-2025 | 0.85 $* | 0.35 $* |
| Jul-15-2025 | 0.27 $* | 0.50 $* |
| Jun-15-2025 | 0.25 $* | 0.82 $* |
| May-15-2025 | 0.42 $* | 0.46 $* |
| Apr-15-2025 | 0.97 $* | 0.48 $* |
| Mar-15-2025 | 0.81 $* | 0.3 $* |
| Feb-15-2025 | 0.96 $* | 0.26 $* |
| Jan-15-2025 | 0.99 $* | 0.3 $* |
Характеристики
Rotary switch is a kind of switch that controls the on-off of the main contact point by rotating the handle.
01.Rotary switch is a kind of switch that controls the on-off of the main contact point by rotating the handle.

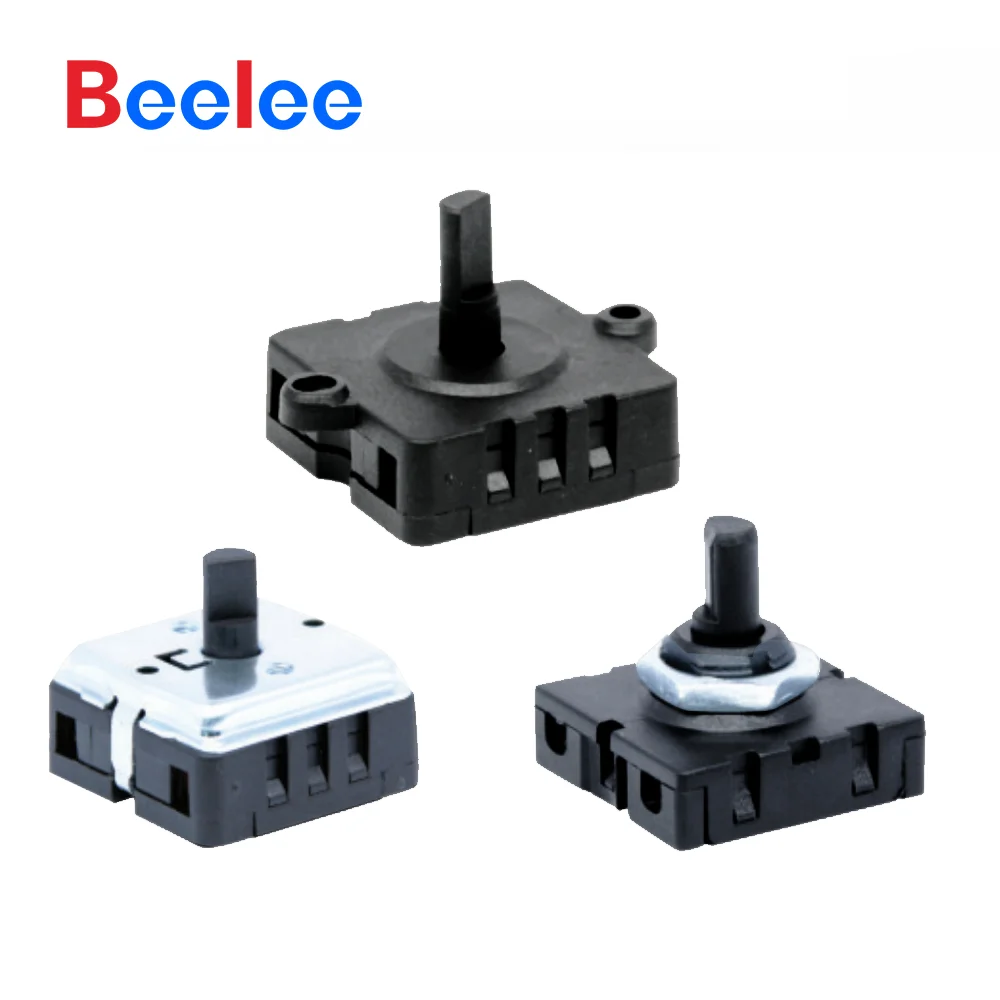

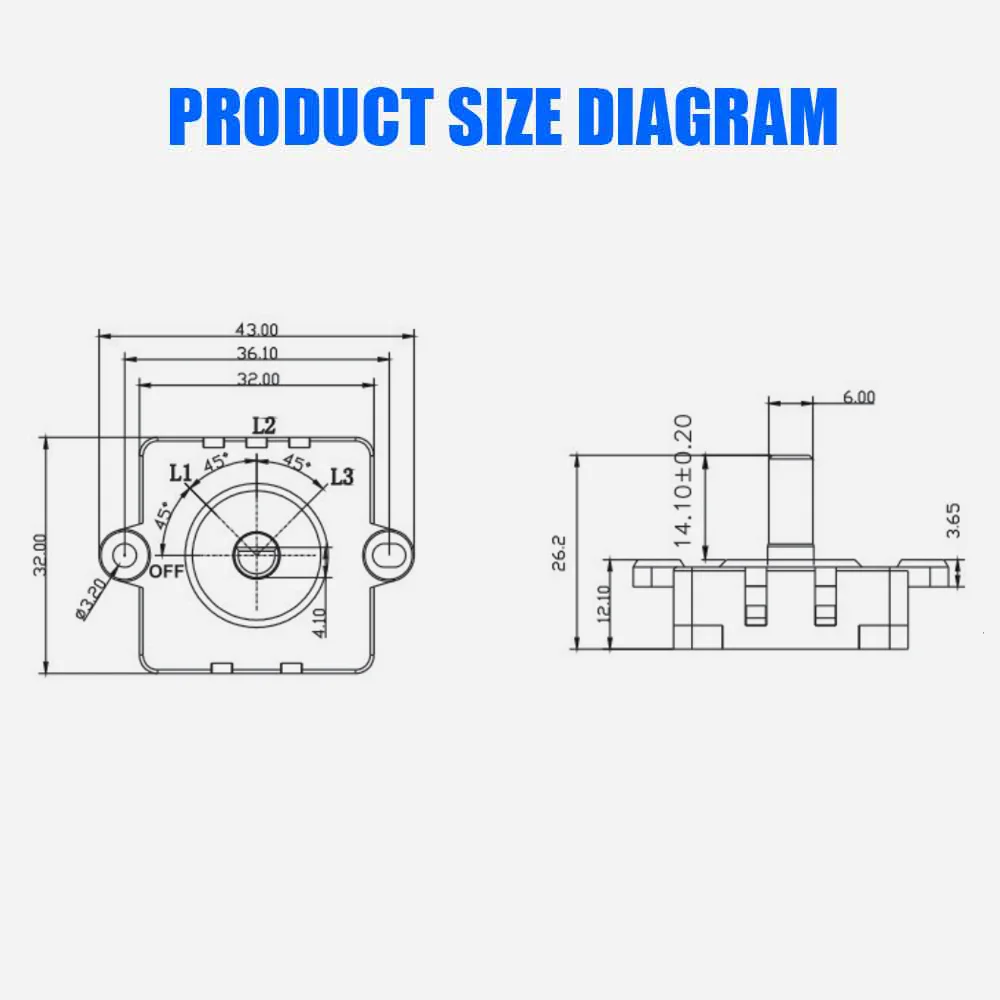

02.A variety of shaft length can be selected, a variety of shape size selection.
03.It is widely used in household appliances,industrial electrical appliances.
| Electrical life | 10000cycles |
| Mechanical life | 50000cycles |
| Contact resistance | ≤50mΩ |
| Insulation resistance | >100MΩ |
| Material of housing | PA66 |
| Material of terminals | copper alloy |
| Material of contacts | Ag alloy |
| Safety approvas | UL CUL ENEC CQC CB |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
