2030 вертикальный сверлильный и фрезерный станок с ЧПУ для стекла ванной
- Категория: Glass Processing Machinery >>>
- Поставщик: Jinan,Weili,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 94010.12 $* | 98711.73 $* |
| Aug-19-2025 | 93220.35 $* | 97881.75 $* |
| Jul-19-2025 | 78210.39 $* | 82121.42 $* |
| Jun-19-2025 | 91640.64 $* | 96222.12 $* |
| May-19-2025 | 79790.79 $* | 83780.16 $* |
| Apr-19-2025 | 90060.89 $* | 94563.42 $* |
| Mar-19-2025 | 89270.65 $* | 93734.37 $* |
| Feb-19-2025 | 88480.90 $* | 92904.39 $* |
| Jan-19-2025 | 87690.82 $* | 92075.30 $* |
Характеристики
Product Description
Description:
GC-LDM-III2030 is a vertical working center with high technology. It can perfectly perform complicated working in short time, and the processed sheet is of high level which realized to obtain a CNC machine with smallest investment.
The CNC working center applies numerical operation and control system to achieve dynamic management of each axis and speed precision control. So the shape is of precision and the processed sheet is of high quality. It is a CNC vertical drilling and milling machine to process simple and complex drawing and featured by the most advanced technology. It is a solution to the requirement on processing precision, high speed and ease operation.
This machine is suitable to process structural glass (Frameless door, glass curtain wall etc.) The function including:
* Drilling by two opposite spindles;
* Milling by single router;
* Arrising
Technical Parameter
MODEL NO | MAX SIZE | MIN SIZE | Speed of Spindle | Glass thickness | Total power |
2030 | 2000*3000MM | 500*500MM | 0-12000rpm | 5-30mm | 22KW |
2542 | 2500*4200MM | 500*500 | 0-12000rpm | 5-30mm | 22KW |
3060 | 3000*6000MM | 500*500 | 0-12000rpm | 5-30mm | 22KW |
item | value |
Glass Thickness | 5-25mm |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Mitsubishi numerical control system |
Spindle Power | 7.5KW*2 |
Electricity | 3P 380V 50HZ |
Tool Positions | 8*2 |
Axis number | 5 axis |
Tool coner | BT30 |
Air compression | 0.7Mpa |
Detailed photos

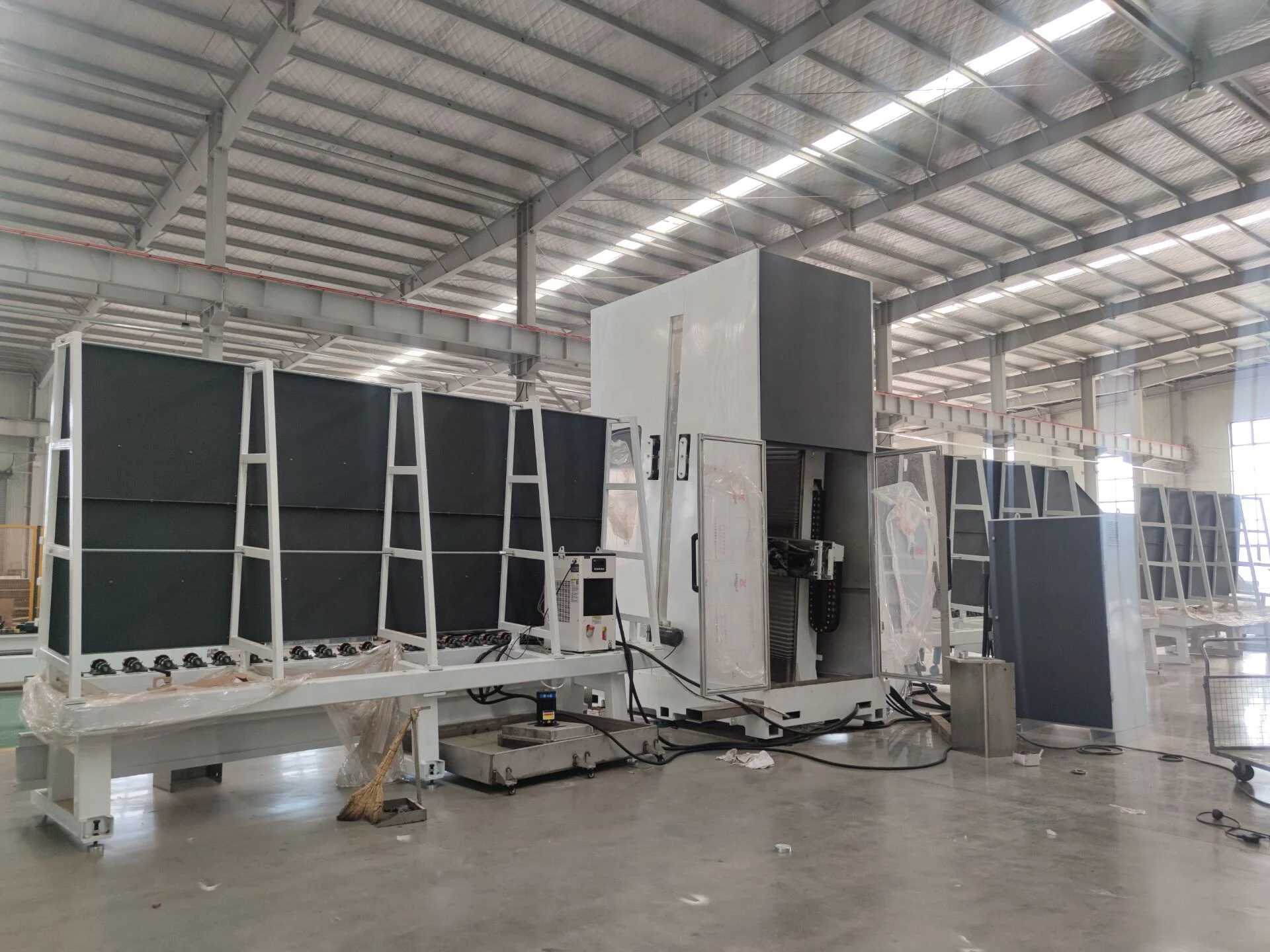

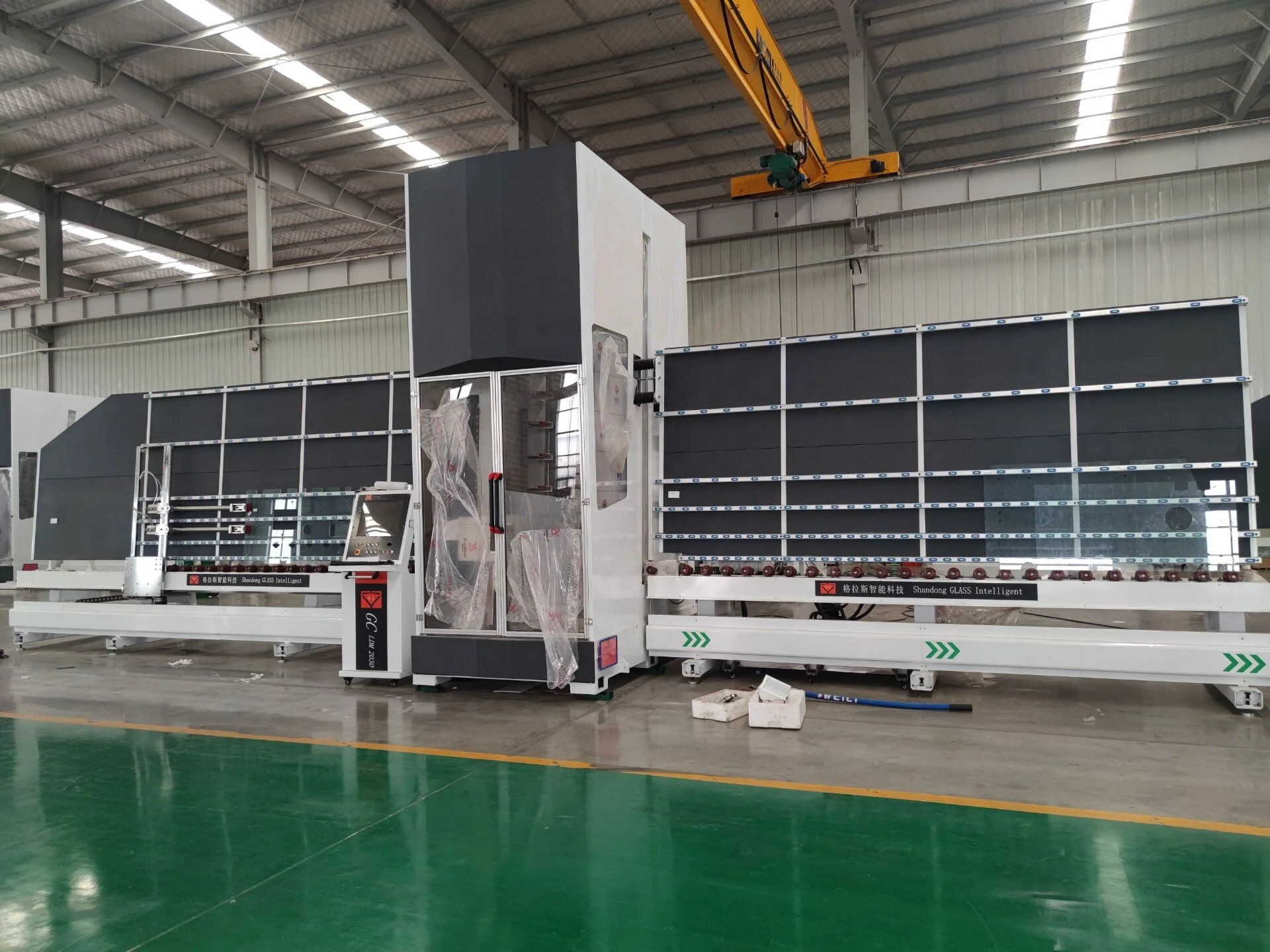

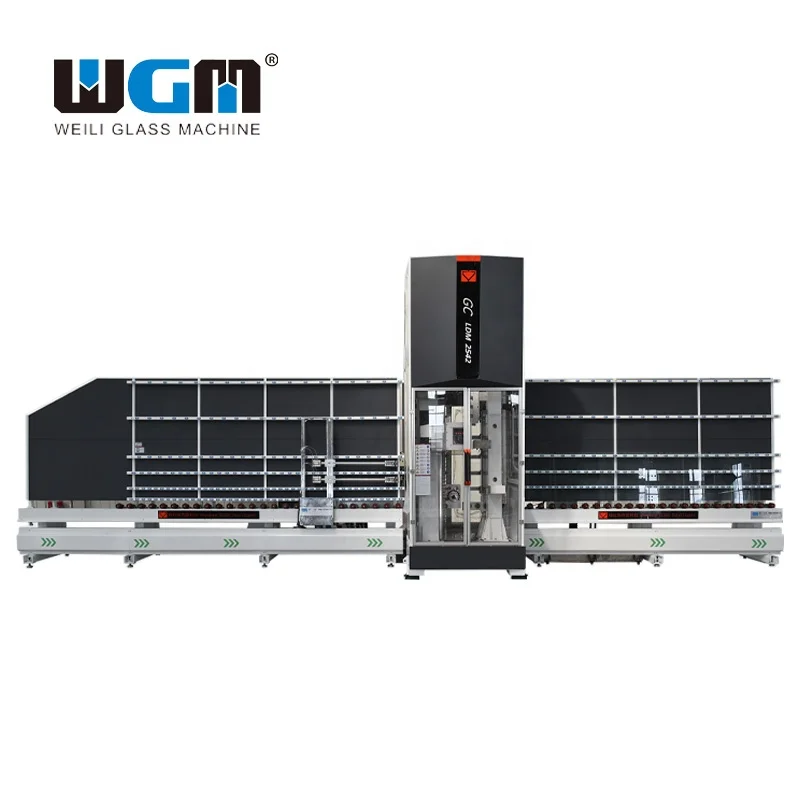

GC-LDM-III2030 can automatically process complex drilling, milling and arrising function on large flat glass.
When the glass was loaded on the feeding rack, the machine begins to execute the prepared program on drilling, milling, arrising etc.

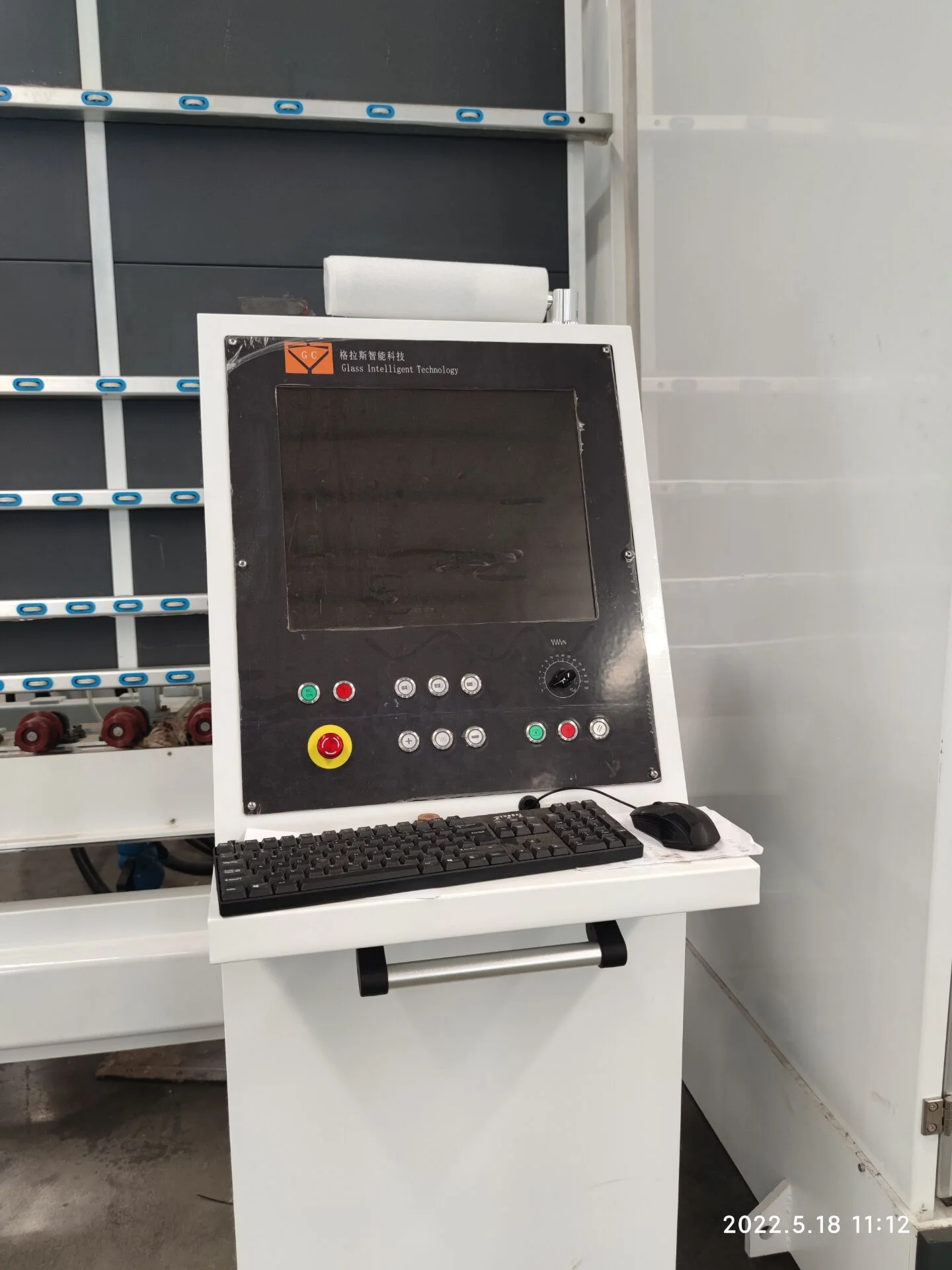

The flexibility of the control system can meet the requirement of different products, the whole work is finished automatically.

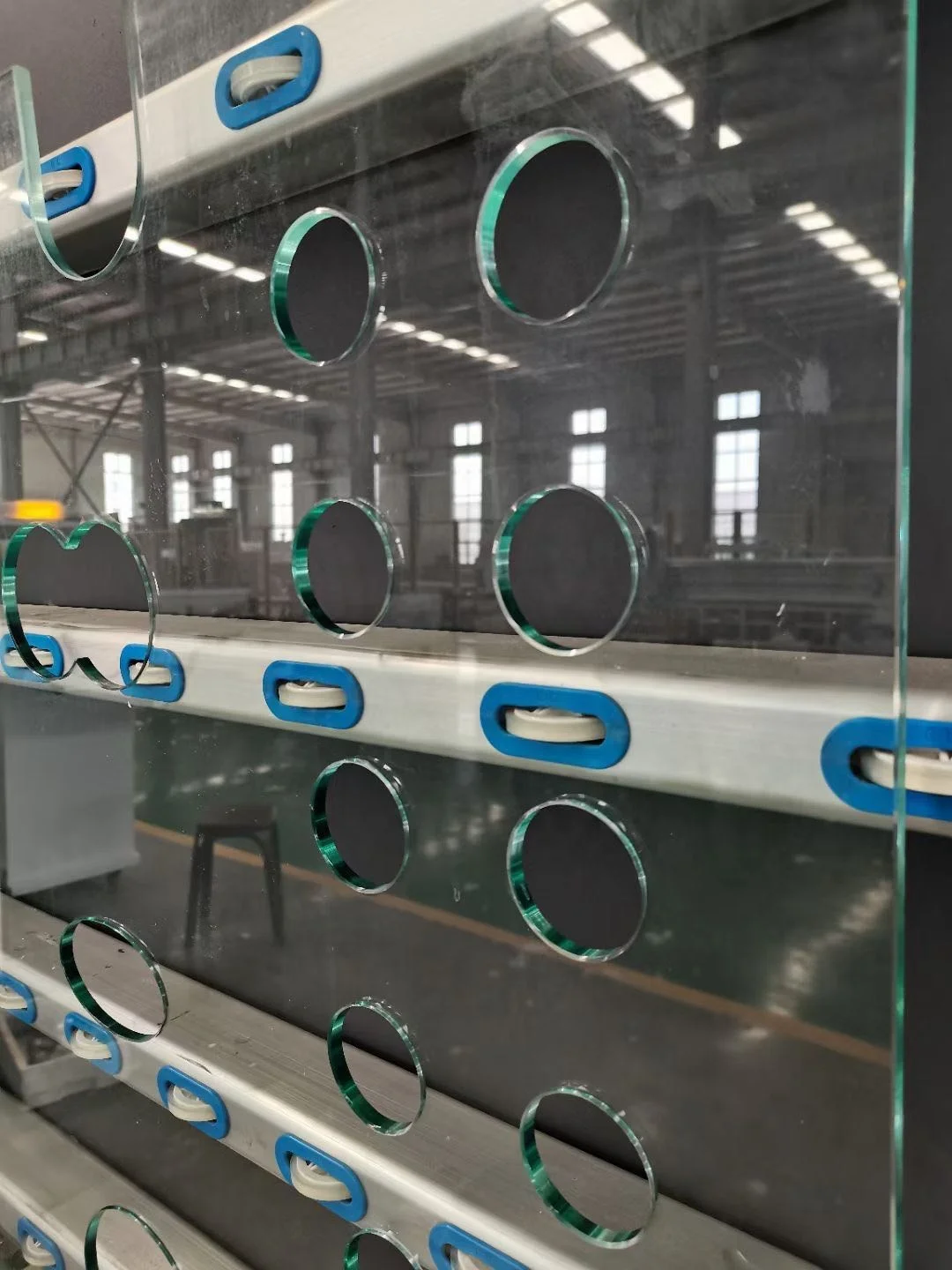

All kind of glass samples, which satisfied customer's demands with good performance.
Relevant Machines
Packing & Delivery
Delivery
1.Machine packing with plastic film and plywood pallet for necessary parts.
2.Packing with wooden box ccording to customers' requirements.
2.Packing with wooden box ccording to customers' requirements.
Company Profile
Jinan Weili Machine Co.,Ltd is in the service of construction glass and glass industries. It is mainly specialized in producing door-window of energy conservation insulated glass production line of curtain wall, and glass deep-processing equipment.
Since the company established from 2001, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipment. The products sell well at home and abroad, and some were exported to Europe, Africa, Middle east, Southeast Asia and more than 50 countries and areas.
Since the company established from 2001, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipment. The products sell well at home and abroad, and some were exported to Europe, Africa, Middle east, Southeast Asia and more than 50 countries and areas.
FAQ
1.Question:Are you a manufacturer?
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 21-years history since 2001.
2.Question: How about the service ?
Answer:
1).Timely reply it at once on WhatsAPP and Email.
2).18 hours online for after-sale service
4).more than 21 years experience in this kind machine field
5).fluent English ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What's the guarantee ?
Answer:
1). Our guarantee for 12 months.
2). 18 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. Based on the situation stable and policy allowed, we can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer:
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our insulating glass machine, likes auto gas filling machine, auto loading machine and etc.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory. We have a good reputation in our customers.
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 21-years history since 2001.
2.Question: How about the service ?
Answer:
1).Timely reply it at once on WhatsAPP and Email.
2).18 hours online for after-sale service
4).more than 21 years experience in this kind machine field
5).fluent English ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What's the guarantee ?
Answer:
1). Our guarantee for 12 months.
2). 18 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. Based on the situation stable and policy allowed, we can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer:
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our insulating glass machine, likes auto gas filling machine, auto loading machine and etc.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory. We have a good reputation in our customers.
