50 кГц-2 ГГц Малахитовый DSP приемник коротковолновый радиоприемник алюминиевого сплава охладительного
- Категория: Satellite TV Receivers >>>
- Поставщик: Shenzhen,Ayision,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 305.63 $* | 320.47 $* |
| Aug-17-2025 | 302.53 $* | 317.44 $* |
| Jul-17-2025 | 253.68 $* | 266.97 $* |
| Jun-17-2025 | 297.50 $* | 312.99 $* |
| May-17-2025 | 259.83 $* | 272.29 $* |
| Apr-17-2025 | 292.45 $* | 307.62 $* |
| Mar-17-2025 | 289.59 $* | 303.59 $* |
| Feb-17-2025 | 287.90 $* | 301.82 $* |
| Jan-17-2025 | 284.90 $* | 298.83 $* |
Характеристики
Product Description
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | - |
Model Number | SYJ-1 |
FTA(Free To Air) | Yes |
Type | Digital |
High Definition | Yes |
Frequency range | 50Khz~250Mhz and 400Mhz~2000Mhz |
Demodulation mode | WFM, NFM, AM, LSB, USB, cw |
Working current | 300mA |
Sensitivity | 0.30 (50Khz~250Mhz) |
Screen | 3.5 inch touch screen |
Power supply mode | built-in 3600Mah rechargeable lithium battery |
Antenna interface | SMAJ female |
UHF band | support |
Main board | four layer PCB process |
Shell | aluminum alloy shell |
Features:
- DSP SDR Receiver for Malahit
- Capacitive touch screen
- Stlink V2 System
- Default frequency range: 50KHz-2.0GHz
- Demodulation mode: AM, LSB, AM,NFM, WFM,(CW, MIN SNR)
Product Parameters:
1) The radio is built on the principle of SDR-the function is determined by loaded software;

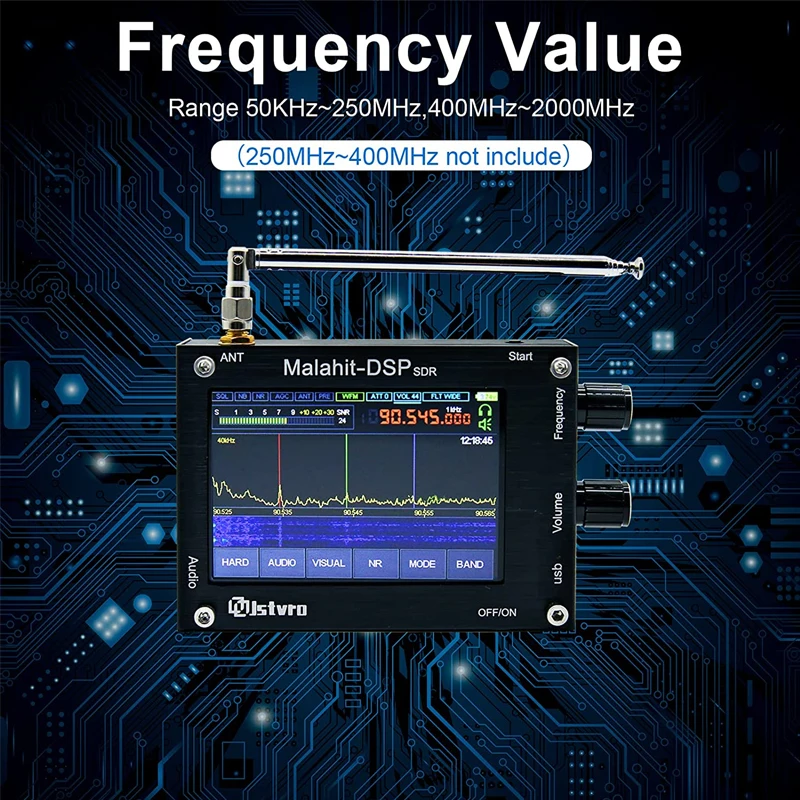

2) Frequency range: from 50 kHz to 2.0GHz (Registered version)
3) All types of analog modulation: AM, LSB, NFM, WFM; (CW, MIN SNR)
4) Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, for Noise Blanker, AGC,
equalizer;
5) fully functional chip msi001;
6) The powerful stm32H743VIT6 with a clock frequency of 480 MHz is applied;

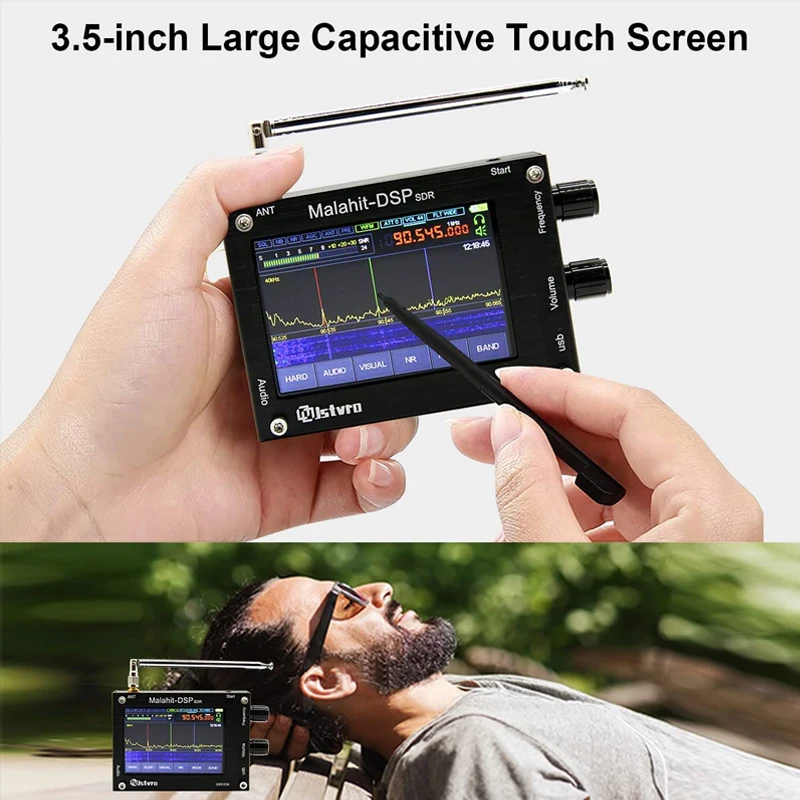

7) 3.5-inch display touch screen;
8) Controls: 2pcs; encoders with buttons and touch screen;
9) It is powered by an external TYPE-C interface or battery (Built-in battery 3.7V 3800ma), which can be charged by TYPE-C.
10) Consumption: 300mA when listening to headphones;
11) The reception on built-in telescope or external antenna is to improve the HF reception on telescope antenna, and an additional
board with source follower has been developed. The board will be built into standard receiver design.
12) Connect to computer via USB, which can transfer CAT, IQ and audio.
13) 160 kHz span, with scalability;
14) Sensitivity: Under the condition of up to 250MHz, s/w is 0.3μV = 10dB; due to lack of measurement equipment, so the above
measurements were not taken;
15) Due to the characteristics of msi001 chip used, dynamic blocking range is about 85dB.
16) With backlight control;
17) SMA female antenna socket;
18) Motherboard size: 112 x 70mm (without the sizes of connectors).
- DSP SDR Receiver for Malahit
- Capacitive touch screen
- Stlink V2 System
- Default frequency range: 50KHz-2.0GHz
- Demodulation mode: AM, LSB, AM,NFM, WFM,(CW, MIN SNR)
Product Parameters:
1) The radio is built on the principle of SDR-the function is determined by loaded software;
2) Frequency range: from 50 kHz to 2.0GHz (Registered version)
3) All types of analog modulation: AM, LSB, NFM, WFM; (CW, MIN SNR)
4) Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, for Noise Blanker, AGC,
equalizer;
5) fully functional chip msi001;
6) The powerful stm32H743VIT6 with a clock frequency of 480 MHz is applied;
7) 3.5-inch display touch screen;
8) Controls: 2pcs; encoders with buttons and touch screen;
9) It is powered by an external TYPE-C interface or battery (Built-in battery 3.7V 3800ma), which can be charged by TYPE-C.
10) Consumption: 300mA when listening to headphones;
11) The reception on built-in telescope or external antenna is to improve the HF reception on telescope antenna, and an additional
board with source follower has been developed. The board will be built into standard receiver design.
12) Connect to computer via USB, which can transfer CAT, IQ and audio.
13) 160 kHz span, with scalability;
14) Sensitivity: Under the condition of up to 250MHz, s/w is 0.3μV = 10dB; due to lack of measurement equipment, so the above
measurements were not taken;
15) Due to the characteristics of msi001 chip used, dynamic blocking range is about 85dB.
16) With backlight control;
17) SMA female antenna socket;
18) Motherboard size: 112 x 70mm (without the sizes of connectors).
