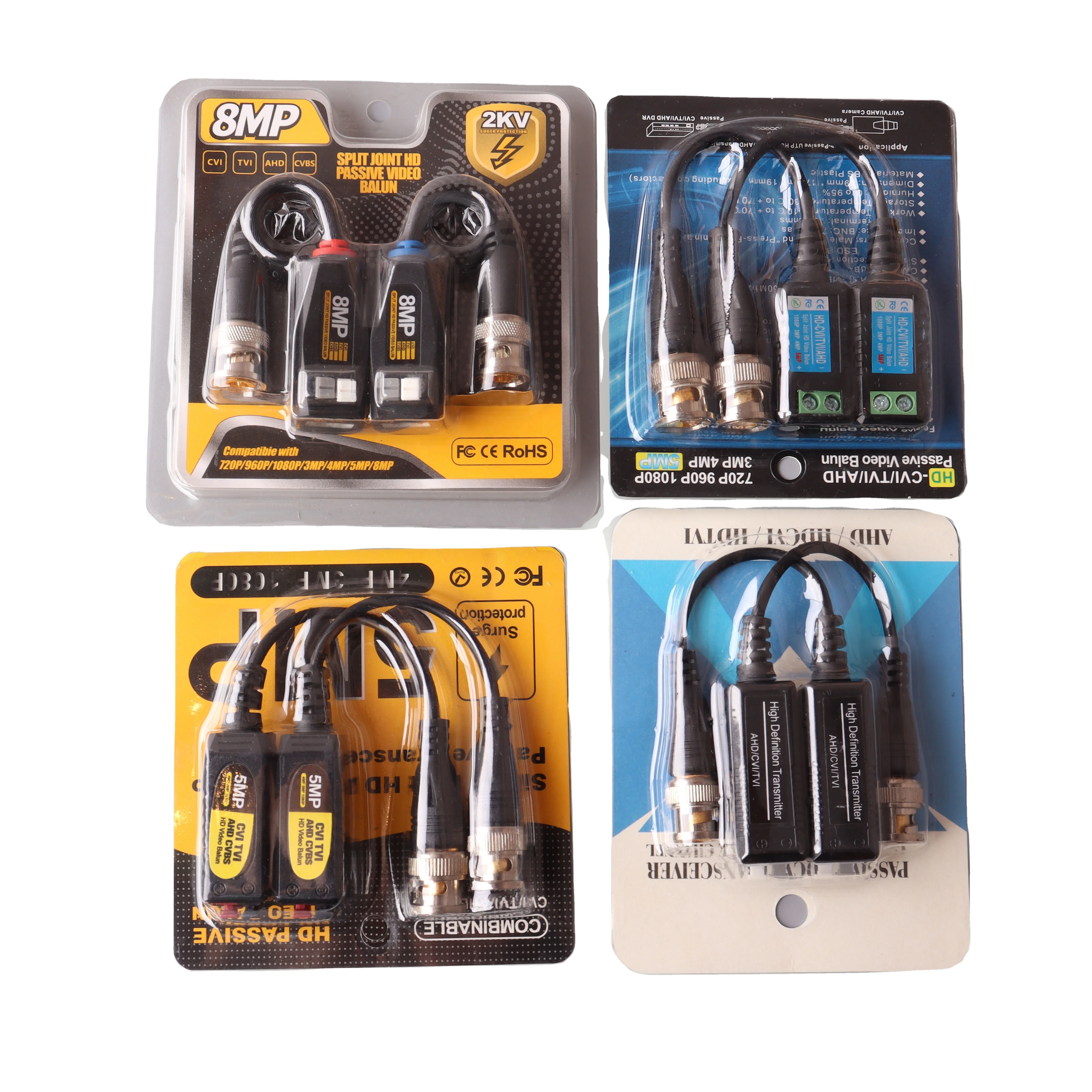

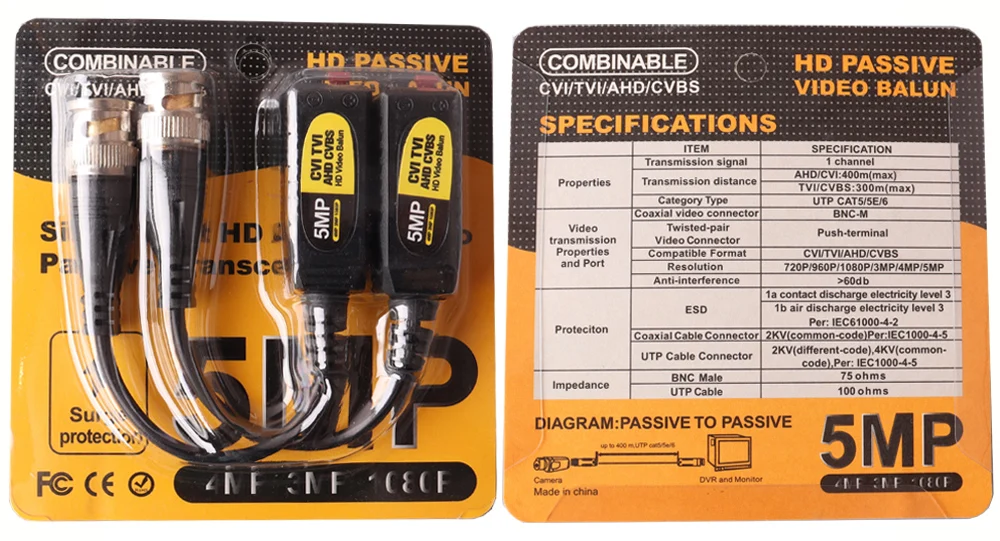

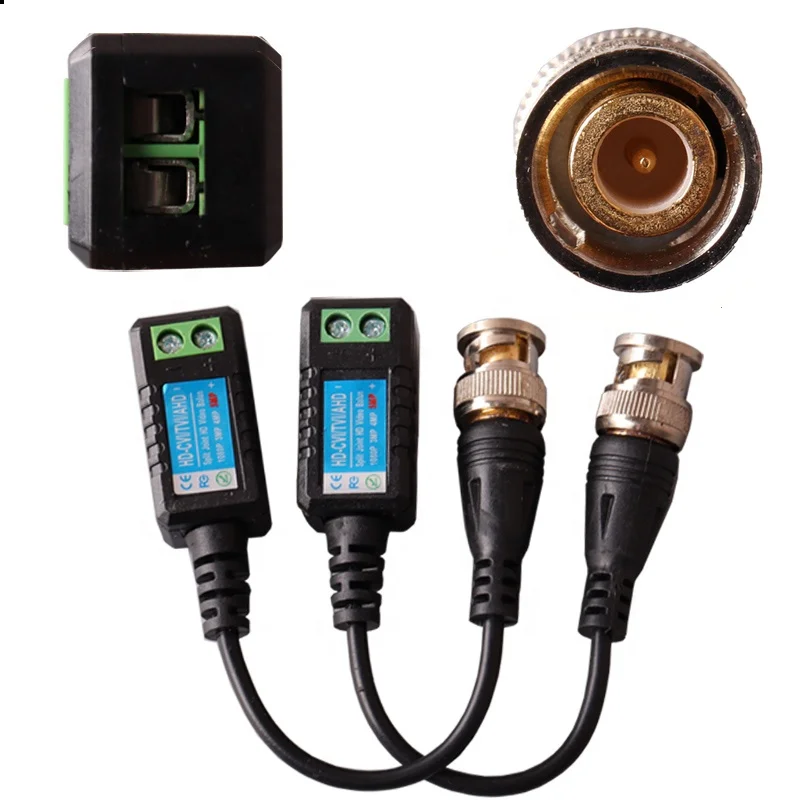

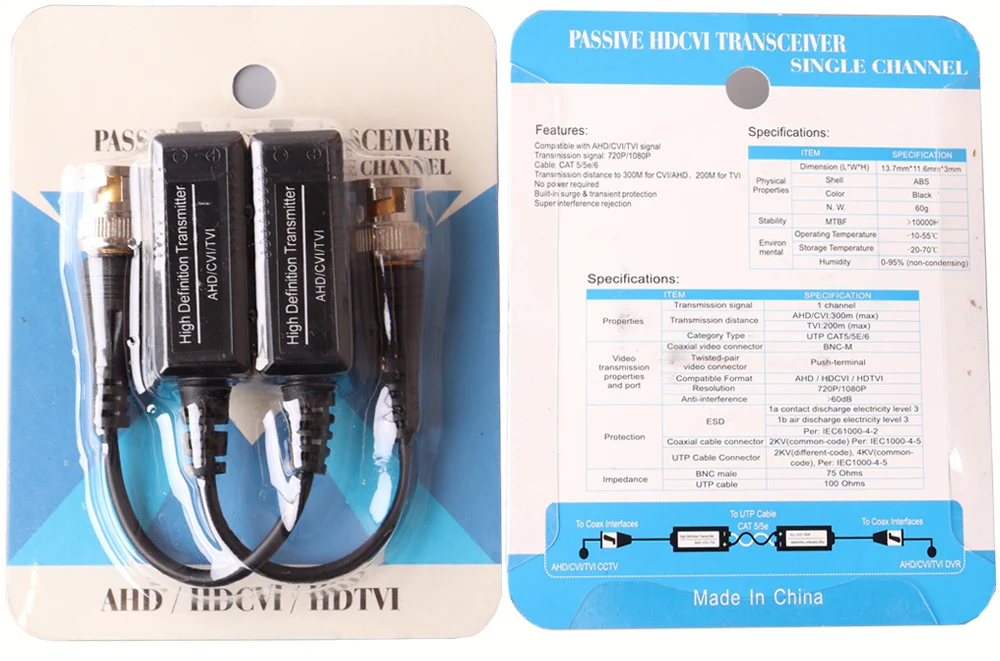

Видео балун трансивер AHD/CVI TVI 1 канал Пассивный 2mp 5mp 8mp видео HD UTP витая пара компания

Видео балун трансивер AHD/CVI TVI 1 канал Пассивный 2mp 5mp 8mp видео HD UTP витая пара компания

Цена:0,48 $ - 0,65 $*

Количество:

Cambo manufacturers direct sales,15 years production technology

Products Description

Product Paramenters

Model			B208
Video	Transmission Signal	Single Channel HD Passive Balun
		Compatible Format	AHD/ HDCVI/ HDTVI/CVBS Analog
		Resolution	720p/1080p
		Max. Distance 720p	AHD/CVI 300M, TVI 190M
		Max. Distance 1080p	AHD/CVI 220M, TVI 190M
		Video Format	PAL,NTSC,SECAM
		Operating Frequency	DC to 42MHz
		Anti-interference	> 60dB
		Impedance	Coax, Male BNC 75 unbalanced UTP, screw terminal 100 balanced
		Attenuation	1.5 dB typ Max.
Wire Type	Network Wiring	One Unshielded Twisted Pair 24-16 AWG (0.5-1.31mm)
		Category Type	2-pins UTP cat5e/6
		Coaxial Video Connector	Male BNC connector screw terminal/Push pin terminal
		DC Loop Resistance	52 ohms per 1000ft(18ohms per 100m)
		Differential Capacitance	19 pF/ft max (62 pF/m max)
Imperance	BNC Male	75 Ohms
Imperance		UTP Cable	100 Ohms
Protection	Surge Protection	Renewable solid state surge protection
		ESD	1a contact discharge electricity level 3 per IEC61000-4-2
		ESD		1b air discharge electricity level 3 per IEC61000-4-2
		Coaxial Video Connector	2KV (common mode) per IEC6100-4-5
		UTP Cable Connector	2KV (different code), 4KV (common code) per IEC6100-4-5
General	Housing	ABS engineering plastic
		Power Input	No external power required
		Body Color	Black
		Dimensions(LWH)	13.711.63mm
		Net Weight	60g
		MTBF	> 10000H
		Operating Temperature	-10~55°C
		Relative Humidity	0-95% (non-condensing)
