Металлическая сортировочная машина медный алюминиевый радиатор сепаратор

Металлическая сортировочная машина медный алюминиевый радиатор сепаратор

Категория: Recycling >>>
Поставщик: Zhengzhou,Yize,Machinery,Co.,Ltd.

Цена:4 670,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	5557.24 $*	5835.46 $*
Aug-19-2025	5511.78 $*	5787.29 $*
Jul-19-2025	4623.77 $*	4854.42 $*
Jun-19-2025	5417.46 $*	5688.67 $*
May-19-2025	4717.99 $*	4953.3 $*
Apr-19-2025	5324.6 $*	5590.47 $*
Mar-19-2025	5277.25 $*	5541.95 $*
Feb-19-2025	5230.85 $*	5492.96 $*
Jan-19-2025	5184.93 $*	5443.11 $*

Характеристики

Product Description

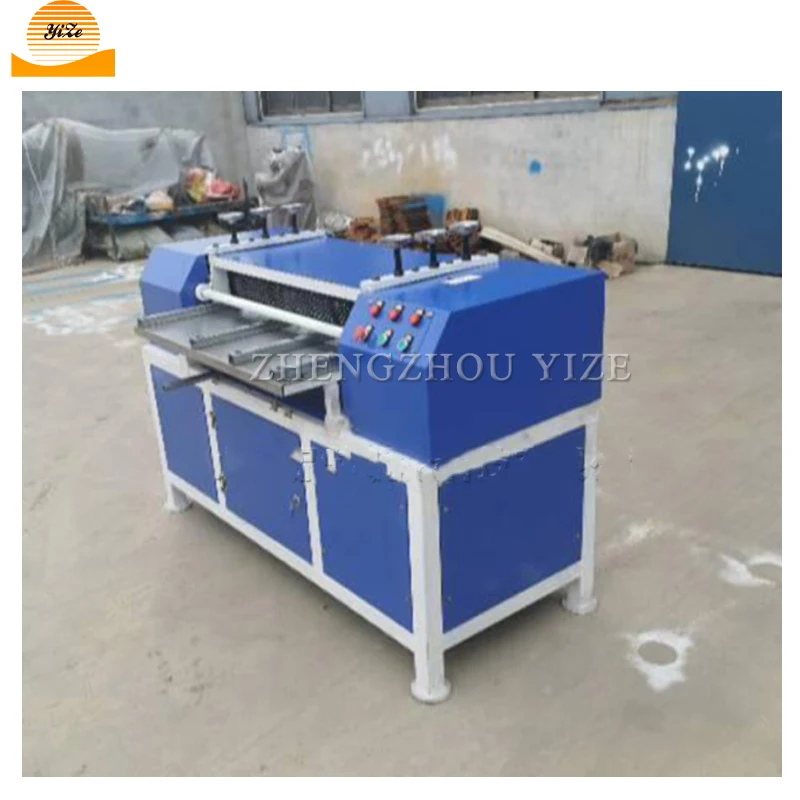

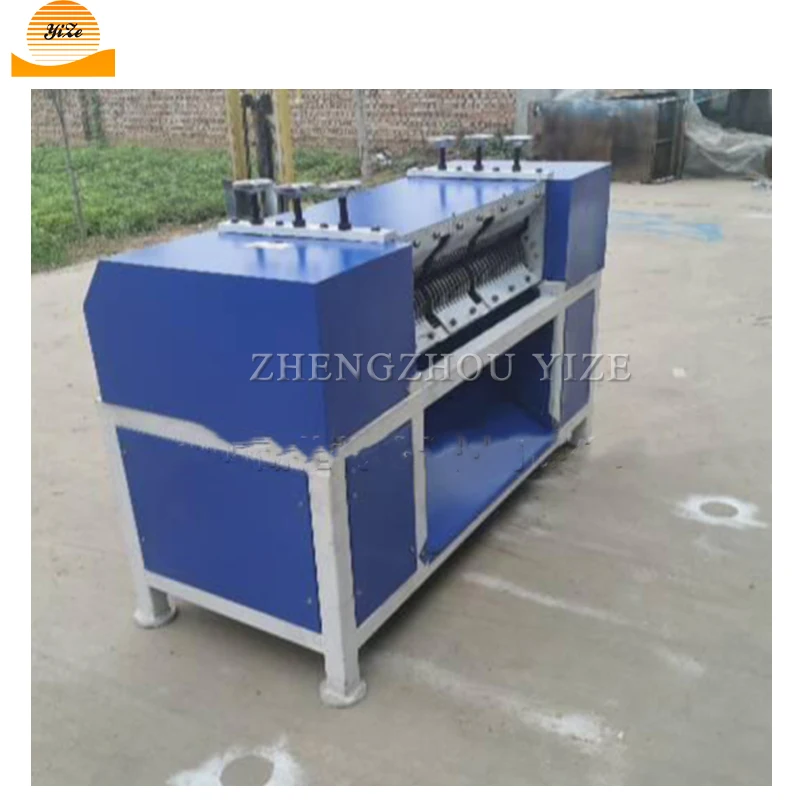

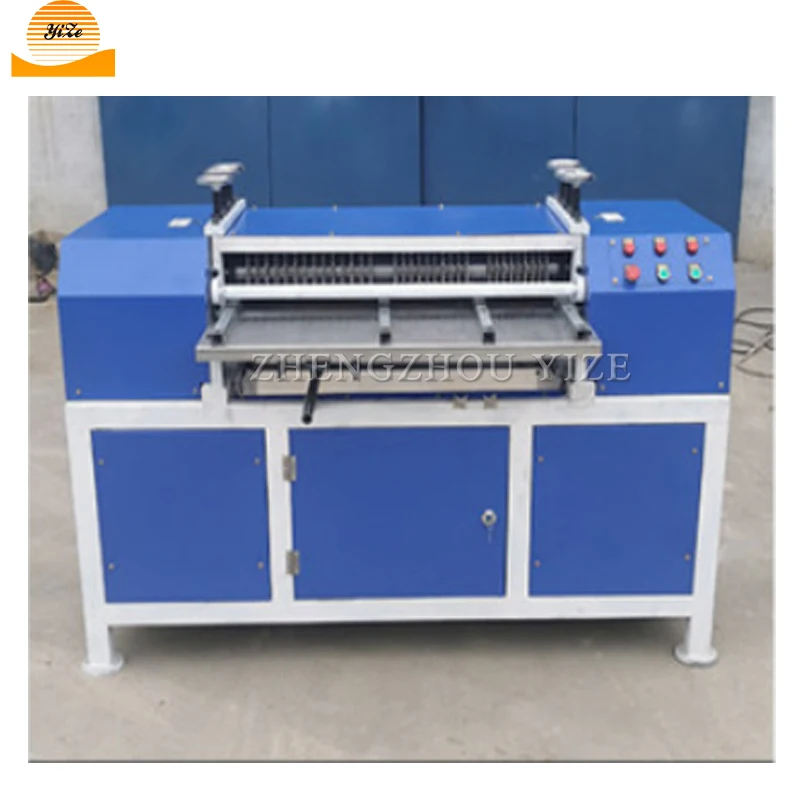

Metal Sorting Machine Copper Aluminum Radiator Separator Air Conditioner radiator separator Line

Radiator is the metal waste formed after the air conditioning water tank and the automobile water tank is disassembled, mainly.
Composed of copper tubes and aluminum foil, the copper content of copper tubes can generally reach more than 97%.
Radiator copper aluminum separator is also called automobile water tank copper aluminum separator, can be used to air
conditioning, steam Car water tank, radiator and other radiator copper tube and aluminum foil quickly separated without damaging the copper tube, The foil is lumpy, not powdery. This machine can be used alone or at the same time with band saw. This machine is easy to operate, high efficiency province manual, has broad market prospects, is a fast and feasible
Get rich projects.

Type 850

Type 1200

Product related paremeters
Power	380v
Weight	700kg
Size	17608501180mm
Saw theory of speed	700r/m
Saw theory of diameter	500mm
Width of saw blade	20mm
Length of saw blade	4050mm
Maximum machining width	450mm
Maximum pass width	380mm
Capacity of equipment	500kh/h

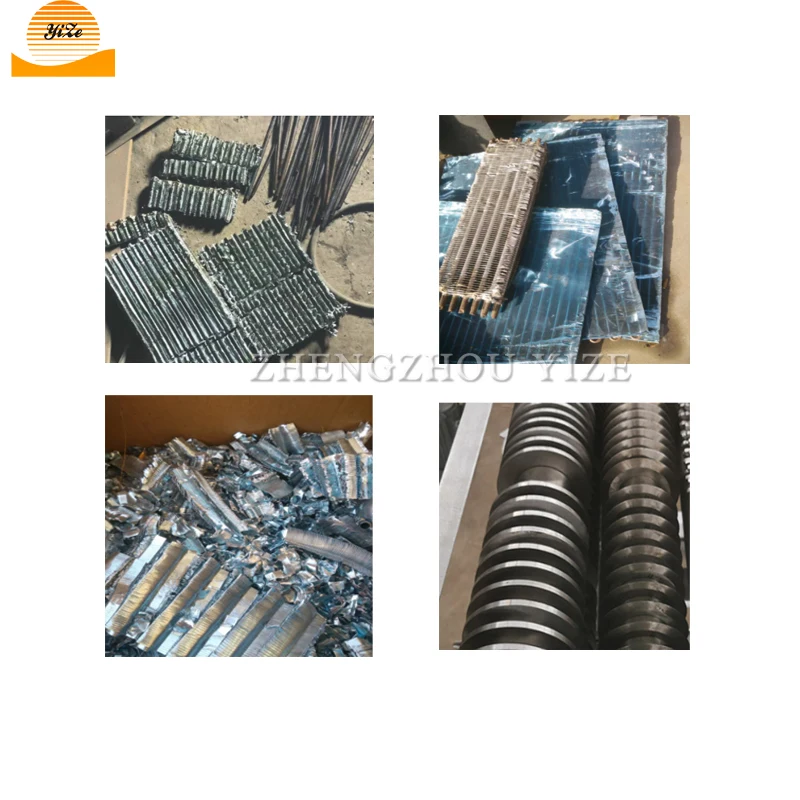

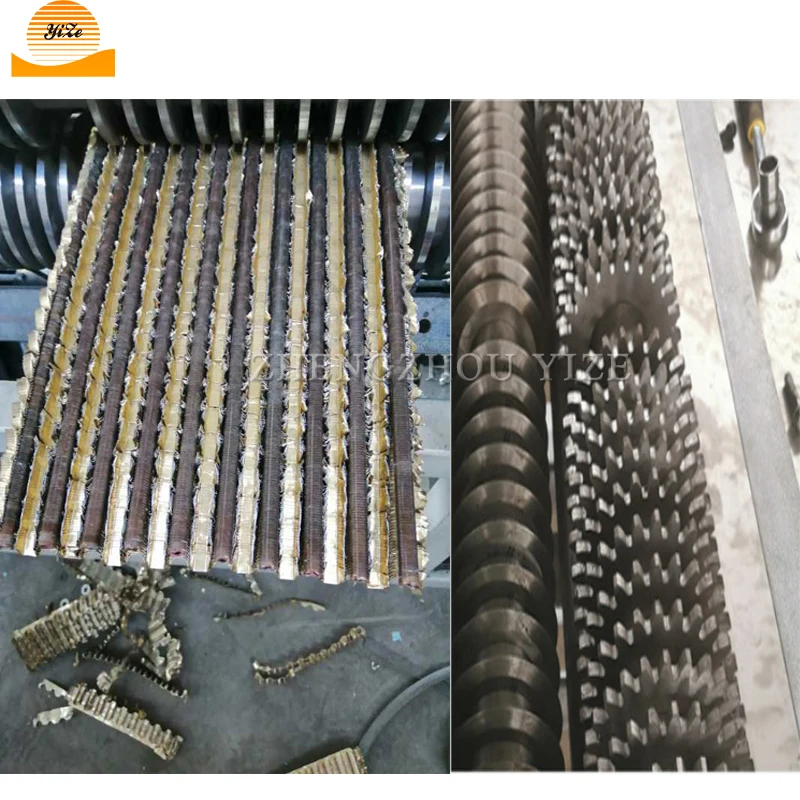

Details Images

Operating Principle

The motor drives the high-speed shaft of the reducer to rotate through the belt drive, the low-speed shaft of the reducer drives the spindle to rotate through the coupling, and drives the feeding roller, the cutter roller and the press roller to rotate
through the gear set installed at both ends of the spindle. The radiator materials cut by the band saw are put into the
corresponding feeding platform according to the specifications, and guided forward under the action of the feeding roller. The upper and lower knife roller rotates to cut the aluminum layer above and below the radiator copper tube, and then the copper tube and aluminum layer are separated under the action of the press roller.

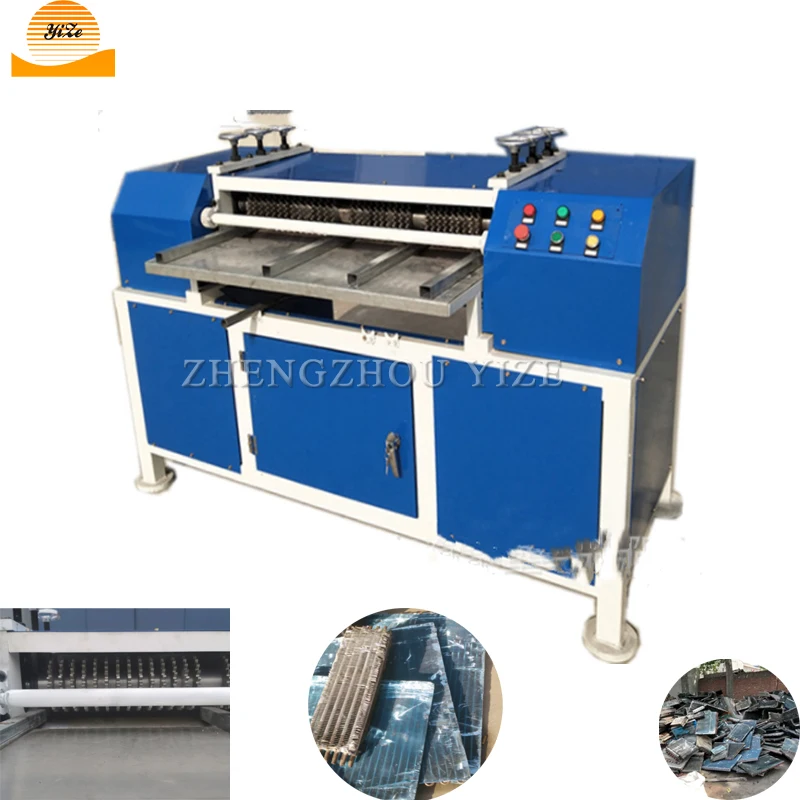

Product display
