Характеристики
Product Description
Copper Aluminum Wire Recycling Machine Air Conditioner Radiator Separating Machine Metal Wasted Radiators separator
Radiator is the metal waste formed after the air conditioning water tank and the automobile water tank is disassembled, mainly.
Composed of copper tubes and aluminum foil, the copper content of copper tubes can generally reach more than 97%.
Radiator copper aluminum separator is also called automobile water tank copper aluminum separator, can be used to air
conditioning, steam Car water tank, radiator and other radiator copper tube and aluminum foil quickly separated without damaging the copper tube, The foil is lumpy, not powdery. This machine can be used alone or at the same time with band saw. This machine is easy to operate, high efficiency province manual, has broad market prospects, is a fast and feasible
Get rich projects.
Composed of copper tubes and aluminum foil, the copper content of copper tubes can generally reach more than 97%.
Radiator copper aluminum separator is also called automobile water tank copper aluminum separator, can be used to air
conditioning, steam Car water tank, radiator and other radiator copper tube and aluminum foil quickly separated without damaging the copper tube, The foil is lumpy, not powdery. This machine can be used alone or at the same time with band saw. This machine is easy to operate, high efficiency province manual, has broad market prospects, is a fast and feasible
Get rich projects.
Type 850
Type 1200
Product related paremeters | ||
Power | 380v | |
Weight | 700kg | |
Size | 1760*850*1180mm | |
Saw theory of speed | 700r/m | |
Saw theory of diameter | 500mm | |
Width of saw blade | 20mm | |
Length of saw blade | 4050mm | |
Maximum machining width | 450mm | |
Maximum pass width | 380mm | |
Capacity of equipment | 500kh/h | |
Details Images
Operating Principle
The motor drives the high-speed shaft of the reducer to rotate through the belt drive, the low-speed shaft of the reducer drives the spindle to rotate through the coupling, and drives the feeding roller, the cutter roller and the press roller to rotate
through the gear set installed at both ends of the spindle. The radiator materials cut by the band saw are put into the
corresponding feeding platform according to the specifications, and guided forward under the action of the feeding roller. The upper and lower knife roller rotates to cut the aluminum layer above and below the radiator copper tube, and then the copper tube and aluminum layer are separated under the action of the press roller.
through the gear set installed at both ends of the spindle. The radiator materials cut by the band saw are put into the
corresponding feeding platform according to the specifications, and guided forward under the action of the feeding roller. The upper and lower knife roller rotates to cut the aluminum layer above and below the radiator copper tube, and then the copper tube and aluminum layer are separated under the action of the press roller.

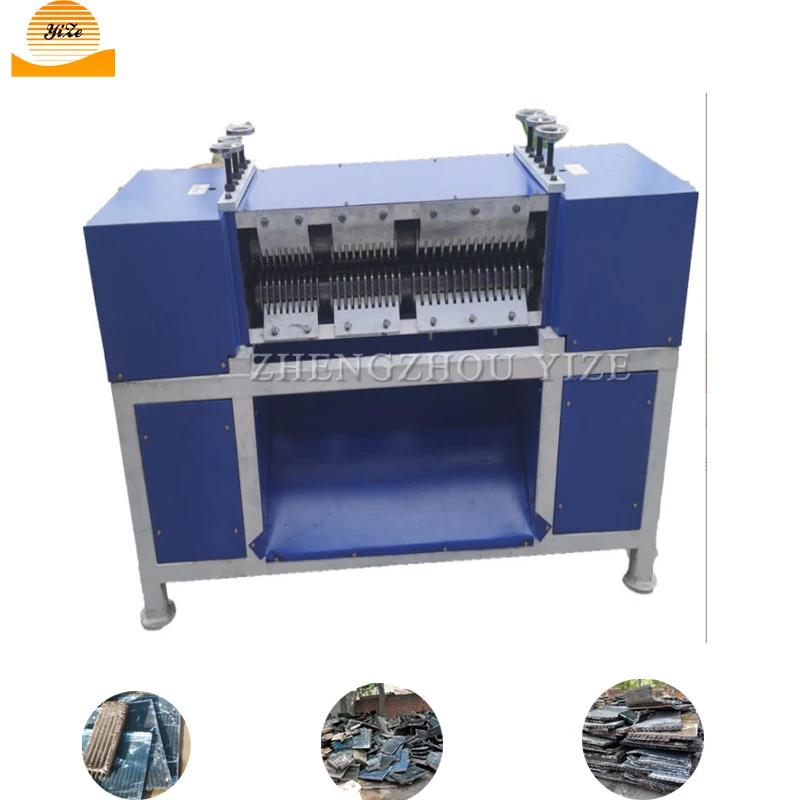

Product display

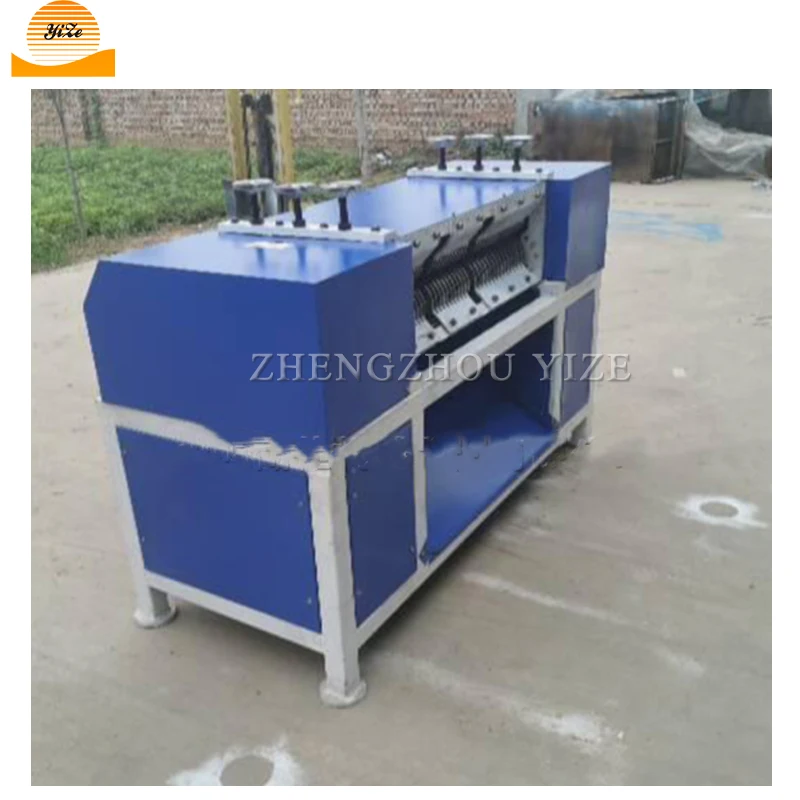

The Back of Product

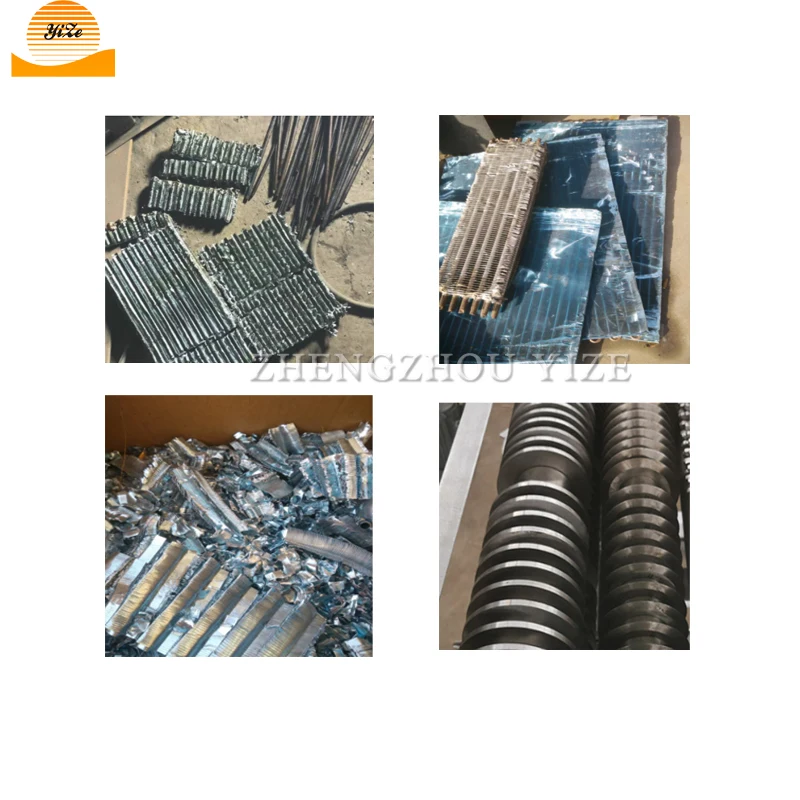

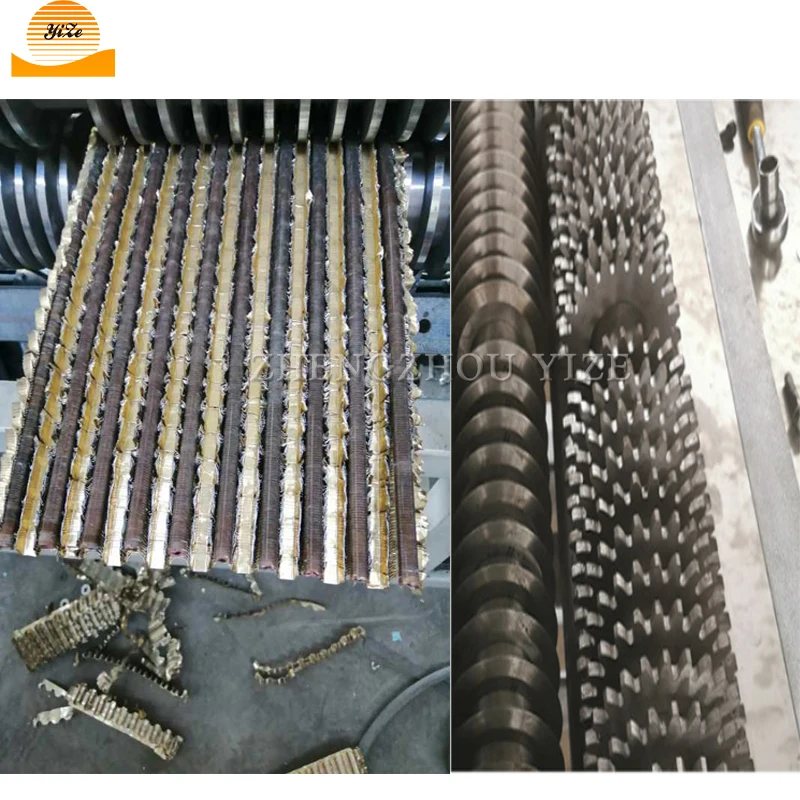

Separating Effect

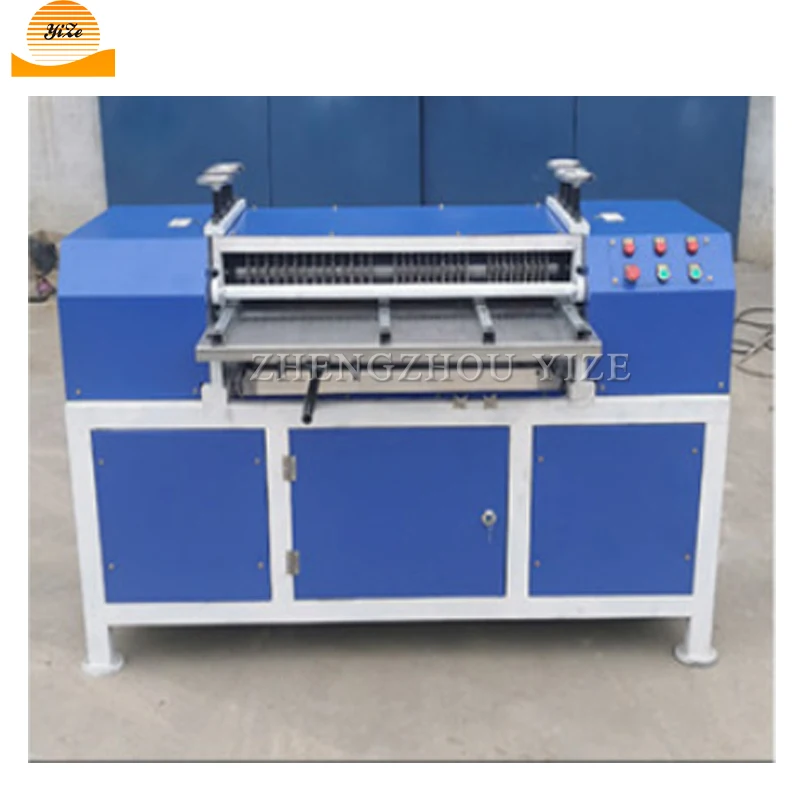

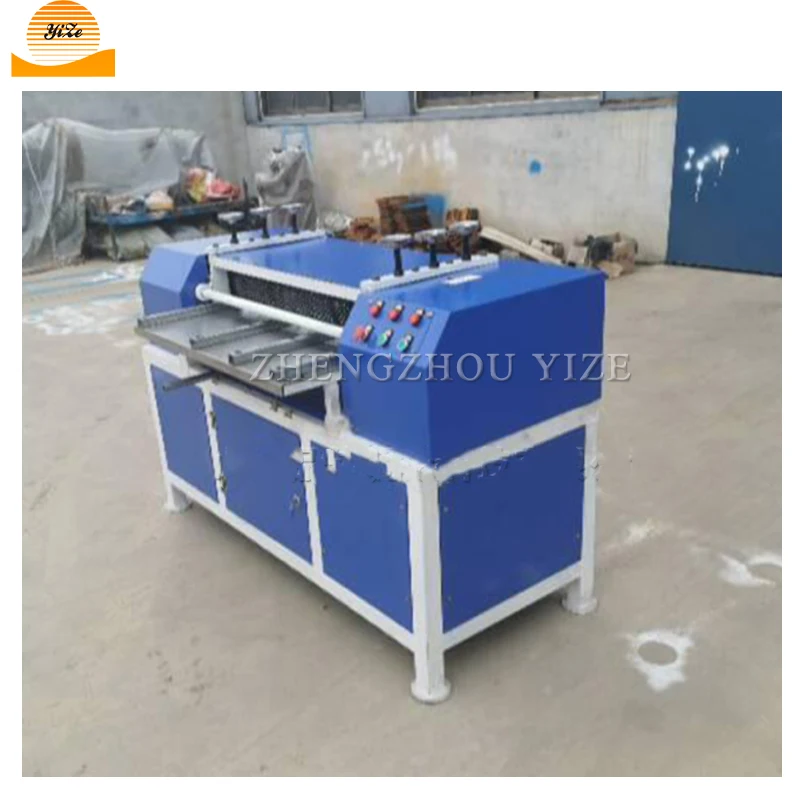

Product detail display
General electrical control program
Control Panel
Feed press wheel
Separate sheet
Handwheel
Single and double layer adjustment
Packing detail
Suitable for product display
Applicable materials: old air conditioning, automobile water tank, radiator and other radiator copper aluminum water tank.
