Инвертор с чистым синусом онлайн ИБП батареи инвертор 650va 110v 12v 220v 3kva 1000w 3000va 1000va мини-ИБП источник

Описание и отзывы

Трекер стоимости

Характеристики



1. Pure sine wave output.

2. Wide AC voltage input range, AVR output.

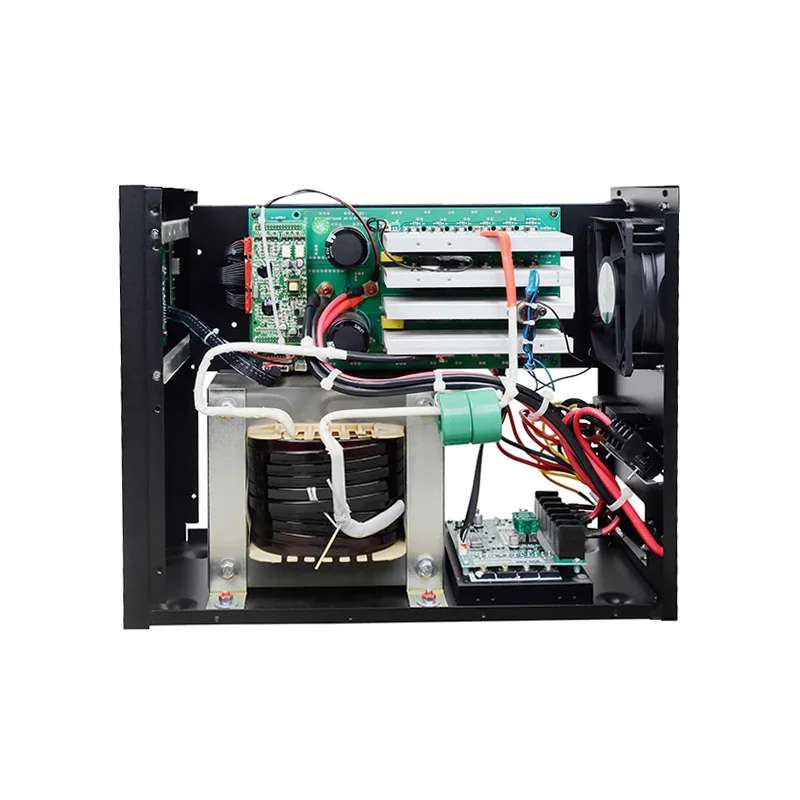

3. Adopt traditional EI transformer , stable performance.

4. LCD/LED&LCD real-time display, concise and straightforward.

5. Working modes: AC first or battery first optional, intelligent charging.

6. Built-in PWM charge controller optional.

7. RS232 communication port optional.





350w~700w:

700w~1200w:

1.5kw~2kw:

2kw~3.5kw:

4kw~6kw:

7kw~12kw:



15kw~25kw:



30kw~40kw:









1kw~6kw:

8kw~40kw:



*The product also can 110v 220v 240v input , If you want to need the Wiring diagram,Please contact us







Specification
Model NB/NB-T		70112	10212/24/48	12224
Rated Power		700W	1000W	1200W
Peak Power(20ms)		2100VA	3000VA	3600VA
Start Motor		0.5HP	1HP	1HP
Battery Voltage		12VDC	12/24/48VDC	24VDC
Size(L*W*Hmm)		410*143*210

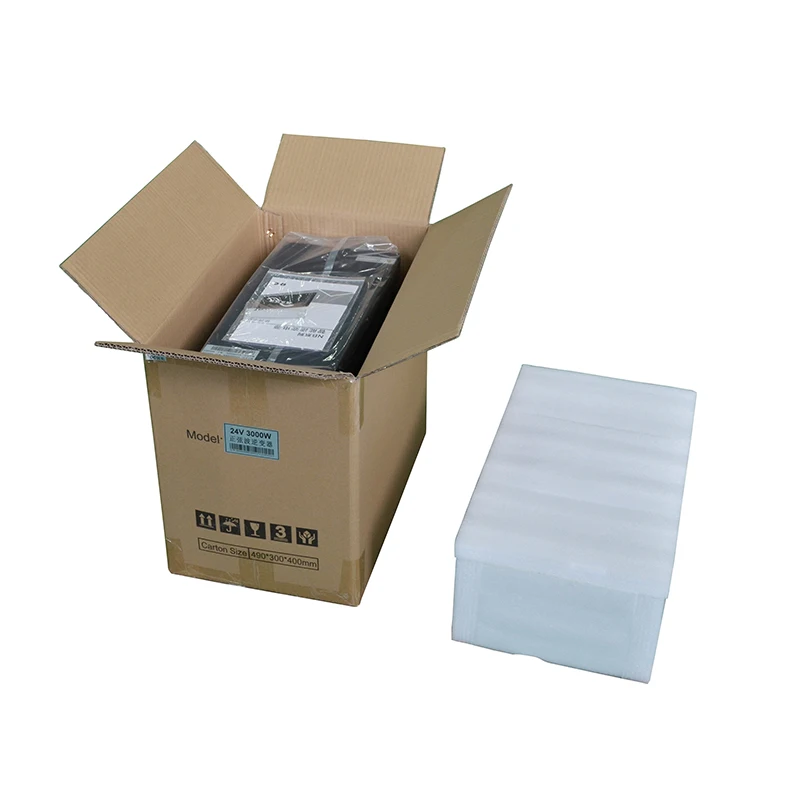

Packing Size(L*W*Hmm)		460*200*270(1pcs) / 475*425*285(2pcs)
N.W.(kg)		11	13	14
G.W.(kg)(Carton Packing)		12	14	15
Installation Method		Tower
Parameter
Input	DC Input Voltage Range	10.5-15VDC(Single battery voltage)
	AC Input Voltage Range	73VAC~138VAC(110VAC) /  83VAC~148VAC(120VAC) / 145VAC~275VAC(220VAC) /  155VAC~285VAC(230VAC) /  165VAC~295VAC( 240VAC)
	AC Input Frequency Range	45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
	Max AC charging current	6A~15A(Depending on the model)
	AC charging voltage	LEAD battery:Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
	AC charging method	Three-stage (constant current, constant voltage, floating charge)
Output	Efficiency(Battery Mode)	≥85%
	Output Voltage(Battery Mode)	110VAC±2%  / 120VAC±2%  / 220VAC±2%  / 230VAC±2% / 240VAC±2%
	Output Frequency(Battery Mode)	50Hz±0.5 or 60Hz±0.5
	Output Wave(Battery Mode)	Pure Sine Wave
	Efficiency(AC Mode)	>99%
	Output Voltage(AC Mode)	110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
	Output Frequency(AC Mode)	Follow input
	Output waveform distortion (Battery Mode)	≤3%(Linear load)
	No load loss(Battery Mode)	≤2.5%  rated power
	No load loss(AC Mode)	≤2% rated power( charger does not work in AC mode)
	No load loss(Energy saving Mode)	≤10W
Battery Type	VRLA Battery	Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
	Customize battery	Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.) can be customized according to user requirements
Protection	Battery undervoltage alarm	Factory default: 11V(Single battery voltage)
	Battery undervoltage protection	Factory default: 10.5V(Single battery voltage)
	Battery overvoltage alarm	Factory default: 15V(Single battery voltage)
	Battery overvoltage protection	Factory default: :17V(Single battery voltage)
	Battery overvoltage recovery voltage	Factory default: 14.5V(Single battery voltage)
	Overload power protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Inverter output short circuit protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Temperature protection	>90°C(Shut down output)
Alarm	A	Normal working condition, buzzer has no alarm sound
	B	Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
	C	When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller (Optional)	Charging Mode	PWM
	Charging current	10A~60A
	PV Input Voltage Range	15V-44V(12V System); 30V-44V(24V System); 60V-88V(48V System)
	Max PV Input Voltage(Voc) (At the lowest temperature)	50V(12V/24V System); 100V(48V System)
	PV Array Maximum Power	12V System: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A);  24V System: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A); 48V System: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)
	Standby loss	≤3W
	Maximum conversion efficiency	>95%
Working Mode		Battery First/AC First/Saving Energy Mode
Transfer Time		≤4ms

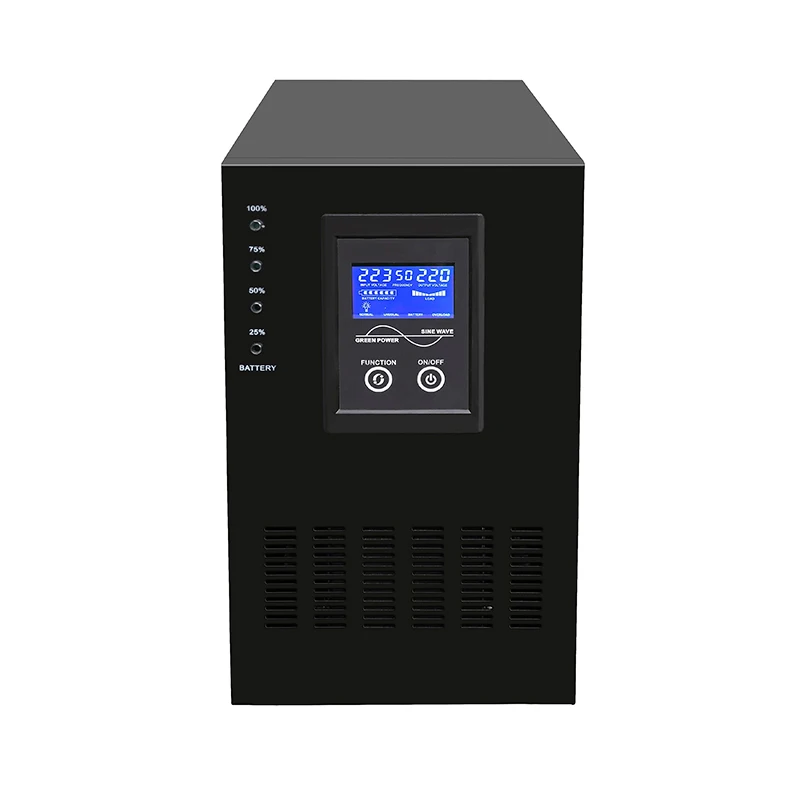

Display		LCD
Thermal method		Cooling fan in intelligent control
Communication		RS232(Optional)



*NB series power is from 350w~40kw, If you want to get other watts information,

Please contact us.

















We never use poor-quality products in the market. The Most Reliable Inverter Manufacturer in China. 15 Years of Production and Sales Experience. Suitable for personal use or for agents to select suppliers.





Q1: Do you support OEM?
A1: Yes. OEM & ODM are available.



Q2: Do you have any MOQ?
A2: Yes, we have MOQ for mass production, it depends on the different models. 1~10pcs sample order is available. Welcome to take samples for testing.



Q3: What kind of certificate you have?
A3: ISO, CE,IEC etc. All series product pass different laborary testing according to your special requirements.



Q4: How is your after-sale service?
A4: We provide 3 years warranty and 1% sapre parts for free.
We have specialized after-sales service engineers to provide professional after-sales service and technical support.



Q5: Does your company also provide other solar products except Inverter?
A5: Yes, we also provide other solar products for the whole solar power systems, such as solar charge controllers, solar panels, off grid solar inverters, on/off grid in one inverters, batteries, and other accesories related to the solar power system.



Q6: How to choose a right inverter?
A6: Tell us your demand, then our sales will recommend a suitable inverter to you.



Q7 How about the delivery time?
A7: 3- 7 days for sample; 10-20 days for bulk order.



Q8: How to solve the technical problem?
A8: 24 hours after-service consultancy just for you and to make your problem to solve easily.
