Production :

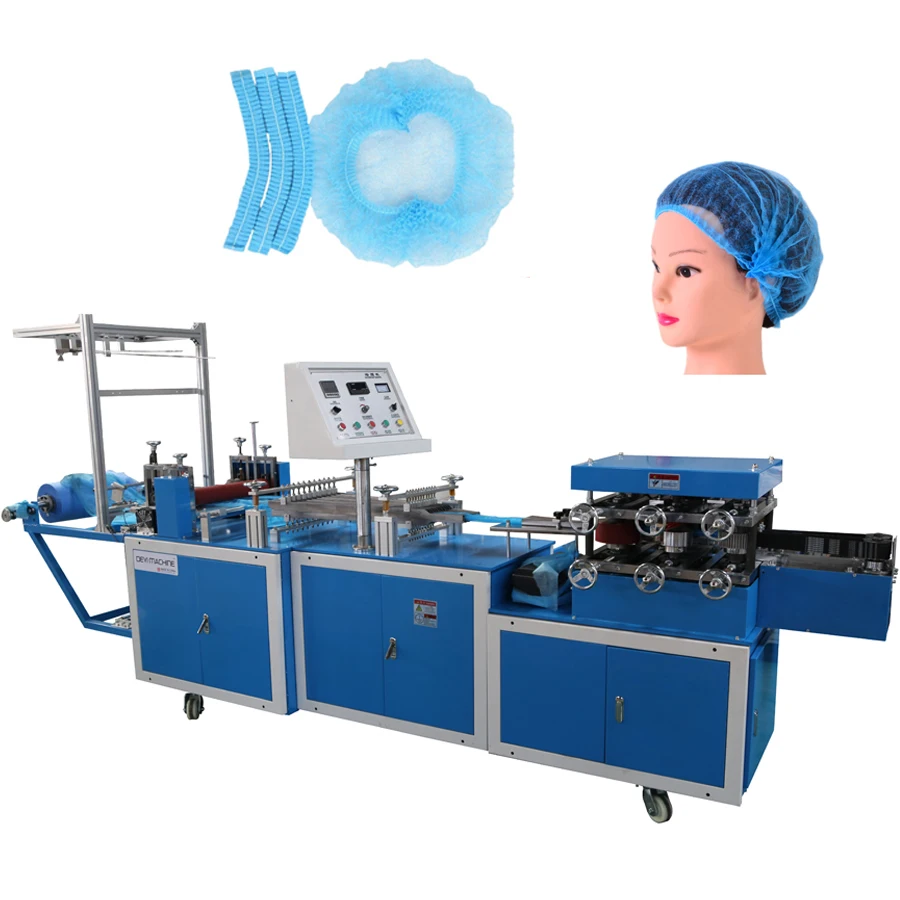

bouffant cap machine

Performance and features:

1. This machine can produce disposable dust-proof non-woven strip caps of non-woven materials and plastic film materials. This machine has the advantages of good quality, low price and high output, saving labor and reducing costs, which can be based on customer requirements. Custom made.

2.The machine is automated. Automated operations from raw material feed to laminate to product count. Ultra-high power ultrasonic welding is used to effectively fix both ends of the non-woven fabric and the elastic band. From the raw material feeding to the finished product, the whole process is automated, and the computer stepless speed regulation operation is more flexible, and only one staff member is needed for the whole process.

3. Variable frequency control speed regulation.

4. Directly out of the finished product at one time.

5. Automatic constant temperature control.

6.Ultrasonic welding combined with electric heating to make the product more comfortable and firm.

7. The main components are made of aluminum to make the machine lighter and smoother.

Equipment process:

The equipment adopts ultrasonic heat sealing method, frequency conversion speed regulation, and produces non-woven materials and plastic film materials. The disposable dust-proof non-woven strip caps are integrated into the finished product from feeding to finished products.

Production Process:

Automated feeding - introduction - folding - welding - forming cut

Two options:

Our machine can produce two styles, one is iron frame and the other is aluminum frame. (Optional with PLC touch screen)

Main parameters:

Raw material width                           480mm

 The finished width                             2cm (adjustable)

Thickness of nonwoven fabric                10 to 18 grams

Put a roll diameter                            600mm

The finished product size      Tiling: 25cm, stretch 44/48/52cm

Production speed                              0--180 / min

The host                                         1.5kw

The inverter                                    1.5kw

The total power                                 6kw

Overall dimensions                            3500*1200*1800mm

weight                                            750kg

Main distribution list:
