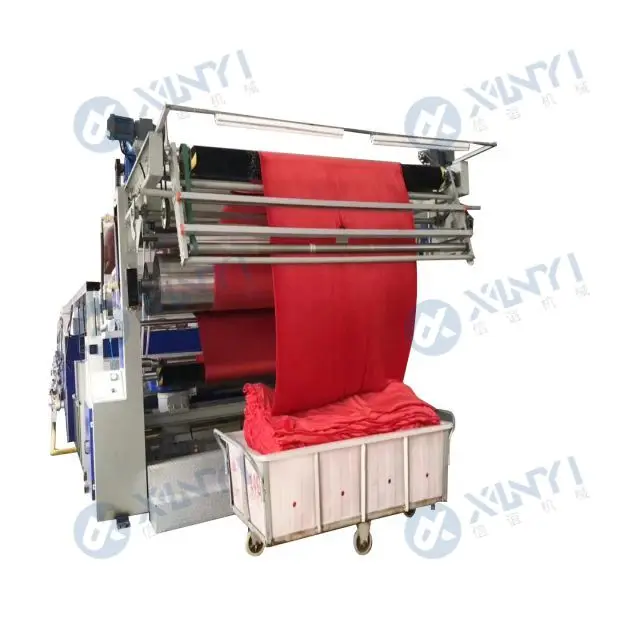

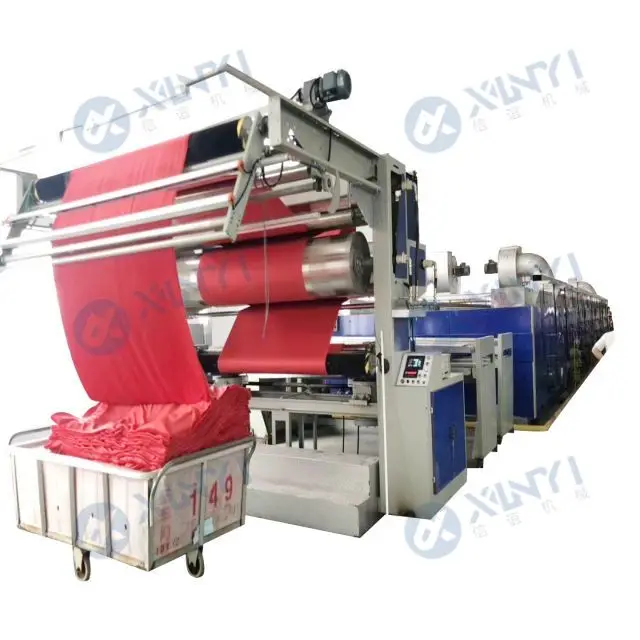

XinYi 1800 мм-3200 мм машина для нанесения тепла на ткани с горячим маслом
- Категория: >>>
- Поставщик: Wuxi,Xinyi,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.70 $* | 0.57 $* |
| Aug-18-2025 | 0.18 $* | 0.8 $* |
| Jul-18-2025 | 0.55 $* | 0.92 $* |
| Jun-18-2025 | 0.59 $* | 0.22 $* |
| May-18-2025 | 0.18 $* | 0.27 $* |
| Apr-18-2025 | 0.17 $* | 0.60 $* |
| Mar-18-2025 | 0.1 $* | 0.39 $* |
| Feb-18-2025 | 0.99 $* | 0.18 $* |
| Jan-18-2025 | 0.26 $* | 0.50 $* |
Характеристики
Product Overview
XLC Series Tension setting machine
Elliptical circulation fan box, high efficiency and energy saving
Successful Project
Project in Thailand
Project in India
Project in Russia
Manufacturing Technique
Precise plate and pipe processing
Imported German original punch press, laser cutting machine and other domestic first-line equipment are used.
PRODUCT SPECIFICATIONS

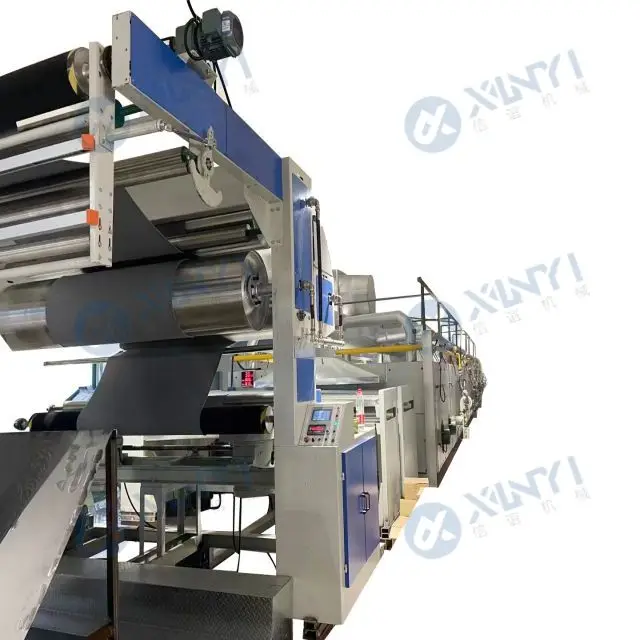

Infeed combinations
XINYl offers standard infeed combinations. The cloth frameE+L on the device, expander, cloth feeding tension controldevices optional ordinary potentiometer or E+L tensionsensor>which is desidned to match the requirements ofmost kinds of fabric treatmengt process. The illustrations hereshow three infeed combinations:

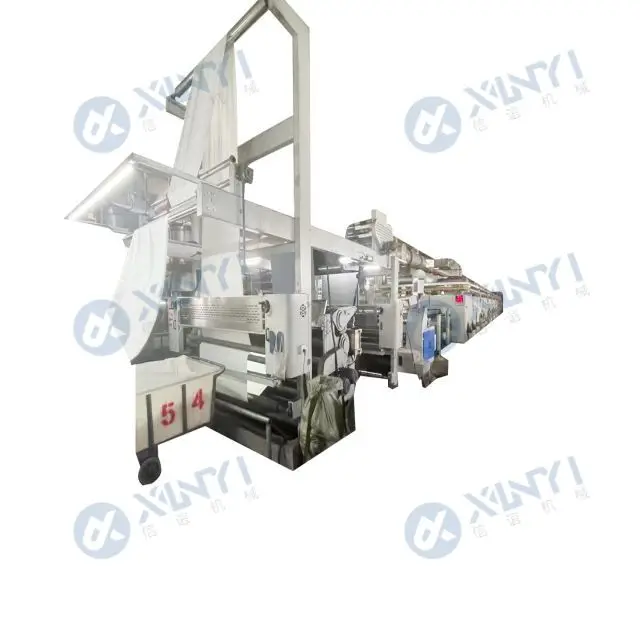

Outlet combinations
Output combination device is composed of independent
distribution unit, falling unit, swinging unit and new type of
strong wetting device, cooling device, winding device, which
can be adjusted separately to meet the needs of various
fabric production. The cloth outlet combination method is
optional.
distribution unit, falling unit, swinging unit and new type of
strong wetting device, cooling device, winding device, which
can be adjusted separately to meet the needs of various
fabric production. The cloth outlet combination method is
optional.

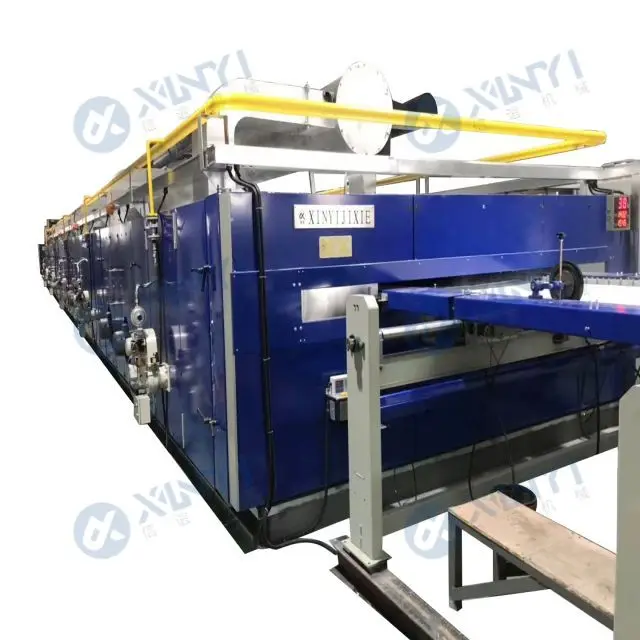

Oven
The hot air volume of oval box is 10% higher than that of square box
Every 1.5 meters a nozzle to reduce the wind difference between nozzles
Every 1.5 meters a nozzle to reduce the wind difference between nozzles
Hercules operates horizontal chains
The chain runs on maintenance-free track. There are sealed ballbearing and lubricating grease inside the transmission link. The chain has a long life (depending on the process conditions).
No | Item | Data | ||
1 | Power | 250KW | ||
2 | Machinety vehicle speed | 100/min,Heating room 8 chambers | ||
3 | Operating weight | 40Ton | ||
4 | Working Temperature | 250℃ | ||
5 | Electrical transmission | AC frequency moduhtion... | ||
6 | Heat type | gas, use Riello Burner of Italy | ||
7 | Nominal working width | 1800-3200mm | ||
8 | Overfeeding | -30% +60% |
PRODUCT CONFIGURATION
Mechanical scroll spindles
Mechanicalspreadinguni
nfrared ray tracing electric eye FR
SIMILAR PRODUCTS
Exhibition
The 300 square meter booth fully reflects the strength of the factory.The company always adheres to the enterprise policy of"specialization comes from concentration,concentration is more professional", adheres to achieving high quality and high outputwith low energy consumption, and creates greater efficiency for you.
Company Profile
Focus on the R & D, production and sales of textile machinery and equipment such as stenter and setting machine
Established in 2002, Wuxi Xinyi Machinery Co., Ltd. has been focusing on the R & D, production and sales of textile machinery andequipment such as stenter and setting machine for many years. At present, the company has 200 employees, 20% of whom arescientific and technological personnel. The company covers an area of 50000 square meters, with a construction area of 50000square meters
Established in 2002, Wuxi Xinyi Machinery Co., Ltd. has been focusing on the R & D, production and sales of textile machinery andequipment such as stenter and setting machine for many years. At present, the company has 200 employees, 20% of whom arescientific and technological personnel. The company covers an area of 50000 square meters, with a construction area of 50000square meters
