NX-OD NX-series Digital Transistor Output Unit NX-OD4121 NX-OD4256 NX-OD5121 NX-OD5256 NX-OD3121 NX-OD3153 NX-OD3256  NX-OD3257

Product Name	Specification	Model
Number of points	Internal I/O common	Maximum value of load current	Rated voltage	I/O refreshing method	ON/OFF response time

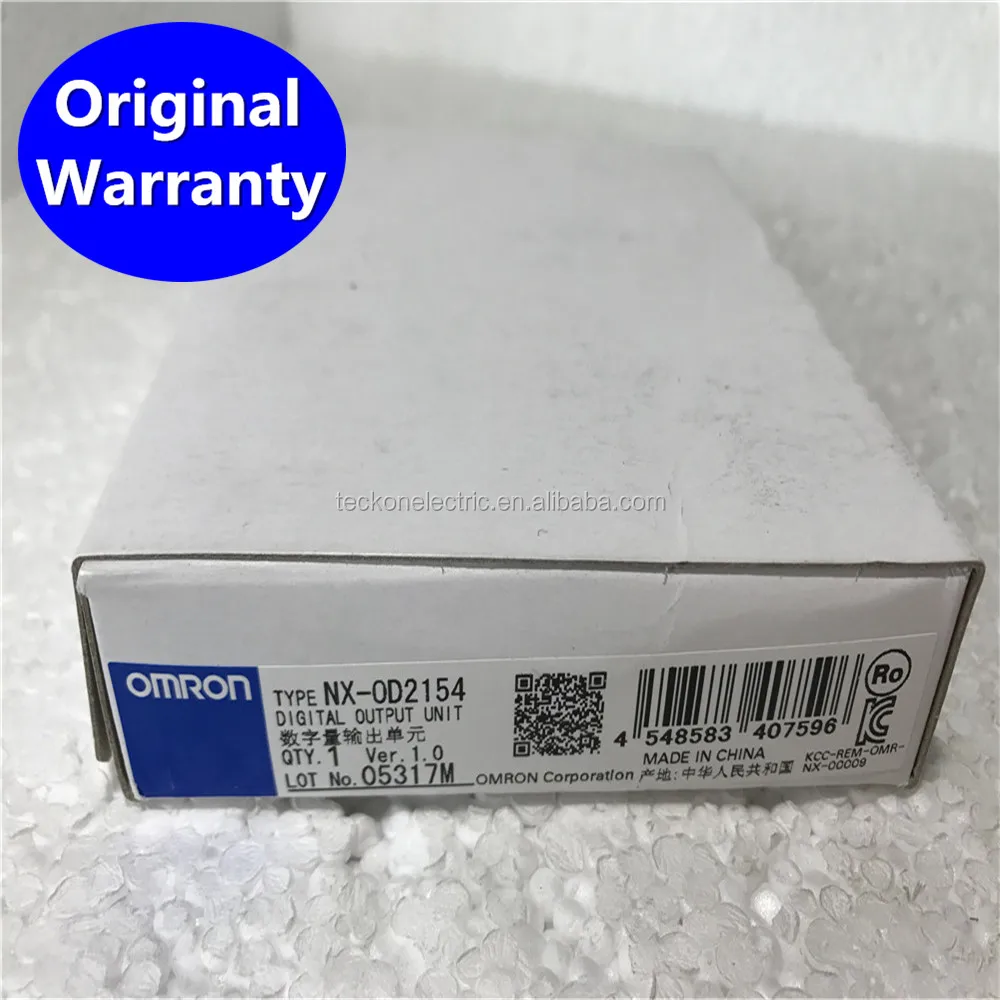

Transistor Output Unit (Screwless Clamping Terminal Block, 12 mm Width)	2	NPN	0.5 A/point, 1 A/Unit	24 VDC	Output refreshing with specified time stamp only *1	300 ns max./ 300 ns max.	NX-OD2154
PNP		NX-OD2258
4	NPN	0.5 A/point, 2 A/Unit	12 to 24 VDC	Switching Synchronous I/O refreshing and Free-Run refreshing	0.1 ms max./ 0.8 ms max.	NX-OD3121
			24 VDC		300 ns max./ 300 ns max.	NX-OD3153
	PNP				0.5 ms max./ 1.0 ms max.	NX-OD3256
					300 ns max./ 300 ns max.	NX-OD3257
		2 A/point, 8 A/Unit			0.5 ms max./ 1.0 ms max.	NX-OD3268
8	NPN	0.5 A/point, 4 A/Unit	12 to 24 VDC		0.1 ms max./ 0.8 ms max.	NX-OD4121
	PNP		24 VDC		0.5 ms max./ 1.0 ms max.	NX-OD4256

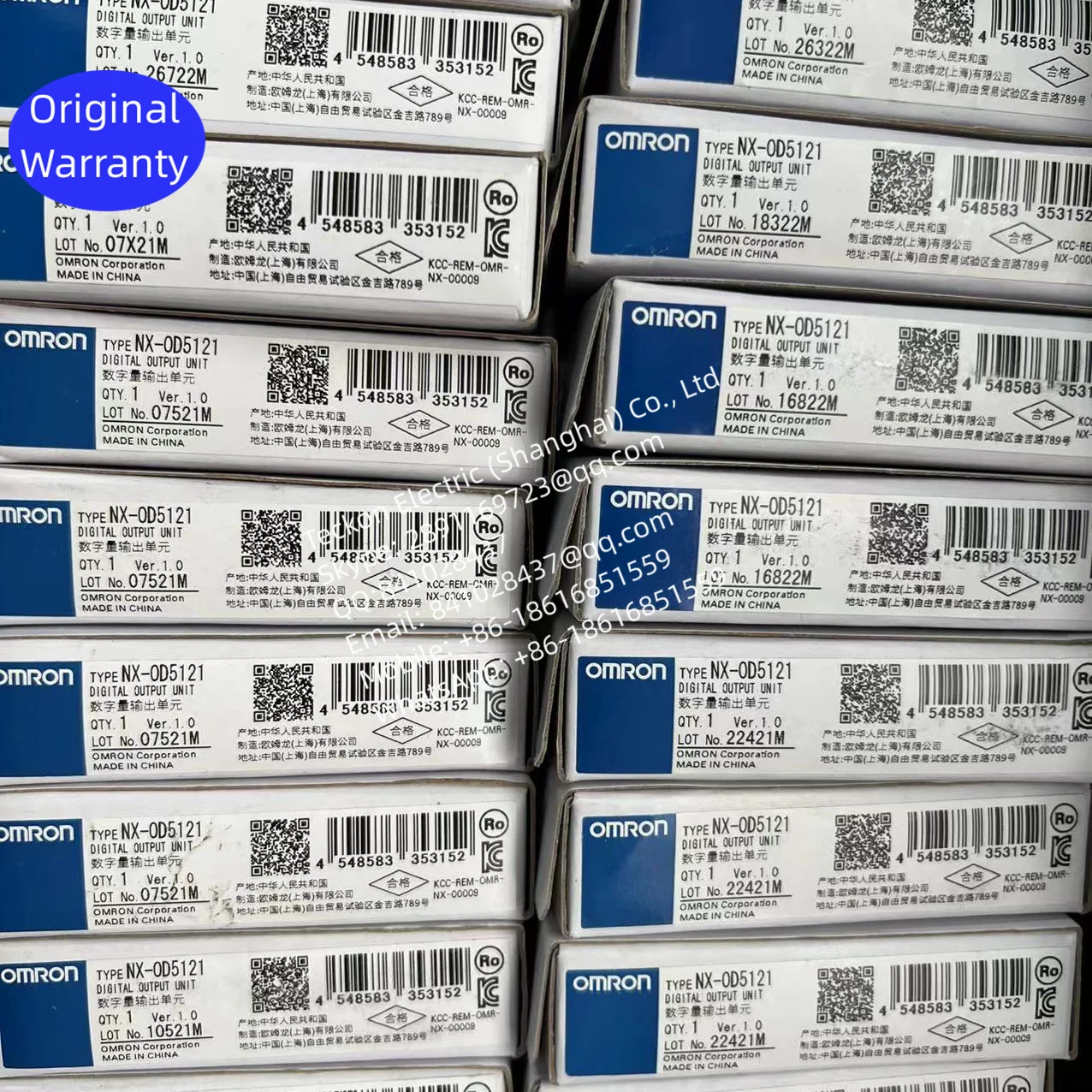

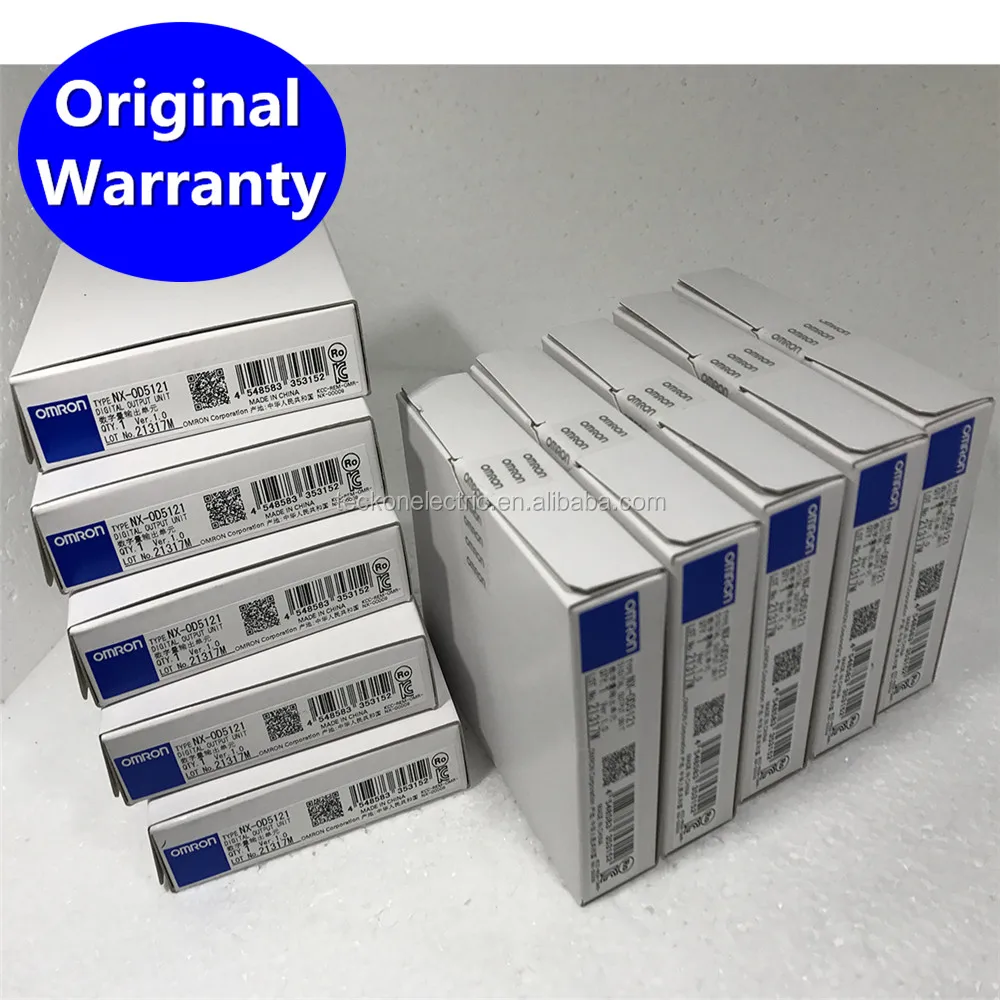

16	NPN		12 to 24 VDC		0.1 ms max./ 0.8 ms max.	NX-OD5121
	PNP		24 VDC		0.5 ms max./ 1.0 ms max.	NX-OD5256
Transistor Output Unit (M3 Screw Terminal Block, 30 mm Width)	16	NPN	0.5 A/point, 5 A/Unit	12 to 24 VDC	Switching Synchronous I/O refreshing and Free-Run refreshing	0.1 ms max./ 0.8 ms max.	NX-OD5121-1
PNP		24 VDC		0.5 ms max./ 1.0 ms max.		NX-OD5256-1
Transistor Output Unit (MIL Connector, 30 mm Width)	16	NPN	0.5 A/point, 2 A/Unit	12 to 24 VDC	Switching Synchronous I/O refreshing and Free-Run refreshing	0.1 ms max./ 0.8 ms max.	NX-OD5121-5
PNP		24 VDC		0.5 ms max./ 1.0 ms max.		NX-OD5256-5
32	NPN	0.5 A/point, 2 A/common, 4 A/Unit	12 to 24 VDC	0.1 ms max./ 0.8 ms max.		NX-OD6121-5
	PNP		24 VDC	0.5 ms max./ 1.0 ms max.		NX-OD6256-5
Transistor Output Unit (Fujitsu Connector, 30 mm Width)	32	NPN	0.5 A/point, 2 A/common, 4 A/Unit	12 to 24 VDC	Switching Synchronous I/O refreshing and Free-Run refreshing	0.1 ms max./ 0.8 ms max.	NX-OD6121-6
