Автоматическая ПВХ ТПУ Резиновая подошва резиновые сапоги вертикальное пластиковое литье ручная машина для литья
- Категория: Injection Molding Machines >>>
- Поставщик: Henan,Yugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 17850.49 $* | 18743.31 $* |
| Aug-16-2025 | 17700.51 $* | 18585.78 $* |
| Jul-16-2025 | 14850.70 $* | 15593.14 $* |
| Jun-16-2025 | 17400.88 $* | 18270.46 $* |
| May-16-2025 | 15150.84 $* | 15908.2 $* |
| Apr-16-2025 | 17100.5 $* | 17955.96 $* |
| Mar-16-2025 | 16950.9 $* | 17798.81 $* |
| Feb-16-2025 | 16800.64 $* | 17640.11 $* |
| Jan-16-2025 | 16650.95 $* | 17483.47 $* |
Характеристики

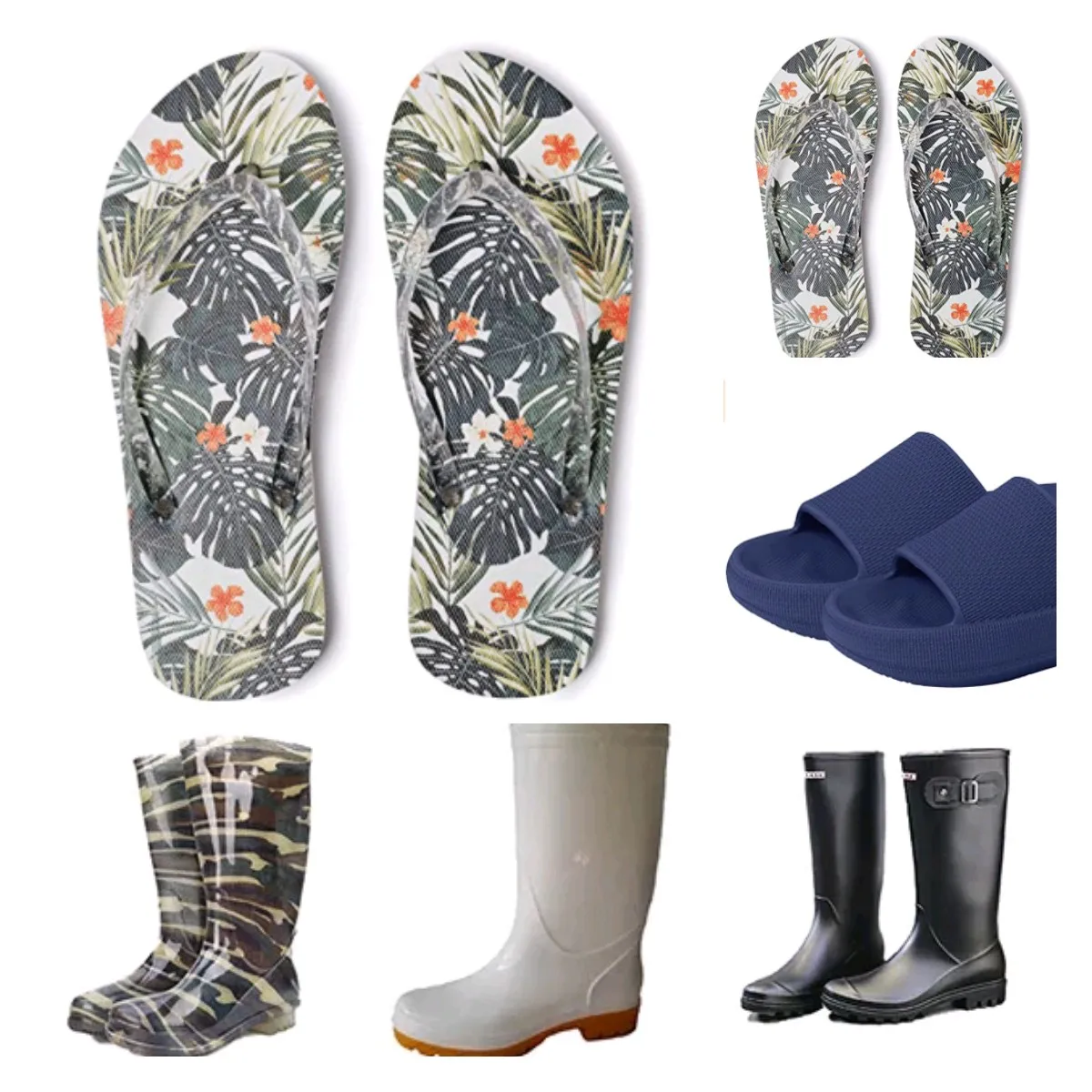

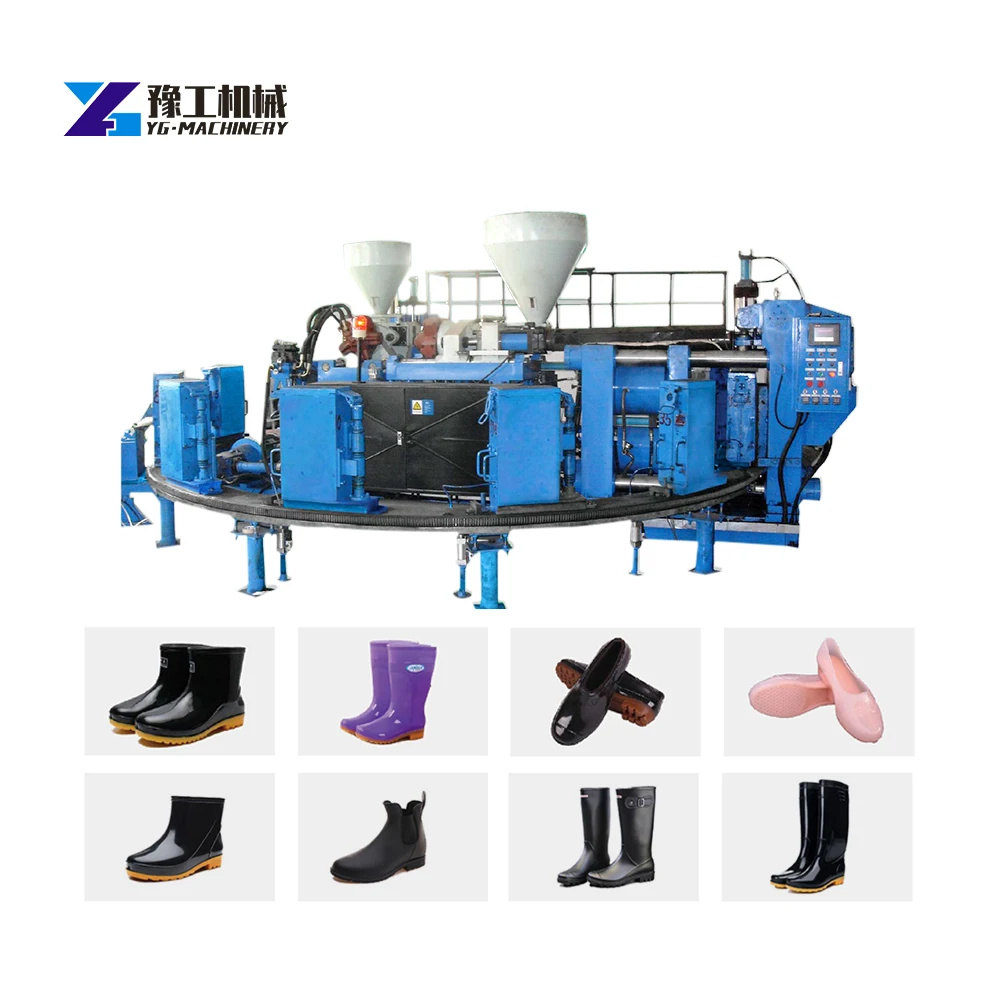

Automatic Two Color Plastic PVC Injection Molding Machine for Making Slipper Sandal Shoe Rain Boots PU Sole
The machine is injection moulding machine, can inject the material directly to mould and one-time molding, get the finished shoes. One machine is a production line, the finished products can directly sell. The machine need 1-2 workers to operate in production, the output is 80-100 pairs per hour for one color, 70-90 pairs per hour for two color, 60-80 pairs per hour for three colors.
Product Parameters
| Model | YG-2J16 |
| Number of stations | 16pcs |
| Production capacity | 250Pairs/h |
| Max injection vol. | 520cm3 |
| Votalge | 380V, 50Hz |
| Power | 25Kw |
| Temperature control | 4ºC |
| Screw diameter | 75/70mm |
| Injection speed | 12cm/sec |
| Injection stroke | 180mm |
| Screw rotation speed | 0-140r/min |
| Screw length and diameter ratio | 18:01:00 |
| Plastifying capacity | 40g/s |
| Max injection pressure | 50Kg/cm2 |
| Max the Disc system pressure | 25Kg/cm2 |
| Clamp mould style | Scissors |
| Last trip | 60mm |
| Shoe Cramp height | 210-260mm |
| Mould frame dimensions | 380*180*60mm |
| Size | 6500*3200*2250mm |
| Weight | 9800Kg |

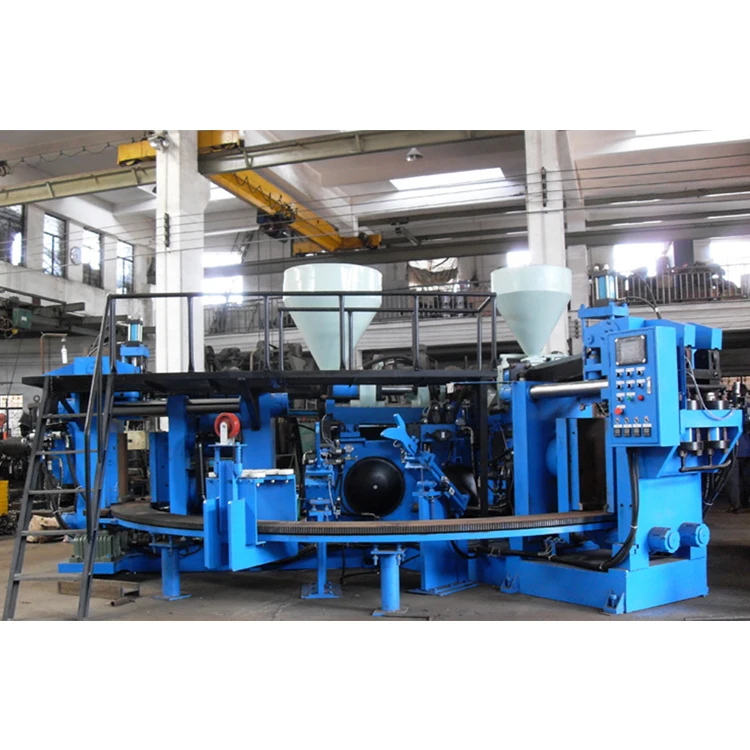

The machine is injection moulding machine, can inject the material directly to mould and one-time molding, get the finished rain boots. One machine is a production line, the finished products can directly sell. The machine need 1-2 workers to operate in production.
Features 1.PLC controlled, preplasticized by hydraulic motor, driven by full hydraulic pressure, and cycled automatically.
2.High plastifying capacity, the plastifying temperaturecan be controlled automatically by preselection.
3.It adopts 12/16/24 points measuring and the injection volume can be chosen according to the requirements of the moulds at each working position.
4.The function of empty mould selection has been provided.
5.The round table is indexed by a frequency converter.
6.Parallel mould plate closing mechanism is adopted, which linked with a toggle system operated by single cylinder.
7.The machine is equipped with two time pressure injection system and the cramp pressing and mould closing order selecting function.
8.The round table indexes smoothly and it's movement can easily be adjusted.
9.The round table rotation, plasticizing and oil supply for the injection are controlled independently.
10.There are many working positions, the time for setting is long enough, and guarantees the setting quality of shoe soles.
Production Line: Accessories: Dry Mixer + Color Mixer + Air Compressor + Cooling Water Tower + Plastic Crusher, Etc.
Packaging & Shipping
Packaging Details
1. Out package: Standard marine export plwywood cases;
2. Innner package:Stretch film and plastic film for humidity;
3. Customized according to your requirement.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.
