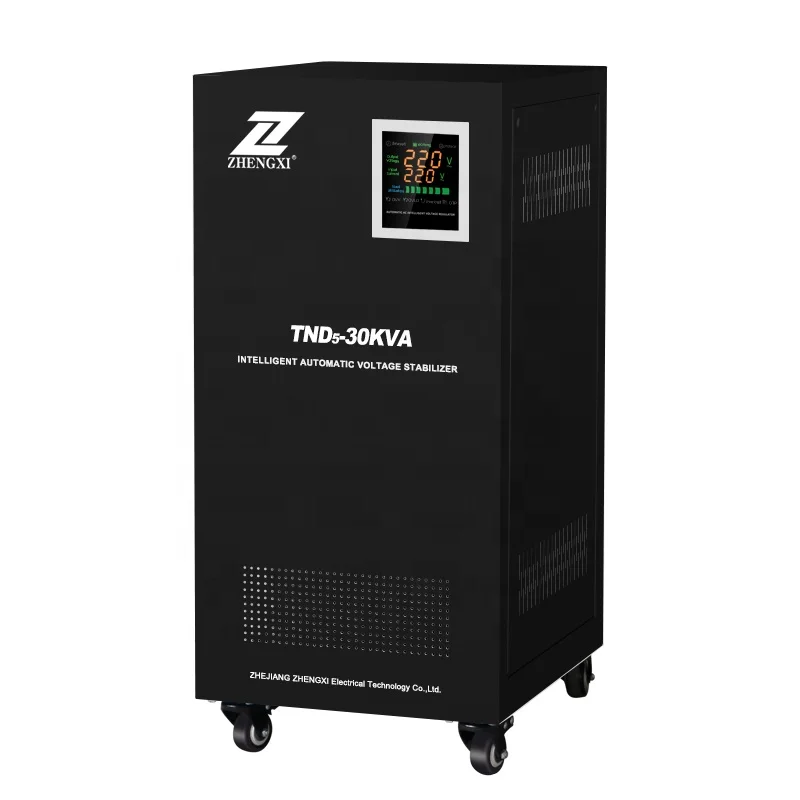

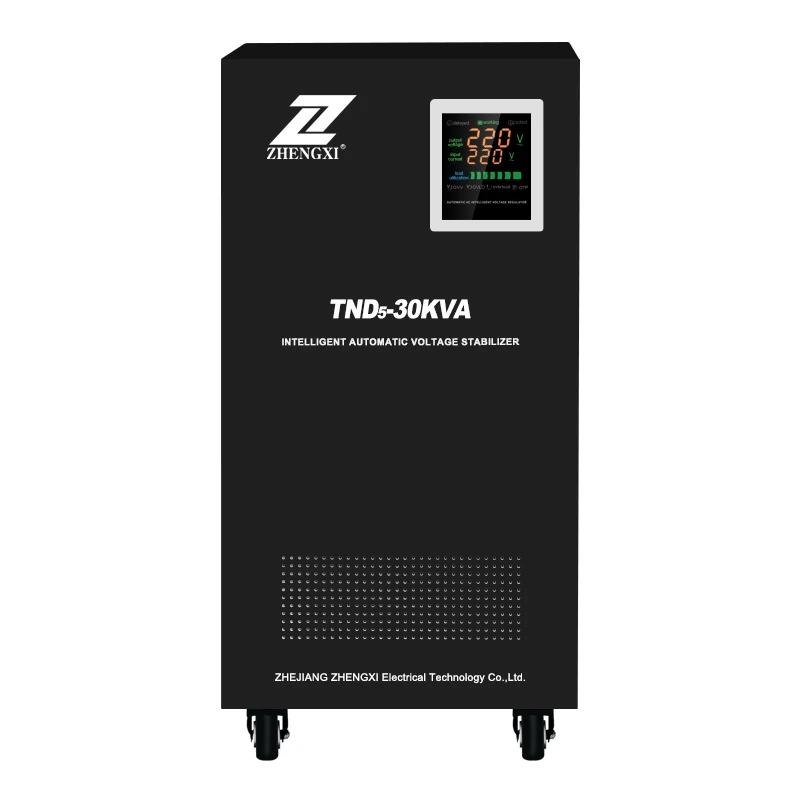

ZX TND3-30KVA tnd сервопривод одиночной фазы avr стабилизатор напряжения 30kva автоматический регулятор Цена по прейскуранту
- Категория: Voltage Regulators\/Stabilizers >>>
- Поставщик: Zhejiang,Zhengxi,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 235.69 $* | 240.68 $* |
| Jul-18-2025 | 191.99 $* | 195.52 $* |
| Jun-18-2025 | 231.2 $* | 236.78 $* |
| May-18-2025 | 229.27 $* | 234.83 $* |
| Apr-18-2025 | 183.21 $* | 187.55 $* |
| Mar-18-2025 | 226.70 $* | 231.25 $* |
| Feb-18-2025 | 224.20 $* | 228.68 $* |
| Jan-18-2025 | 222.37 $* | 226.33 $* |
Характеристики
General
TND Series single-phase high precision automatic AC voltage regulator is composed of contact type auto-coupling voltage regulator, servo motor and automatic control circuit. When the grid voltage is unstable for the load changes, the automatic sampling control circuit sends a signal to drive the servo. The motor adjusts the position of the auto-coupler carbon brush to adjust the output voltage to the rated value and reach a steady state.
TND3 series high-precision AC voltage regulator has the function of direct power supply. It has many advantages such variety, fully specifications and beautiful appearance. It has the advantages of no waveform distortion, high efficiency, reliable performance, long-term operation, etc. It has short delay, overvoltage and other protection functions. It can add long delay and undervoltage protection according to the needs of users. The product can be widely used in any place of electricity, it is an ideal regulated power supply to ensure the normal operation of your electrical equipment. Suitable for office equipment, test equipment, medical equipment, industrial automatic equipment, household appliances, lighting systems, communication system, etc.
TND3 series high-precision AC voltage regulator has the function of direct power supply. It has many advantages such variety, fully specifications and beautiful appearance. It has the advantages of no waveform distortion, high efficiency, reliable performance, long-term operation, etc. It has short delay, overvoltage and other protection functions. It can add long delay and undervoltage protection according to the needs of users. The product can be widely used in any place of electricity, it is an ideal regulated power supply to ensure the normal operation of your electrical equipment. Suitable for office equipment, test equipment, medical equipment, industrial automatic equipment, household appliances, lighting systems, communication system, etc.
Technical Date Sheet
Input voltage | Regular models 140V-260/300V, ultra low voltage models 90-260/300V |
Output voltage | 30KVA, 220V |
Voltage regulation accuracy | 220V±3%, 11V±6% |
Frequency | 50Hz/60Hz |
Overvoltage protection value | Output voltage 260V±4V |
Undervoltage protection value | Output voltage 186V±4V, regularly not set undervoltage protection |
Load power factor | 0.8 |
Adjust time | When the voltage change by10%﹤1S |
Waveform distortion | No additional waveform distortion |
Dielectric strength | 1500V/1min |
Insulation resistance | Single phase ﹥5MΩ |
Insulation class | Class E |
Working environment | Temperature :-10℃ to +40℃, Humidity: ﹤95% |
Effectiveness | ﹥95% |
Temperature rise | ﹤60℃ |
Product Description
Specification
Model | Voltage regulation range | Product size | Package dimension | Net weight KGS | Gross weight KGS |
TND-0.5KVA | 140V-260V | 192*172*145mm | 228*225*180mm | 3.3 | 3.65 |
TND-1KVA | 140V-260V | 208*208*165mm | 278*268*217mm | 5.4 | 5.95 |
TND-1.5KVA | 140V-260V | 208*208*165mm | 278*268*217mm | 5.7 | 6.25 |
TND-2KVA | 140V-260V | 240*255*200mm | 300*290*255mm | 7.4 | 9.1 |
TND-3KVA | 140V-260V | 232*282*230mm | 345*290*285mm | 11.3 | 11.8 |
TND-5KVA | 140V-260V | 240*310*285mm | 285*415*335mm | 14.4 | 15.5 |
TND-5KVA Ultra low voltage | 90V-260V | 240*310*285mm | 285*415*335mm | 16.3 | 17.4 |
TND-10KVA | 140V-300V | 315*340*540mm | 355*380*600mm | 34.6 | 38.8 |
TND-10KVA Ultra low voltage | 90V-260V | 315*340*540mm | 355*380*600mm | 39.4 | 43.6 |
TND-15KVA | 140V-300V | 350*400*610mm | 395*445*685mm | 51.5 | 57 |
TND-15KVA Ultra low voltage | 80V-300V | 350*400*610mm | 395*445*685mm | 54 | 59.3 |
TND-20KVA | 140V-300V | 350*400*610mm | 395*445*685mm | 53 | 58.5 |
TND-20KVA Ultra low voltage | 90V-260V | 350*400*780mm | 410*460*865mm | 75.5 | 82.5 |
TND-30KVA | 140V-300V | 350*400*780mm | 410*460*865mm | 70.5 | 77.6 |
TND-30KVA Ultra low voltage | 90V-260V | 350*400*780mm | 410*460*865mm | 85 | 92.1 |
TND-40KVA | 140V-260V | 350*400*780mm | 410*460*865mm | 77.5 | 84.5 |
TND-40KVA Ultra low voltage | 110V-260V | 550*450*1040mm | 520*610*1200mm | 123 | 133.5 |
TND-50KVA Ultra low voltage | 110V-260V | 550*450*1040mm | 520*610*1200mm | 133 | 143.5 |
Company Profile
ZHENGXI HAVE BEEN SPECIALIZED IN DEVELOPING AND PRODUCING VOLTAGE STABILIZER AND VOLTAGE REGULATOR MORE THAN 20 YEARS. AND WE HAVE PROFESSIONAL R&D TEAM WHO ARE FOCUS ON IMPROVING PRODUCT QUALITY AND TECHNICAL.
Q 1. What's the payment term?
A. We accept TT,30% deposit and 70% balance against copy of BL.
Q 2. How's the delivery time ?
A.Usually it will take about 7-20 days for production. For sample usually in 1 week.
Q 3. Tell me the standard of package?
A. For the small capacity, color box as inner package and carton as delivery package. For big capacity, use strong wooden case for protection.
Q 4. What kind of material of stabilizer?
A. For servo type stabilizer, we have two types, one 100% copper and the other is copper with aluminum. It depends on your requirement . In fact, those two have no difference if normal work well. Only except the long life. Copper is better and also higher price. For relay type stabilizer, we use toroidal coils, the material is aluminum. comparing with square coils, toroidal coils with high efficiency.
Q 5.Could you offer Form A or C/O ?
A. It's totally not a problem. We can prepare relative documents to foreign affairs office or other offices to apply for this certificate.
Q 6.Would you accept to use our logo ?
A.Our logo is ZX. If your order, has good quantity, it's absolutely no problem to do OEM. But if you use our logo ZX, it will be high appreciated.
Q 7.We want to know month capacity.
A. It depends on which model. For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.
Q 8.Where is your market?
A. Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid
East, Eastern Asia, Western Europe and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefits from our cooperation.
East, Eastern Asia, Western Europe and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefits from our cooperation.
Q 9. What kind of certificate you have ?
A. Our company already obtained CE , ISO9001, PCT, SGS. design and technical patents certificates.
