JBD Smart bms SP17S005 20A 30A Автоматическая идентификация 10S-17S один порт с балансиром и
- Категория: PCB & PCBA >>>
- Поставщик: Hunan,Mitu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.71 $* | 0.14 $* |
| Aug-19-2025 | 0.24 $* | 0.18 $* |
| Jul-19-2025 | 0.24 $* | 0.82 $* |
| Jun-19-2025 | 0.60 $* | 0.63 $* |
| May-19-2025 | 0.32 $* | 0.15 $* |
| Apr-19-2025 | 0.49 $* | 0.68 $* |
| Mar-19-2025 | 0.88 $* | 0.21 $* |
| Feb-19-2025 | 0.77 $* | 0.81 $* |
| Jan-19-2025 | 0.13 $* | 0.30 $* |
Характеристики
Specification
Product Description

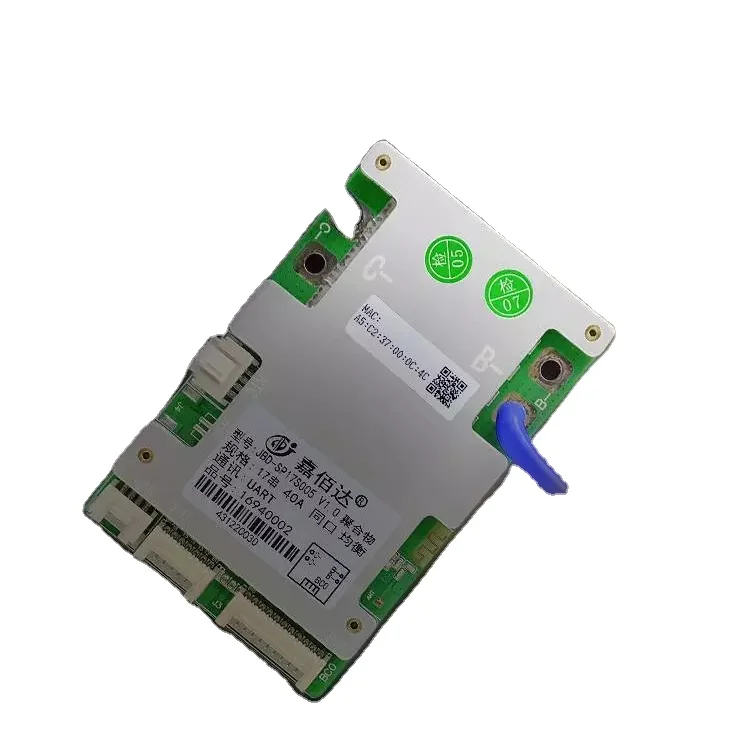

JBD BMS Smart BMS- SP17S005
Product Introduction:
Size:102*65*12mm
Applicable Battery Type: Lifepo4 & Li-ion Battery
Support :10S-17S
Package Included:BMS with built-in BT * Balance Wires

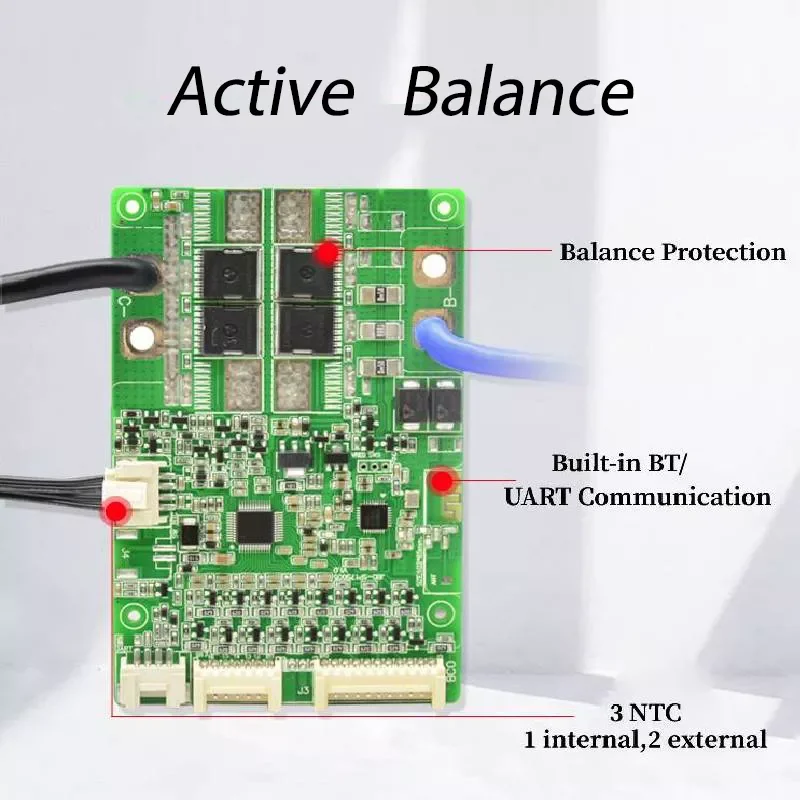

Function Introduction
(1) BT - APP in Phone (JBD XiaoXiang App)Support Both IOS version and Android version, can monitor and change the parameters (need
to be within the specified range)
(2)UART or RS485 - JBD PC Tool Box (Monitor and Set parameters,ask for service for PC Tool Software Documents and PC tool Manual.)
(3)UART or RS485 LCD Displayer--Can monitor paremeters on LCD displayer
Attention:
(1) UART and BT is the same ports, can't be used at the same time
(2) UART/BT and RS485 can be used at same time
(3) All smart bms has BT and UART function
(4) UART /RS485/CAN needs buy separately
(5) All UART communication can be converted to Canbus communication if needed, only need to buy a canbus module converter
seperately.
Download link:

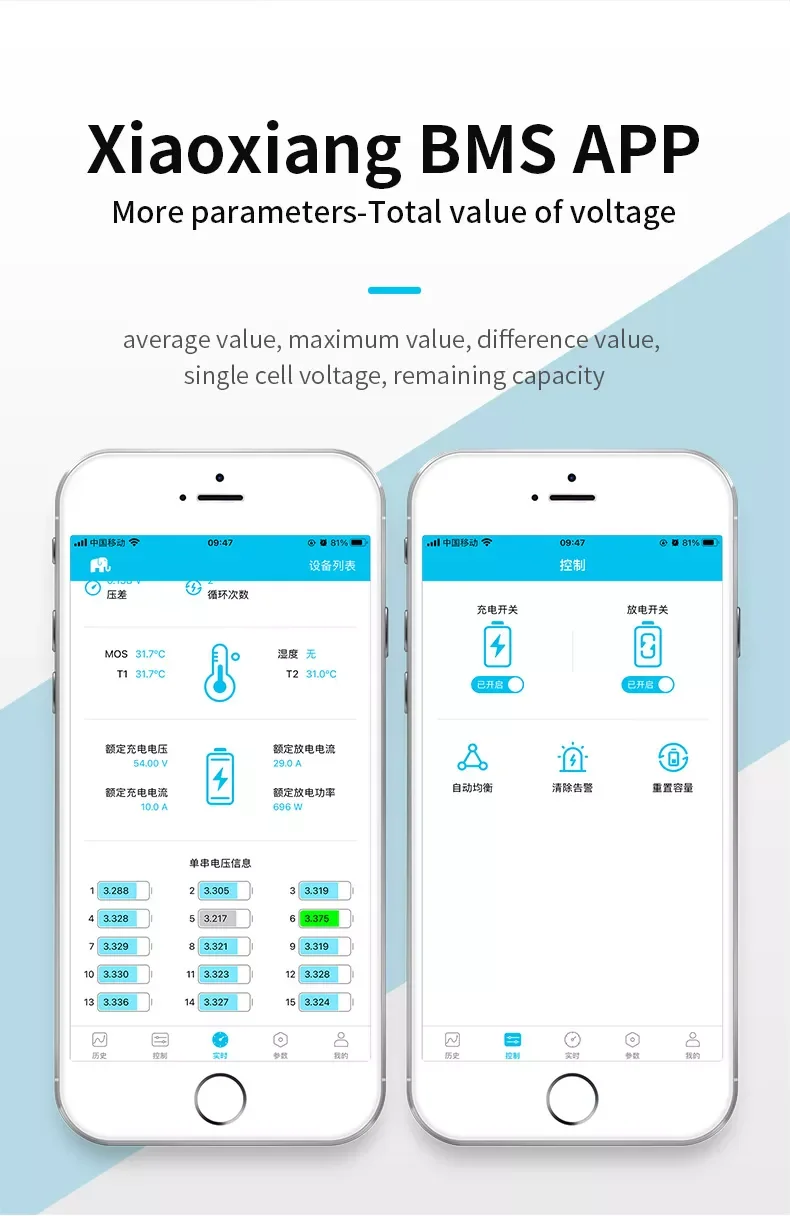

(1) Phone-"Xiaoxiang BMS"
IOS: Search it in the APP STORE
Android: https://www.pgyer.com/Bzt1
(2) Computer JBDBMS Tools (UART) ：
http://www.jiabaida.com/uploads/soft/xiaoxiangBMS.zip?spm=5261.im.0.0.7e0e4edfdzhzxA&file=xiaoxiangBMS.zip
Product Introduction:
Size:102*65*12mm
Applicable Battery Type: Lifepo4 & Li-ion Battery
Support :10S-17S
Package Included:BMS with built-in BT * Balance Wires
Function Introduction
(1) BT - APP in Phone (JBD XiaoXiang App)Support Both IOS version and Android version, can monitor and change the parameters (need
to be within the specified range)
(2)UART or RS485 - JBD PC Tool Box (Monitor and Set parameters,ask for service for PC Tool Software Documents and PC tool Manual.)
(3)UART or RS485 LCD Displayer--Can monitor paremeters on LCD displayer
Attention:
(1) UART and BT is the same ports, can't be used at the same time
(2) UART/BT and RS485 can be used at same time
(3) All smart bms has BT and UART function
(4) UART /RS485/CAN needs buy separately
(5) All UART communication can be converted to Canbus communication if needed, only need to buy a canbus module converter
seperately.
Download link:
(1) Phone-"Xiaoxiang BMS"
IOS: Search it in the APP STORE
Android: https://www.pgyer.com/Bzt1
(2) Computer JBDBMS Tools (UART) ：
http://www.jiabaida.com/uploads/soft/xiaoxiangBMS.zip?spm=5261.im.0.0.7e0e4edfdzhzxA&file=xiaoxiangBMS.zip
Company Profile
Hunan MiTu Technology Co., Ltd.
Hunan Mitu Technology Co., Ltd. focuses on professional service positioning.
Focus on the production and sales of lithium battery related accessories"Professional because of focus".
Solve problems for customers in a targeted manner, improve the technical level of lithium batteries, and create tangible benefits.
Automated production line, guaranteed production capacity, stable performanceIndustry-leading protection solutions.
The company's current products have certification, CPST certification, ROHS certification.
Is passing ISO9000 certification.
Strong product supply chain
Top Sales Consultant
fast shipping channel
Professional after-sales service
Top Sales Consultant
fast shipping channel
Professional after-sales service
Packing & Delivery
FAQ
1.What is the common port and separate port?
2.What is the balance function?
3.The relationship between Battery capacity and BMS current?
4.What type of charger should I choose?
5.What current BMS should I choose ?
6. Whether my BMS damaged?
Q:what is the difference? We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same point end(our P-), charge cathode and discharge cathode are used in the common connectionport, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 16A, charge current 8A.
2.What is the balance function?
Q:The working principle and function are as followings, when your one cell voltage is upto alarm voltage(Li-ion upto 4.18V, Life Po4 upto (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po43.6V)are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage(Li-ion 4.25V, Life Po43.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functionning well .
3.The relationship between Battery capacity and BMS current?
Q:There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.
4.What type of charger should I choose?
Q:Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge.Life Po4 battery charger voltage=battery string No.X3.6V,while Li-ion battery charger voltage=Battery string No.X4.2V.
5.What current BMS should I choose ?
Q:Take 10S36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 16A for below 350W, 25A for below500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one inall, continue current shall be higher than current limitation in Controller.
6. Whether my BMS damaged?
Q:if you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 0.1V, the fault is displayed that it cannot run far, no power supply at thestart range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
