Мембрана V4549902-0100 для диафрагмы поршня импульсный Alstom optipow очистки Vanne тканевый фильтр
- Категория: Air Cleaning Equipment Parts >>>
- Поставщик: Qingdao,Star,Machine,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 7.57 $* | 7.13 $* |
| Aug-20-2025 | 7.70 $* | 7.76 $* |
| Jul-20-2025 | 6.38 $* | 6.61 $* |
| Jun-20-2025 | 7.38 $* | 7.23 $* |
| May-20-2025 | 6.77 $* | 6.18 $* |
| Apr-20-2025 | 7.94 $* | 7.50 $* |
| Mar-20-2025 | 7.14 $* | 7.66 $* |
| Feb-20-2025 | 7.30 $* | 7.53 $* |
| Jan-20-2025 | 7.48 $* | 7.53 $* |
Характеристики
Product Overview
Our Optipow Solenoid Valve
Longer Service Life,More than Twice Service Life in the Same Industry
One Year Free Quality Assurance Service
FEATURES AT A GLANCE
Operating Temperature :
-40°C-130°C
Multi Voltage Selectable:
DC24V, AC100V50/60Hz, AC120V60Hz,
AC110V50/60Hz,AC220V50Hz
Activing Life:
More than 1000000 Pulses
Interchange:
Alstom Jet Valve, optipow135/105 Fabrice Filter
Service:
7*24 Hours Expert Consultation Online
-40°C-130°C
Multi Voltage Selectable:
DC24V, AC100V50/60Hz, AC120V60Hz,
AC110V50/60Hz,AC220V50Hz
Activing Life:
More than 1000000 Pulses
Interchange:
Alstom Jet Valve, optipow135/105 Fabrice Filter
Service:
7*24 Hours Expert Consultation Online
Basic Info
Model NO. | OPTIPOW 135/105 | Valve Structure | Pilot Membrane Structure |
Power Supply | DC Solenoid Valve | Usage | Drain, Dust Cleaning |
Standard | DIN | Application | Industrial Usage |
Used For | Dust Filter | Trademark | OPTIPOW |
Specification | 4" | Design static pressure | 15 bar (1500 kPa) |
Design temperature | 100 °C | Operating pressure | < 6 bar |
Operating pressure variation | 3 bar unlimited nos | Operation temperature | 50 °C |
MEMBRANE PARAMETERS
PARTS NO. | FIT | DIAMETER | THICKNESS | MAIN MATERIAL | MEDIUM | ENVIRONMENTAL TEMP | WEIGHT |
V4549902-0100 | Optipow105/135 | 72mm | 1.15mm | Buna-N rubber | Air,Pmax 7Bar | -50 ºС to + 110 ºС | 6g/pc |
Burkert | |||||||
Danfoss |
Main Spare Parts for OPTIPOW135 Air Cleaning Valve
Product name | Article number | Pos. no. |
OPTIPOW 135(24V) | V1614718-0100 | ① |
OPTIPOW 135 (100V,50 Hz) | V1614718-0301 | ① |
OPTIPOW 135 (120V, 60Hz) | V1614718-0400 | ① |
OPTIPOW 135 (120V 60Hz UL-CERTIFIED) | V1614718-0700 | ① |
OPTIPOW 135 (without solenoid, revolving 90° C) | V1614718-0800 | 一 |
Membrane | V4549902-0100 | ② |
O-Ring (Fluor rubber 64.5 x 3.1) | 8003-5573 | ③ |
O-Ring (Nitril 70SH 64.5 x 3.1) | 2136-1422 | ③ |
O-Ring (143 x 3.1) | 2136-1441 | ④ |
Pilot cover | V3630501-0100 | ⑤ |
Plate | V3630524-0100 | ⑥ |
Plunger | V3629022-0100 | ⑦ |
Round Washer (SS3576-5-200HV FE/ZN25) | 4903-2146 | 一 |
Rubber Disc | V3640660-0100 | ⑧ |
Solenoid Valve(24 V DC) | V3611471-0100 | ⑨ |
Solenoid Valve (100 V, 60 Hz) | V3611471-0201 | ⑨ |
Solenoid Valve (110 V, 50 Hz) | V3611471-0300 | ⑨ |
Solenoid Valve (110 V, 60 Hz) | V3611471-0200 | ⑨ |
Solenoid Valve (120 V, 60 Hz) | V3611471-0400 | ⑨ |
Solenoid Valve (120V, 60 Hz-UL CERTIFIED) | V3640645-0200 | ⑨ |
Solenoid Valve (230V, 50 Hz) | V3611471-0500 | ⑨ |
O-Ring 2136-1441 and 2136-142 Rubber Disc V3640660-0100 Solenoid Valve 24V DC
Optipow135 Plunger V3629022-0100
Pilot Cover V3630501-0100

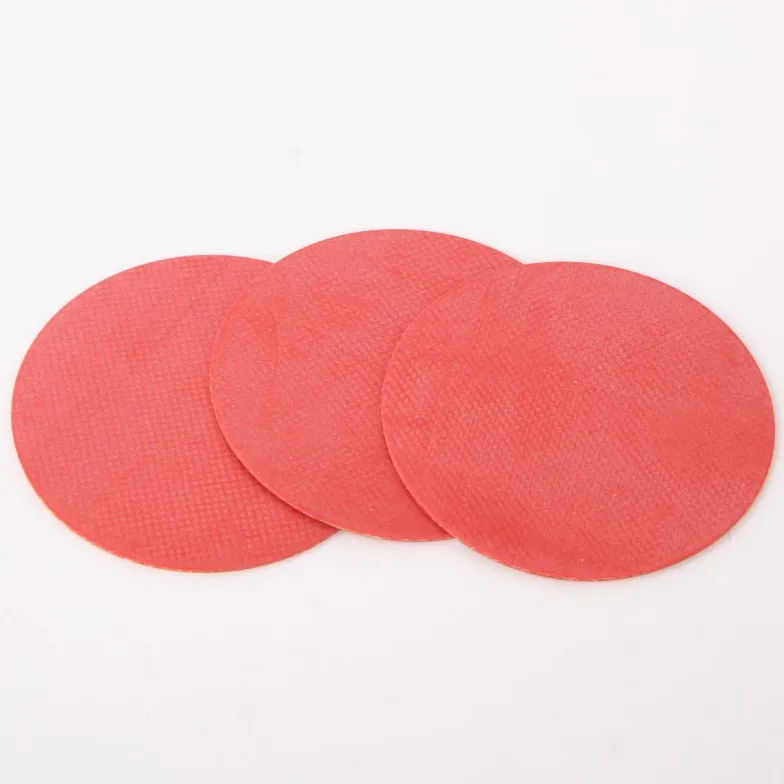

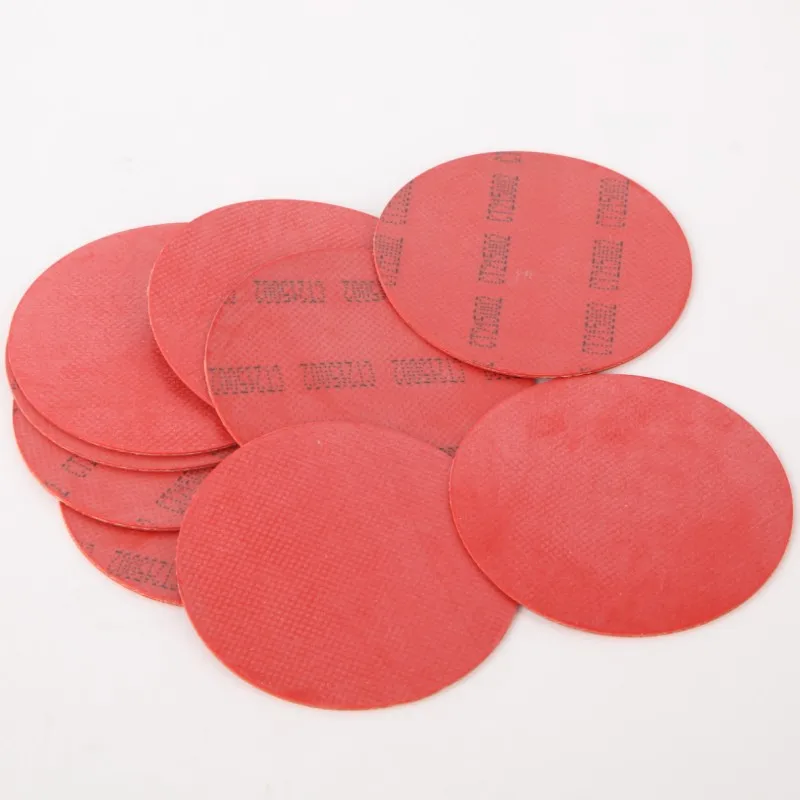

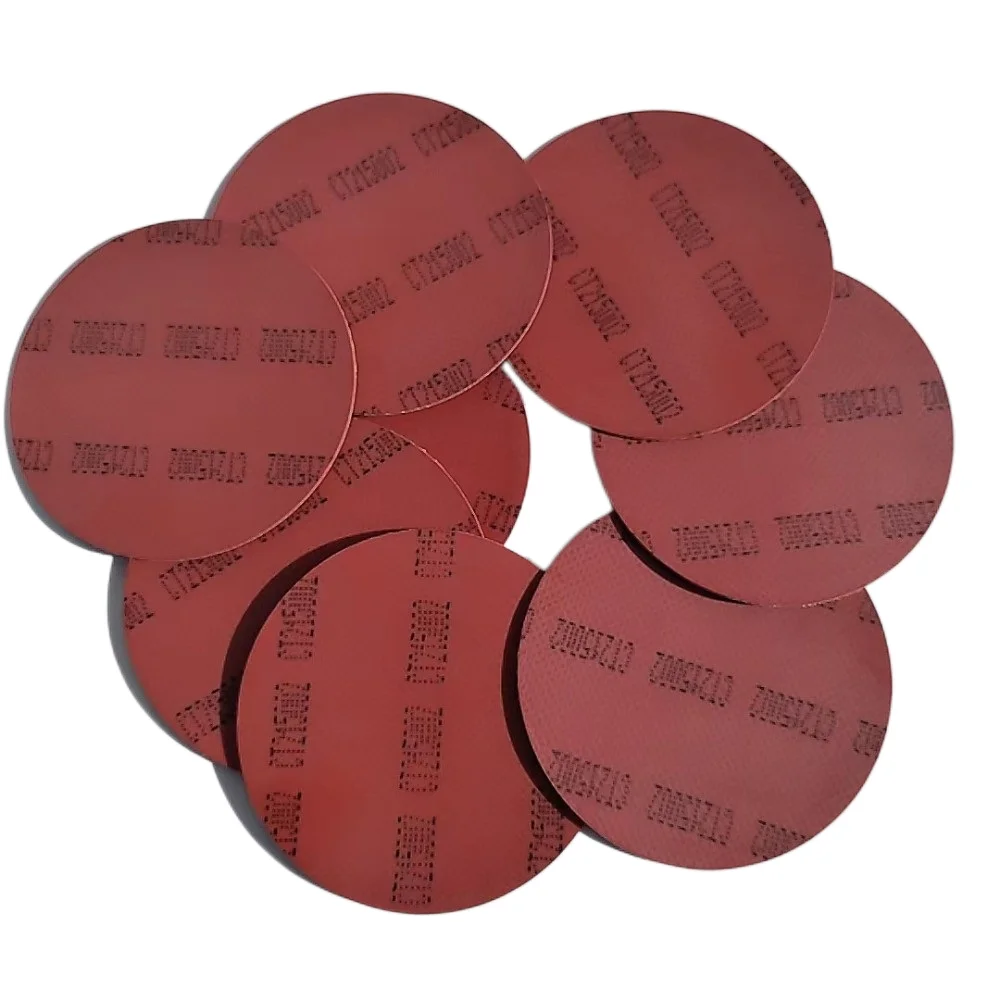

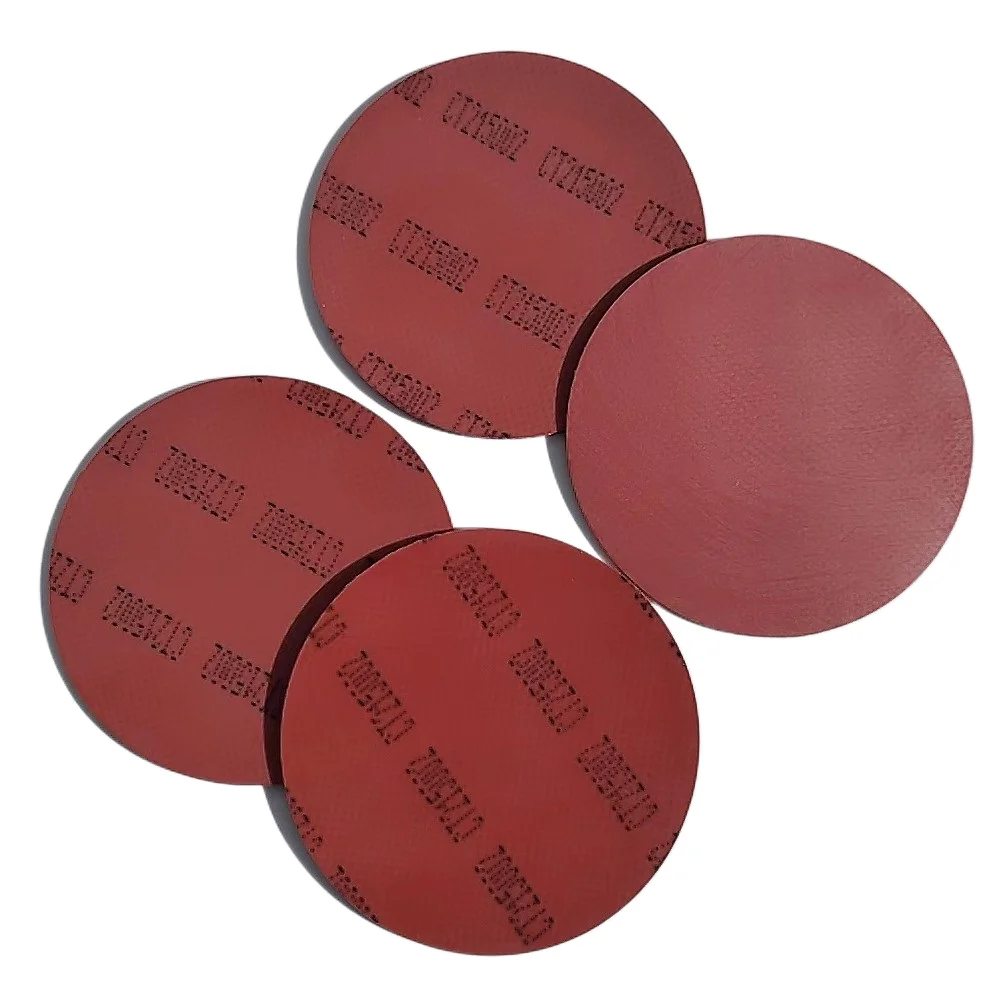

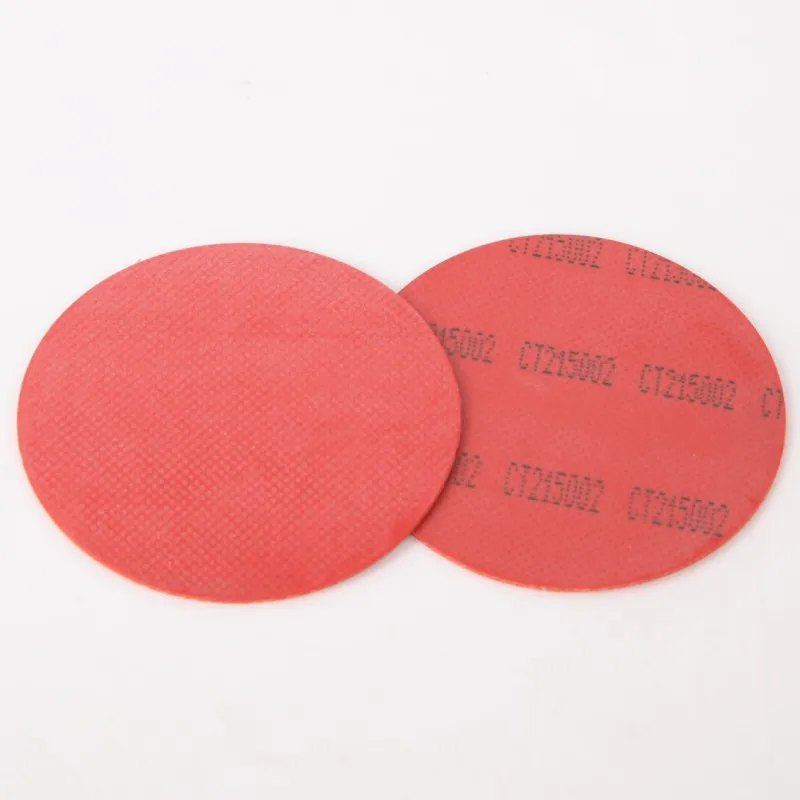

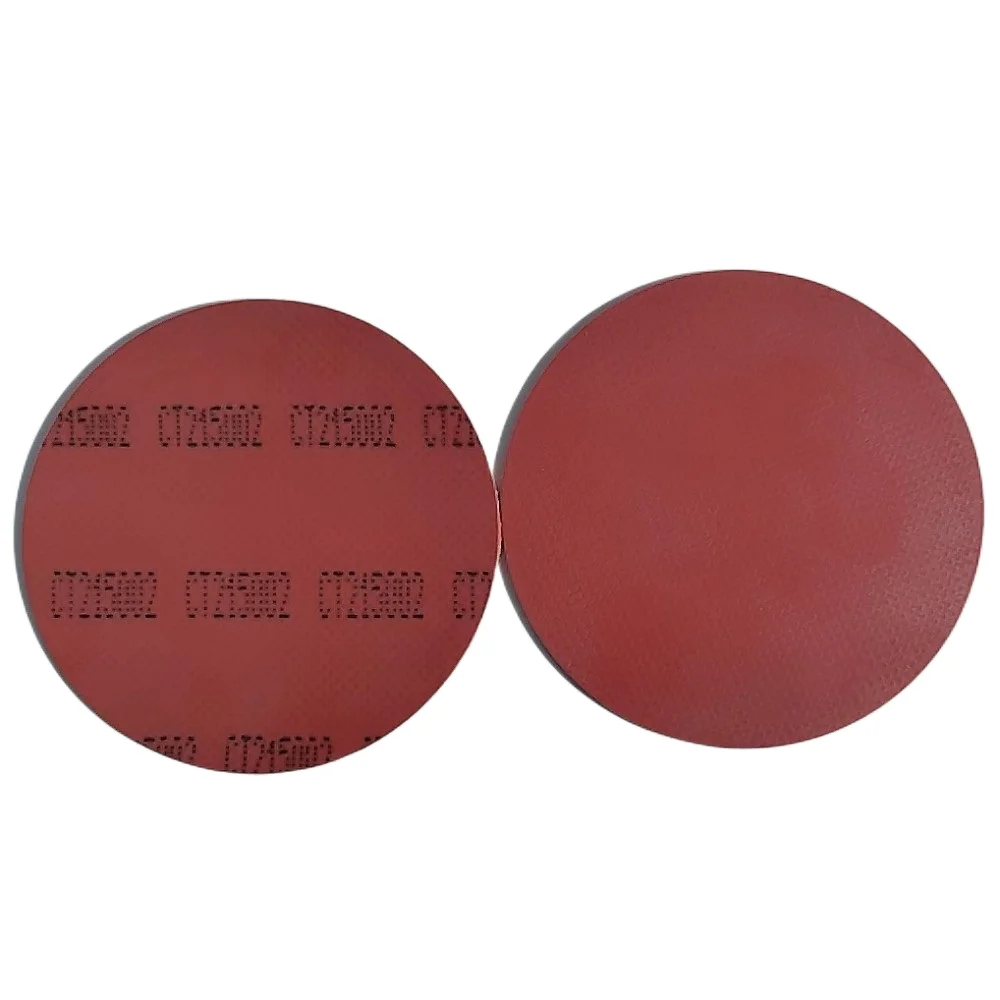

Membrane V4549902-0100
Application in Industrial
Successful Projects
Project in the Netherland
Project in the United Emirates
Project in the United States of America
SIMILAR PRODUCTS
Certifications
Efficient And Safe Shippment
Warranty Of Core Components
Warranty
The purchased product has a one-year warranty. If the product is damaged due to the product itself within one year, we will replace it free of charge for you.
We will provide 24-hour online service to provide product-related solutions for you.
