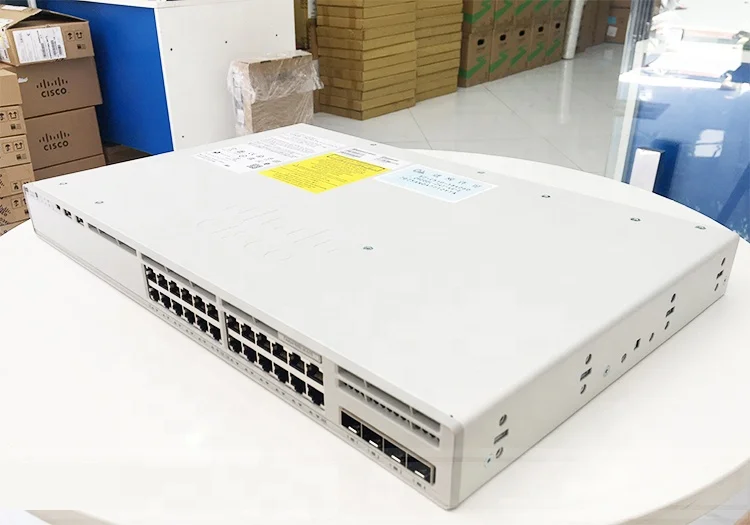

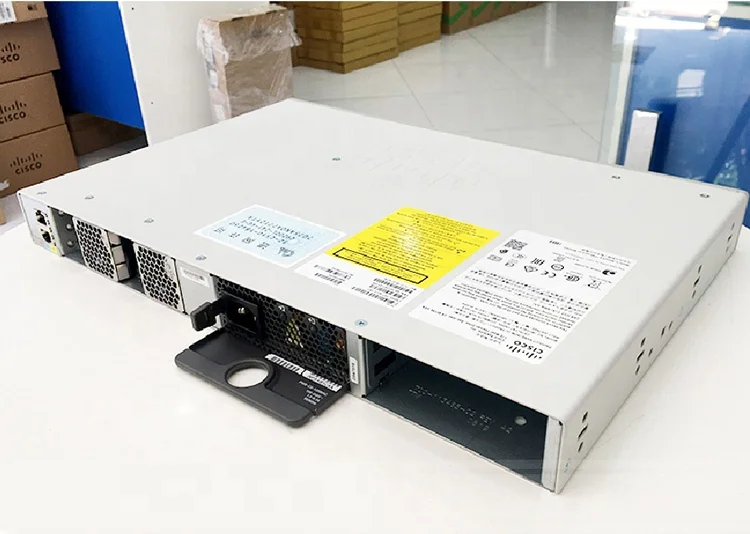

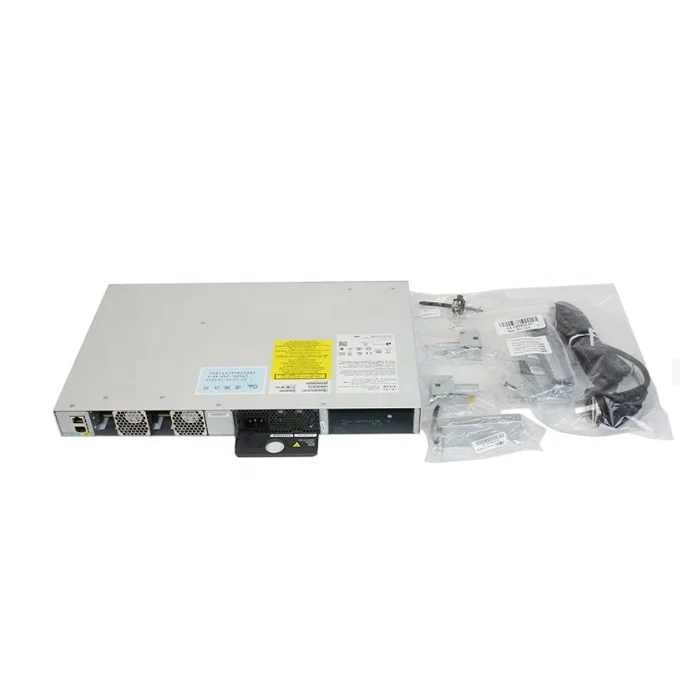

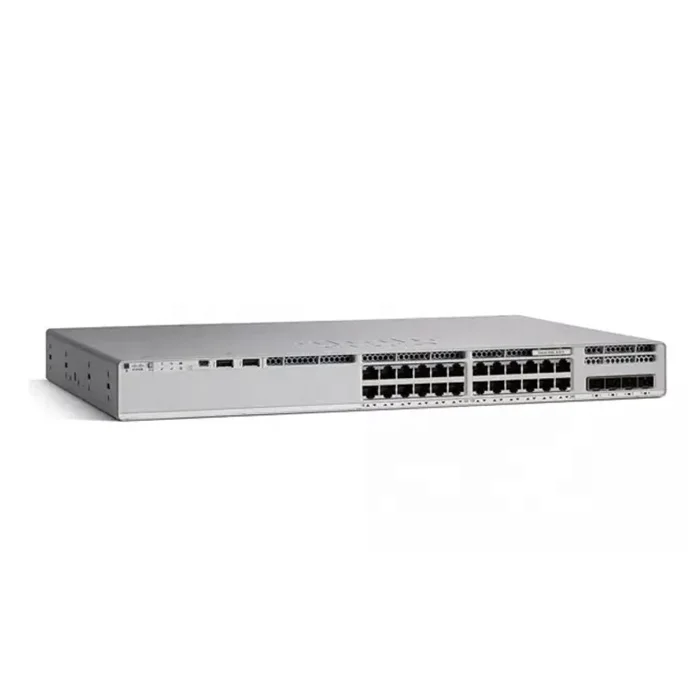

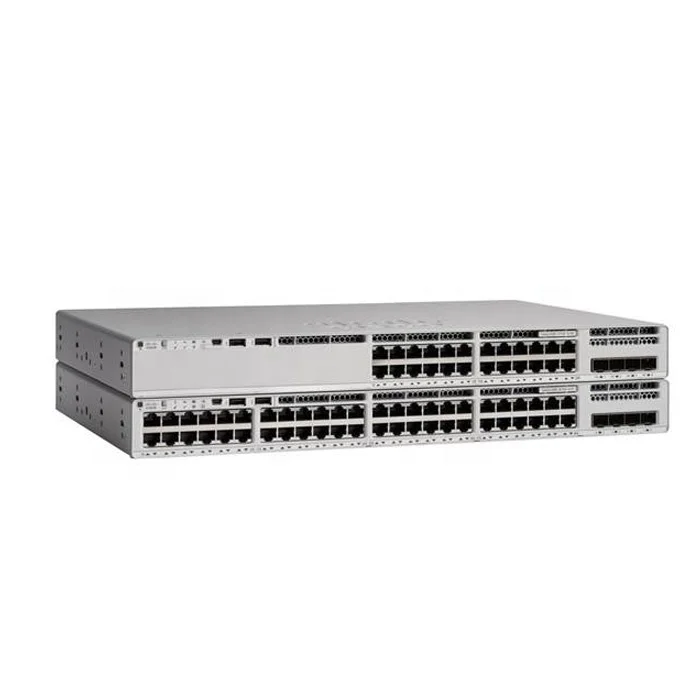

Новый оригинальный C9200L-24P-4X-E 24 портами PoE + 4x10G uplink
- Категория: Network Switches >>>
- Поставщик: Shenzhen,Sanying,Tongchuang,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2618.80 $* | 2749.26 $* |
| Aug-19-2025 | 2596.69 $* | 2726.23 $* |
| Jul-19-2025 | 2178.65 $* | 2287.61 $* |
| Jun-19-2025 | 2552.89 $* | 2680.89 $* |
| May-19-2025 | 2222.65 $* | 2333.57 $* |
| Apr-19-2025 | 2508.9 $* | 2633.80 $* |
| Mar-19-2025 | 2486.27 $* | 2610.97 $* |
| Feb-19-2025 | 2464.86 $* | 2587.58 $* |
| Jan-19-2025 | 2442.79 $* | 2564.58 $* |
Характеристики
Product Description
specification
Model | C9200L-24P-4X-E |
Licensing combinations | Network Essentials |
Downlinks total 10/100/1000 or PoE+ copper ports | 24 ports full PoE+ |
Uplink configuration | 4x 10G fixed uplinks |
Default primary AC power supply | PWR-C5-600WAC |
Fans | FRU redundant |
Available PoE power with single primary power supply only | 370W |
Optional secondary power supply | PWR-C5-600WAC |
Available PoE power with additional secondary power supply | 740W |
Fans | FRU redundant |
Stacking support | StackWise-80 |
Stacking bandwidth | 80Gbps |
Stacking hardware | C9200L-STACK-KIT |
Number of members | 8 |
Supported stack members | Other C9200L models with same license level |
Virtual Networks | 1 |
Total number of MAC addresses | 16,000 |
Total number of IPv4 routes (ARP plus learned routes) | 11,000 |
IPv4 routing entries | 3000 |
IPv6 routing entries | 1500 |
Multicast routing scale | 1000 |
QoS scale entries | 1000 |
ACL scale entries | 1500 |
Packet buffer per SKU | 6 MB buffers for 24- or 48- port Gigabit Ethernet models, 12 MB buffers for 24 or 48 port multigigabit models |
Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48- port Gigabit Ethernet models, 32,000 flows on 24 or 48 port multigigabit models |
DRAM | 2G |
Flash | 4G |
VLAN IDs | 4096 |
PVST Instances | 128 |
STP Virtual Ports(Port *VLANs) for PVST | 13000 |
STP Virtual Ports(Port *VALNs) for MST | 13000 |
Total Switched Virtual Interfaces (SVIs) | 512 |
Jumbo frames | 9198 bytes |
Wireless bandwidth per switch | N/A |
IP SGT binding scale | 10K |
Number of IPv4 bindings | 10K |
Number of SGT/DGT policies | 2K |
Number of SXP Sessions | 200 |
Switching capacity | 128 Gbps |
Switch capacity with Stacking | 208 Gbps |
Forwarding rate | 95.23 Mpps |
Forwarding rate with Stacking | 155 Mpps |
Chassis Dimensions (HxWxD) | 55x 50 x 25 |
Weight | 10KG |

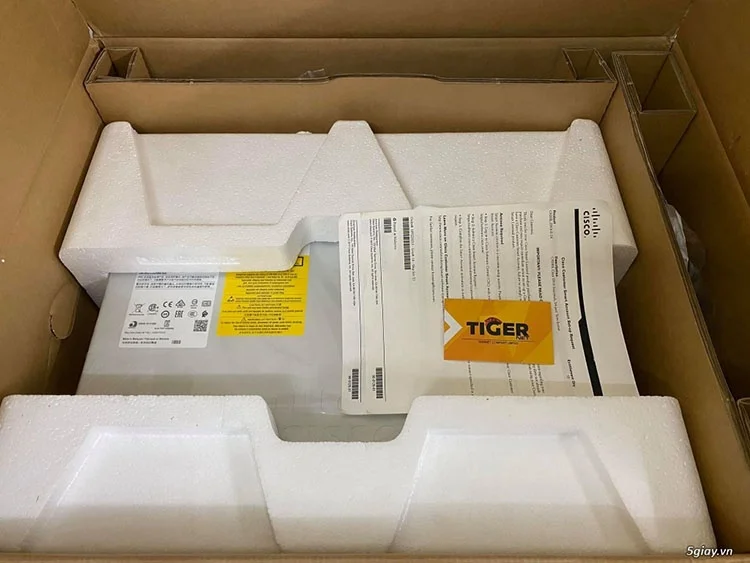

Product packaging
