Характеристики
Product Description

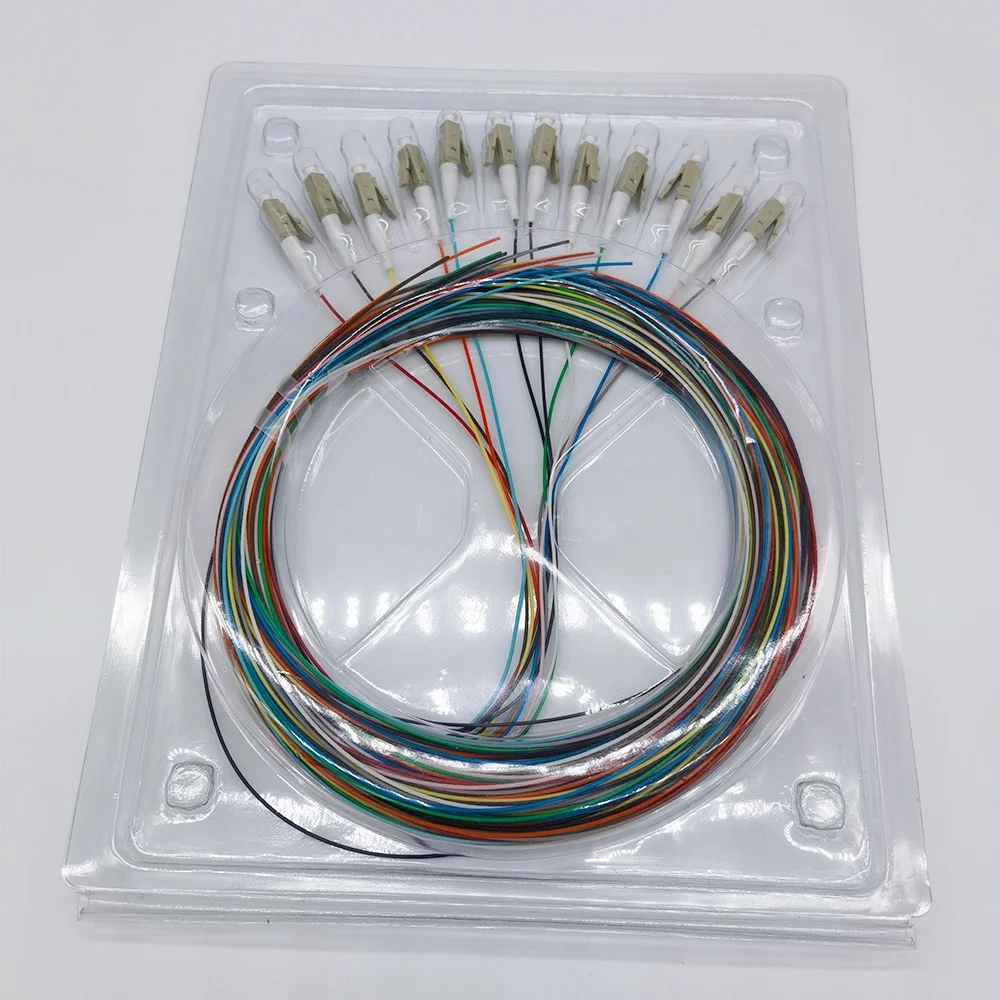

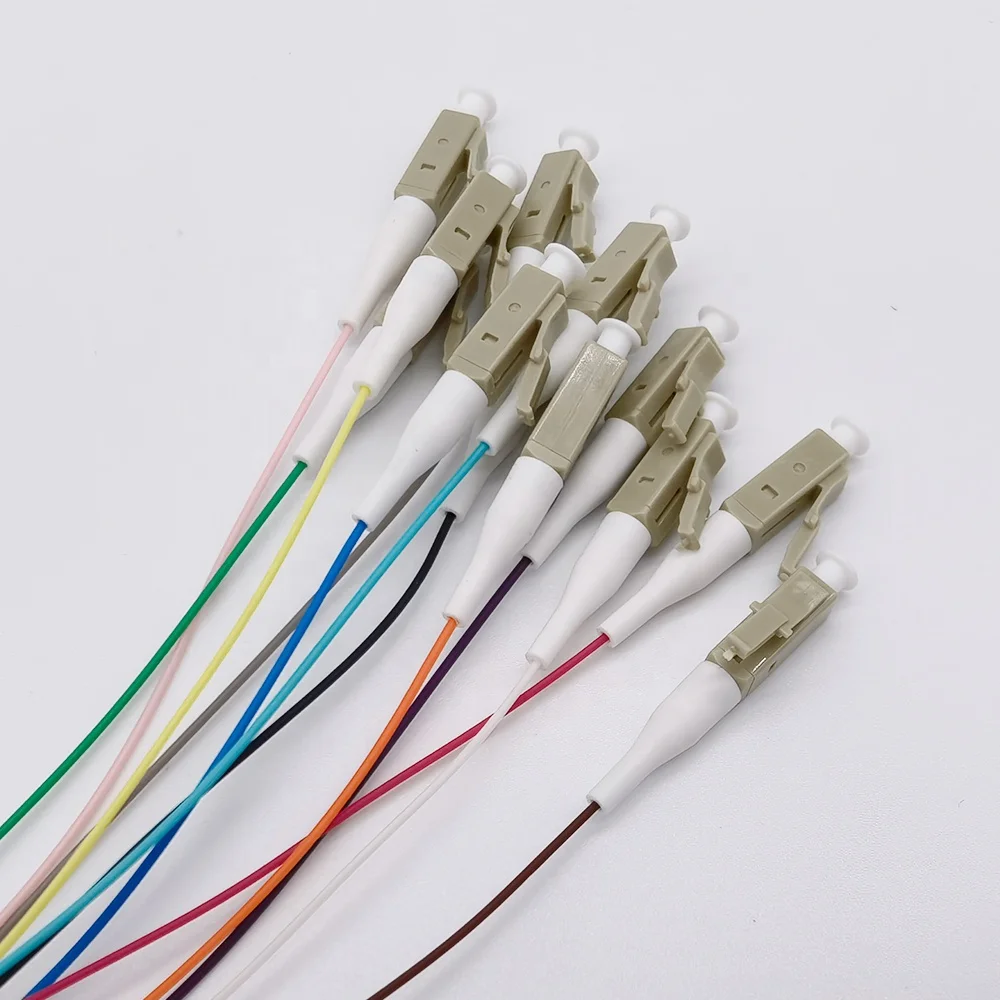

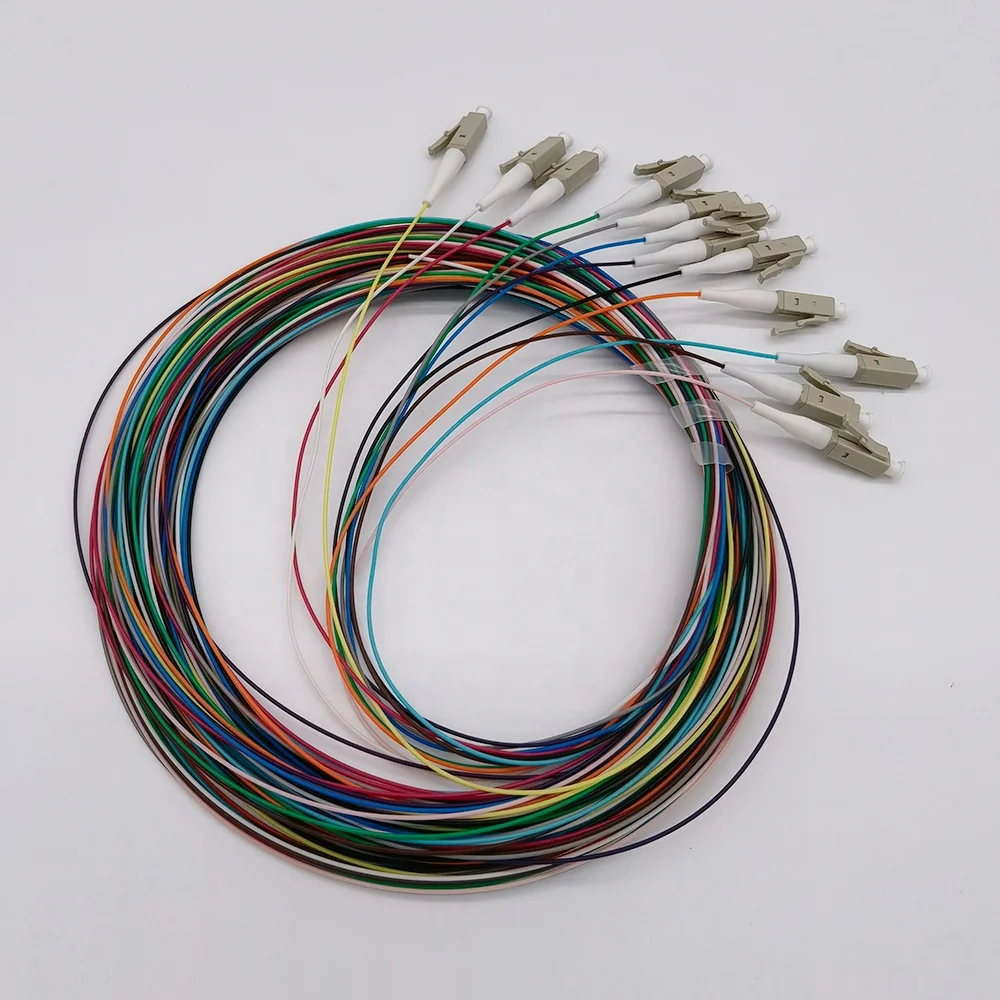

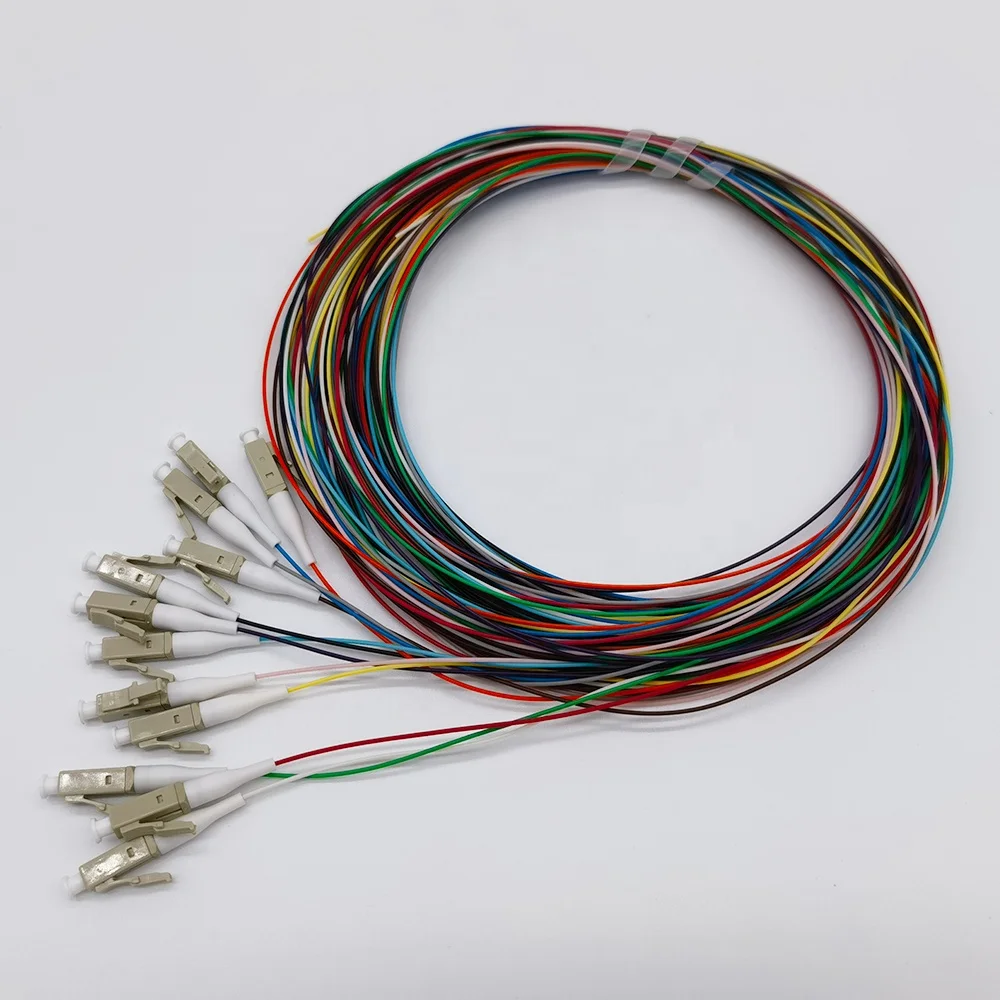

12 Color-coded LC Multimode 0.9mm 62.5/125 50/125 OM1/OM2/OM3/OM4 12 Cores Fiber Optic Pigtail
Description
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Features
◈ Grade A Precision Zirconia Ferrules Ensure Insertion Loss≤0.3 dB and Return Loss≥50 dB.
◈ Flexible and Abrasion-resistant PVC Jacket, Durable for Indoor Use.
◈ Simple and Quick Fiber Termination via Mechanical or Fusion Splicing.
◈ Color-coded Pigtails for Easy Identification.
◈ Pass IEC-61754 and TIA-604 (FOCIS) Performance Requirements
Applications
◈ Perfect for CATV, FTTH/FTTX, Data Centers, and telecommunication networks.
Connector Type | LC LC SC FC ST optional |
Polish Type | UPC APC optional |
Fiber Mode | OM1 62.5/125µm, OM2/OM3/OM4 50/125µm |
Fiber Count | 12 Cores |
Wavelength | Multimode: 850/1300 |
Insertion Loss | ≤0.3dB |
Return Loss | UPC≥50dB, APC≥60dB |
Cable Diameter | 0.9 mm |
Pigtail Color | 12-Colors |
Cable Jacket | PVC |
Durability | 1000 Times |
Operating Temperature | -40~75°C |
Zirconia Ceramic Ferrule
◈ High-precision ceramic ferrules are used to ensure the stability and durability of optical fiber connectors.
◈ The precision ferrules can reach up to 1000 times insertion lifespan.
Optional Connectors
◈ Tough and corrosion-resistant, not easily deformed.
◈ Various connectors are available, LC/SC/FC/ST/LSH, UPC/APC polish, to suit the needs of different applications.
◈ Various connectors are available, LC/SC/FC/ST/LSH, UPC/APC polish, to suit the needs of different applications.
Color-coded Cables
◈ Faster connector identification with color-coded pigtail.avoiding incorrect patching by possible fiber flipping.
◈ 0.9mm fibercable can be stapled and bent aroud corners without sacrificing performance.
LC Typical Applications
High-density connections, SFP and SFP+ transceivers and LC adapters.

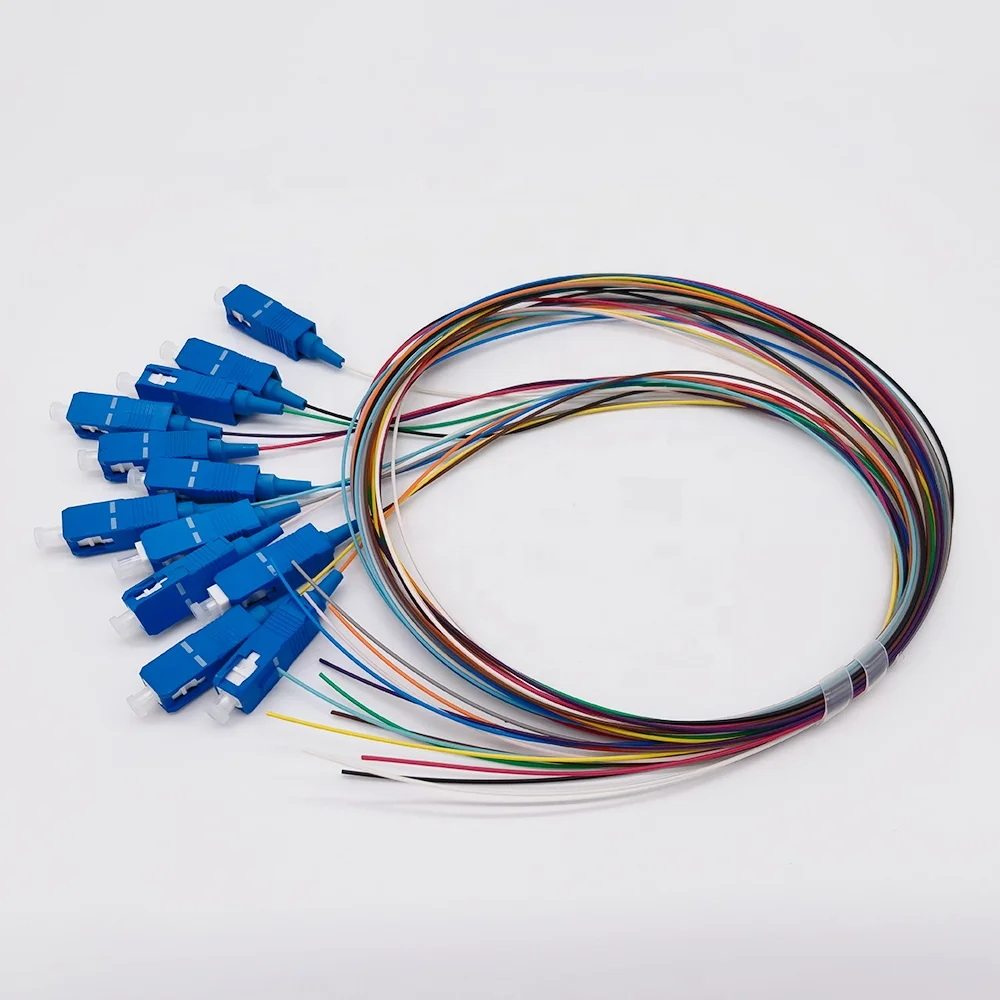

SC Typical Applications
Datacom and telecom, GPON, EPON, GBIC and SC adapters.
ST Typical Applications
Datacom, FTTH, corporate networks.
FC Typical Applications
Datacom, telecom, measurement, single mode lasers
PC suited for telecom operator equipment.
UPC suited for ethernet network equipment, devies, media converters and fiber switches.
APC suited for high bandwidth applications and long distance links, such as FTTX.
UPC suited for ethernet network equipment, devies, media converters and fiber switches.
APC suited for high bandwidth applications and long distance links, such as FTTX.
PC/UPC is generally blue, APC is green
Maximum Bandwidths and Distance of Different Multimode Fibers
Fiber Type | Core Diameter | bandwidth | 1Gbps Distance | 10Gbps Distance | ||||||
850nm Mhz*km | 1300nm Mhz*km | 850nm | 1300nm | 850nm | 1300nm | |||||
OM1 | 62.5 µm | 200 | 500 | 275m | 550m | 33m | 300m | |||
OM2 | 50 µm | 700 | 500 | 750m | 550m | 150m | 300m | |||
OM3 | 50 µm | 1500 | 500 | 1000m | 550m | 300m | 300m | |||
OM4 | 50 µm | 3500 | 500 | 1000m | 550m | 550m | 550m | |||
Detailed Images
Packing & Delivery
Packing
◈ Neutral packaging or our own brand packaging.
◈ Can be packaged according to customer requirements.
Payment
◈ T/T, Western Union, Paypal and so on.
Delivery
◈ International Express: DHL, FedEx, UPS, TNT, Aramex and so on.
◈ You also can choose your own shipping forwarder, please notify us in advance.
◈ Shipments are usually dispatched in 2-5 working days after received payment.
◈ You also can choose your own shipping forwarder, please notify us in advance.
◈ Shipments are usually dispatched in 2-5 working days after received payment.
Our Service
OEM:
We can provide OEM services, and can design packaging, Logo, and labels according to customer requirements.
We can provide OEM services, and can design packaging, Logo, and labels according to customer requirements.
Warranty:
Fiber Optic Products 2 Year warranty
Fiber Optic Products 2 Year warranty
Our Advantages:
1. Advanced production and testing equipment.
2. Professional manufacturer, 100% tested.
3. Full compliance with ISO 9001 quality management system.
4. Our company has experienced professional R&D and Sales team.
5. Provide reliable solutions and satisfactory services.
6. Warmly services with careful attentions.
1. Advanced production and testing equipment.
2. Professional manufacturer, 100% tested.
3. Full compliance with ISO 9001 quality management system.
4. Our company has experienced professional R&D and Sales team.
5. Provide reliable solutions and satisfactory services.
6. Warmly services with careful attentions.
Our Company
Shenzhen Silink Technology Co., Ltd. is a leading manufacturer and exporter specializing in fiber optical communications equipments,optical transceiver modules and network cabling products.
Optical transceiver modules: SFP, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM,Media Converter and other special transceiver modules,which are compatible with Cisco, 3COM, H3C, HP, Alcatel-Lucent, Allied Telesis, Nortel, Juniper, Huawei,etc.
Network cabling products: Keystone jack,patch panel,patch cord,faceplate,etc.
Fiber optical communications equipments: Fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc.
These products are widely used in telecommunications, broadband, broadcast, CATV and network industry.
FAQ
1. Are you the real factory?
Answer: we are the real factory with 10 years’ history.
2. Can you supply OEM products under our brand?
Answer: Yes, sure. We can supply OEM products with OEM package, but it will need MOQ to print your brand.
3. What is your main products?
Answer: armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
Answer: years’ Guarantee for fiber optic cable
5. Do you have certificate for raw material?
Answer: build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
6. MOQ: what is your minimum quantity?
Answer: is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
7. Do you have distributor in other country or domestic?
Answer: now, we sell our products to customers directly. And factory price could be offered.
8, What is the lead time?
Answer: For usual products,We keep stock,could ship 1-3 days after PO.For big quantity and special products,Please check lead time with our sales representative.
9, What is your payment terms?
Answer: T/T, Western union, Paypal.
10, What is the shipping terms?
Answer: We usually ship by Aramex, Fedex, DHL, UPS, TNT and EMS. If you have another preferred carrier, please notify us in advance.
