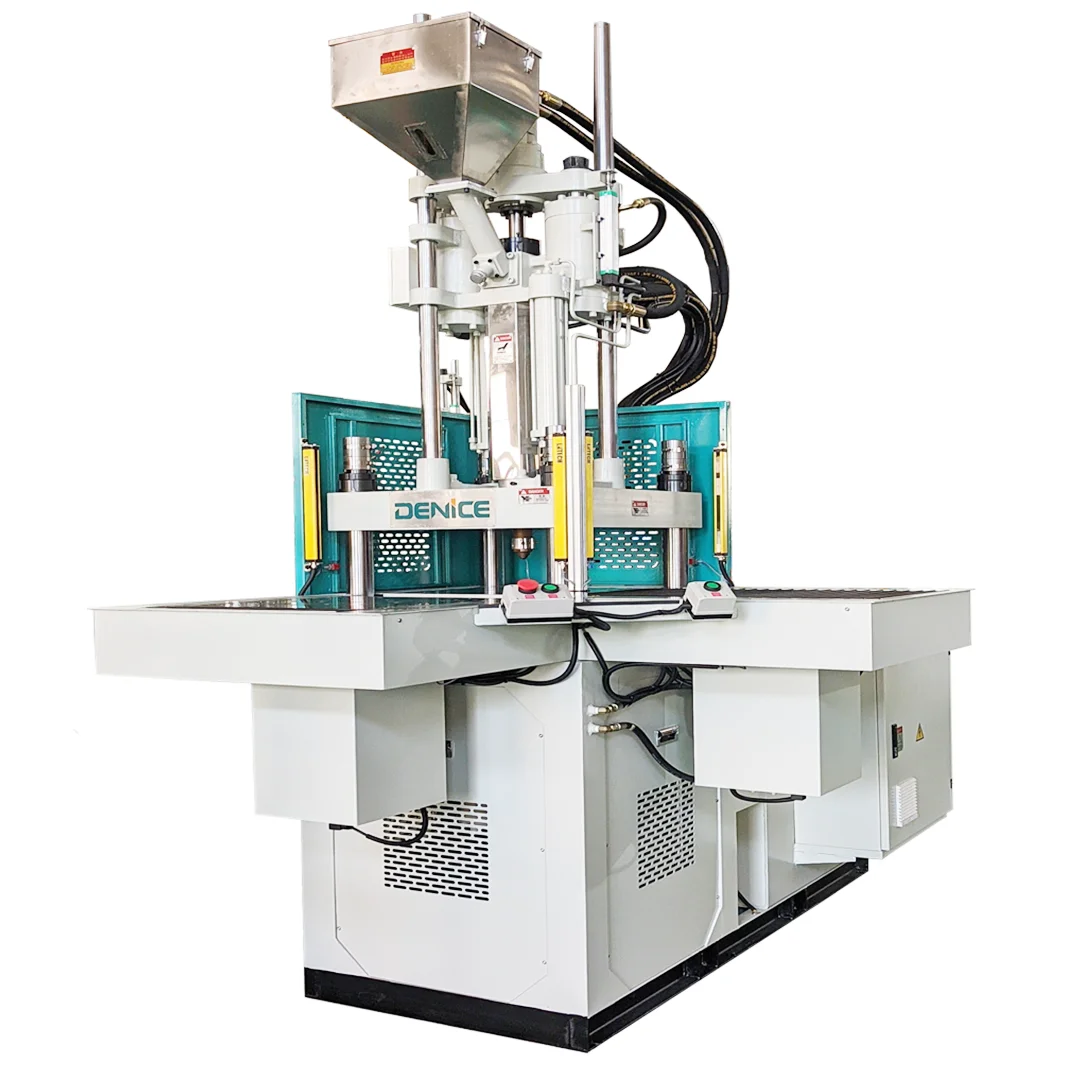

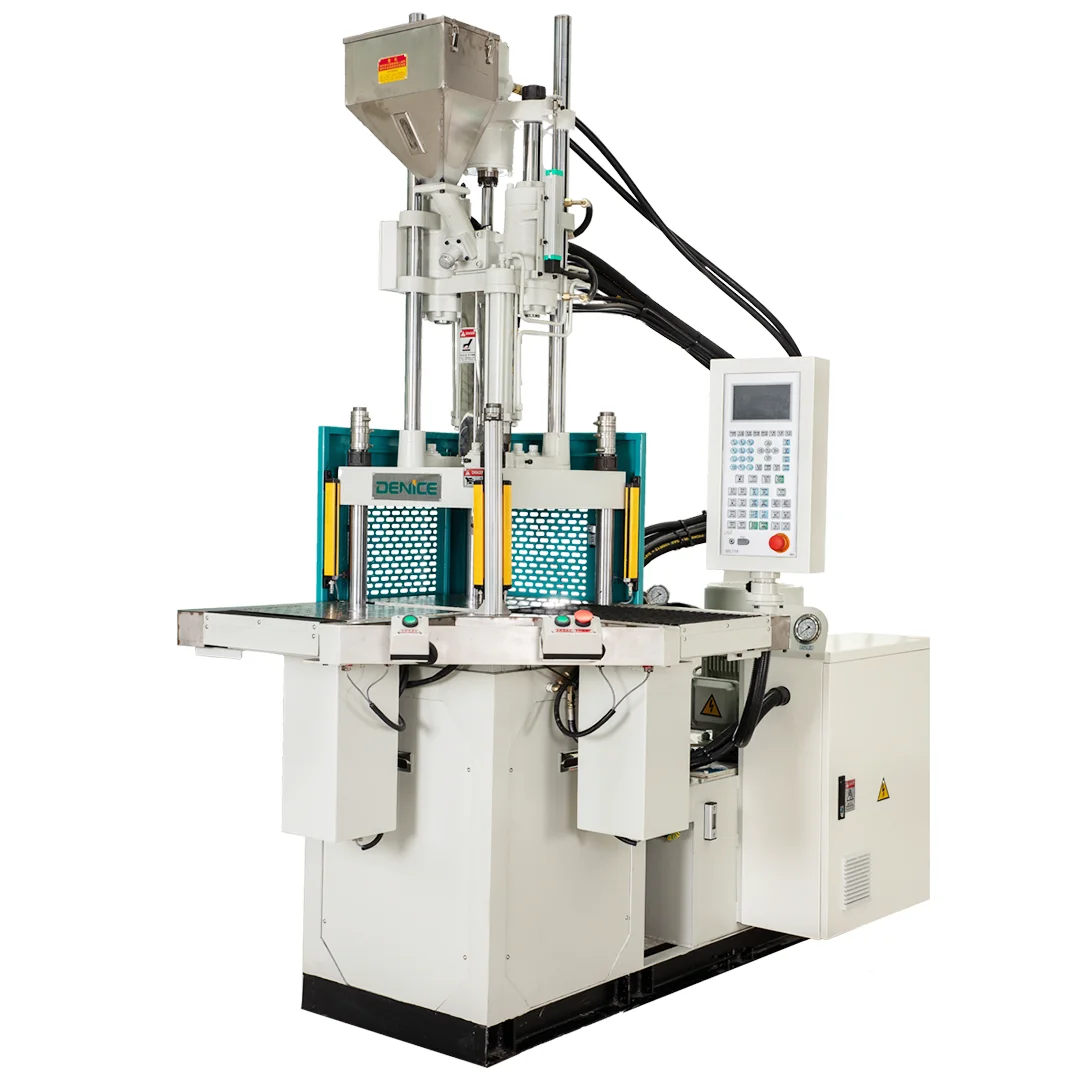

Вертикальная литьевая машина и он имеет высокую эффективность дешевой ценой напрямую с фабрики Двойной Два шлепанцы без задника открытыми пальцами угловой скольжение
- Категория: >>>
- Поставщик: Hangzhou,Denice,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 26180.53 $* | 27489.83 $* |
| Aug-16-2025 | 25960.74 $* | 27258.52 $* |
| Jul-16-2025 | 21780.77 $* | 22869.74 $* |
| Jun-16-2025 | 25520.48 $* | 26796.90 $* |
| May-16-2025 | 22220.90 $* | 23331.77 $* |
| Apr-16-2025 | 25080.26 $* | 26334.58 $* |
| Mar-16-2025 | 24860.42 $* | 26103.49 $* |
| Feb-16-2025 | 24640.73 $* | 25872.82 $* |
| Jan-16-2025 | 24420.94 $* | 25641.73 $* |
Характеристики
Specification | ||||||||||||
Model | Unit | DV-400DS.L | ||||||||||
Injection Unit | Screw diameter | mm | Ф28 | Ф32 | Ф36 | Ф48 | ||||||
Maximum injection pressure | Kg/cm2 | 2000 | 1531 | 1210 | 1166 | |||||||
Theoretical shot volume | cm3 | 74 | 97 | 122 | 289 | |||||||
Maximum shot weight（PS） | g/Oz | 68 /2.4 | 89/3.1 | 113/ 4.0 | 266/9.4 | |||||||
Injection rate | cm3/sec | 42 | 55 | 70 | 157 | |||||||
Clamping Unit | Clamping force | ton | 40 | |||||||||
tie bar distance | mm | 410 × 410 | ||||||||||
Minimum mold thickness | mm | 150/250（customization） | ||||||||||
Opening stroke | mm | 200 | ||||||||||
Open daylight | mm | 350/450（customization） | ||||||||||
Ejector force | T | 1.5 | ||||||||||
Ejector stroke | mm | 55 | ||||||||||
Pump motor power | Kw | 5.5 | ||||||||||
Others | Hydraulic system pressure | Kg/cm2 | 140 | |||||||||
Barrel heating power | Kw | 3.6 | ||||||||||
Total wattage | Kw | 9.1 | ||||||||||
Oil tank capacity | L | 210 | ||||||||||
Machine weight (approx.) | T | 2.1 | ||||||||||
Machine dimensions(approx.) | m | 2.2×1.2× 2.8 | ||||||||||
1.Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2.Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3.How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4.Do you accept my own design?
We can provide OEM/ODM service
5.When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
We are professional vertical injection molding machine manufacturer in China.
2.Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3.How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4.Do you accept my own design?
We can provide OEM/ODM service
5.When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
