JK Daly JBD Smart BMS 8S 16S 20S 24S 100A 150A 200A bms с банкой RS485
- Категория: PCB & PCBA >>>
- Поставщик: Shenzhen,Eel,Battery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.68 $* | 0.2 $* |
| Aug-19-2025 | 0.16 $* | 0.83 $* |
| Jul-19-2025 | 0.93 $* | 0.26 $* |
| Jun-19-2025 | 0.6 $* | 0.33 $* |
| May-19-2025 | 0.32 $* | 0.43 $* |
| Apr-19-2025 | 0.87 $* | 0.13 $* |
| Mar-19-2025 | 0.63 $* | 0.62 $* |
| Feb-19-2025 | 0.85 $* | 0.70 $* |
| Jan-19-2025 | 0.86 $* | 0.28 $* |
Характеристики
Specification
Battery type and serial number | LFP(16S/15S) | NCM(14S/13S) | |||||
Continuously charging/discharging current | 50A/75A/100A/150A/200A | 50A/75A/100A/150A/200A | |||||
Communication protocol | CANBUS（default）or RS485 | CANBUS（defult） RS485 | |||||
Custom function | Heating function、External switch | Heating function、External switch | |||||
Working temperature | -20℃-70℃ | ||||||
Pre-charging | 0-3000ms | ||||||
Current Balance | Passive balance | 150mA(Max) | |||||
Working mode power consumption | <40mA | ||||||
Sleeping mode power consumption | 0uA | ||||||
Capacity protection | Nominal capacity | 5-500Ah | |||||
Remaining capacity protection | 5% | ||||||
Short Circuit protection | Short circuit protection lock | Continuously short in output circuit | |||||
Short circuit protection lock times | 5 times | ||||||
Short circuit protection lock release | Connected with charger | ||||||
Over voltage protection | 3650mV | 4200mV | |||||
Under voltage protection | 2700mV | 2900mV | |||||
Over voltage protection | 57.6V | 58V | |||||
Under voltage protection | 41.6V | 40.6V | |||||
Over current protection | 60A/85A/110/160A/210A | ||||||
Over current protection time delay | 30mS | ||||||
Current limiting(charging) | Passive current limiting | 10A | |||||
Start | 0℃ | ||||||
Stop | 10℃ | ||||||

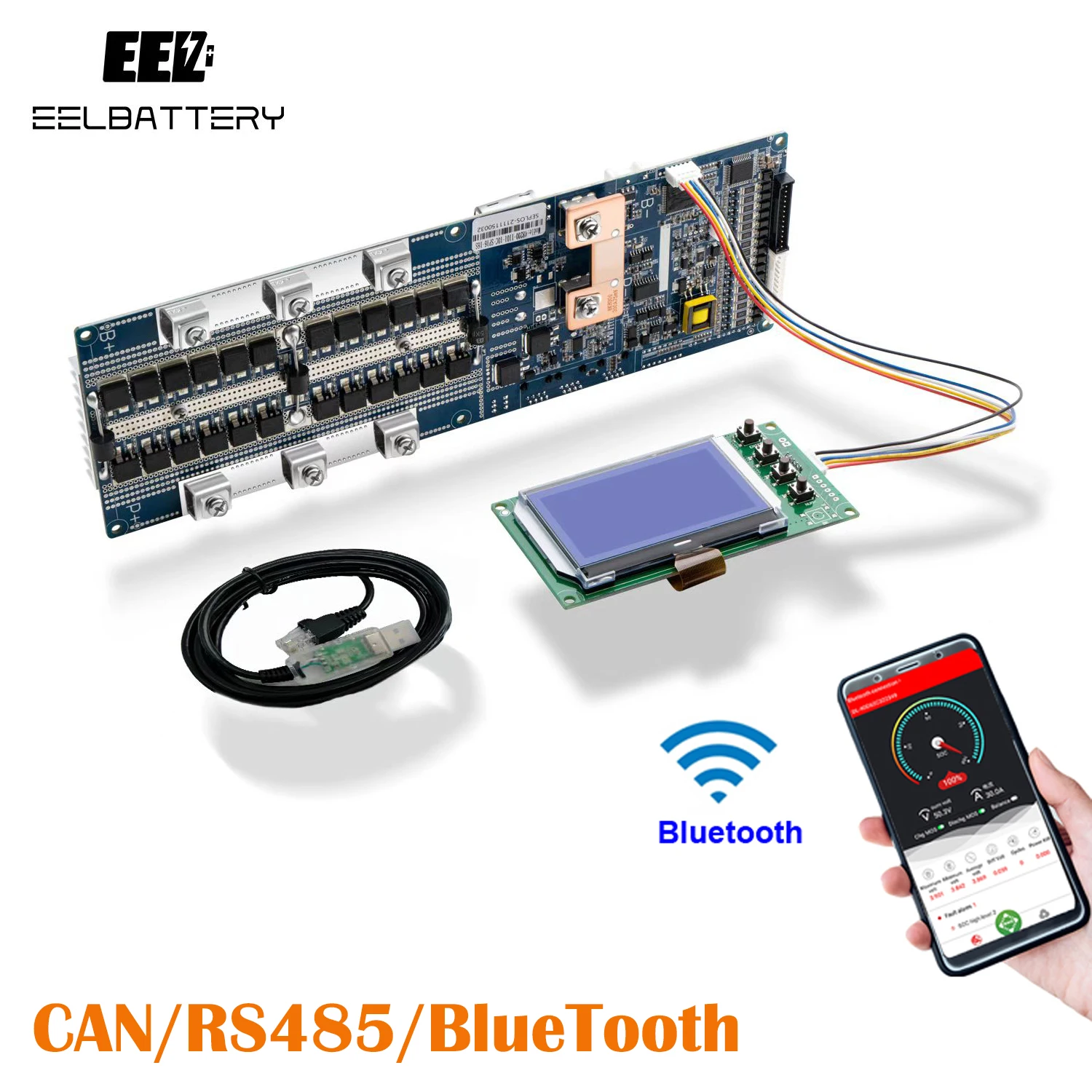

1. This smart bms with CANBUS/RS485 module is compatible with lifepo4 & lithium NCM battery pack
2.BMS support CANBUS communication protocol and RS485 communication protocol.
2.BMS support CANBUS communication protocol and RS485 communication protocol.
3.Our BMS can support up to max 16 units in parallel operation.
4.The main functions are: CANBUS communication,RS485 communication,passive balance,individual cell over voltage protection,Over（under)voltage protection,temperature protect,over charge (discharge)protection, over current protection, Short circuit protection.
4.The main functions are: CANBUS communication,RS485 communication,passive balance,individual cell over voltage protection,Over（under)voltage protection,temperature protect,over charge (discharge)protection, over current protection, Short circuit protection.
Advantage:
1. High stability
2. High compatibility, suitable for most mainstream inverters on the market
3. High added value
4. The role of information collection
5. Excellent heat dissipation
6. Different from other BMS on the market, it has a longer service life
1. High stability
2. High compatibility, suitable for most mainstream inverters on the market
3. High added value
4. The role of information collection
5. Excellent heat dissipation
6. Different from other BMS on the market, it has a longer service life
Product Description
Seplos 8S 16S 24V 48V 100A 150A 200A CAN/RS485 Industrial Grade Inverter Lifepo4 Battery Lithium Ion Batteries JK JBD Seplos Smart BMS

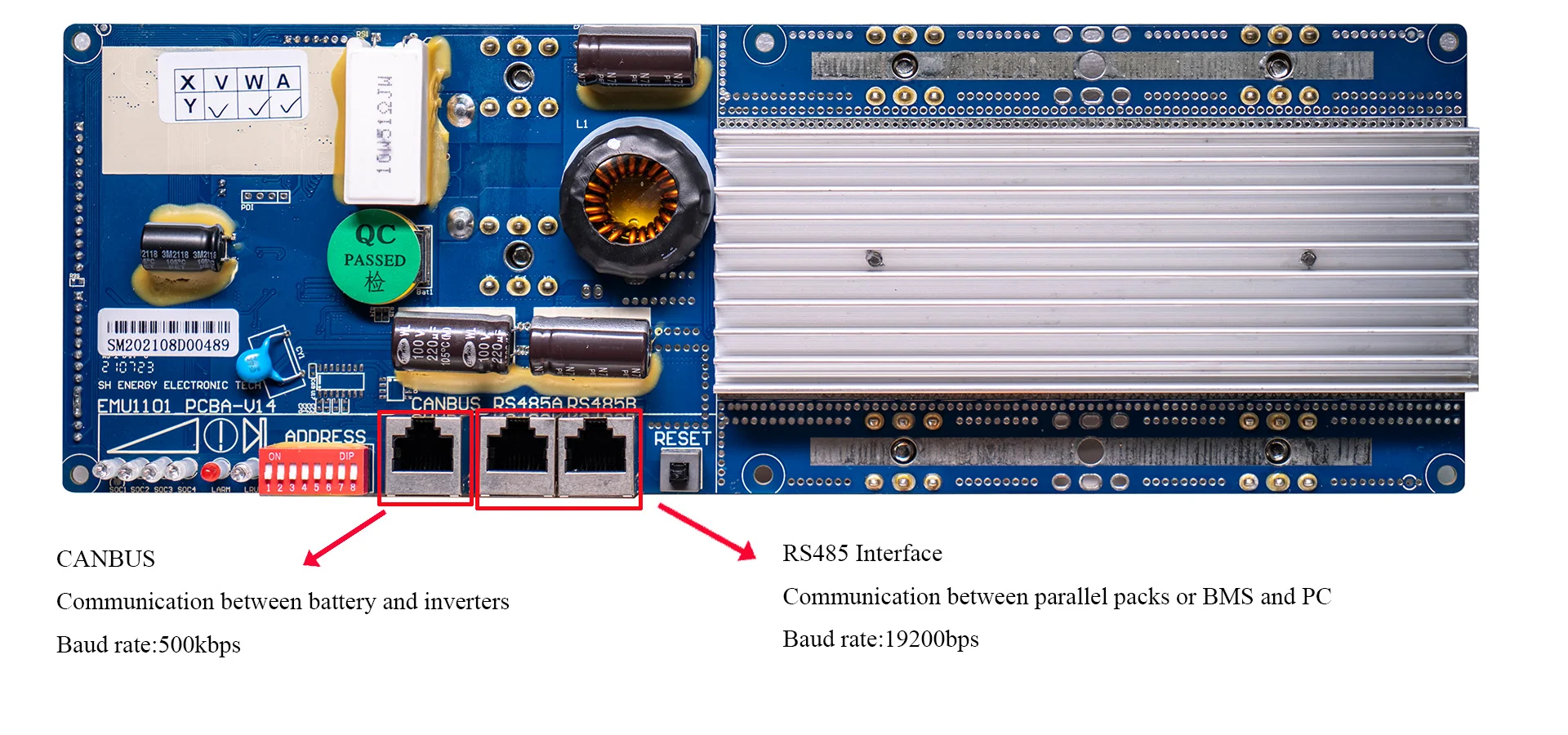

RS485 protocol is compatible with following inverters brand
Now our CANBUS communication board supports these brands of inverters,and our BMS has built-in CANBUS protocol of matching
inverter brand, which can be automatically matched or manually switched:
inverter brand, which can be automatically matched or manually switched:
*Pylontech
*Voltronic power
*Growatt-SPF
*SRNE
*Voltronic power
*Growatt-SPF
*SRNE
CANBUS protocol is compatible with following inverters brand
The CANBUS communication board supports these brands of inverters,and our BMS has built-in CANBUS protocol of matching inverter brand, which can be automatically matched or manually switched:
*Pylontech
* Goodwe
* Growatt SPF&SPH
* Victron
* LUX POWER
* Sofar
* DEYE
* Studer
* MUST
* TBB POWER
* SOLIS
* SMA
If your inverter brand not in the list, please kindly ask the inverter supplier to provide the protocol to define. And send protocol to us, we'll help to solve it.
* Goodwe
* Growatt SPF&SPH
* Victron
* LUX POWER
* Sofar
* DEYE
* Studer
* MUST
* TBB POWER
* SOLIS
* SMA
If your inverter brand not in the list, please kindly ask the inverter supplier to provide the protocol to define. And send protocol to us, we'll help to solve it.
Packing & Shipipng
In well protected carton box with PE foam with signal wires

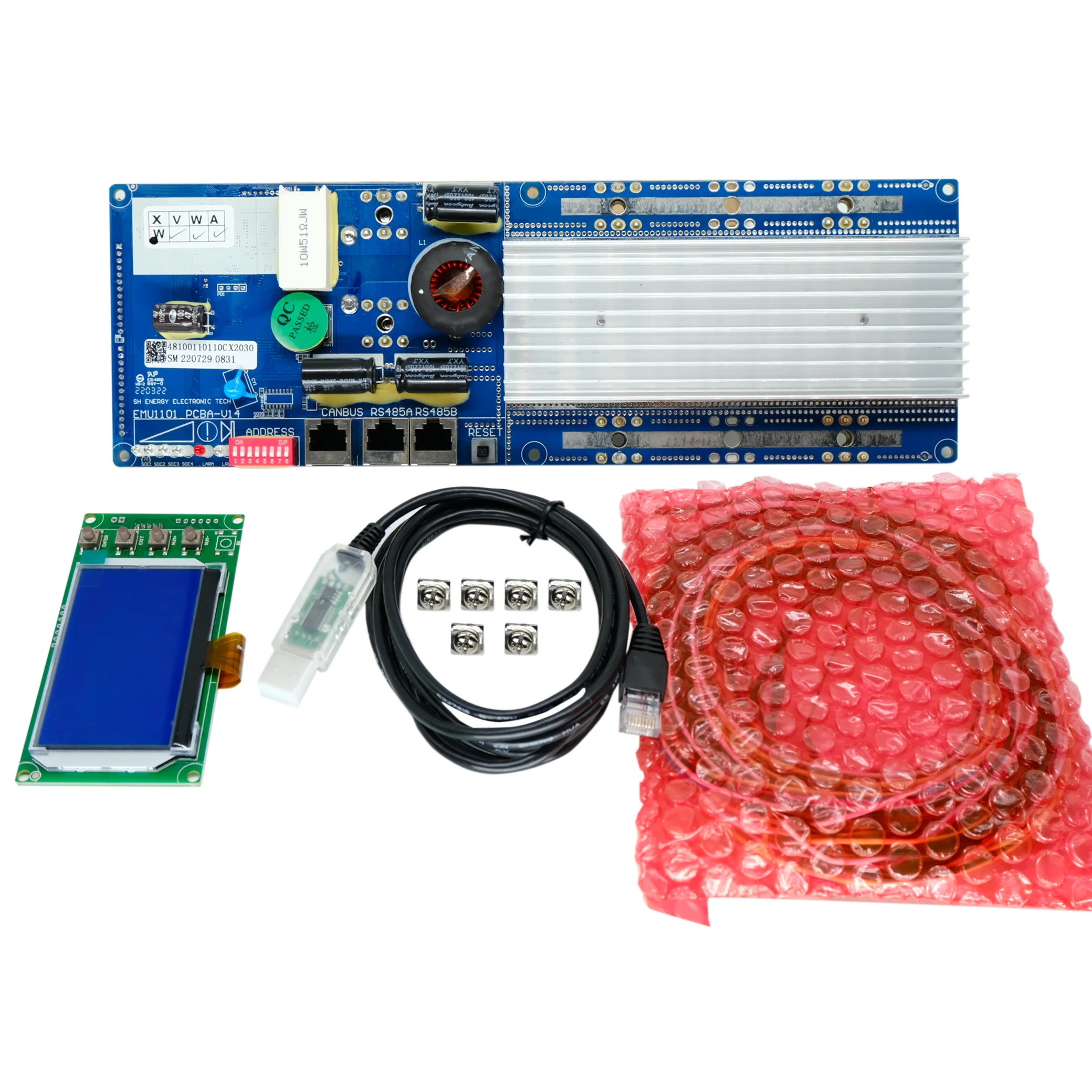

BMS*1（Built-in CAN or RS485, select according to requirements）
Connecting line*1
Connecting line*1
Pls note we can't deliver to the following address directly
USA: Military address and PO box address are not acceptable; Puerto Rico, Virgin Islands, Guam, Alaska,Hawaii also not included.
Portugal: Azores and Madeira
Spain:Canary Islands, hueda,Missily and melilia and some other Island
Russia: Kamchatka Peninsula
Other:Some remote areas not listed,please provide shipping address and zip code to to us to check.
Company Profile
EEL Battery CO.,Ltd is a specialized company which dedicated to R&D,production and marketing of LiFePO4 battery pack,18650 lithium battery pack,ebike battery,LiFePO4 cell,li-ion polymer battery products.After 10years of rapid development,EEL has accumulated core technology and comprehensive solution for power battery products,meanwhile we have obtained the approval and praise of customers from all over the world.Most of our battery models have MSDS,UN38.3,CE,UL1642 certificates.Depending on professional R&D engineers,enthusiastic sales team and reliable after-sales service,our battery products are widely used in the field of off-grid solar power system,solar street light,RV,electric vehicles,golf cart,power tool,backup power,medical device. Our goal is to provide competitive,safe and superior battery products for customers,we also pay attention to environmental protection and take social responsibility, encourage people to use green new energy.Believe in us,EEL will be your trustworthy partner in battery business!
Certifications
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
LiFePO4 Battery Cell,LiFePO4 Battery Pack,Powerwall,BMS,Energy Storage Battery,inverter,one stop solution on solar energy system products.
3. What services can we provide?
a.100% original direct sales
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
LiFePO4 Battery Cell,LiFePO4 Battery Pack,Powerwall,BMS,Energy Storage Battery,inverter,one stop solution on solar energy system products.
3. What services can we provide?
a.100% original direct sales
b.Each bms will be tested before shipping.
c.After sales support and technical guidance
d.Support customization
e.Sample available, the freight is the cheap.
f.The price of all models is the version with Bluetooth software
g.If you require the hardware version, please contact us firstly
c.After sales support and technical guidance
d.Support customization
e.Sample available, the freight is the cheap.
f.The price of all models is the version with Bluetooth software
g.If you require the hardware version, please contact us firstly
4,I am a distributor. Can I cooperate for a long time?
A: Yes,Individual pricing for large scale projects and wholesale demands is available.
A: Yes,Individual pricing for large scale projects and wholesale demands is available.
