Высокоэффективный небольшой

Категория: Mining Machinery >>>
Поставщик: Weihai,Tongge,Technology,Co.,Ltd.

Цена:88,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	105.18 $*	110.84 $*
Aug-19-2025	104.11 $*	109.48 $*
Jul-19-2025	87.73 $*	91.15 $*
Jun-19-2025	102.73 $*	107.54 $*
May-19-2025	89.35 $*	93.25 $*
Apr-19-2025	100.67 $*	105.92 $*
Mar-19-2025	99.68 $*	104.72 $*
Feb-19-2025	99.49 $*	104.87 $*
Jan-19-2025	98.67 $*	103.65 $*

Характеристики

Product Introduction

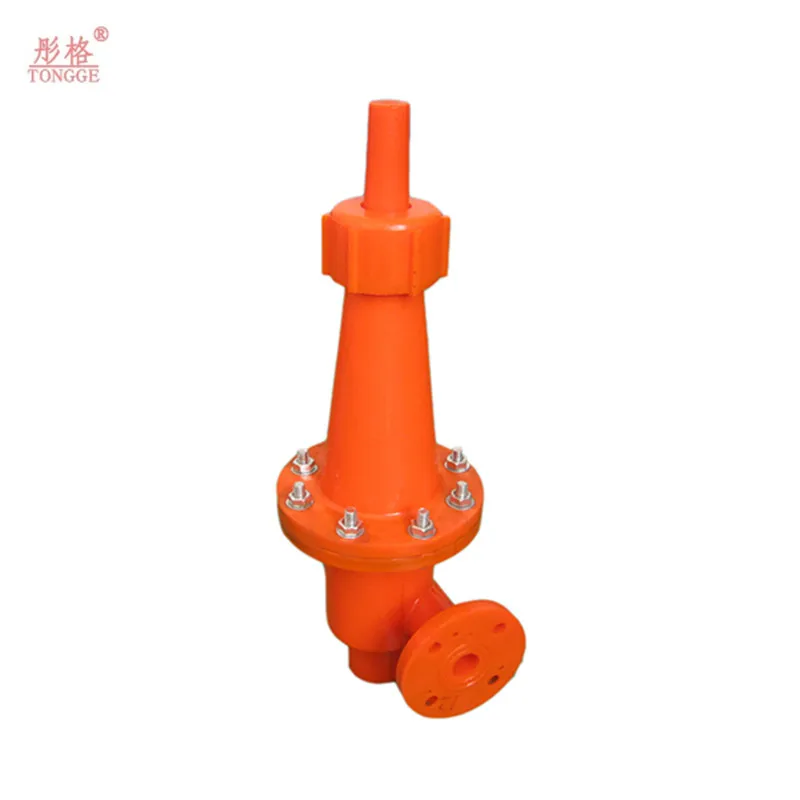

The hydrocyclone takes water as medium to classify and separate mineral particles in the centrifugal force field with tens to hundreds of times acceleration of gravity.
According to its different application, it can be divided into grinding classification hydrocyclone, untrafine classification hydrocyclone, desliming hydrocyclone, concentrated hydrocyclone and so on.

Specification

item	value
Condition	New
Applicable Industries	Energy & Mining, gold washing and refining, water filter
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location	None
Showroom Location	Russia
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2022
Warranty of core components	6 months
Core Components	lining
Place of Origin	China
	Shandong
Brand Name	TONGGE
Warranty	1 Year
After-sales Service Provided	Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Weight (KG)	4 kg
Application field	waste water, power plant, laboratory

Application Field

This hydrocyclone type is applied in metallic mining plant, it generally used for gold washing and refining, sand washing, crude ore desliming,tailing concentration and so on.

Product Advantages

High temperature resistance, corrosion resistance, and high abrasion resistance.

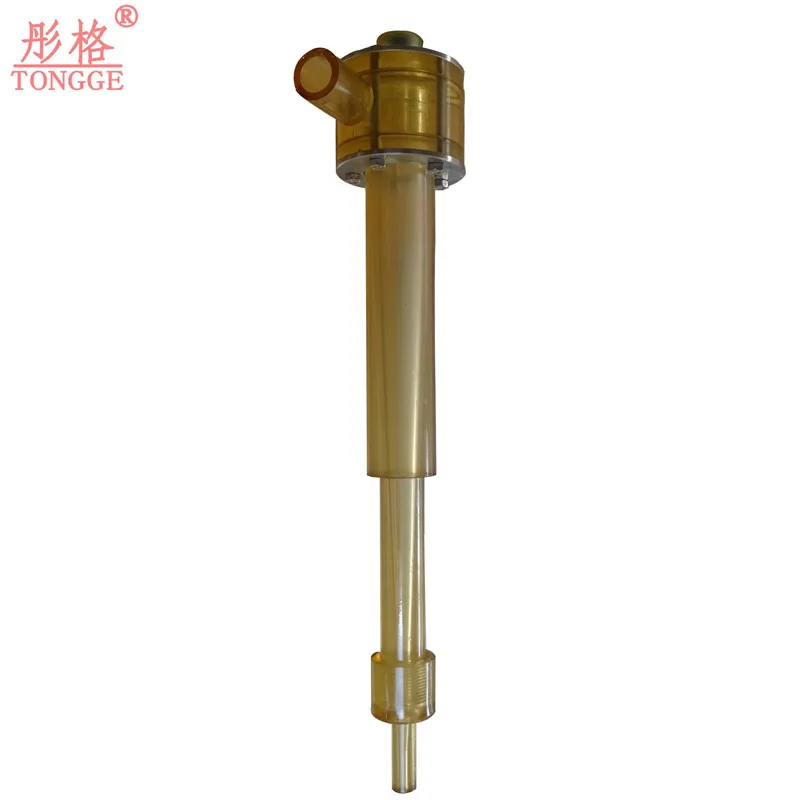

This polyurethane liner is one-step molding, so the surface of hydrocyclone is smooth and it has stable dimension, good classification effect and service life.

Working Principle

The working principle of the cyclone is mainly centrifugal sedimentation. When the two-phase (or three-phase) mixture to be separated enters the cyclone at a certain pressure from the feeding port of the cyclone, a strong three-dimensional elliptical strong rotating shear is generated. Cut turbulent motion. Due to the different density of the particles, the centrifugal force, centripetal buoyancy, and fluid drag force are different. Due to centrifugal sedimentation, most of the coarse particles (or heavy phases) are discharged through the cyclone bottom outlet, and most of the fine particles ( Or light phase) discharged from the overflow pipe to achieve separation and classification

Packing & Shipping

Ways of Packing

1. Small parts packed in polywood case

2. Big parts are wrapped in film

3. The whole big machine is loaded in the container directly

Shipping by sea, air, courier or others according to customer's requirement

Company Profile

Company Information

Weihai Tongge Technology Co.,Ltd established in 1992, is engaged in research, manufacture and sale of hydrocyclone and high performance polyurethane products for about 30 years. The company was certified the Quality System Certification of GB/T 19001:2008-- ISO 9001:2015 Standard.

Our products are easy to operate, they are widely used in the mining, coal, electricity, chemical industry, machinery, and environmental protection and so on, and also exported to more than 20 countries including USA, Netherlands, Russia, Malaysia, Brazil, Australia and so on.

Our Company

Our Customers

Our Certificate

FAQ

Q: Are the samples free of charge?
A: Yes, all samples are free of charge. If you need the sample which is bigger than our prepared sample, a little of fee will be needed. And the sample fee will be returned as soon as the order placed.
Q: How about the payment terms?
A: 30% in advance as deposit by T/T, the balance payment before the shipment.
Q: What is the delivery time?
A: It is according to your quantity, normally 10 to 20 days;
Q: How about after sale service?
A: Every product will be inspected strictly before delivery. We'll in charge of all losses if there is any quality problem.
