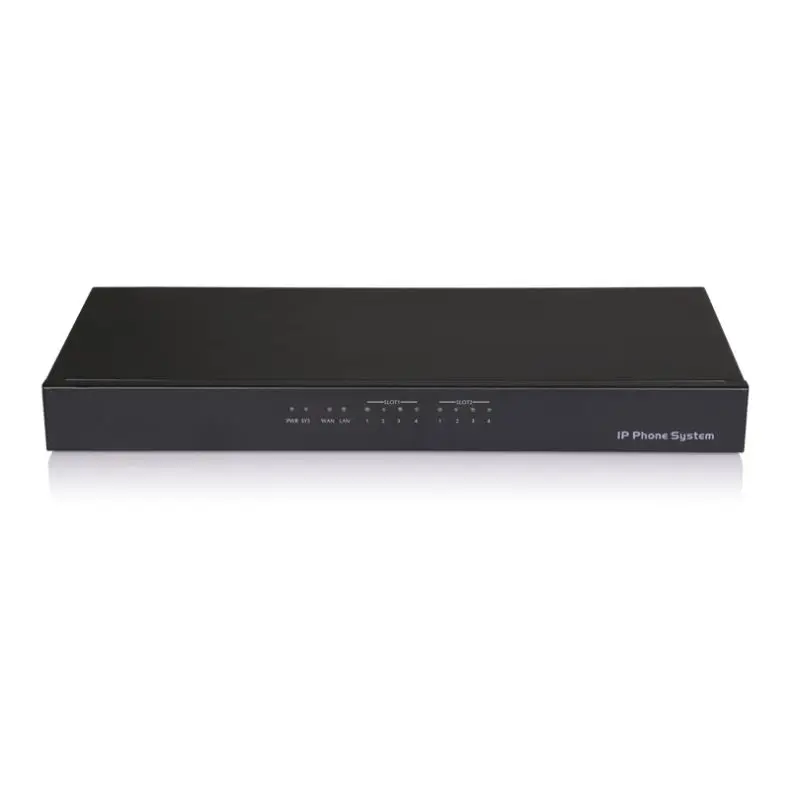

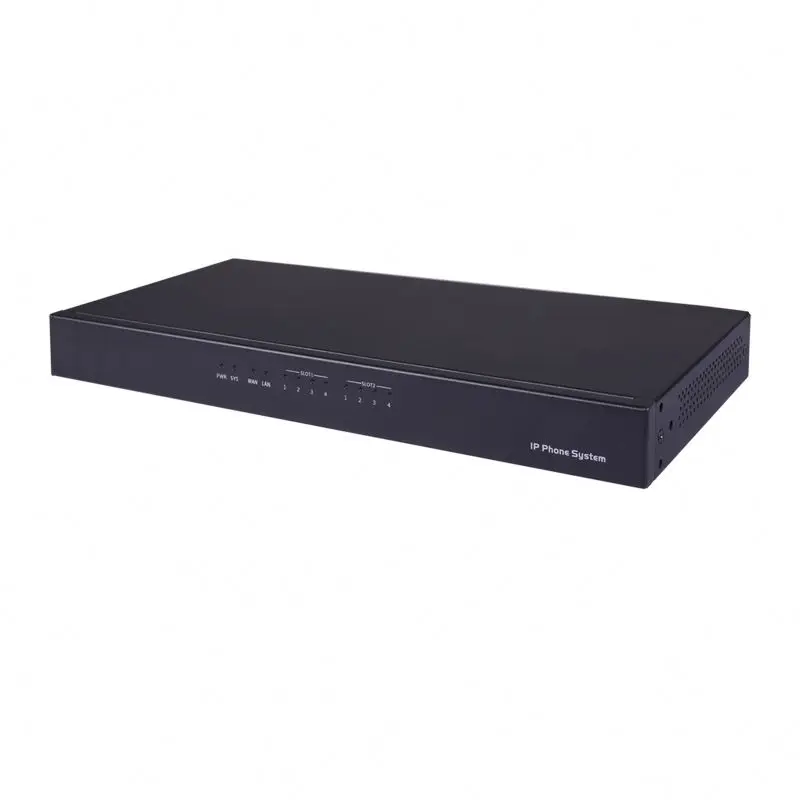

SIP модульный VOIP PBX 100 SIP-пользователь 20 одновременных вызовов IP с портом FXS


Поделиться:


Цена:280,00 $ - 300,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 333.70 $* 350.84 $*
Aug-16-2025 330.57 $* 347.12 $*
Jul-16-2025 277.64 $* 291.84 $*
Jun-16-2025 325.20 $* 341.62 $*
May-16-2025 283.41 $* 297.40 $*
Apr-16-2025 319.61 $* 335.79 $*
Mar-16-2025 316.22 $* 332.39 $*
Feb-16-2025 314.55 $* 330.28 $*
Jan-16-2025 311.5 $* 327.43 $*

Характеристики





Product Description

Product Description































Product Name


IP PBX


Material


Stainless Steel


SIP user


100


FXO


4


FXS


4


Concurrent Calls


30
















IP Phone System is a next-generation smart IP PBX System designed andoptimized for today’s business telecommunication needs. IP PhoneSystem is an affordable, scalable, interoperable, secure and reliablesolution which provides not only traditional PBX features such asAutomated Attendant and Voicemail, but also many advanced featuresincluding Remote Extensions, Conference Bridge, Call Recording, CallDetail Records (CDR), Automatic Call Distribution (ACD), Web Dial,Unified Messaging (Voicemail to Email), and many more features.











Product Function

Product Function



















































































Call Features


PBX Features


Call Back


Black List


Call Forward


BLF (Busy Lamp Field)


Call Hold


CDR (Call Detailed Record)


Call Paging and Intercom


Conference Room (20 Rooms)


Call Park


Call Monitoring


Call Pickup


DID (Direct Inward Dialing Number)


Call Queue


DISA (Direct Inward System Access)


Call Recording


Distinctive Ringtone


Call Routing


DND (Do Not Disturb)


Blind Transfer


DNIS (Dialed Number Identification Service)


Attendant Transfer


Feature Codes


Call Waiting


FOP (Flash Operation Panel) Status Monitoring


One Number Stations


Follow Me


Caller ID


IVR (Interactive Voice Responses)


Dial by Name


Mobility Extension


Music On Hold/Transfer


Multi-Language Prompts


3-Way Conference


Multi-Language GUI


Video Call


One Touch Recording























































































System Capacities


Codecs & Protocols


Network Features


Security Features


Logs


30 Concurrent Calls


Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/G.726/G.729/GSM/SPEEX


DDNS Client


Refuse SIP Register DoS


PBX Log


Up to 100 IP Phone Registers/Extensions


Video Codecs: H.261/H.263/H.263+/H.264


DHCP Server


Refuse Abort Invite DoS


Web Access Log


Recording: 21,000 mins (.gsm); 3,000 mins (.wav)


Protocols: SIP (RFC3261)/IAX2


IPv4/IPv6/IEEE802.1Q


Refuse SSH Login DoS


PBX Debug Log


Voicemail: 21,000 mins (.gsm); 3,000 mins (.wav)


DTMF: RFC2833/SIP INFO/In-Band


IP Assignment (PPPoE/DHCP/Static)


Firewall



SNMP v1/v2



TR069



Static Route Table



Trouble Shooting (Ping/Traceroute)



VPN Client (N2N/L2TP/PPTP/OpenVPN/IPSec)



VPN Server (PPTP/L2TP/OpenVPN/IPSec)

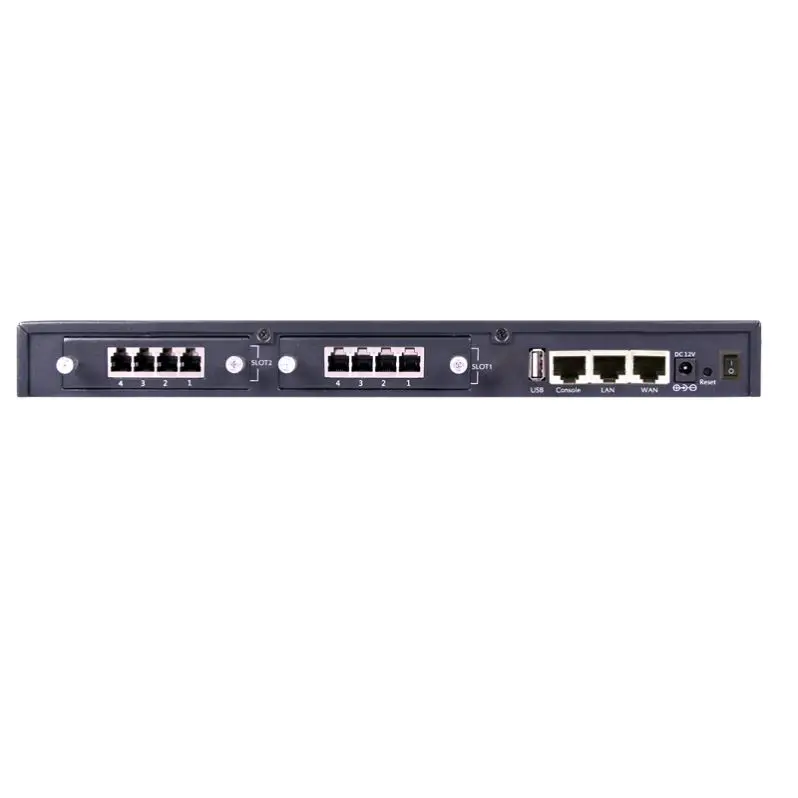

Hardware Interfaces


Hardware Specifications


Environment


Packings


1 Reset Button


Processor: DualCore 500MHz DSP


Working Temperature: 0 ~ 40°C


Dimension: 410 × 220 × 85mm


1 Power Interface


SDRAM: DDR2 256MB


Storage Temperature: -20 ~ 55°C


Weight/Unit: 2.2kg


1 Ethernet Interfaces(WAN/LAN)


Storage: 4GB SD Card


Humidity: 5 ~ 95% Non-condensing


Unit/Carton: 6 Units


1 Console Interface


Power Supply: Input AC 100~240V, 50/60Hz; Output Direct Current 12V/2A


Weight/Carton: 13.5kg


1 USB Interface



1 Console Port



1 Interface for Optional Hardware Echo Cancellation Module



1 Interface for Optional UMTS Module



Slot 1 for Analog/GSM/PRI/BRI Module



Slot 2 for Analog/GSM Module








Packing&Shipping

Packing&Shipping






* To meet the needs of long-distance transportation, repeated handling and storage

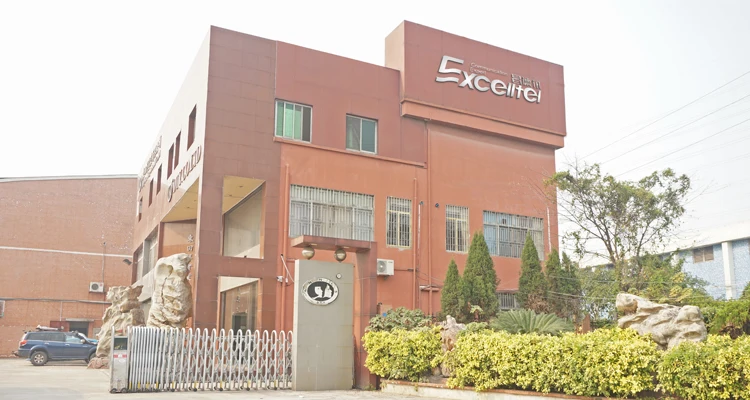

Company Introduction

Company Introduction






Excelltel Tech Co Ltd,a professional PABX designer and manufacturer in China. We work in PABX field over 15 years and our core business cover from R & D, production and marketing of different types of PABX. Our PBX range multiple levels, including small & simple PABX, hotel PBX, GSM wireless PBX, Key phone hybrid PBX, large digital PBX etc... the C.O line range from 1-16, extension range from 6-128. We also provide PBX accessories, like key phone, analog caller ID phone, headset phone, door phone, recording system etc...Till now Excelltel PABX already been exported to over 50 countries and won good reputation.

All of our PABX is originally designed by ourselves, SMT technology, our factory plant area is around 3000 sqm, 100 workers and office staff. We have an excellent R&D team, most of whom work in telecommunication field over 15 years. We make OEM/ODM for many oversea buyers and China dealers.
